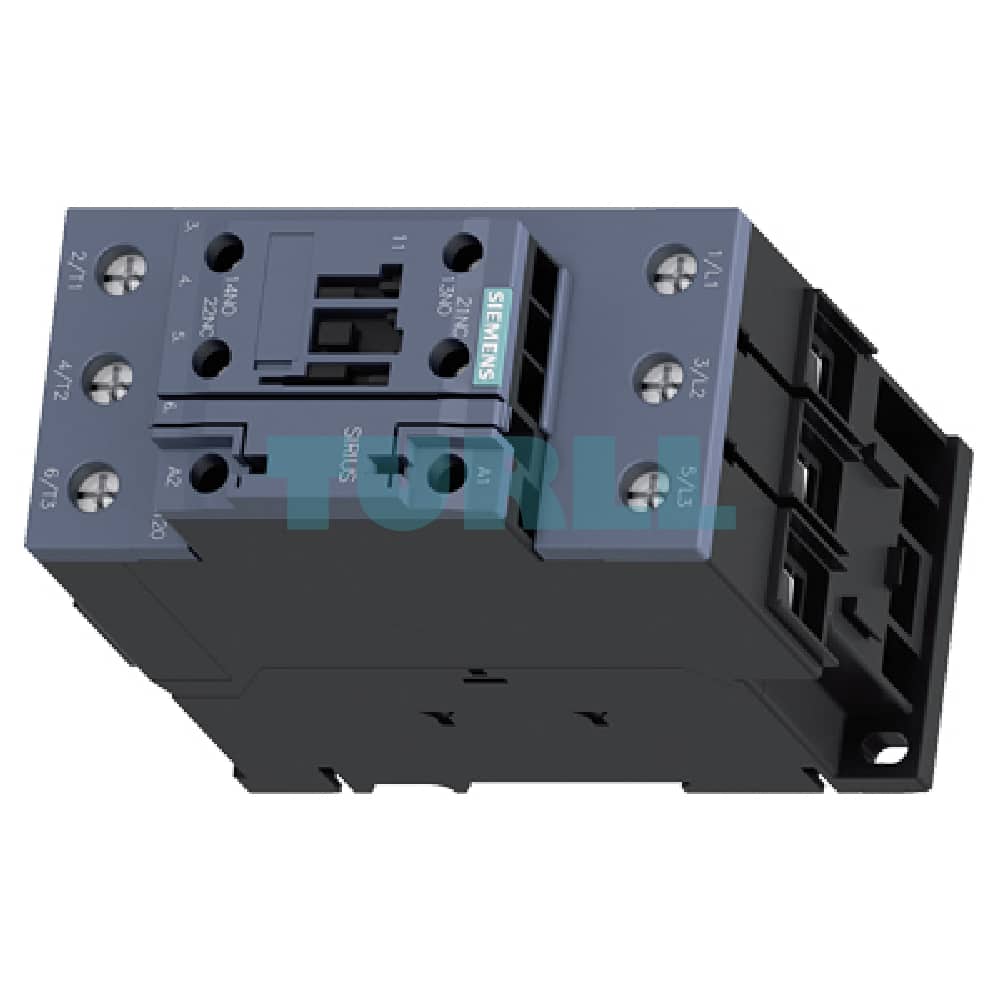

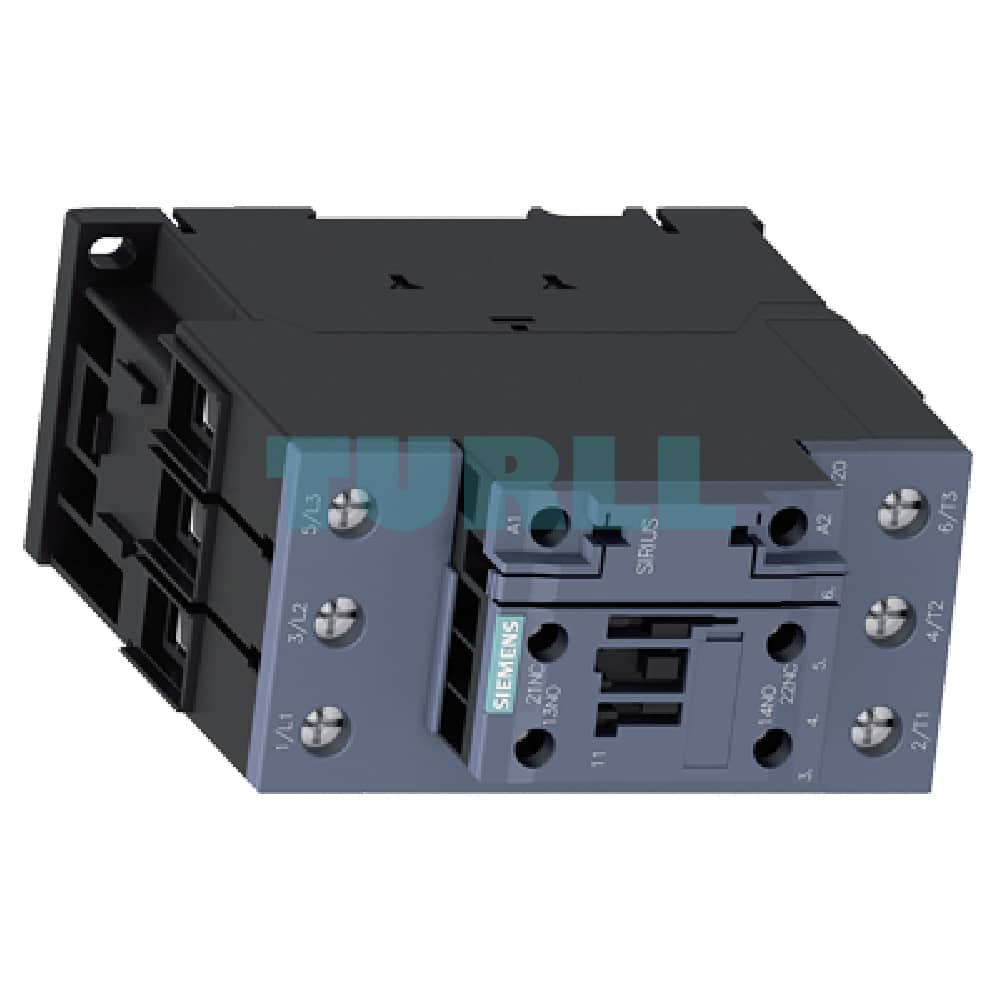

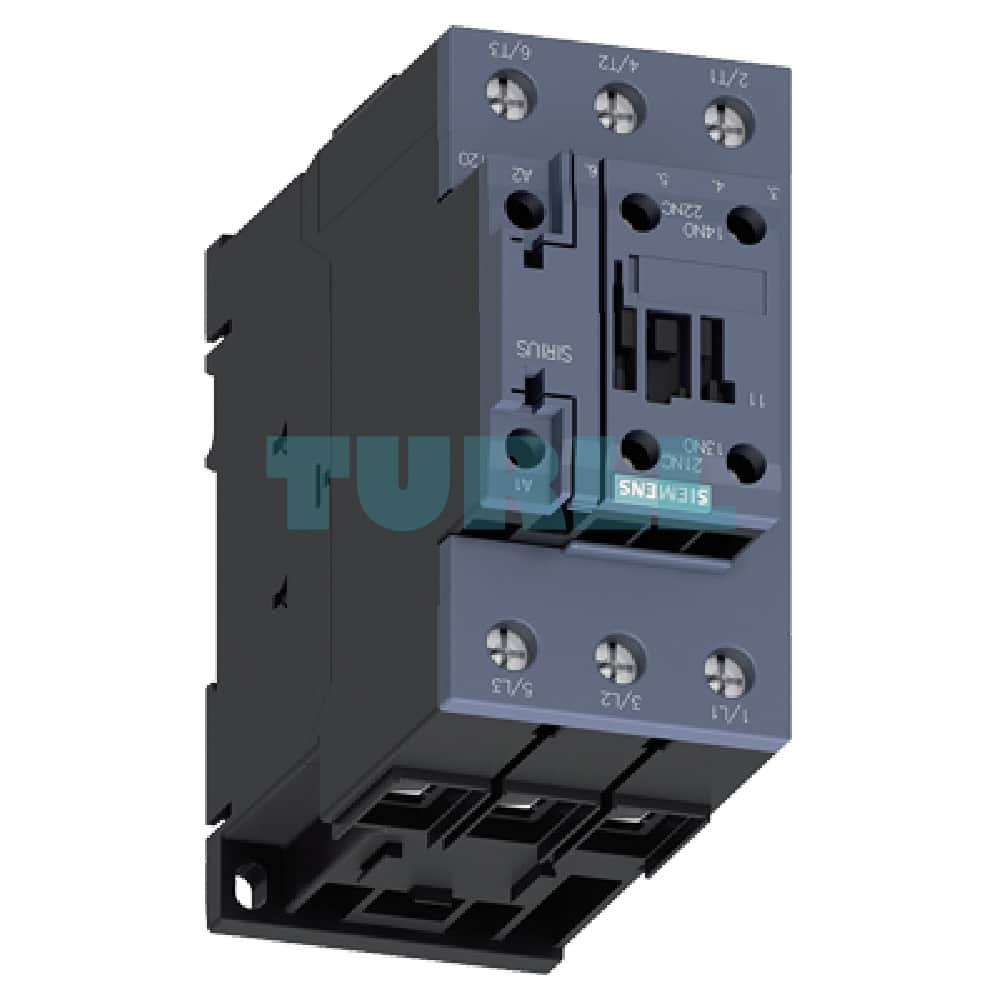

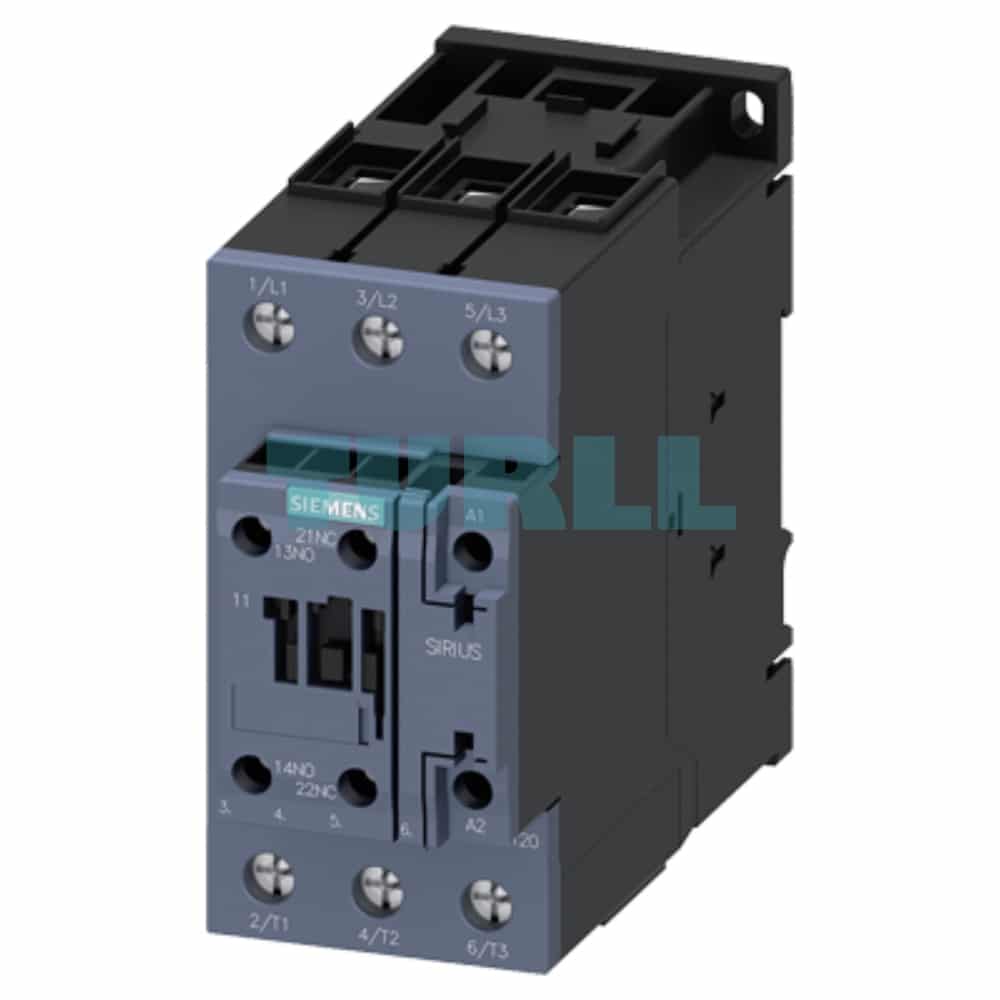

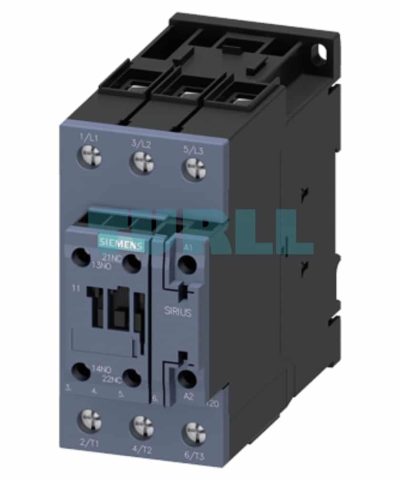

Siemens 3RT2036-1AP60 Contactor 51A, 22kW, 220/240V AC, S2 Original Brand New

Overview

The Siemens 3RT2036-1AP60 is a high-performance, 3-pole power contactor from the globally recognized SIRIUS 3RT20 series, engineered for reliable switching of motors and other demanding loads. Classified for both AC-3 and AC-3e efficiency classes, this robust Size S2 contactor is the ideal solution for modern industrial control applications requiring high operational reliability and compact design.

Key Specification

• Product Number: 3RT2036-1AP60
• Contactor Series: SIRIUS 3RT20
• Size: S2
• Main Contact Rating (AC-3e/AC-3): 51 A
• Motor Power Rating: 22 kW at 400 V
• Poles: 3-Pole
• Coil Voltage (Operating Mechanism): 220 V AC (50 Hz) / 240 V AC (60 Hz)
• Auxiliary Contacts Integrated: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Main Connection Type: Screw Terminal
• Country of Origin: Germany

Benefits & Advantages

1. High Reliability: Part of the SIRIUS family, known for exceptional contact reliability, prolonged mechanical service life (typically 10 million operating cycles), and tested suitability for worldwide use in various climates.
2. Space Optimization (Compact Design): The Size S2 frame offers a high power-to-size ratio, allowing for increased packing density in control cabinets.
3. Integrated Auxiliary Contacts: Comes standard with 1 NO and 1 NC auxiliary contact integrated into the basic unit, simplifying wiring and reducing the need for additional components for basic control functions.
4. Universal AC Coil: The 220 V AC, 50 Hz / 240 V AC, 60 Hz coil is designed for global use with common line frequencies.
5. Safety & Compliance: Features finger-safe design (IP20 on the front) and is compliant with all major international standards (IEC, UL, CSA, etc.), ensuring safe and certified operation.
6. Easy Expansion: Compatible with a wide range of SIRIUS 3RT2 auxiliary switch blocks, overload relays (3RU21 thermal or 3RB30 solid-state), and function modules for easy system expansion and motor protection.
7. Robust Terminals: Secure and reliable screw terminals for main and auxiliary circuits ensure long-term, stable electrical connections.

Function

The Siemens 3RT2036-1AP60 serves as a power contactor designed to magnetically switch high-current three-phase electrical loads, primarily induction motors.

• Motor Switching: Safely connects and disconnects the main power circuit to a motor up to $22\text{ kW}$ (at $400\text{ V}$) or $51\text{ A}$ (AC-3/AC-3e rated current) under normal operating conditions.
• Control Integration: The coil is energized by a $220\text{ V}/240\text{ V AC}$ control voltage, which closes the three main poles (3 NO contacts).
• Signaling/Interlocking: The integrated $1\text{ NO}+1\text{ NC}$ auxiliary contacts provide status feedback and are used for interlocking and signaling within the control circuit.
