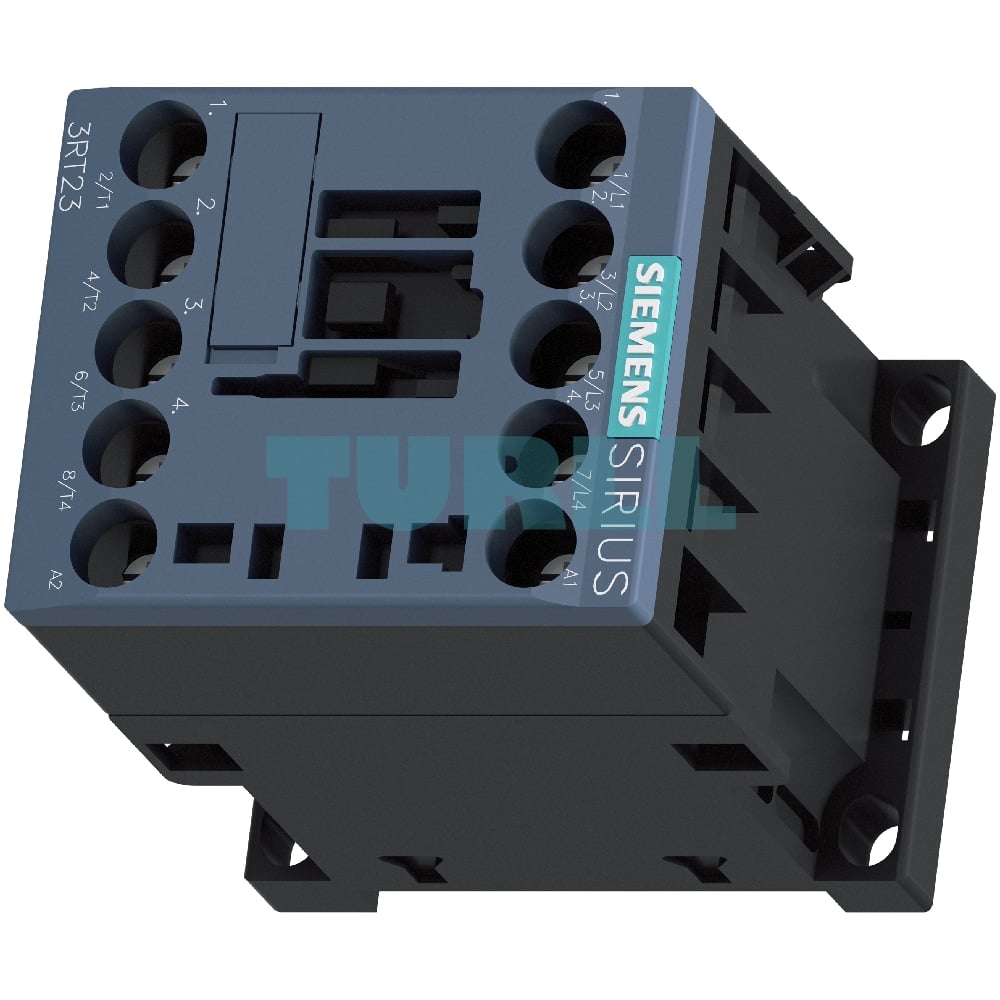

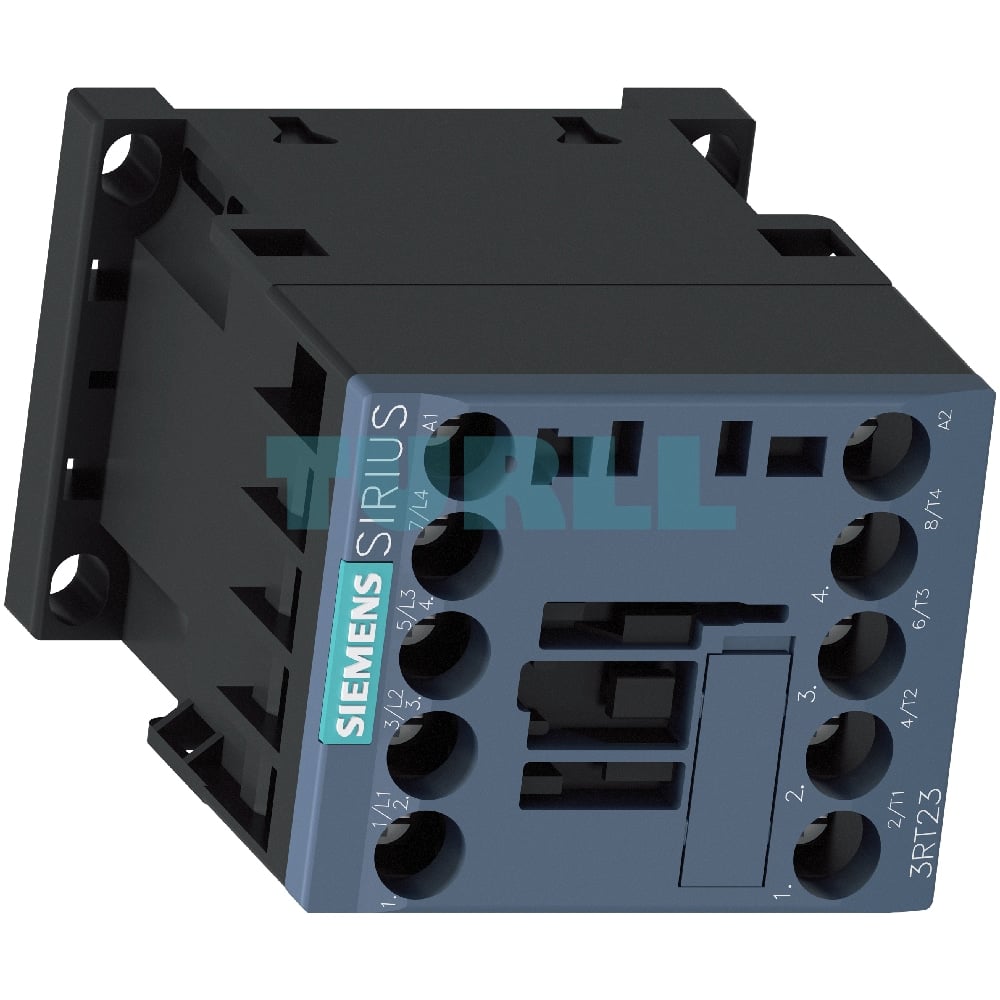

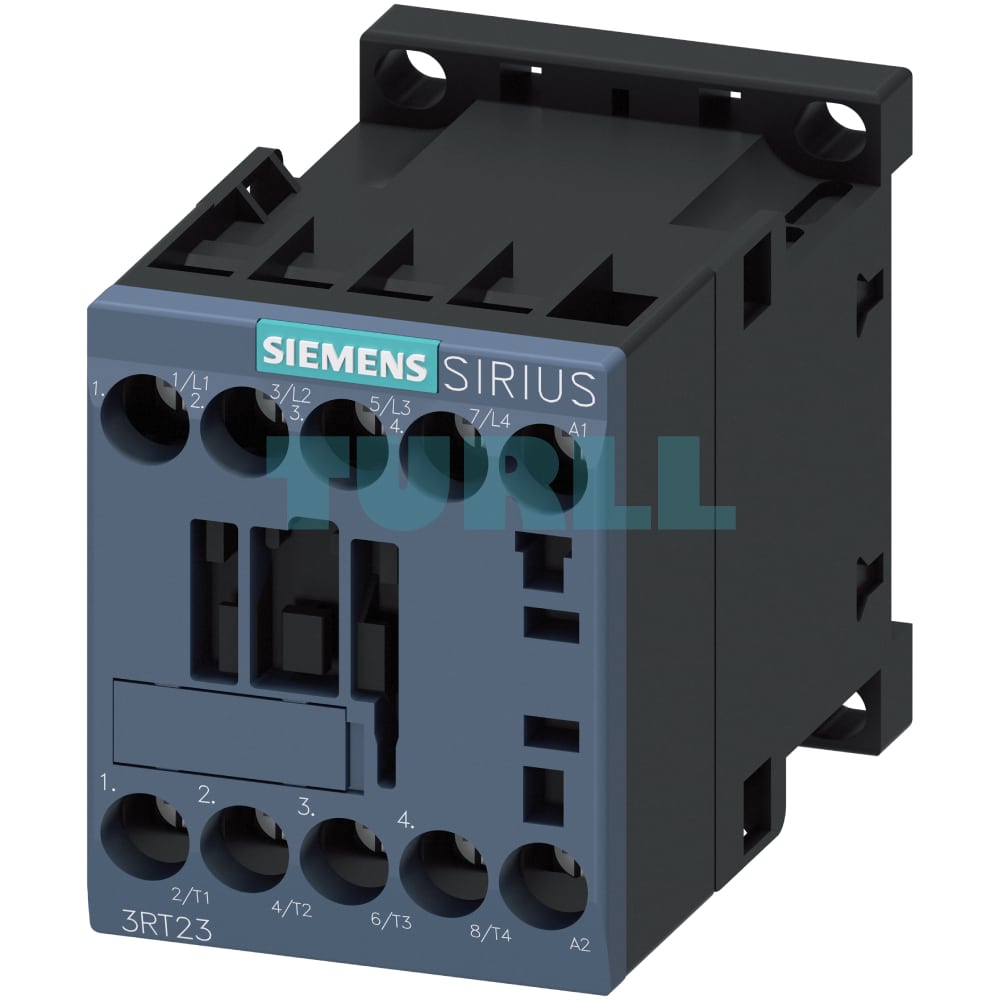

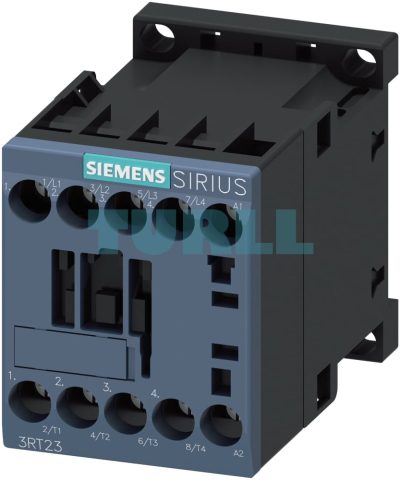

Siemens SIRIUS 3RT2317-1AP60 Contactor 4-Pole AC-1, 22A, 220V/240V Coil, Screw Terminal, S00 Original Brand New

Overview

The Siemens SIRIUS 3RT2317-1AP60 is a high-performance 4-pole contactor designed for reliable switching of weak or non-inductive loads (AC-1) in industrial applications. Part of the trusted Siemens SIRIUS 3RT2 series, this robust contactor offers exceptional durability and flexibility for a wide range of control and power switching tasks. With a rated current of 22 A at 400 V / 40 °C and a versatile 220 V AC (50 Hz) / 240 V AC (60 Hz) control supply voltage, it's an ideal choice for disconnecting loads, power generation plants, and transfer switching applications. Its compact S00 size and convenient screw terminals simplify installation and maintenance.

Features & Function

• 4-Pole Design: Enables the switching of four separate circuits simultaneously, perfect for multi-phase or complex load control.
• AC-1 Category: Optimized for switching non-inductive or slightly inductive loads, such as resistance furnaces, heaters, and distribution circuits.
• High Current Rating: Rated at 22 A for reliable performance in demanding AC-1 applications.
• Versatile Coil Voltage: Operates with both 220 V AC (50 Hz) and 240 V AC (60 Hz) control supply voltages, offering global compatibility.
• Screw Terminals: Provides secure and straightforward wiring connections for main and control circuits.
• Compact S00 Size: Space-saving design for efficient panel layouts.
• Integrated Auxiliary Contact: The basic unit includes one integrated auxiliary contact (1 NO) for enhanced control and signaling.
• Standards Compliance: Manufactured and tested in accordance with IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 (for auxiliary switches), ensuring high quality and safety.
• Electromagnetic Compatibility (EMC): Fulfills requirements for environment category A, ensuring reliable operation in industrial environments.
• Expandable Design: Can be expanded with additional auxiliary switches (sold separately) for greater flexibility.
• Surge Suppressor Retrofit: Can be retrofitted with RC elements, varistors, or diodes for damping opening surges in the coil (accessories sold separately).
• Motor Protection Compatibility: Seamlessly integrates with Siemens 3RU2 thermal overload relays or 3RB3 electronic overload relays for comprehensive motor protection (for AC-3 applications, refer to specific 3RT23 versions).

Benefit

• Reliable Performance: Built to Siemens' stringent quality standards, ensuring long-term operational stability and safety.
• Enhanced Control: The 4-pole configuration and integrated auxiliary contact provide greater control flexibility for diverse applications.
• Easy Installation: Screw terminals and compact design simplify wiring and panel integration, reducing installation time and costs.
• Global Compatibility: Wide range AC control voltage supports various international electrical systems.
• Versatile Applications: Ideal for a broad spectrum of AC-1 switching tasks, including lighting, heating, and general power distribution.
• System Integration: Designed to integrate seamlessly with other Siemens SIRIUS control components, offering a complete solution.
• Cost-Effective Maintenance: Replaceable solenoid coils (for 3RT233 versions, consult datasheet) help extend product lifespan and reduce replacement costs.
• Compliance & Safety: Adherence to international standards ensures safe and compliant operation in industrial environments.

Application

The Siemens 3RT2317-1AP60 contactor is ideally suited for:

• Four-pole switching of weak or non-inductive loads (AC-1).
• Disconnecting loads from the grid.
• Disconnecting power generation plants from the grid.
• Transfer switching applications.
• Control of resistance heaters.
• Lighting control systems.
• Distribution circuits.
• General industrial control panels.
