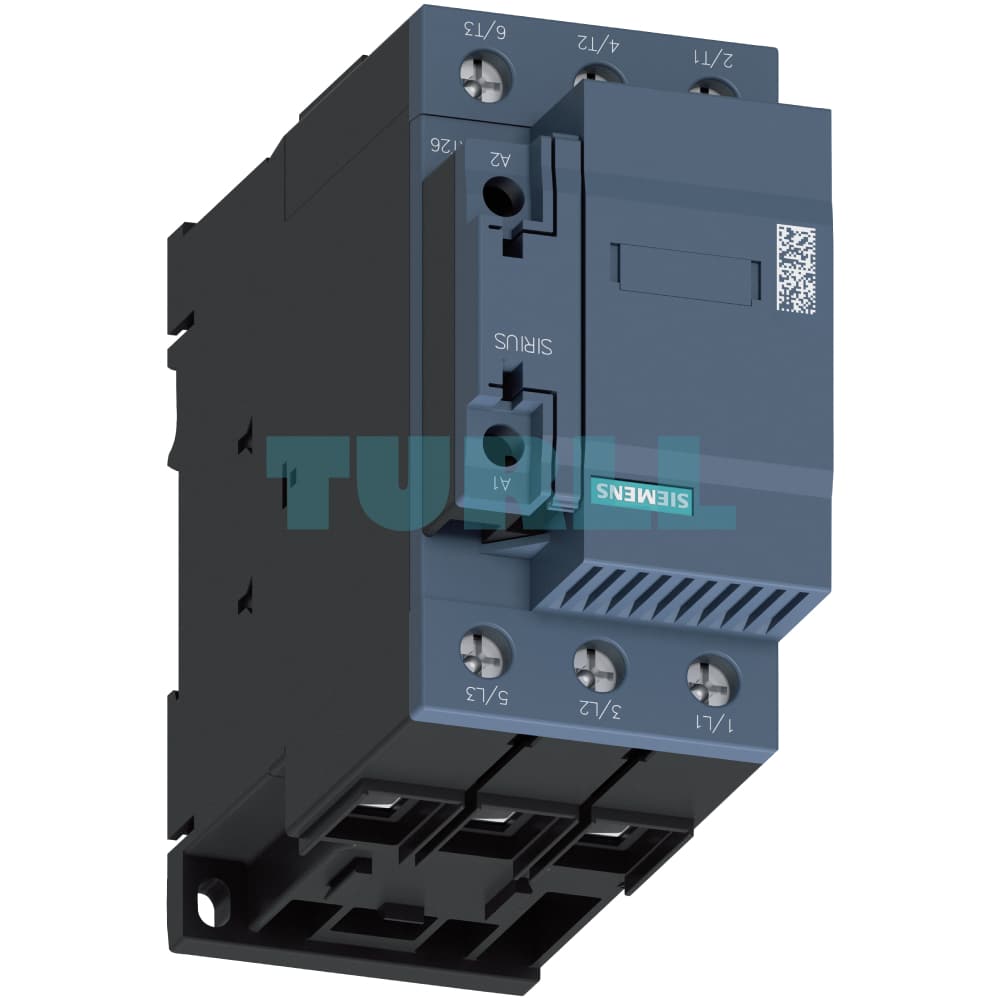

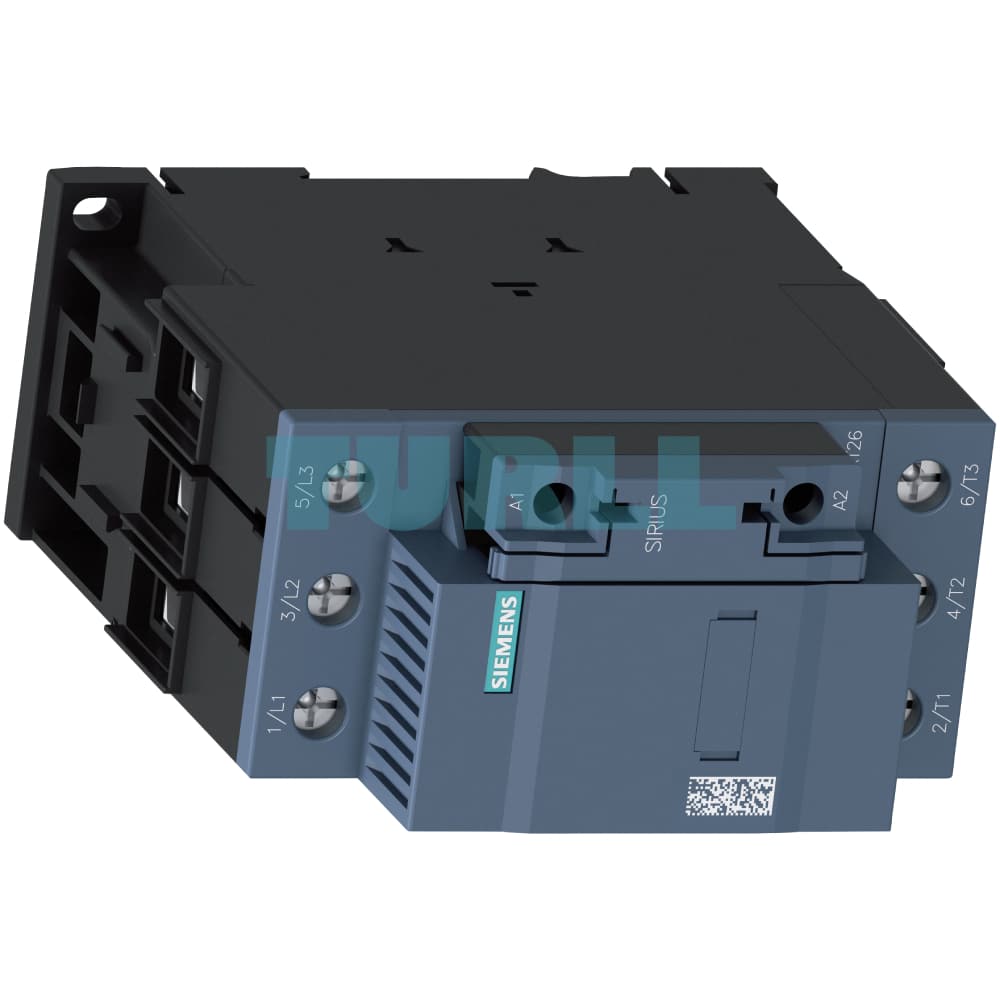

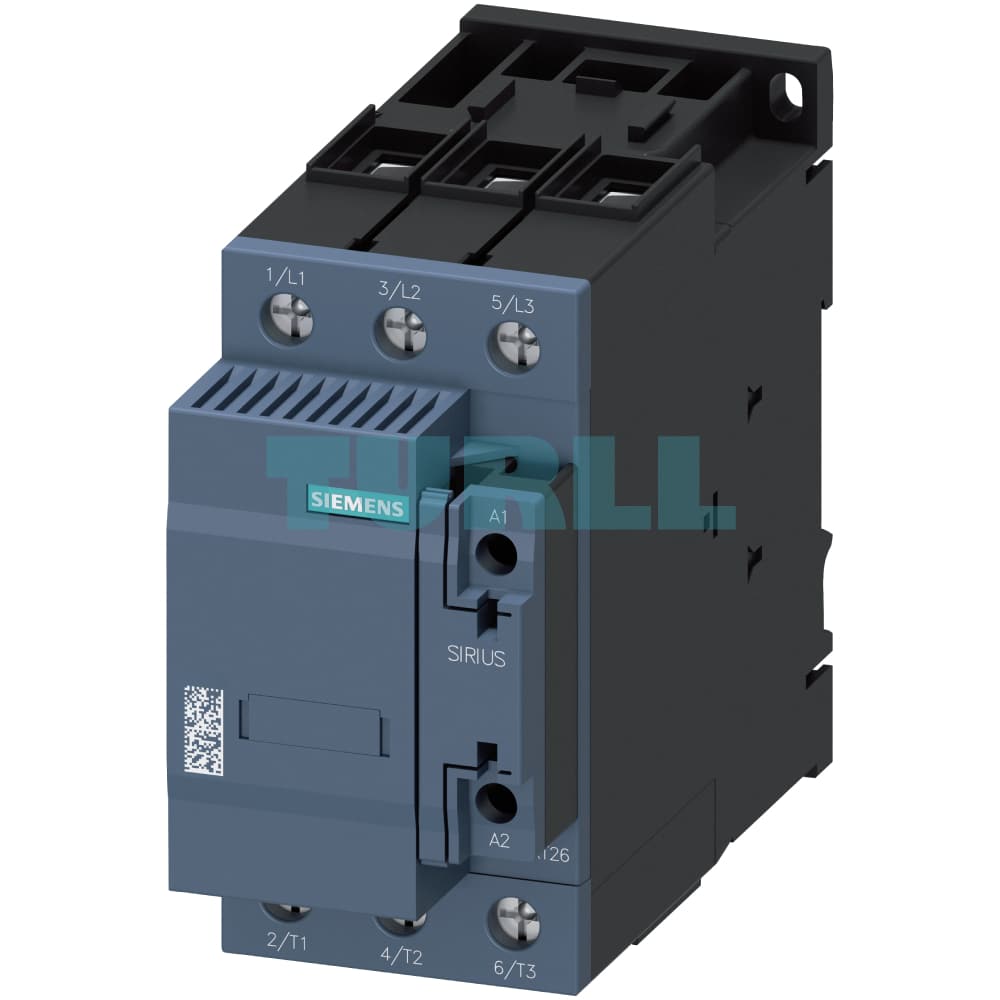

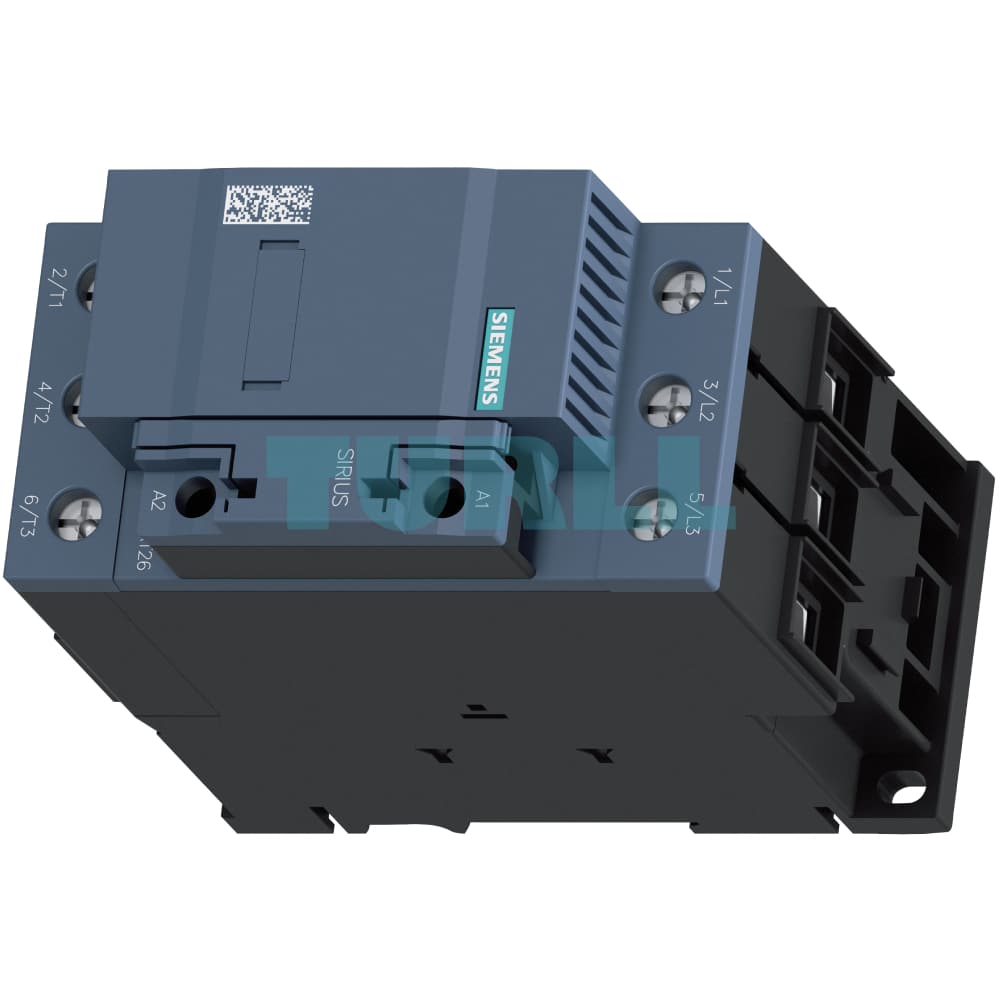

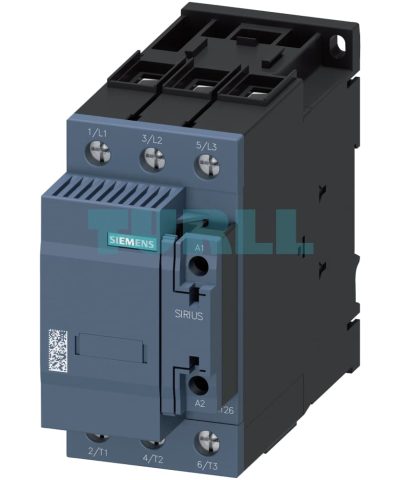

Siemens 3RT2637-1NB33 SIRIUS Capacitor Contactor, 75 kVAr, AC-6b, S2, 20-33V AC/DC, Screw Terminal Original Brand New

Overview

The Siemens 3RT2637-1NB33 SIRIUS capacitor contactor is a specialized and robust solution engineered for the efficient and reliable switching of capacitive loads. Designed to meet the stringent demands of AC-6b applications, this contactor is a vital component in reactive current compensation systems and for switching converters. With a powerful rating of 75 kVAr at 400V and a compact S2 size, it offers a perfect balance of performance and space efficiency.

Its intelligent design, which includes leading auxiliary contacts and precharging resistors, minimizes the high inrush currents typically associated with switching capacitors, thereby protecting the power supply network and extending the lifespan of your equipment.

Key Benefits:

• Optimized for Capacitive Loads: Specifically engineered to handle the high inrush currents of capacitors, preventing voltage sags and network disturbances.
• Protective Design: Precharging resistors, activated by leading auxiliary contacts, limit peak charging currents and protect both the contactor and the power system.
• Integrated Varistor: Provides reliable overvoltage protection for the control supply, enhancing the durability and reliability of the device.
• Versatile Control: Operates with a wide range of control voltages (20-33 V AC/DC), offering flexibility in system design.
• Easy Integration: Compact Size S2 and screw terminals simplify installation and wiring into existing control panels.
• High Reliability: Meets international standards (IEC 60947 series) ensuring a high degree of safety and performance.

Functionality and Features:

The Siemens 3RT2637-1NB33 functions by utilizing a unique mechanism for switching capacitors. The contactor’s leading auxiliary contacts engage first, activating precharging resistors. This circuit limits the initial high-current surge as the capacitor begins to charge. Following this, the main contacts close, bypassing the resistors and allowing the full current to flow. This sequential process significantly reduces electrical stress on the system.

The integrated varistor provides crucial protection against overvoltage spikes on the control coil, which can be caused by switching inductive loads or other electrical transients. The auxiliary contacts (1 NO + 1 NC) offer flexible options for status signaling and interlocking within a control circuit. The robust screw terminals ensure a secure and reliable electrical connection.

Protection and Safety:

• Short-Circuit and Overload Protection: The contactor connections must be protected using suitable measures. Refer to the technical product data sheet for specific recommendations on protecting main, auxiliary, and control circuits.
• Overvoltage Protection: The integrated varistor protects the control coil. For other contactor versions, surge suppressors (RC elements, diodes) can be added.
• Standards-Compliant: Conforms to a range of IEC standards, ensuring a safe and compliant product for industrial applications.
