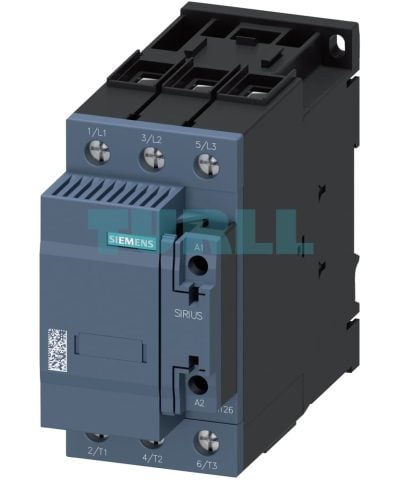

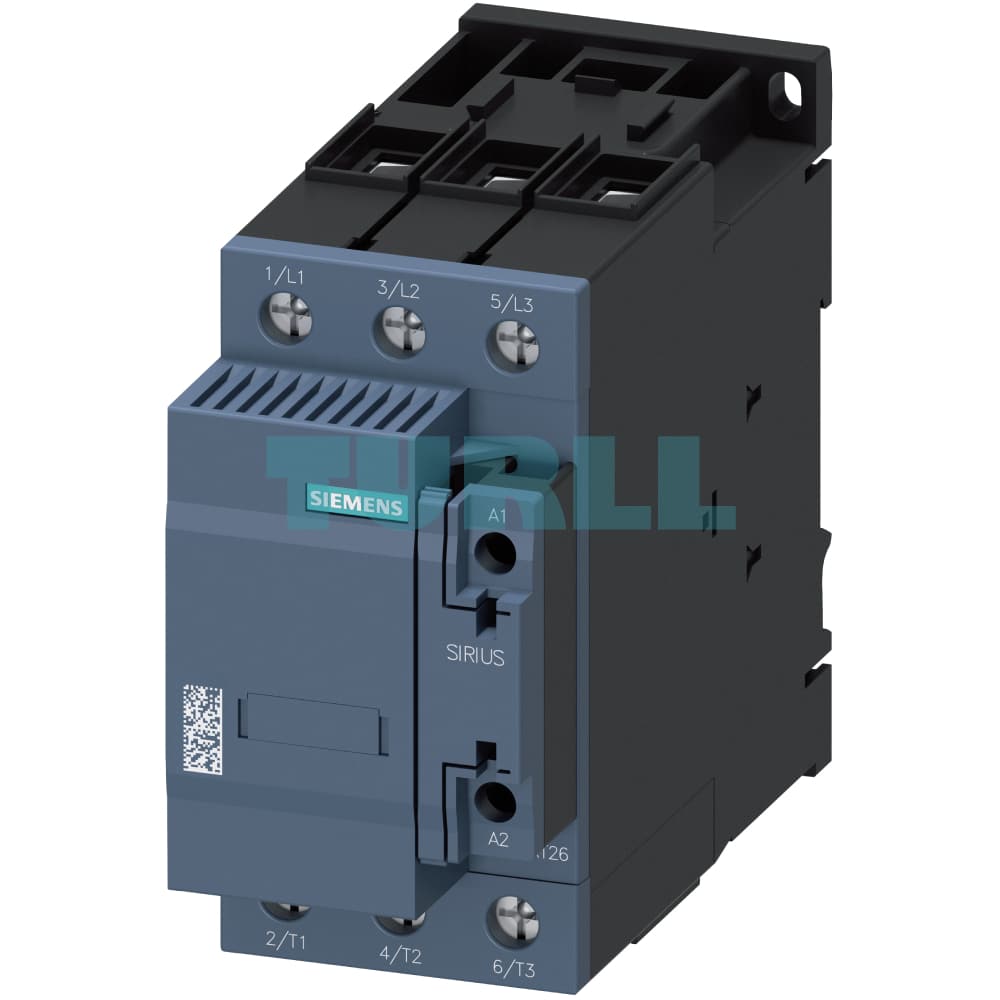

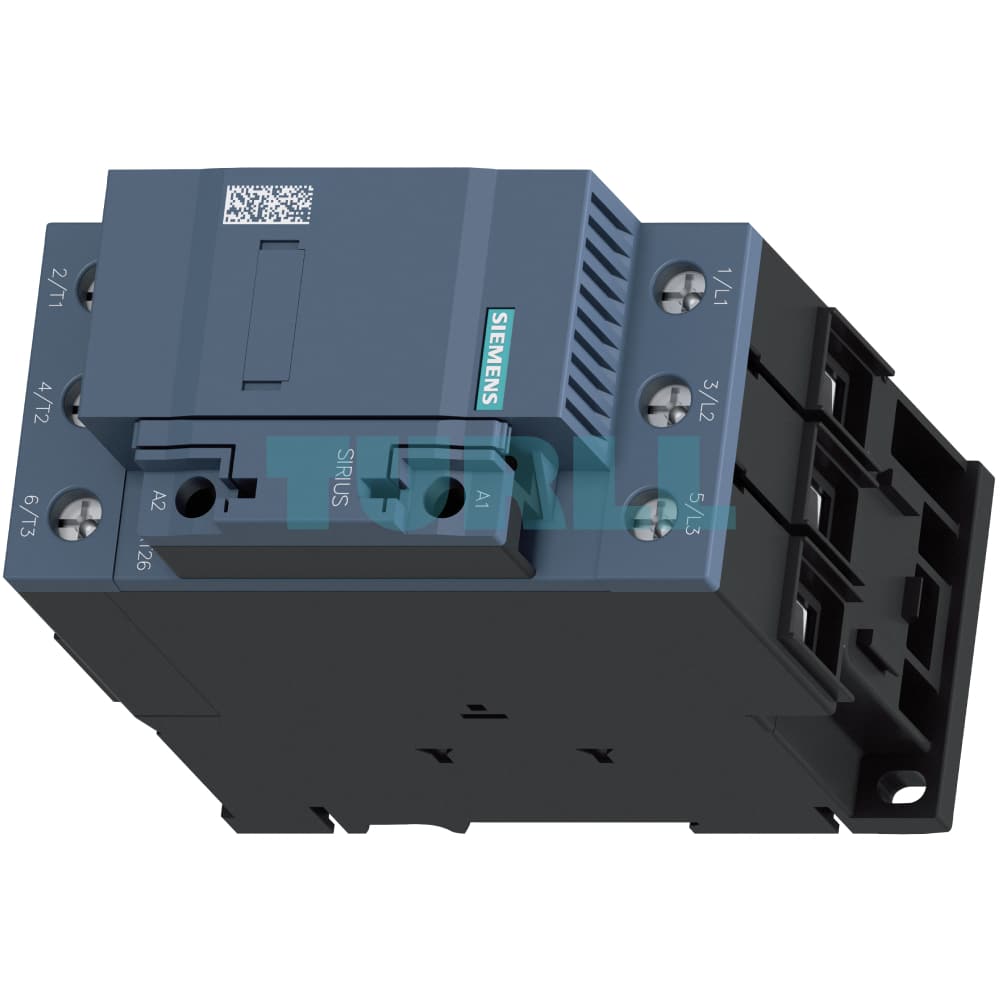

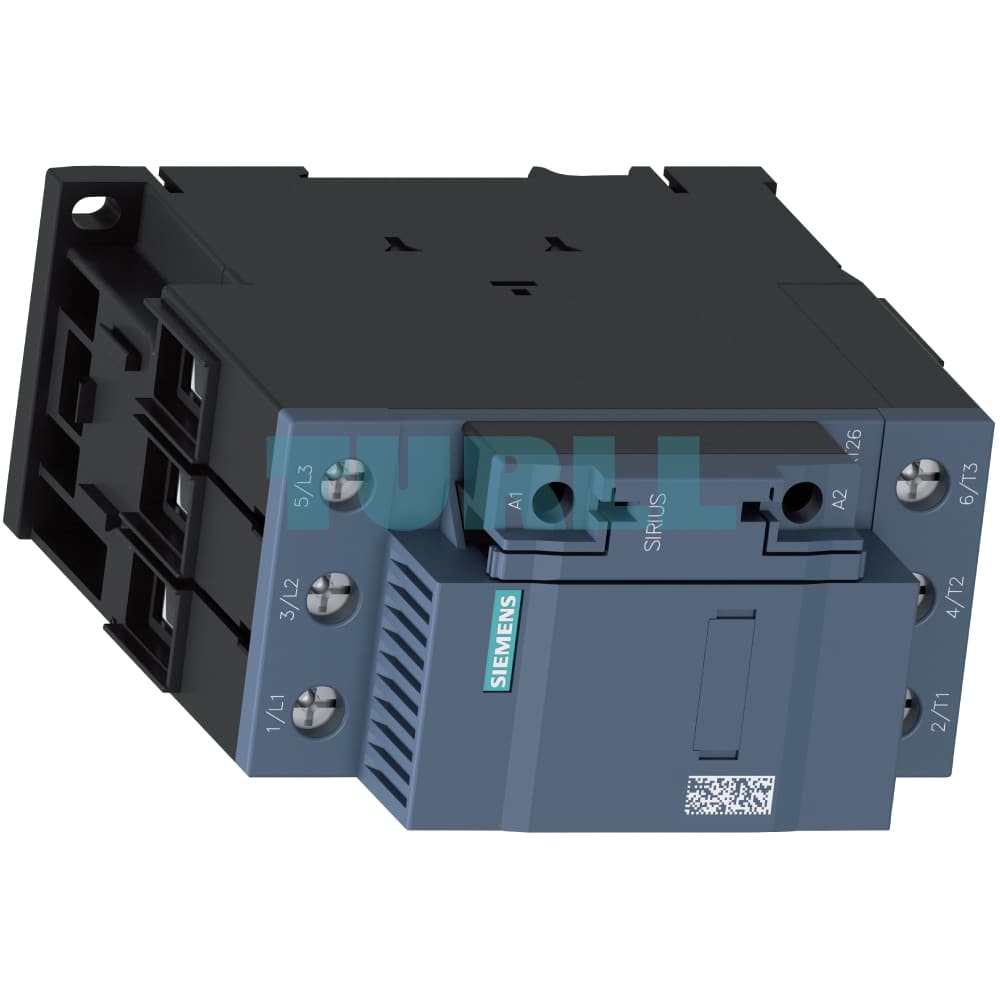

Siemens 3RT2645-1AP05 Capacitor Contactor 75 kVAr, 400V, 3-Pole, 2NC, S3 Size Original Brand New

Overview

The Siemens 3RT2645-1AP05 is a high-performance capacitor contactor designed for reliable and efficient switching of capacitive loads up to 75 kVAr at 400 V. As part of the SIRIUS 3RT2 series, this specialized contactor is engineered to handle the unique challenges of reactive current compensation and power factor correction systems.

Its key feature is the inclusion of integrated precharging resistors, which are engaged by leading auxiliary contacts. This innovative design effectively limits the high inrush currents associated with switching capacitors, thereby minimizing disturbances to the power supply and extending the lifespan of the equipment.

This 3-pole contactor operates with a 230 V AC, 50 Hz control voltage and comes equipped with two normally closed (2 NC) auxiliary contacts. The robust screw terminals ensure secure and reliable connections, while the compact Size S3 form factor makes it suitable for integration into various control panels and electrical cabinets.

The 3RT2645-1AP05 is a crucial component for any application requiring the safe and efficient switching of choked or unchoked capacitors.

Benefits

• Minimizes Inrush Current: Integrated precharging resistors limit peak charging currents, protecting the power network and connected equipment.
• Enhanced System Stability: Reduces network disturbances and voltage sags, leading to improved power quality.
• Extended Equipment Life: Protects capacitors, switches, and other components from the stress of high inrush currents.
• Reliable Performance: Built to IEC standards for dependable and safe operation in demanding industrial environments.
• Flexible Integration: The Size S3 design and screw terminals allow for easy installation and wiring in diverse applications.

Functions

• Capacitive Load Switching: Specifically designed for switching capacitive loads in accordance with the AC-6b utilization category.
• Reactive Power Compensation: Used in systems to improve power factor by switching capacitor banks on and off.
• Precharging Resistor Activation: Leading auxiliary contacts close first to bring precharging resistors into the circuit, limiting inrush current.
• Auxiliary Signaling: The 2 NC auxiliary contacts can be used for status indication, interlocks, and other control functions.
• Protection Integration: Designed for seamless integration with suitable short-circuit and overload protection devices.

Overview of Features

The Siemens 3RT2645-1AP05 capacitor contactor is a specialized device featuring an integrated design for switching capacitive loads. Its core functionality revolves around a series of precharging resistors that are briefly switched on via leading auxiliary contacts.

This process effectively dampens the high inrush currents typical of capacitor switching, a critical function for maintaining power quality and protecting equipment in reactive current compensation systems.

The contactor is fully compliant with a range of IEC standards, ensuring its quality and reliability. With its 2 NC auxiliary contacts, it offers flexibility for control and signaling purposes. The screw terminals provide a secure connection, and the option to add surge suppressors as accessories allows for further customization and protection of the coil.
