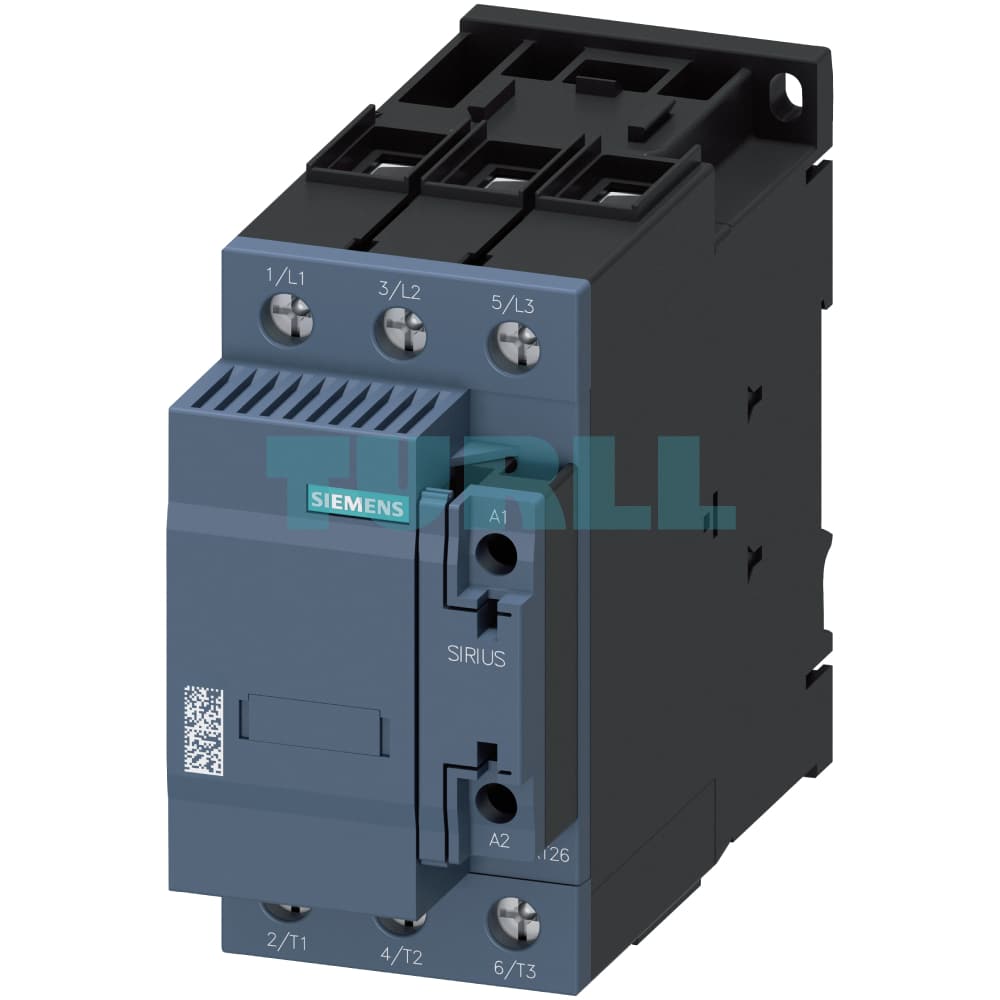

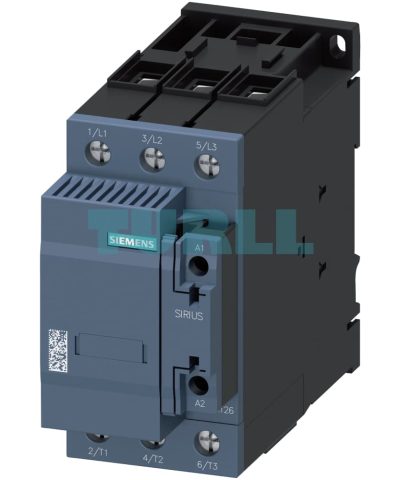

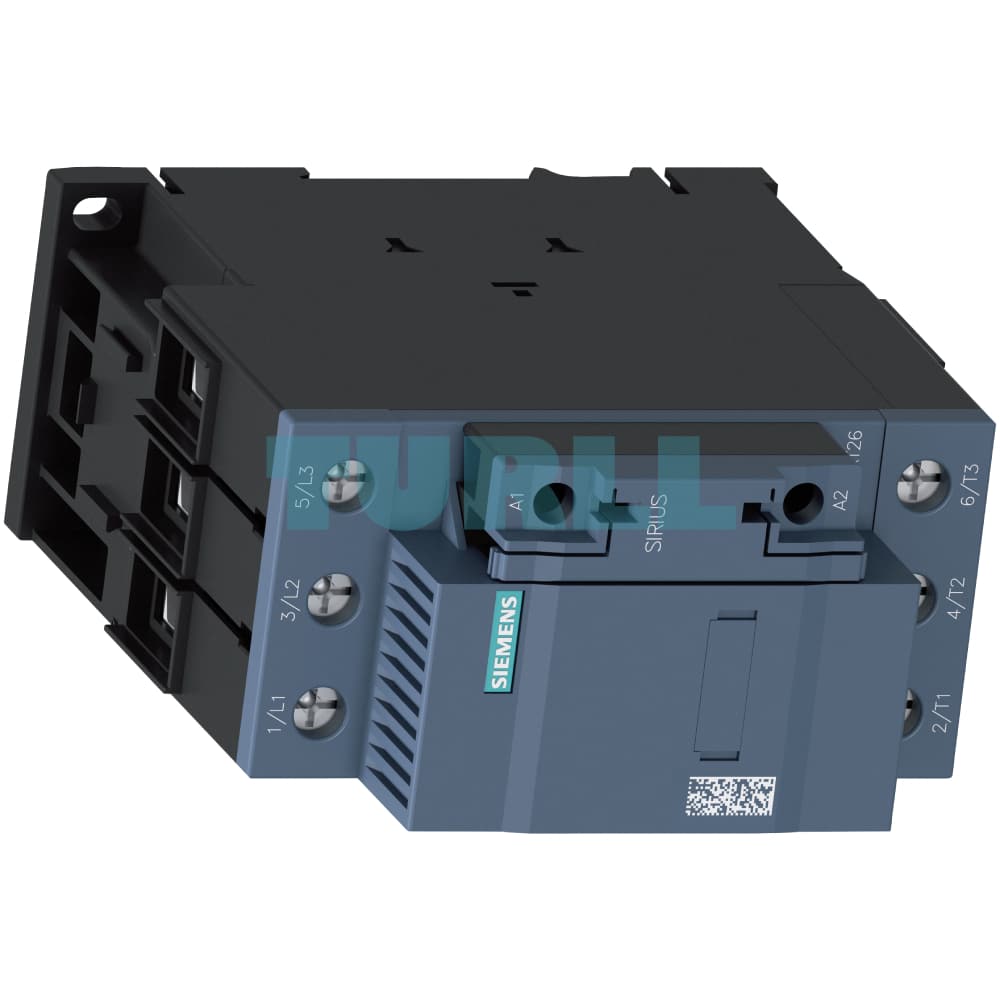

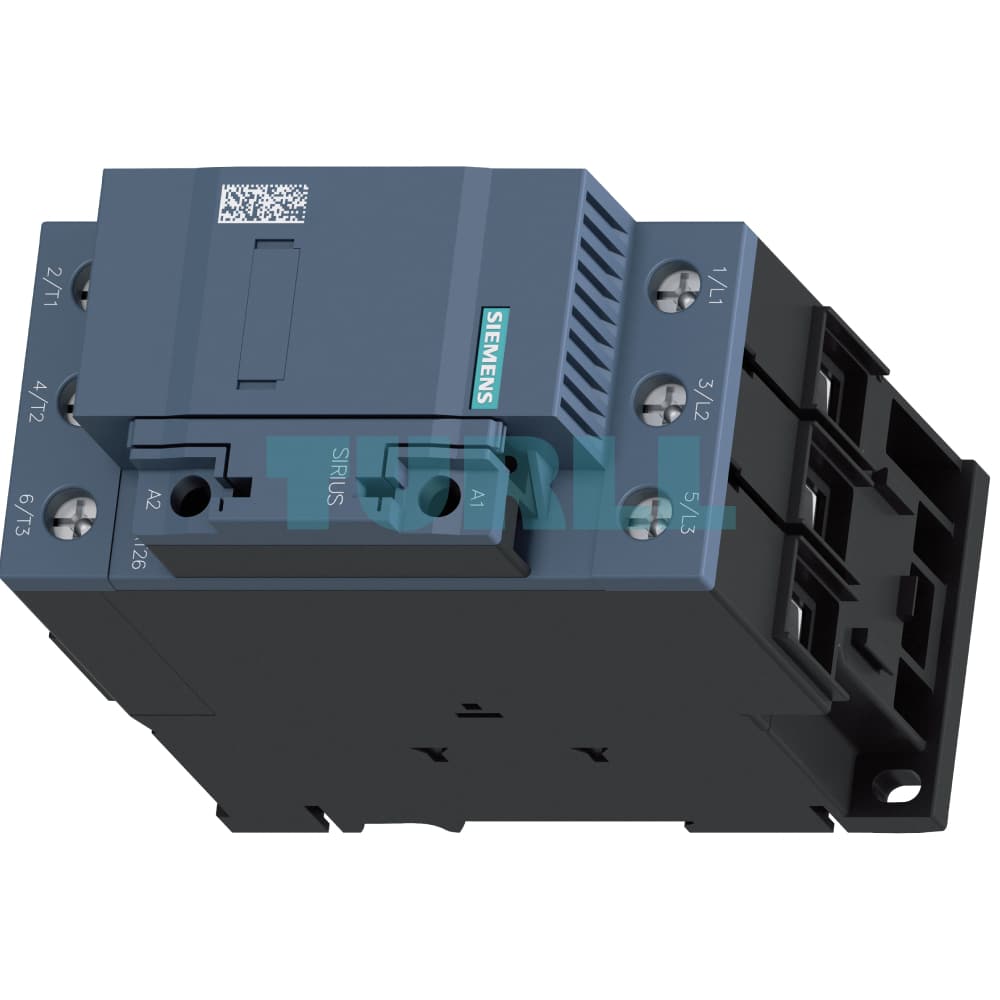

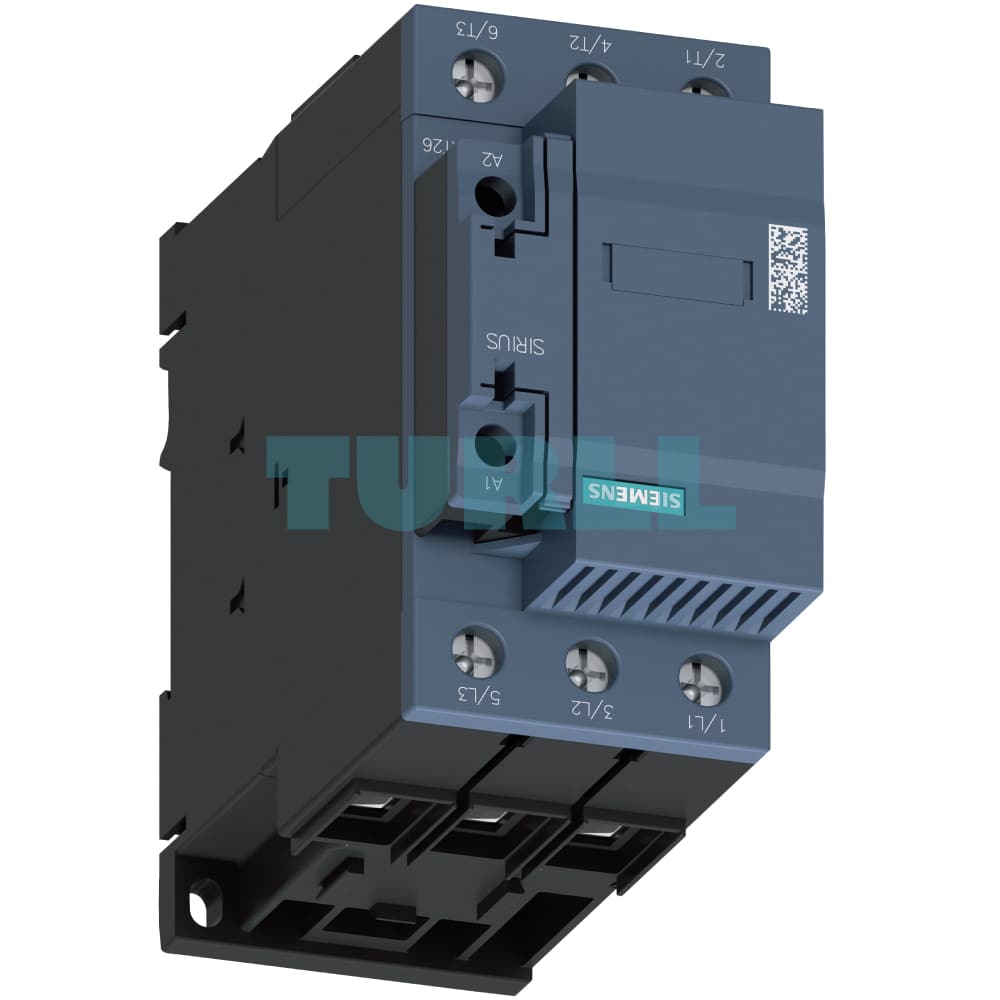

Siemens 3RT2646-1AB05 Capacitor Contactor, 100 kVAr, 400V, AC-6b, S3 Size Original Brand New

Overview:

The Siemens 3RT2646-1AB05 is a high-performance capacitor contactor designed specifically for switching capacitive loads in applications like reactive power compensation. As a specialized version of the popular 3RT2 series, this S3 size contactor is engineered to handle loads up to 100 kVAr at 400 V (AC-6b category). Its key feature is the integration of precharging resistors, which are engaged via leading auxiliary contacts to limit the inrush current, protecting both the contactor and the power supply network from damaging voltage surges and peaks. With a 24 V AC coil, 2 NC auxiliary contacts, and robust screw terminals, the 3RT2646-1AB05 provides a reliable and efficient solution for managing capacitive loads in demanding industrial environments.

Key Features & Benefits:

• Optimized for Capacitive Loads: The AC-6b category design is ideal for switching capacitors, including those in power factor correction systems.
• Integrated Precharging Resistors: Leading auxiliary contacts ensure precharging resistors are activated before the main contacts close, significantly limiting peak charging currents and extending the contactor’s lifespan.
• Enhanced Network Protection: Minimizes negative impacts on the power supply network by suppressing harmful current peaks, leading to greater system stability and reliability.
• Robust and Reliable: Built to Siemens’ high-quality standards, ensuring long-term performance and durability in industrial applications.
• Versatile Application: Suitable for switching both choked and unchoked capacitors in reactive current compensation systems and for use with converters.
• Flexible Expansion: The S3 size design allows for expansion with additional lateral auxiliary switches to meet specific control requirements.

Function & Operation:

The Siemens 3RT2646-1AB05 operates by utilizing a sophisticated two-stage switching process. When the control signal is applied to the 24 V AC coil, leading auxiliary contacts close first. These contacts switch on integrated precharging resistors, which quickly absorb the initial surge of current from the capacitive load. Following this, the main contacts close, bypassing the resistors and establishing a direct connection. This sequence effectively limits the high inrush currents that are typical when switching capacitors, protecting both the contactor’s contacts and the connected equipment.

Protection & Safety:

Proper protection of all connections is crucial for safe operation.

• Main Connections: Short-circuit and overload protection of the main connections should be implemented according to the technical product data sheet or in combination with a circuit breaker as part of a complete load feeder system.
• Auxiliary Connections: Refer to the technical product data sheet for specific protection recommendations.
• Control Connections: The control supply voltage should be protected against short circuits and overloads. The use of a suitable current-limiting power supply or miniature circuit breakers is recommended.
• Overvoltage Protection: For enhanced protection against opening surges in the coil, the 3RT2646-1AB05 can be retrofitted with optional surge suppressors like RC elements or varistors (ordered separately).

Auxiliary Contact Configuration:

This S3 size contactor comes with auxiliary contacts for the resistors already integrated. It also features a pre-mounted 2-pole lateral auxiliary switch with a 2 NC configuration. The contactor can be expanded with additional lateral auxiliary switches to increase its functionality and integration into complex control systems.
