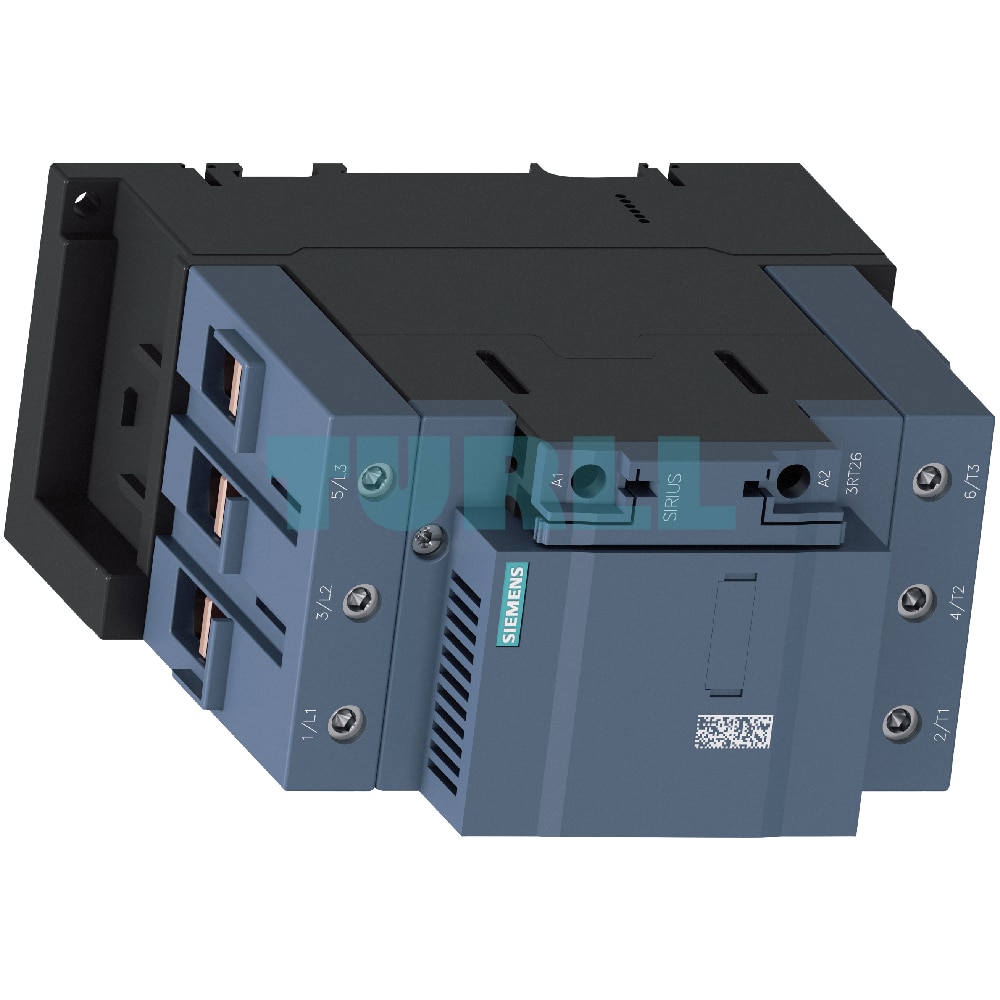

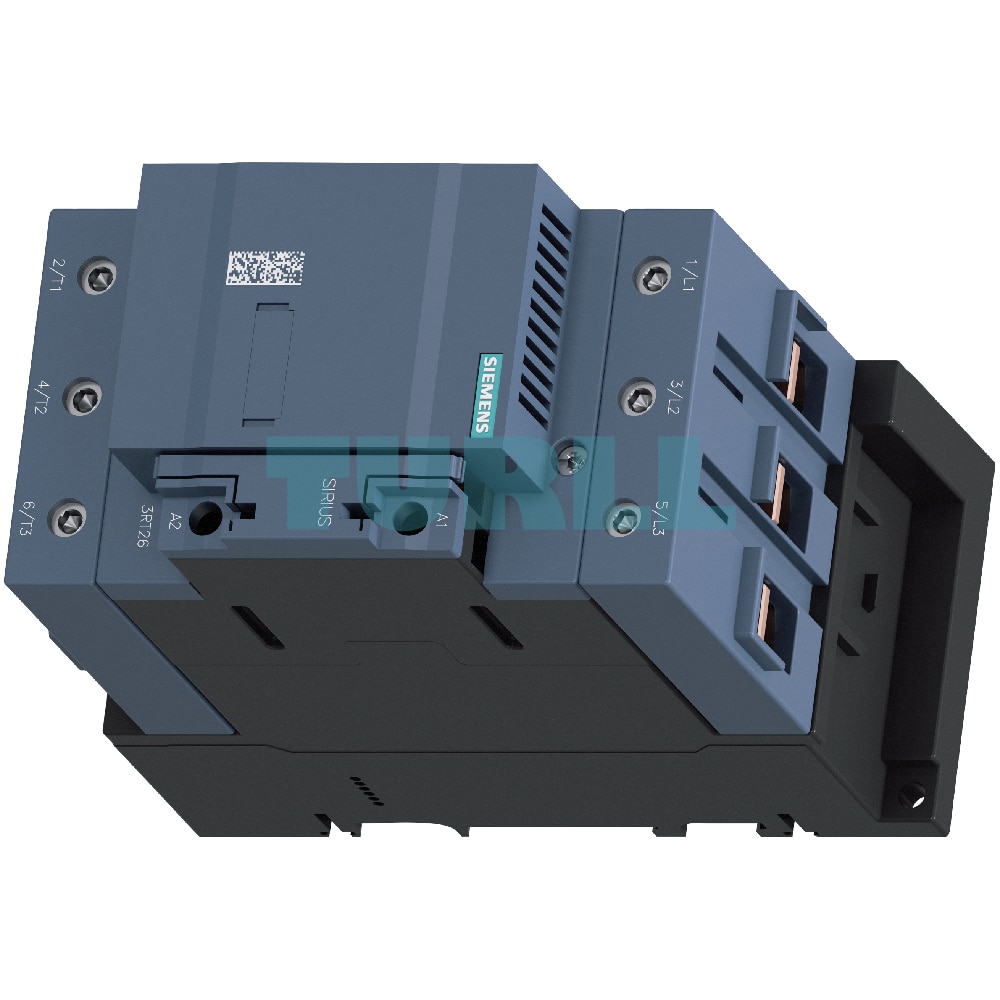

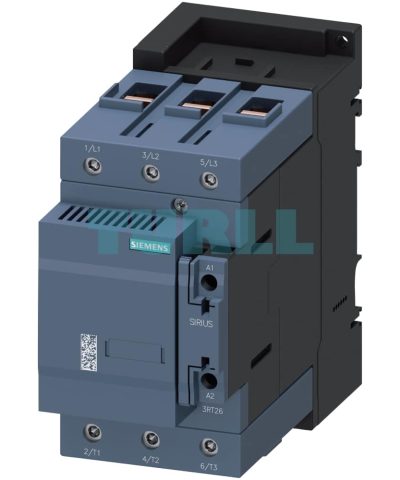

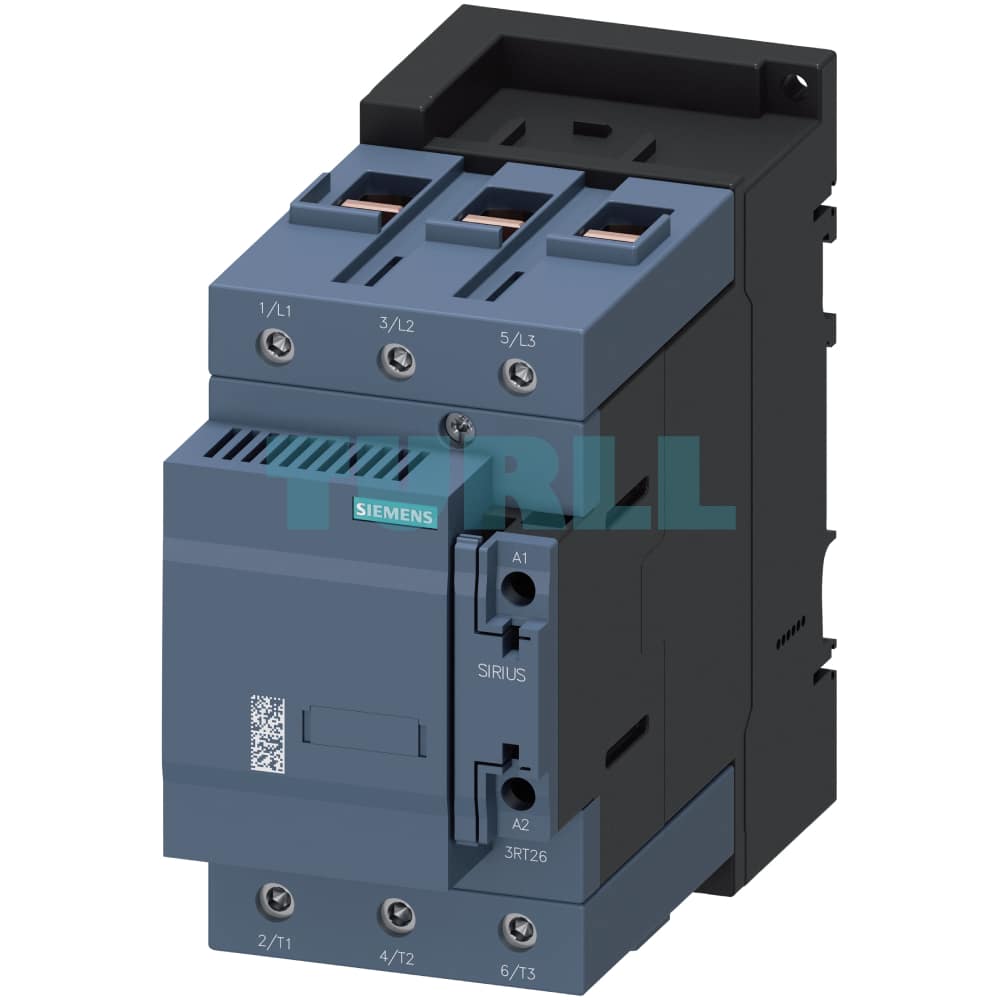

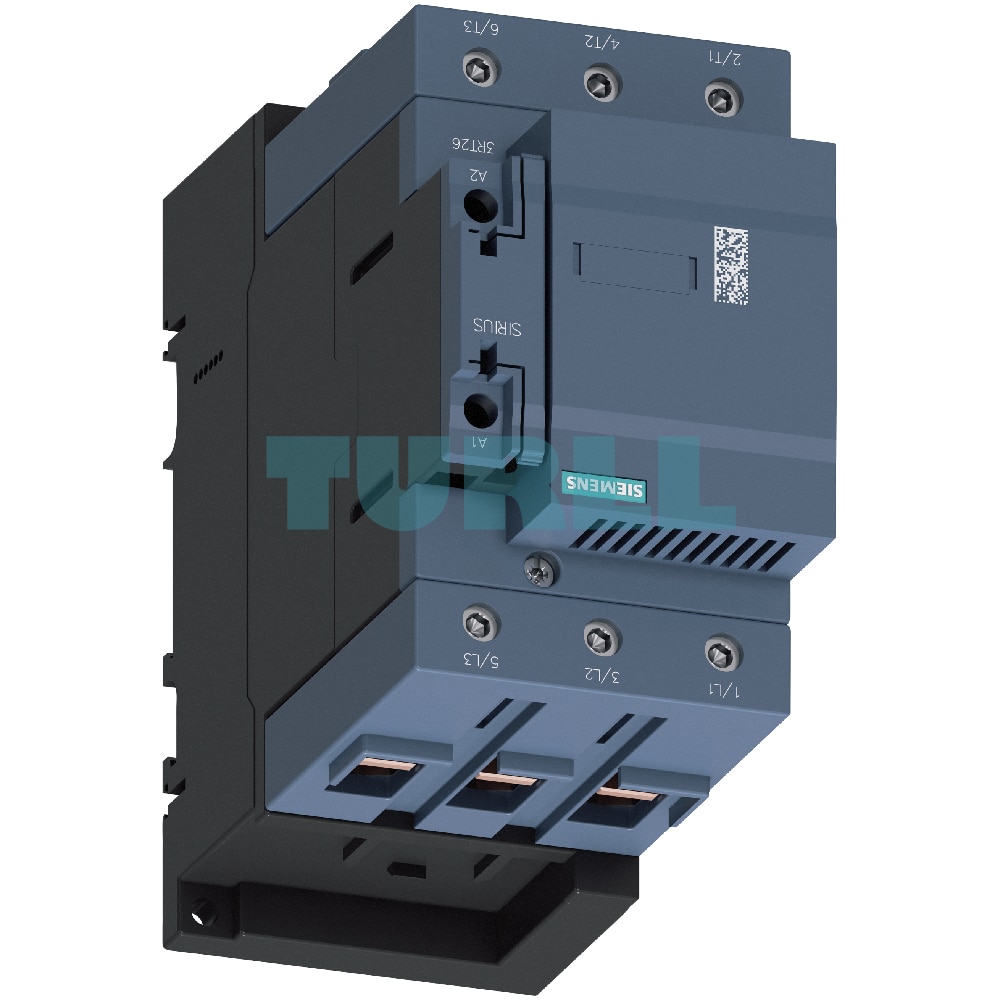

Siemens 3RT2646-1NP35 Capacitor Contactor 100 kVAR, 400V, S3, 2 NC Contact Original Brand New

Overview

The Siemens 3RT2646-1NP35 is a high-performance capacitor contactor from the renowned SIRIUS series, specifically engineered for switching capacitive loads in reactive current compensation systems. Designed to meet the demands of the AC-6b category, this 3-pole contactor effectively handles up to 100 kVAR at 400 V. Its robust S3 size and versatile control voltage range of 175-280 V AC/DC make it a reliable choice for a wide range of industrial applications.

Key Features & Function

• Advanced Precharging Resistors: The core of the 3RT2646-1NP35's functionality lies in its integrated precharging resistors. These resistors are engaged via leading auxiliary contacts just before the main contacts close, effectively limiting the peak inrush current associated with capacitive loads. This crucial feature minimizes stress on the power supply network and enhances the lifespan of the connected equipment.
• Versatile Application: Ideal for switching both choked and unchoked capacitors in reactive power compensation systems, as well as for controlling converters.
• Integrated Overvoltage Protection: The contactor features an integrated varistor, providing essential protection against overvoltage spikes and ensuring the longevity and reliability of the control circuit.
• Robust Auxiliary Contacts: Equipped with two normally closed (2 NC) auxiliary contacts, this model provides flexible control and signaling options for your system.
• Standard-Compliant: The product adheres to key international standards including IEC 60947‑1, IEC 60947‑4‑1, IEC 60947‑5‑1, IEC 60831‑1, and IEC 61921, ensuring quality and safety.
• Flexible Control Voltage: The wide control voltage range of 175-280 V AC/DC, 50/60 Hz, allows for seamless integration into diverse control panel setups.
• Durable Screw Terminals: The screw terminals provide a secure and reliable connection, simplifying installation and maintenance.
• Expandable Design: The 3RT2646-1NP35 can be expanded with additional lateral auxiliary switches, offering greater flexibility for complex control configurations.

Benefit

• Improved Power Quality: By limiting inrush current, the 3RT2646-1NP35 helps to maintain stable power quality and prevent disruptions to other equipment on the network.
• Extended Equipment Lifespan: The controlled switching process reduces electrical and mechanical stress on the capacitors and the contactor itself, leading to a longer operational life.
• Enhanced System Reliability: Integrated overvoltage protection and adherence to strict standards ensure the contactor operates reliably and safely.
• Simplified Installation: The screw terminals and a clear, well-documented design facilitate easy and quick installation and wiring.
• Cost-Effective Solution: A durable and reliable component that minimizes the need for frequent replacements and maintenance.
