Contactor AC 230 V 50/60 Hz, AC-3 4 kW 400 V. Features 1 NO auxiliary contact, 3-pole, size S00, and screw terminals.
The Siemens 3RT6016-1AP01 is a highly reliable and compact power contactor from the SIRIUS modular system, specifically designed for switching motors and other resistive loads in industrial control circuits. This 3-pole contactor is rated for AC-3 operation up to 4 kW at 400 V and utilizes a standard 230 V AC, 50/60 Hz operating coil. Its Size S00 construction makes it ideal for space-saving installations, while the integrated 1 NO (Normally Open) auxiliary contact provides immediate feedback for monitoring or interlocking functions. The robust screw terminals ensure a secure and easy-to-wire connection for all main and auxiliary circuits.
High Reliability: Siemens' proven contactor technology ensures long service life and stable operation.
Compact S00 Design: Ideal for control panels where space optimization is crucial.
Efficient Motor Switching: Supports up to 4 kW AC-3 motor loads, making it suitable for a wide range of industrial applications.
Easy Installation: Screw terminals enable secure and quick wiring.
Versatile Application Use: Perfect for automation systems, machine tools, HVAC equipment, and industrial control panels.
Operating Coil: AC 230 V 50/60 Hz
Power Rating: 4 kW at 400 V (AC-3 duty)
Poles: 3 main poles
Auxiliary Contact: 1 NO
Size: S00 (compact design)
Connection Type: Screw terminal
Application: Motor control, load switching, automation, industrial machinery
Durability: Designed for continuous operational performance in harsh industrial conditions
The 3RT6016-1AP01 contactor functions as an electromagnetic switch, primarily used for remotely controlling the power supply to industrial equipment.
Motor Switching: Ideal for switching 3-phase AC motors (up to 4kW at 400V) in applications like pumps, fans, conveyors, and compressors.
Resistive Loads: Suitable for switching heating elements and lighting circuits.
Control Integration: Acts as the power element, triggered by a signal from a PLC, push button, or protective relay.
Safety Interlocking: The integrated auxiliary contact is often used for creating safety loops or indicating the ON/OFF status of the main circuit.
Visit 3RT6016-1AP01 for more detail info
For more our products visit turll
| SKU / Model | 3RT6016-1AP01 |
|---|---|
| Weight | 0.22 kg |

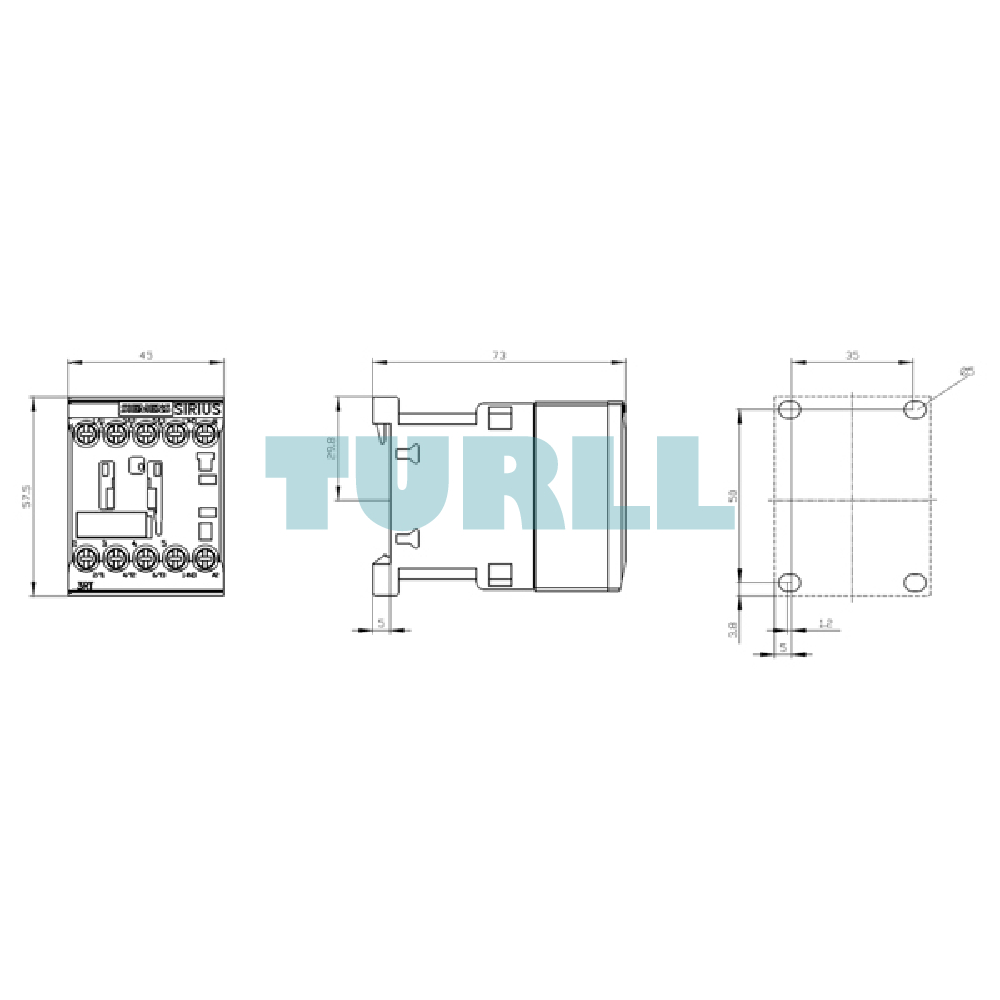

| Dimensions | 77 × 50 × 60 mm |
