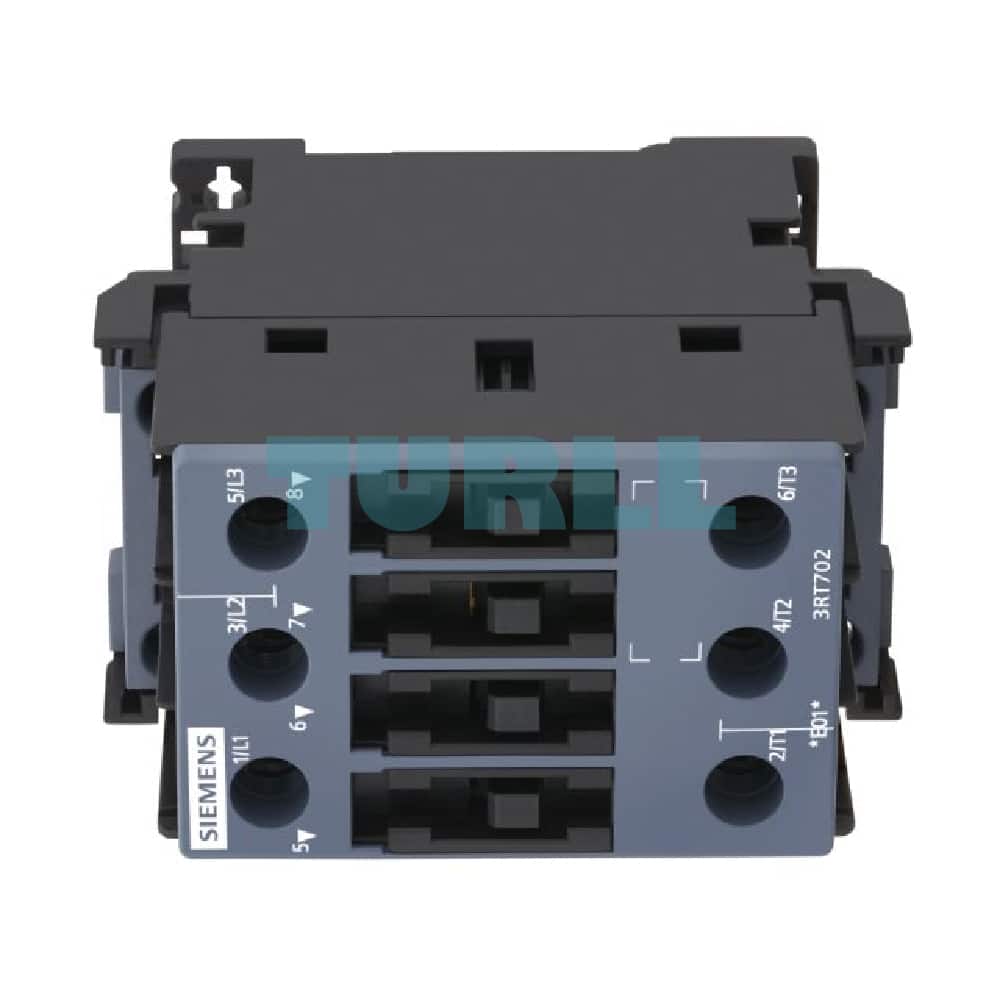

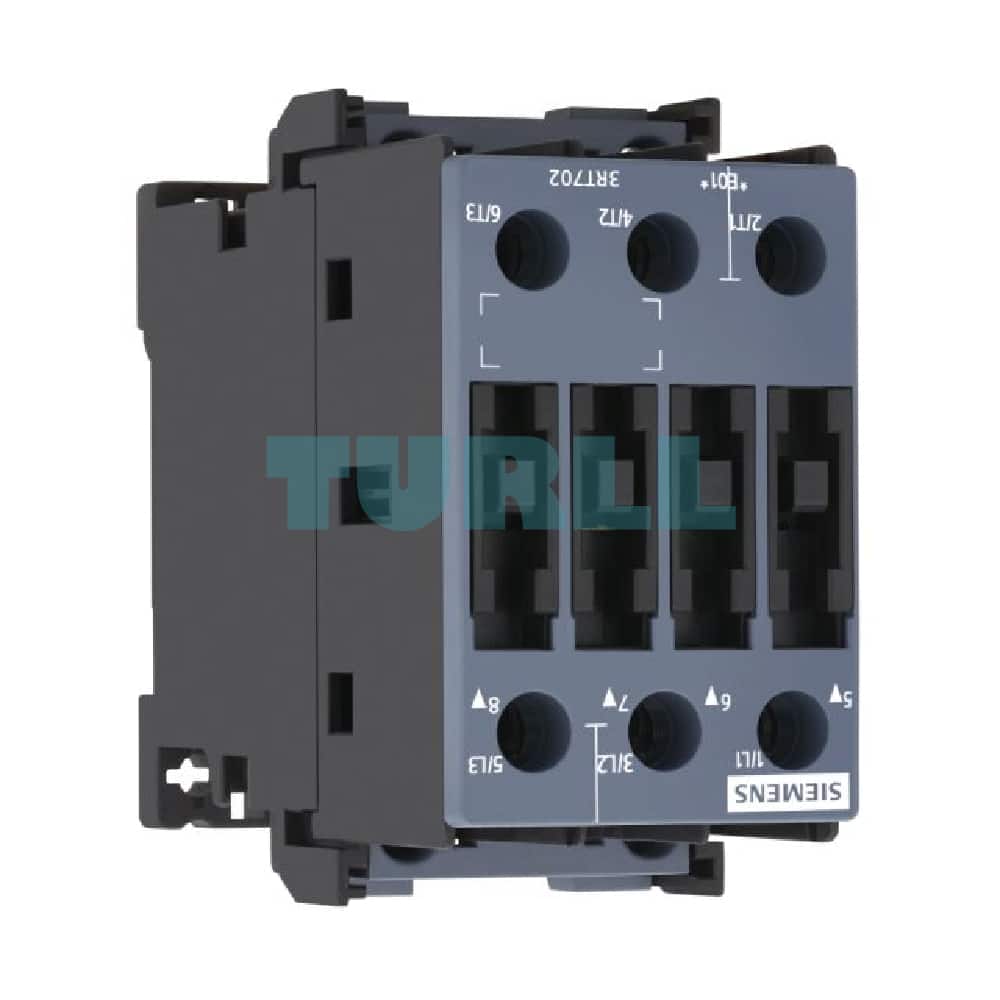

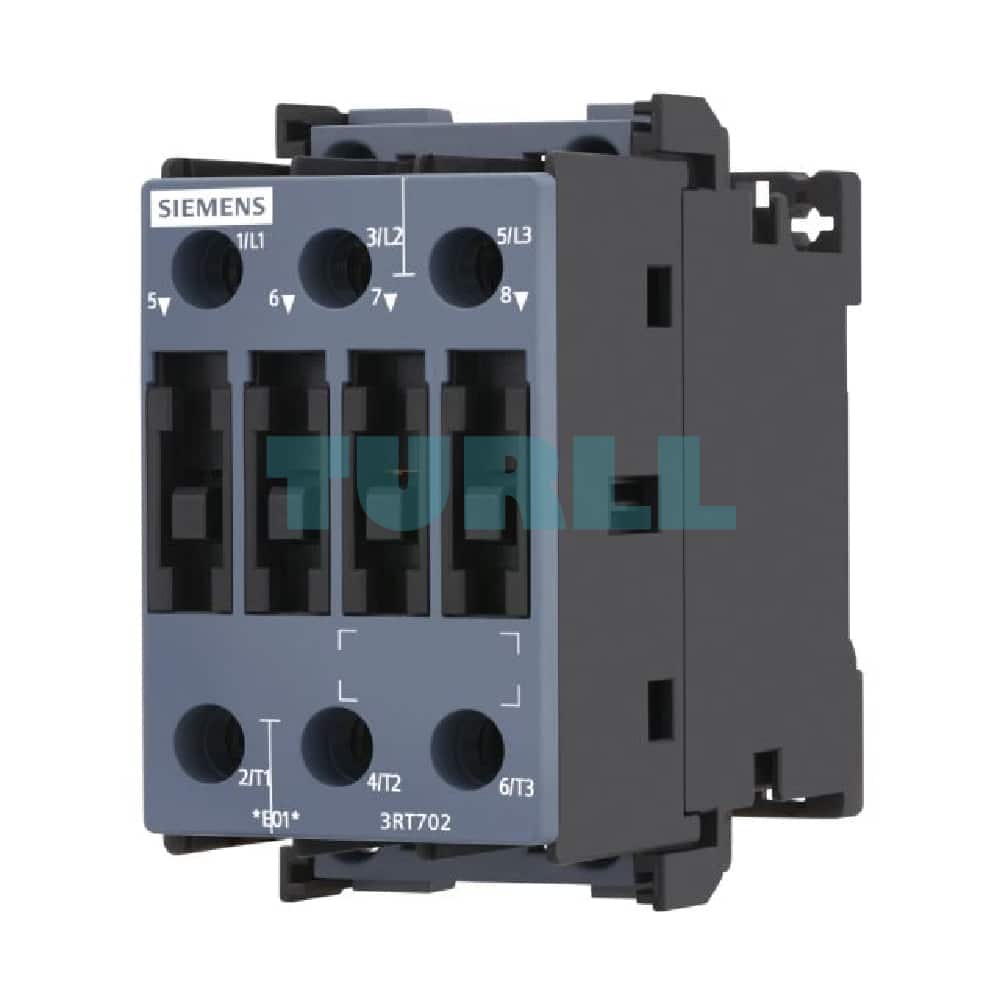

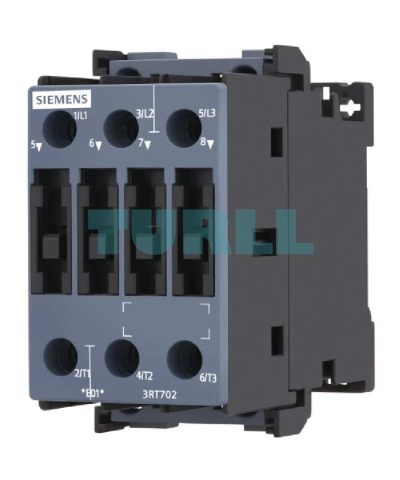

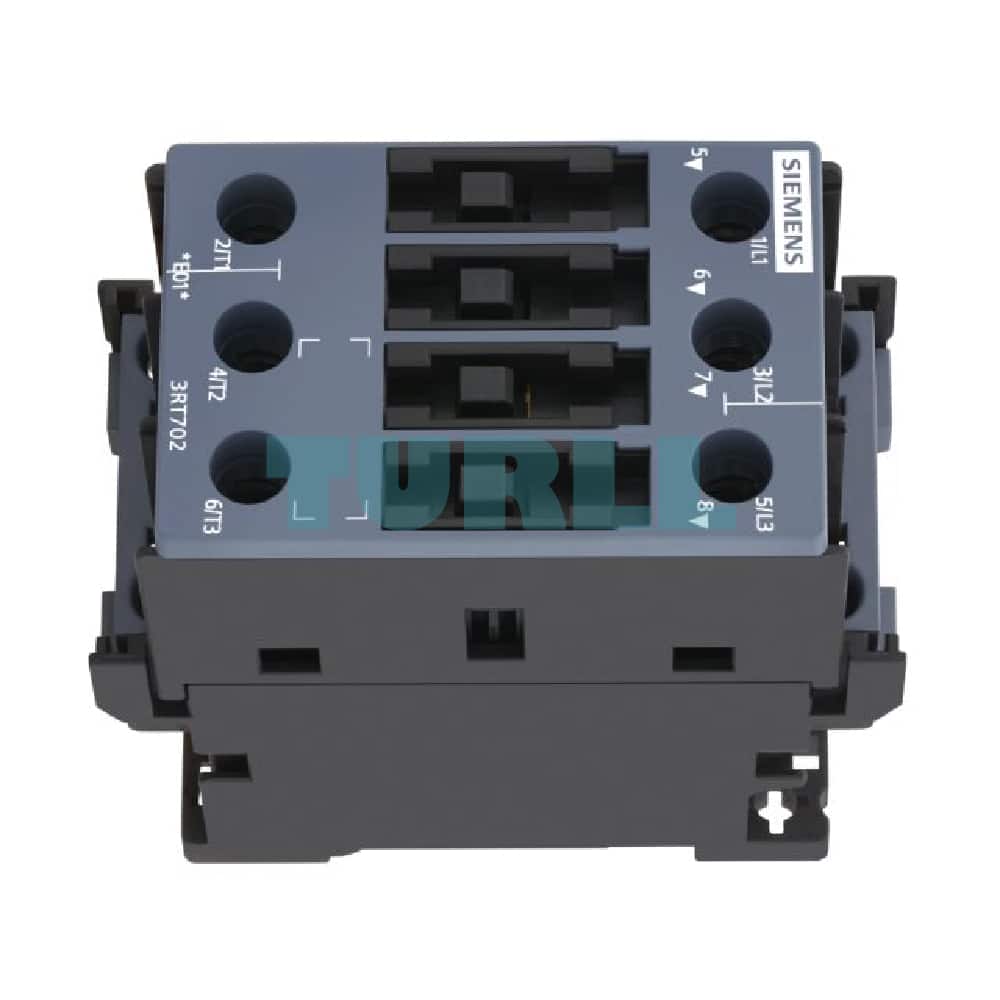

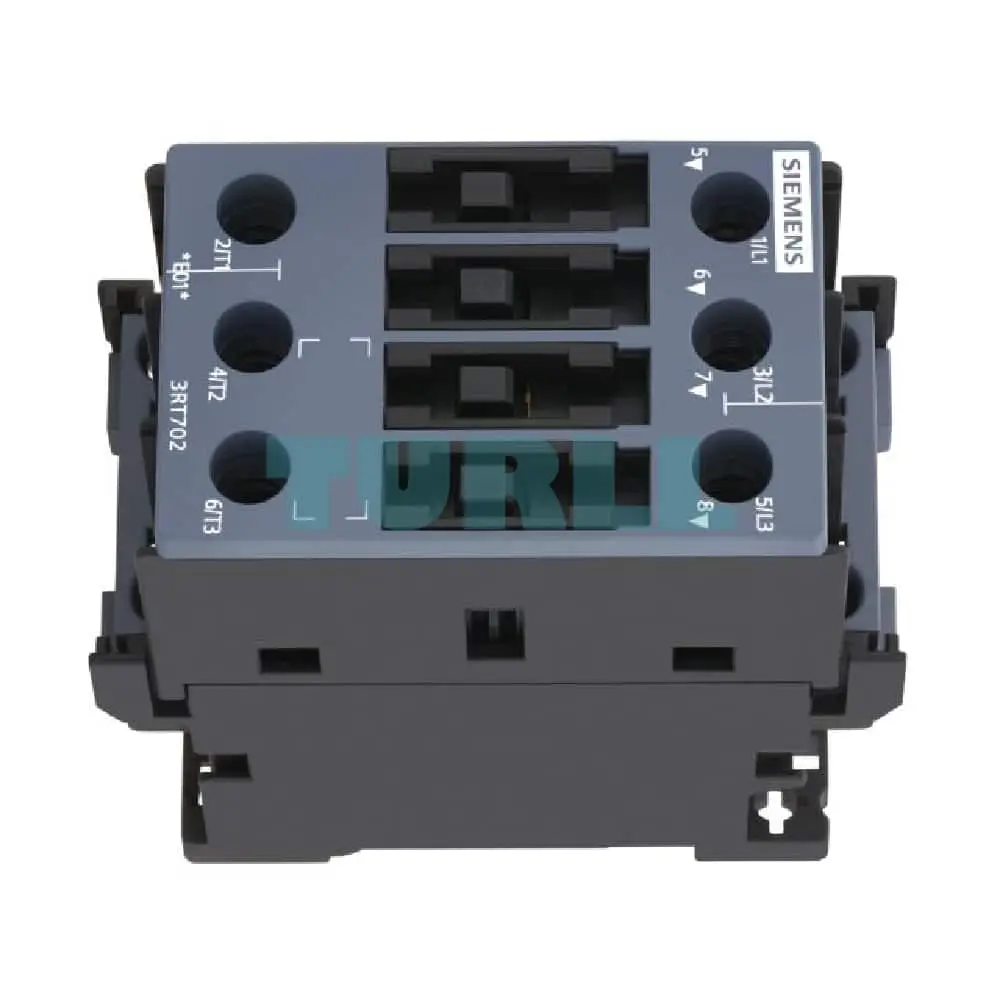

Siemens 3RT7026-1AF00 Contactor AC-3 25A, 11kW, 400V with 110V 50Hz Coil, Size S0, Screw Terminal Original Brand New

Overview

The Siemens 3RT7026-1AF00 is a high-performance contactor designed for reliable switching of motors and other electrical loads. Part of the SIRIUS family, this device is engineered for superior functionality and a long service life. It features a compact design (Size S0) that saves panel space and a robust construction suitable for industrial environments. With its AC-3 rating of 25A and 11kW at 400V, it is ideal for a wide range of applications.

Key Features & Benefit

• High Performance: Rated for AC-3 switching duty, this contactor is capable of handling the high inrush currents associated with motor starting.
• Energy Efficient: The 110V 50Hz AC coil ensures efficient operation with low power consumption.
• Space-Saving Design: The compact Size S0 form factor allows for higher density mounting in control panels, reducing overall enclosure size and cost.
• Easy Installation: Equipped with reliable screw terminals for secure and straightforward wiring.
• Durable & Reliable: Built with high-quality materials to withstand demanding industrial conditions and provide a long operational life.
• Modular System: Compatible with a wide range of accessories from the SIRIUS modular system, including auxiliary contacts, surge suppressors, and timers, allowing for flexible and customized solutions.
• Safety: Designed and manufactured to international safety standards, ensuring reliable and safe operation.

Technical Specification

• Product Number: 3RT7026-1AF00
• Type: Contactor
• Application: AC-3 switching of resistive and inductive loads, particularly motors.
• Rated Operational Current (AC-3): 25 A
• Rated Operational Power (AC-3): 11 kW at 400V
• Coil Voltage: 110V AC, 50 Hz
• Size: S0
• Terminals: Screw Terminals
• Manufacturer: Siemens
• Series: SIRIUS

Function

The Siemens 3RT7026-1AF00 functions as an electromagnetically operated switching device. When the 110V AC coil is energized, it closes the main power contacts, allowing current to flow to the connected load. When the coil is de-energized, the contacts open, interrupting the power. This makes it a crucial component in motor control circuits, machinery, and automation systems.
