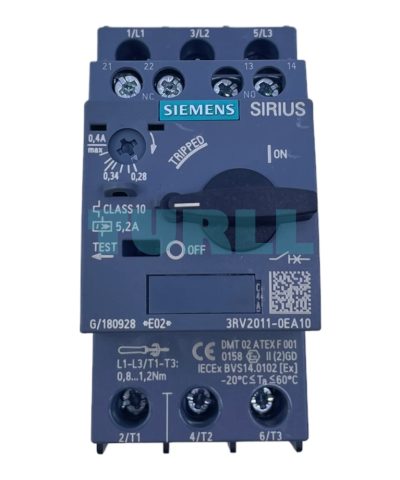

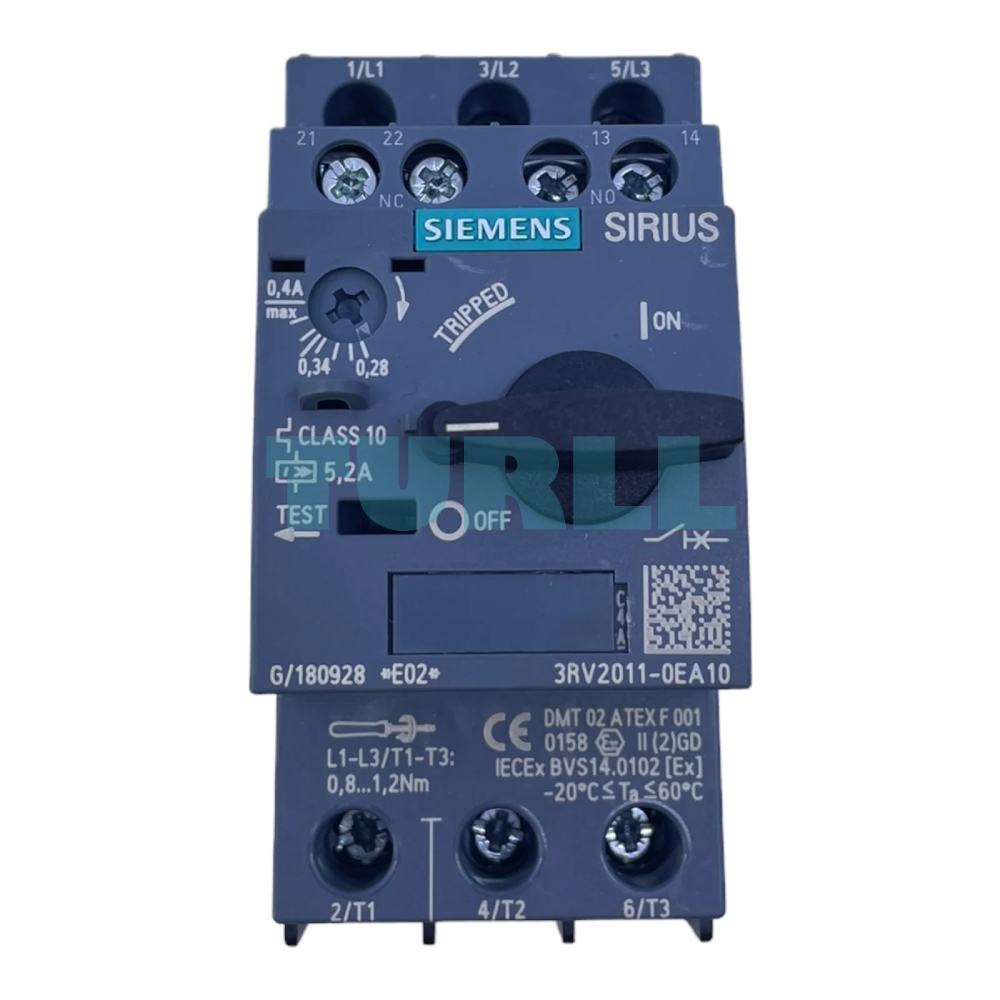

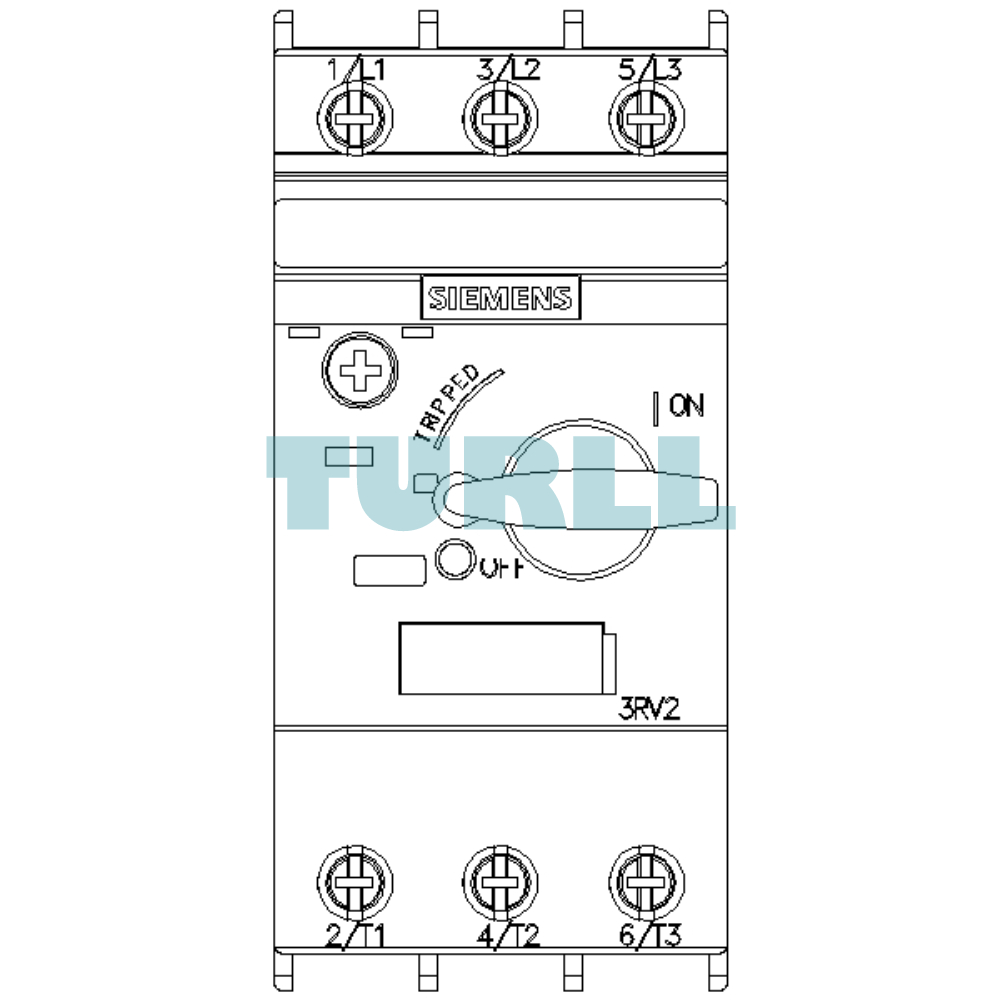

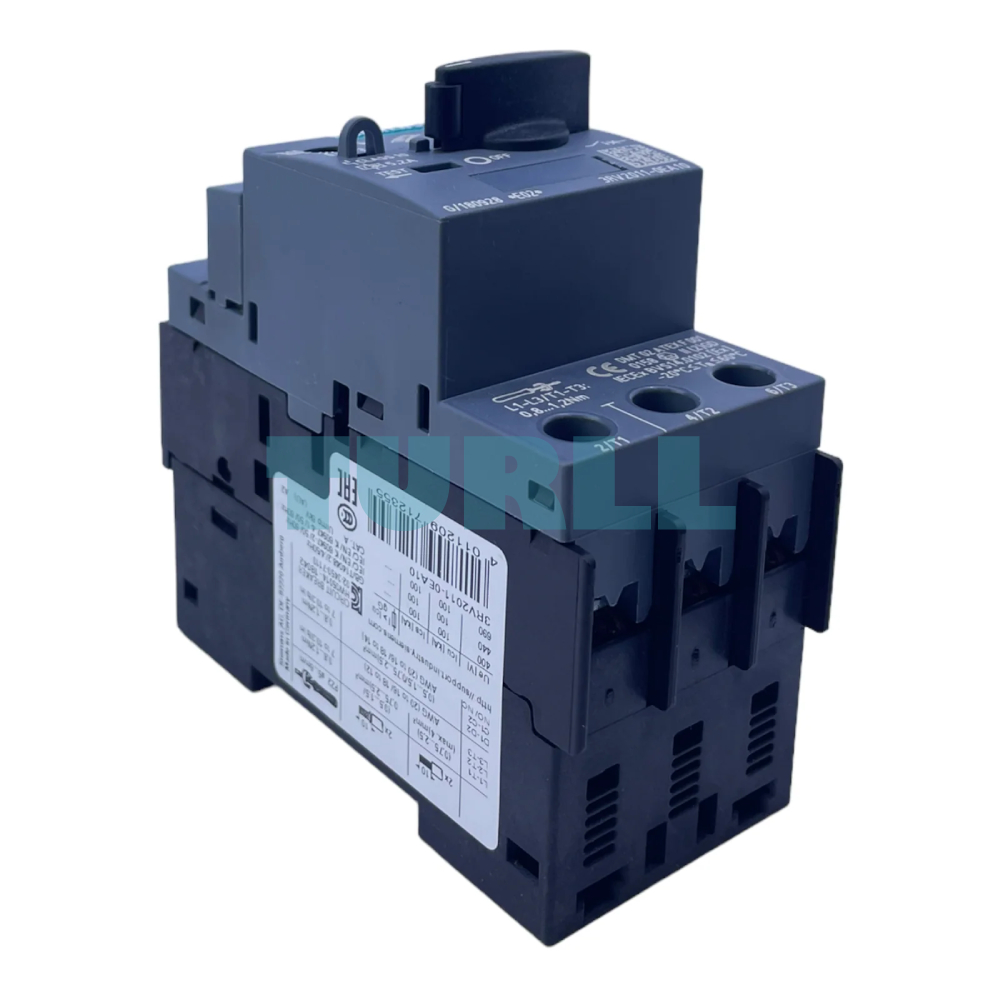

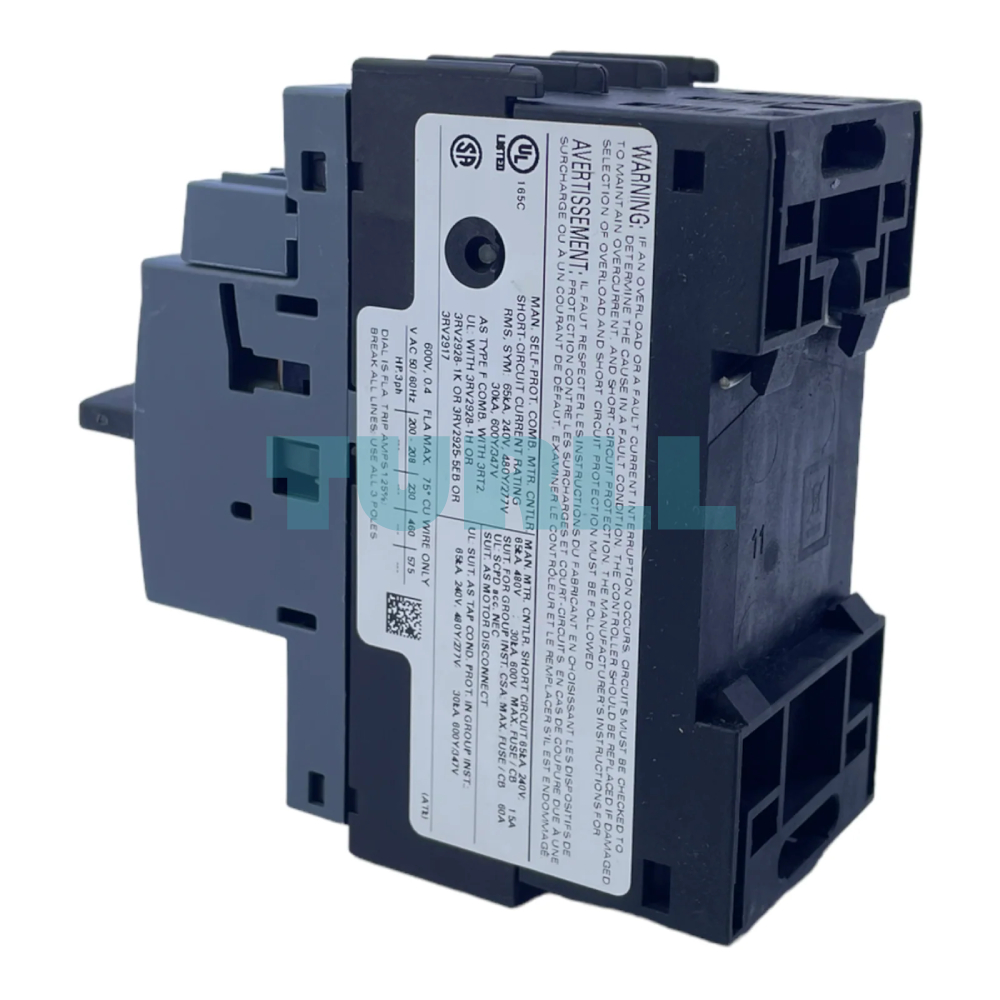

Siemens 3RV2011-0EA10 Motor Protection Circuit Breaker, S00 Size, Class 10 Original Brand New
$49.17
Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.28…0.4 A, N-release 5.2 A, screw terminal with standard switching capacity. Reliable protection for motors.
Availability: In stock
Overview
The 3RV2011-0EA10 is a highly reliable component from the Siemens SIRIUS 3RV20 line, specifically engineered for starting and protecting single and three-phase AC motors. It combines the functions of a circuit breaker and an overload relay, offering superior protection against short circuits and motor overloads. Its compact design saves panel space, making it ideal for modern industrial control applications.
Key Benefit
-
Superior Motor Protection: Provides robust, fast-acting protection against overload, short circuits, and phase failure using the thermal and electromagnetic trip units.
-
Space-Saving Design: The compact Size S00 footprint optimizes panel layout and reduces overall cabinet size.
-
Easy Commissioning: Clear operational elements and reliable screw terminals simplify wiring and installation, reducing downtime.
-
High Reliability (CLASS 10): Ensures prompt tripping in case of motor overload, protecting the motor winding from thermal damage.
-
Global Standard: As a Siemens SIRIUS product, it meets high international quality standards for industrial use.

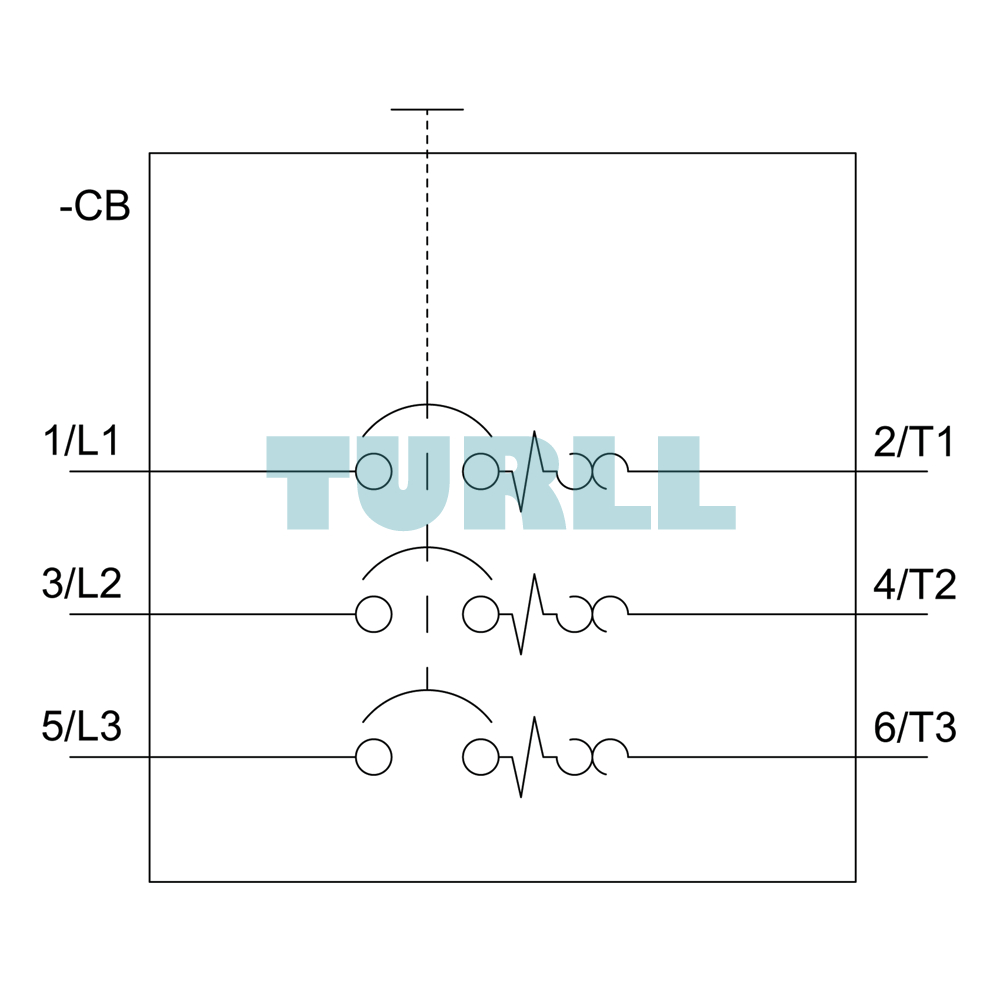

Function
-
Overload protection for motors.
-
Short-circuit protection to prevent damage to connected equipment.
-
Adjustable current release for precise motor control.
-
Easy integration into motor starter setups or electrical control panels.
Technical Specification
-
Type: Motor Protection Circuit Breaker
-
Size: S00
-
Class: 10
-
A-Release Current: 0.28…0.4 A
-
N-Release Current: 5.2 A
-
Terminal Type: Screw
-
Switching Capacity: Standard
-
Brand: Siemens
Visit 3RV2011-0EA10 for more detail info
For more our products visit turll
Download
| Weight | 0.280 kg |
|---|---|
| Dimensions | 49.00 × 102.00 × 102.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | Circuit breaker |
| design of the product | For motor protection |
| product type designation | 3RV2 |
| size of the circuit-breaker | S00 |
| size of contactor can be combined company-specific | S00, S0 |
| product extension auxiliary switch | Yes |
| power loss [W] for rated value of the current | – |
| ● at AC in hot operating state | 5.5 W |
| ● at AC in hot operating state per pole | 1.8 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation in networks with grounded star point | – |
| ● between main and auxiliary circuit | 400 V |
| shock resistance acc. to IEC 60068-2-27 | 25g / 11 ms |
| mechanical service life (switching cycles) | – |
| ● of the main contacts typical | 100 000 |
| ● of auxiliary contacts typical | 100 000 |
| electrical endurance (switching cycles) typical | 100 000 |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| reference code acc. to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | – |
| ● during operation | -20 … +60 °C |
| ● during storage | -50 … +80 °C |
| ● during transport | -50 … +80 °C |
| temperature compensation | -20 … +60 °C |
| relative humidity during operation | 10 … 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 0.28 … 0.4 A |
| operating voltage | – |
| ● rated value | 20 … 690 V |
| ● at AC-3 rated value maximum | 690 V |
| operating frequency rated value | 50 … 60 Hz |
| operational current rated value | 0.4 A |
| operational current at AC-3 at 400 V rated value | 0.4 A |
| operating power at AC-3 | – |
| ● at 230 V rated value | 0.1 kW |
| operating frequency at AC-3 maximum | 15 1/h |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| product function | – |
| ● ground fault detection | No |
| ● phase failure detection | Yes |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| breaking capacity operating short-circuit current (Ics) at AC | – |
| ● at 240 V rated value | 100 kA |
| ● at 400 V rated value | 100 kA |
| ● at 500 V rated value | 100 kA |
| ● at 690 V rated value | 100 kA |
| breaking capacity maximum short-circuit current (Icu) | – |
| ● at AC at 240 V rated value | 100 kA |
| ● at AC at 400 V rated value | 100 kA |
| ● at AC at 500 V rated value | 100 kA |
| ● at AC at 690 V rated value | 100 kA |
| response value current of instantaneous short-circuit trip unit | 5.2 A |
| full-load current (FLA) for 3-phase AC motor | – |
| ● at 480 V rated value | 0.4 A |
| ● at 600 V rated value | 0.4 A |
| product function short circuit protection | Yes |
| design of the short-circuit trip | magnetic |
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| required spacing | – |
| ● for grounded parts at 400 V | – |
| ● for live parts at 400 V | – |
| ● for grounded parts at 500 V | – |
| ● for live parts at 500 V | – |
| ● for grounded parts at 690 V | – |
| ● for live parts at 690 V | – |
| — downwards | 50 mm |
| — upwards | 50 mm |
| — backwards | 0 mm |
| — at the side | 30 mm |
| — forwards | 0 mm |
| product component removable terminal for auxiliary and control circuit | No |
| type of electrical connection | – |
| ● for main current circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| type of connectable conductor cross-sections | – |
| — solid or stranded | 2x (0,75 … 2,5 mm²), 2x 4 mm² |
| — finely stranded with core end processing | 2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| ● at AWG cables for main contacts | 2x (18 … 14), 2x 12 |
| tightening torque | – |
| ● for main contacts with screw-type terminals | 0.8 … 1.2 N·m |
| design of screwdriver shaft | Diameter 5 to 6 mm |
| size of the screwdriver tip | Pozidriv 2 |
| design of the thread of the connection screw | – |
| ● for main contacts | M3 |
| B10 value | – |
| proportion of dangerous failures | – |
| ● with high demand rate acc. to SN 31920 | 50 % |
| failure rate [FIT] | – |
| ● with low demand rate acc. to SN 31920 | 50 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 10 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Handle |
| For use in hazardous locations | Test Certificates Declaration of Conformity |
| last modified: | 11/16/2021 |
