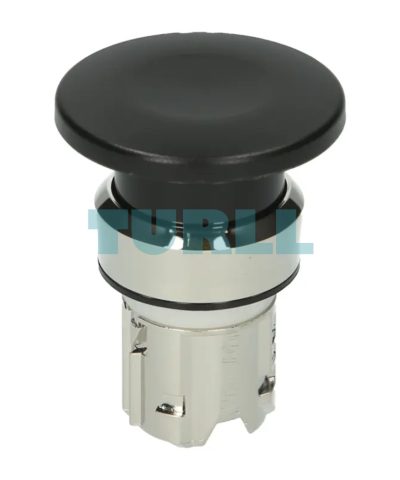

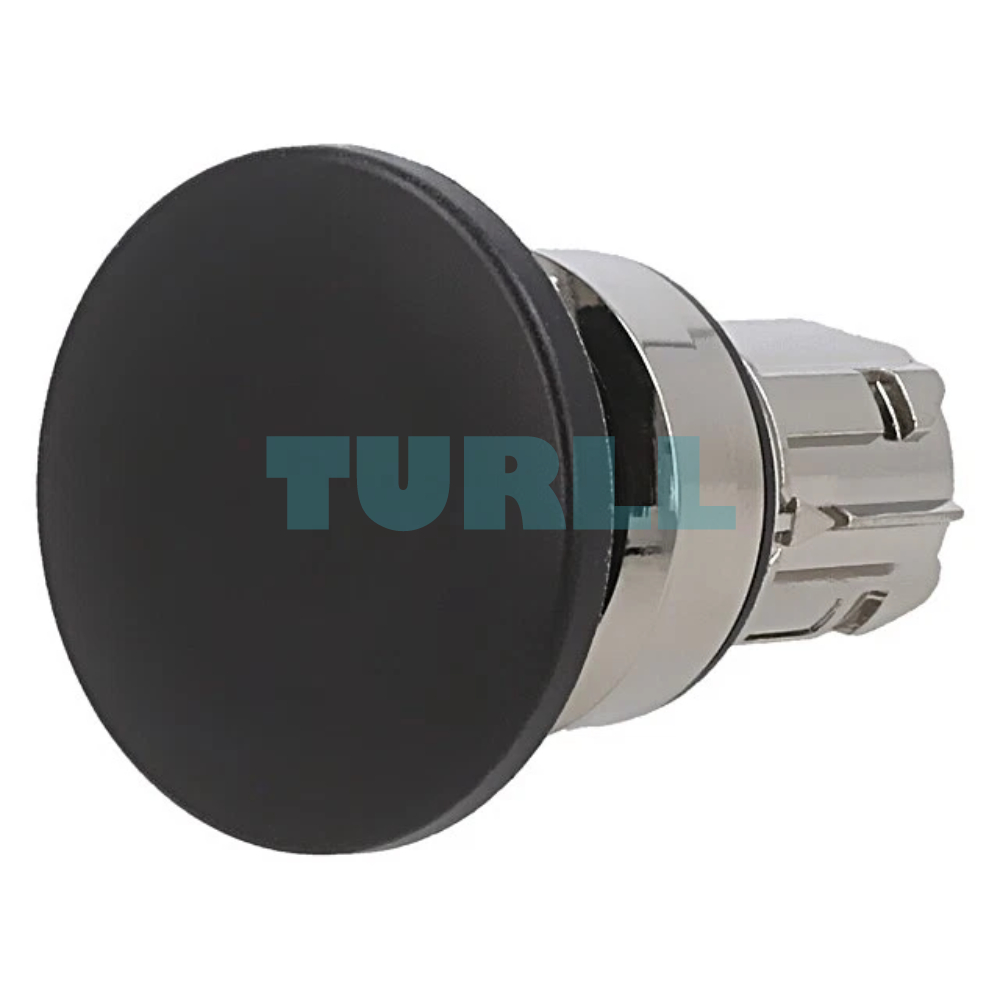

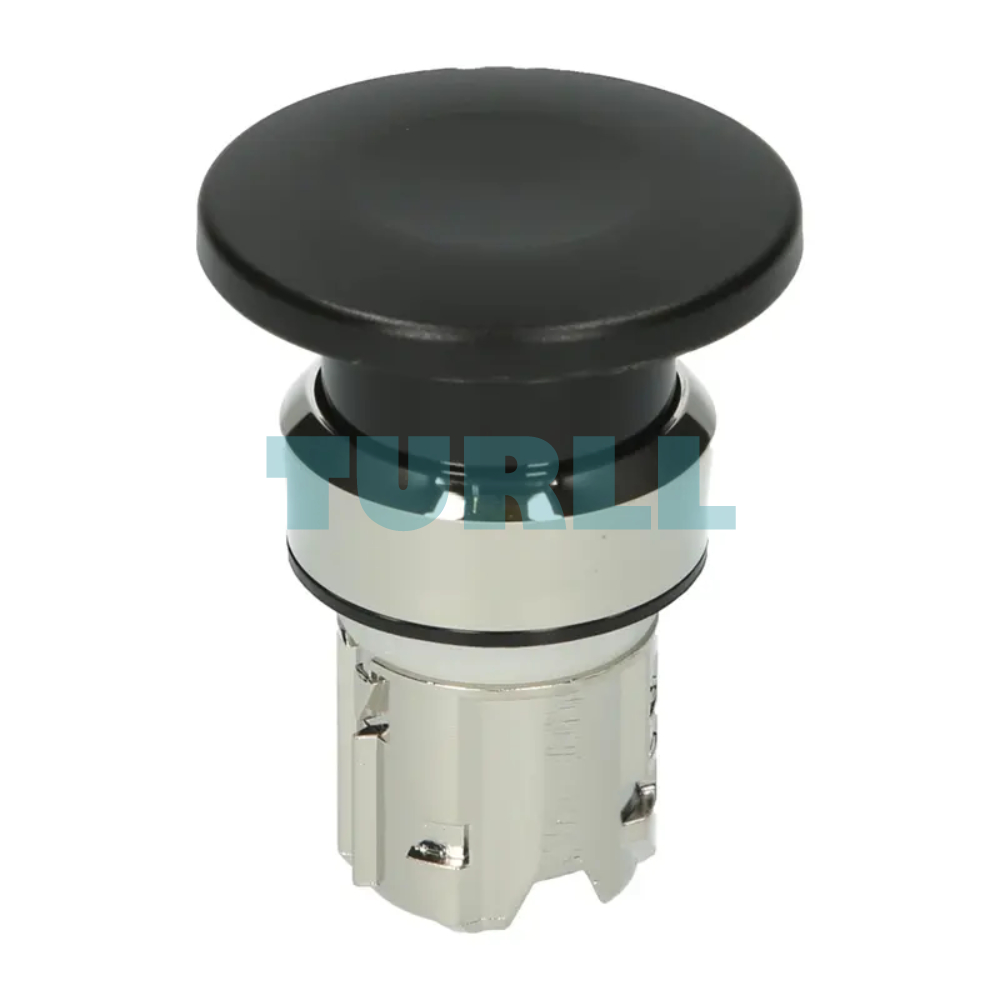

Siemens 3SU1050-1BD10-0AA0 Mushroom Pushbutton, 22mm, Metal, Black, Momentary Contact Original Brand New
$10.34
High-quality round 22 mm panel mount Mushroom Pushbutton from the SIRIUS ACT range. It features a striking 40 mm black, shiny metal head and operates as a momentary contact type, making it ideal for standard industrial control functions requiring a brief signal.
Availability: In stock
Overview
The Siemens 3SU1050-1BD10-0AA0 is a core component within the SIRIUS ACT series of command and signaling devices. Designed for durability and aesthetic appeal, this actuator features a robust, shiny black metal construction. It is engineered for industrial environments that require reliable, user-friendly control, adhering to the common 22 mm mounting diameter standard for easy integration into control panels and cabinets.
Key Features & Benefit
-
Durable Construction: Metal body with shiny black finish ensures longevity in industrial environments.
-
Compact Size: 22mm diameter fits standard control panel layouts.
-
Enhanced Safety: Mushroom shape allows quick and easy activation during emergencies.
-
Momentary Contact: Ensures precise, temporary activation of circuits.
-
Reliable Brand: Siemens quality guarantees consistent performance in industrial applications.
Function & Application
The 3SU1050-1BD10-0AA0 functions as a momentary actuator, meaning the switch is active only while the operator is physically pressing the mushroom head. Once released, the head returns immediately to its rest position.
Typical Applications Include:
-
Control Panel Start/Stop: Acting as a START or general control button in machinery.
-
Jogging/Inching Operations: Providing brief, controlled movement signals for setup or maintenance.
-
Manual Override: Use in systems where a brief, deliberate manual intervention is required.
-
General Signalling: Triggering temporary alarms or lights.
Visit 3SU1050-1BD10-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.048 kg |
|---|---|
| Dimensions | 30.00 × 40.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Mushroom pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| principle of operation of the actuating element | momentary contact type |
| product extension optional light source | No |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 40 mm |
| number of switching positions | 2 |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| product function | – |
| ● EMERGENCY OFF function | No |
| ● EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |

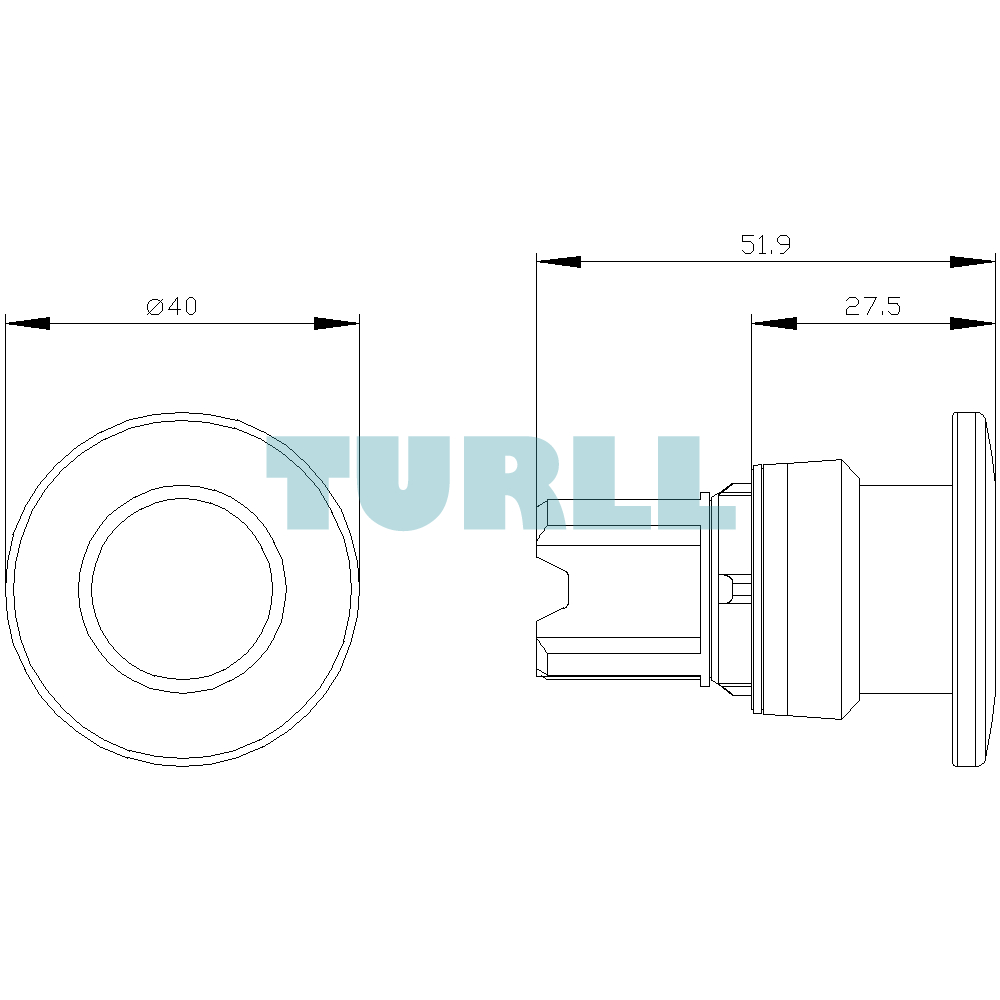

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 27.5 mm |
| installation width | 40 mm |
| installation depth | 24.4 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 11/18/2021 |
