Siemens 3SU1050-2AS60-0AA0 Selector Switch, 22mm, Metal Rotary Switch, 4 Positions, Latching Original Brand New
$15.62

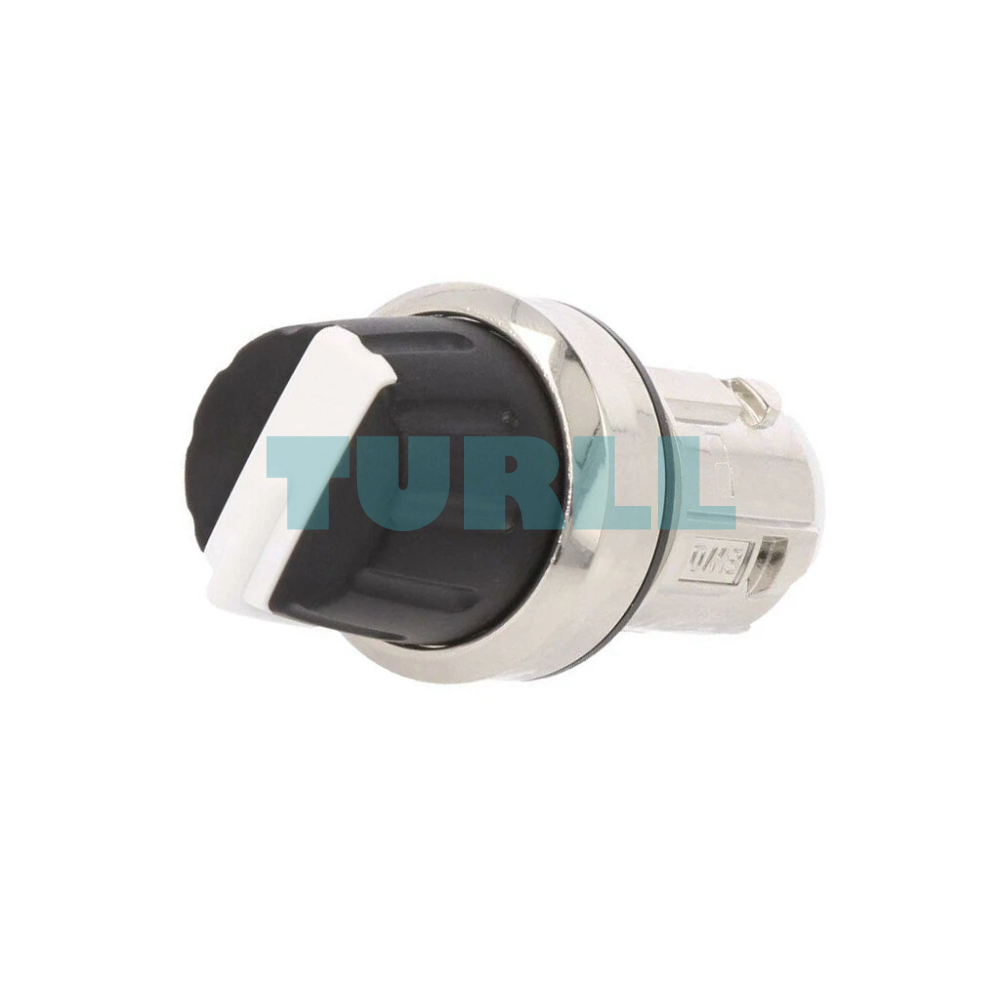

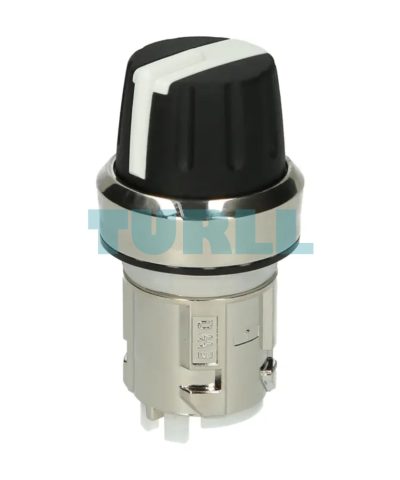

Siemens 3SU1050-2AS60-0AA0 selector switch with 22 mm mounting diameter, shiny white metal rotary knob, four latching switch positions (I–II–III–IV), and 4×90° actuating angle for precise industrial control.
Availability: In stock
Overview
The Siemens 3SU1050-2AS60-0AA0 Selector Switch is a high-quality industrial control component designed for reliable operation in demanding environments. Featuring a 22 mm mounting diameter, a shiny white metal rotary knob, and four clearly defined switch positions (I–II–III–IV), this selector switch ensures precise control and long service life. Its latching mechanism and 4 × 90° actuating angle make it ideal for control panels, machinery, and automation systems.
Benefit
-
Durable metal construction for industrial-grade reliability
-
Latching rotary mechanism ensures stable switch positioning
-
Four switch positions allow flexible control options
-
Clear position indicators (3h/6h/9h/12h) improve usability
-
Compact 22 mm mounting size fits standard control panels
-
Trusted Siemens quality for long-term performance
Function
-
Enables manual selection of operating modes
-
Controls machinery and automation processes
-
Provides secure and precise rotary switching
-
Maintains selected position until manually changed
Technical Specification
-
Product Number: Siemens 3SU1050-2AS60-0AA0
-
Switch Type: Selector switch
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Finish: Shiny
-
Color: White
-
Actuator Type: Rotary knob
-
Switch Positions: I – II – III – IV
-
Operating Mode: Latching
-
Actuating Angle: 4 × 90°
-
Position Orientation: 3h / 6h / 9h / 12h
Visit 3SU1050-2AS60-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.062 kg |
|---|---|
| Dimensions | 30.00 × 90.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Rotary knob |
| principle of operation of the actuating element | Latching, 4×90° (3/6/9/12 o'clock) |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | Button |

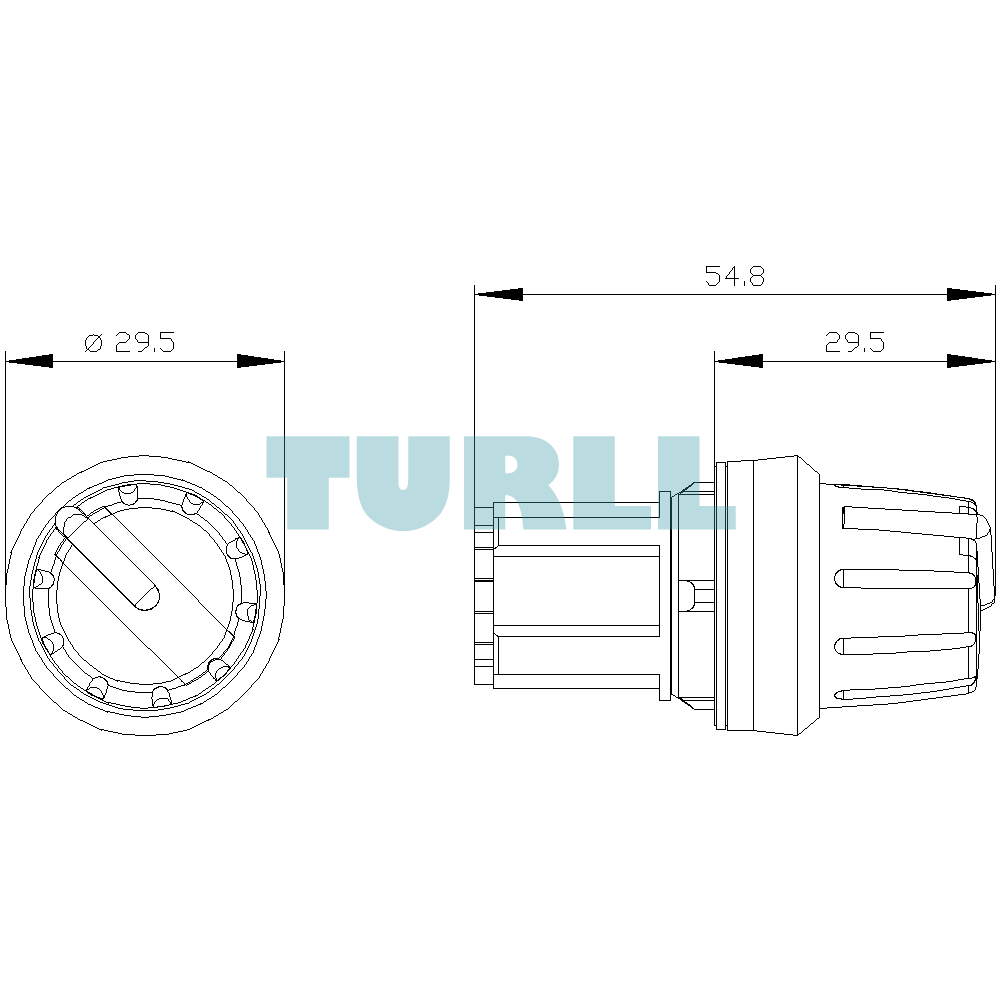

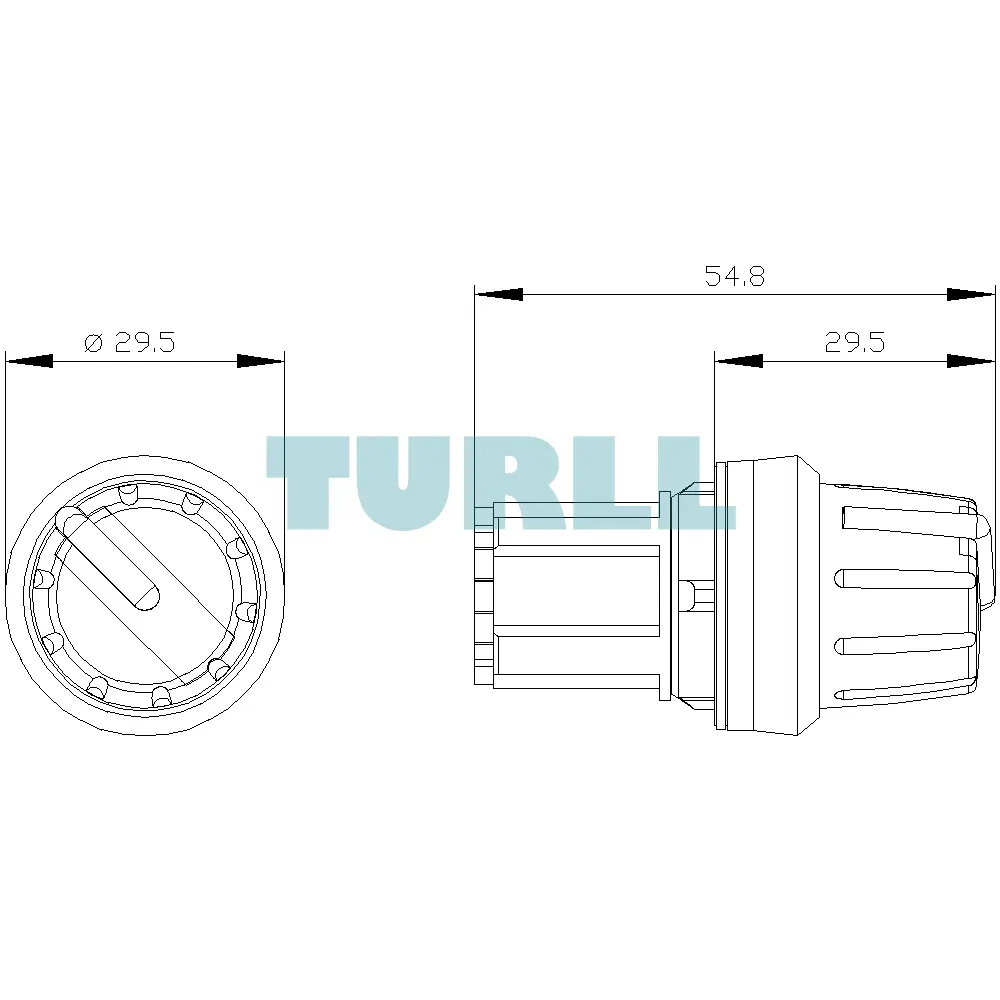

| outer diameter of the actuating element | 29.5 mm |
| number of switching positions | 4 |
| actuating angle | – |
| ● clockwise | 360° |
| ● anticlockwise | 360° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 300 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 29.5 mm |
| installation depth | 29.4 mm |
| last modified: | 10/6/2021 |
