Siemens 3SU1051-0AB40-0AA0 Illuminated Pushbutton 22mm, Green, Metal, Flat, Momentary Original Brand New
$6.27

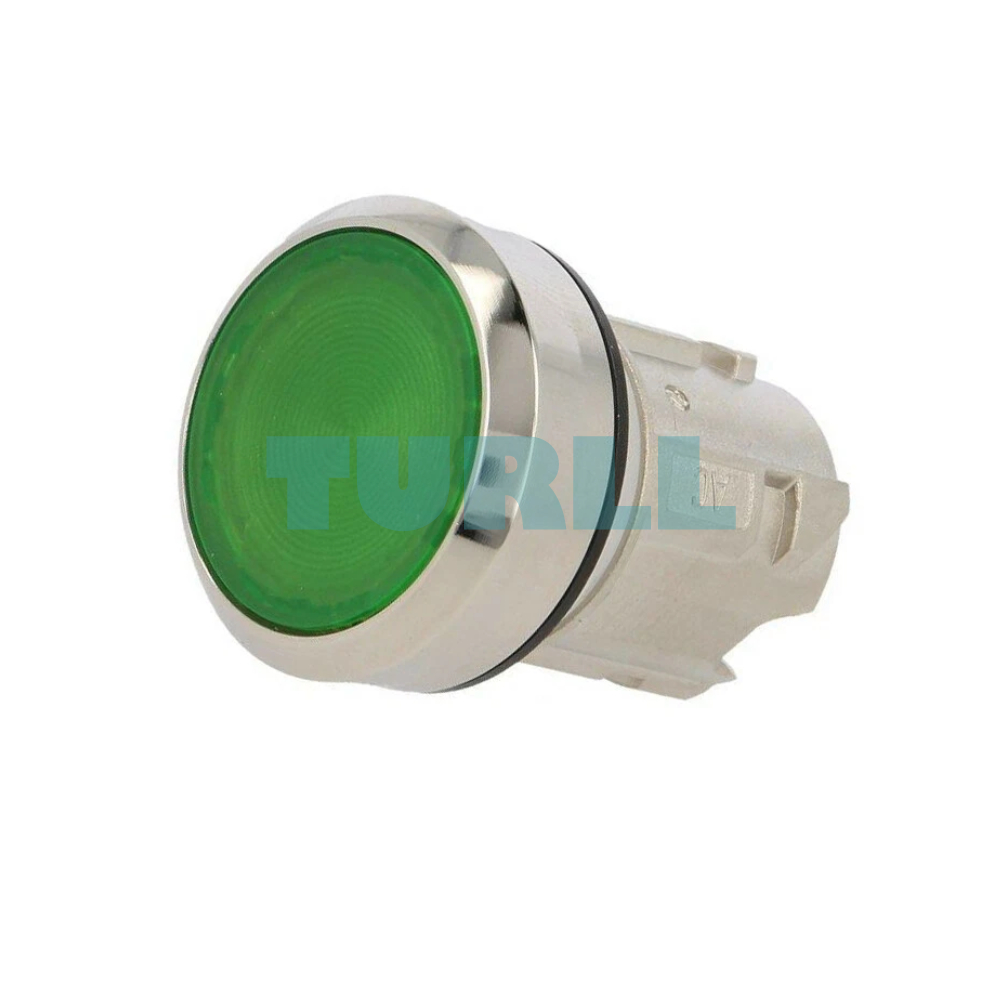

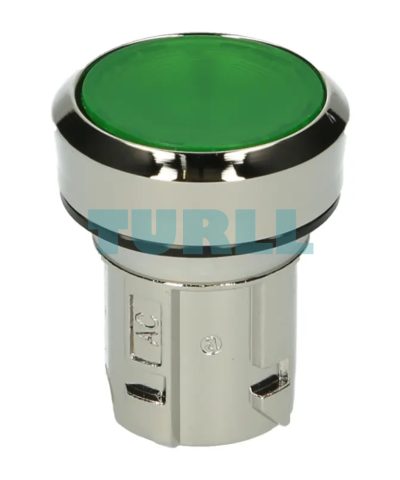

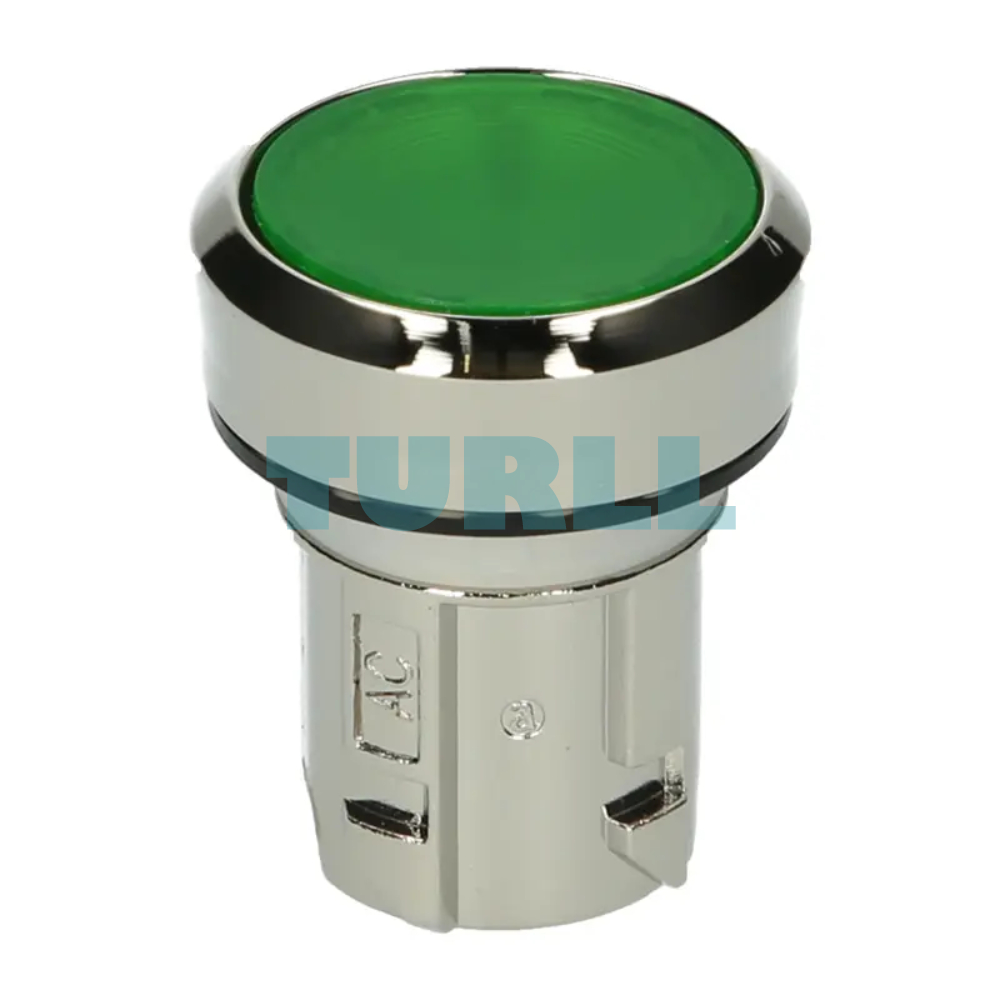

Siemens 3SU1051-0AB40-0AA0 is an illuminated pushbutton operator from the SIRIUS ACT family. This durable, 22mm round device features a shiny metal bezel and a flat, green button face. It is a momentary contact type designed for reliable, high-visibility signaling and control in industrial applications.
Availability: In stock
Overview
The Siemens 3SU1051-0AB40-0AA0 is a high-quality, front-panel-mounted illuminated pushbutton from the SIRIUS ACT range, designed for reliable operation in industrial control applications. Its robust, shiny metal finish and industry-standard 22mm mounting diameter ensure durability and seamless integration into any control panel. This operator features a flat, green lens, providing clear visual feedback and a professional aesthetic. As a momentary contact type, it is ideal for functions requiring a temporary input signal, such as starting a process or jogging a motor.
Key Benefit
-
Enhanced Visibility: Illuminated green button ensures easy identification in low-light environments.
-
Durable Construction: Premium metal and sturdy design for long-lasting industrial use.
-
Ergonomic Design: Flat, round shape for comfortable and precise operation.
-
Reliable Operation: Momentary contact type provides consistent performance for control circuits.
-
Easy Integration: Standard 22mm mounting size fits most control panels and applications.
Functions & Features
-
Round, 22mm metal pushbutton
-
Shiny green illuminated actuator
-
Flat design for modern and ergonomic operation
-
Momentary contact type (normally open)
-
Suitable for industrial and automation control panels
-
High durability for frequent use
-
Quick and easy installation
Application
-
Machine START/STOP functions (in conjunction with other buttons/selectors)
-
Motor Jogging (temporary low-speed movement)
-
Process Acknowledgment/Reset
-
Manual Override Inputs on industrial machinery
-
Control panels, switchboards, and electrical enclosures.
Visit 3SU1051-0AB40-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.038 kg |
|---|---|
| Dimensions | 32.00 × 38.00 × 32.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |

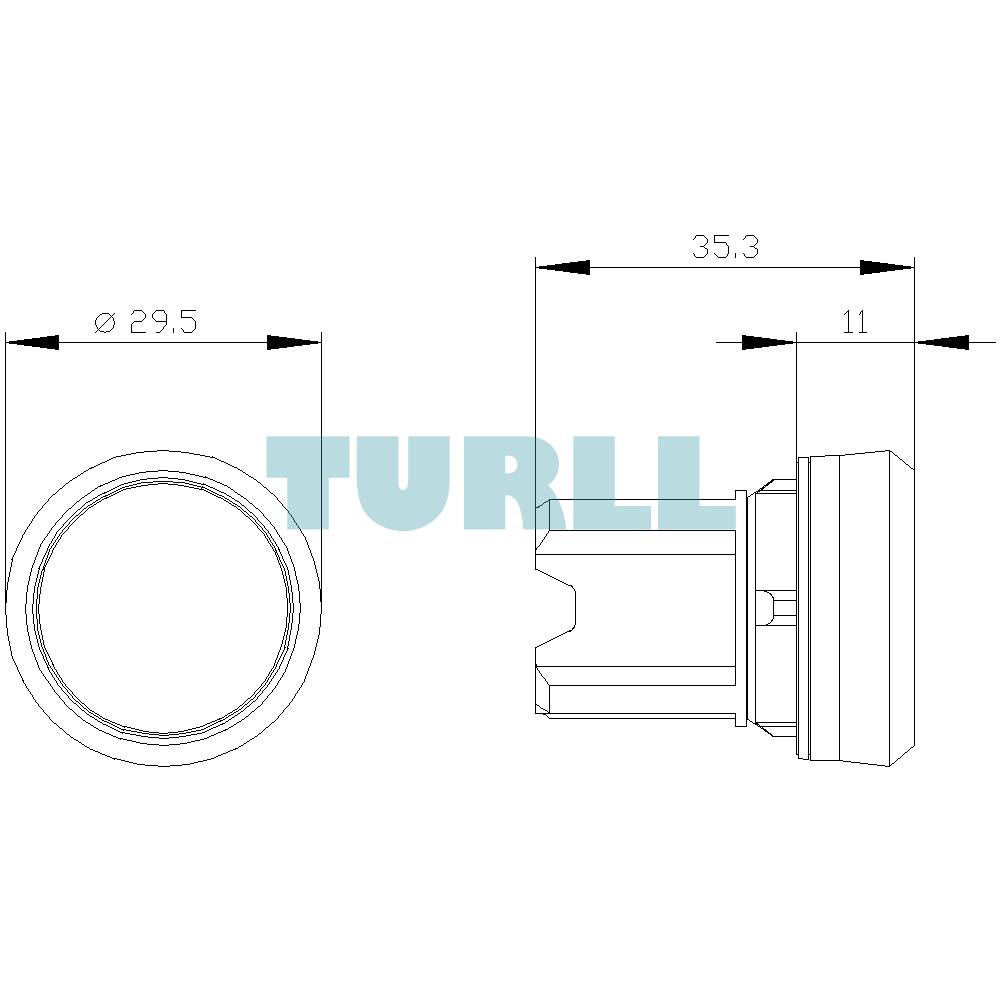

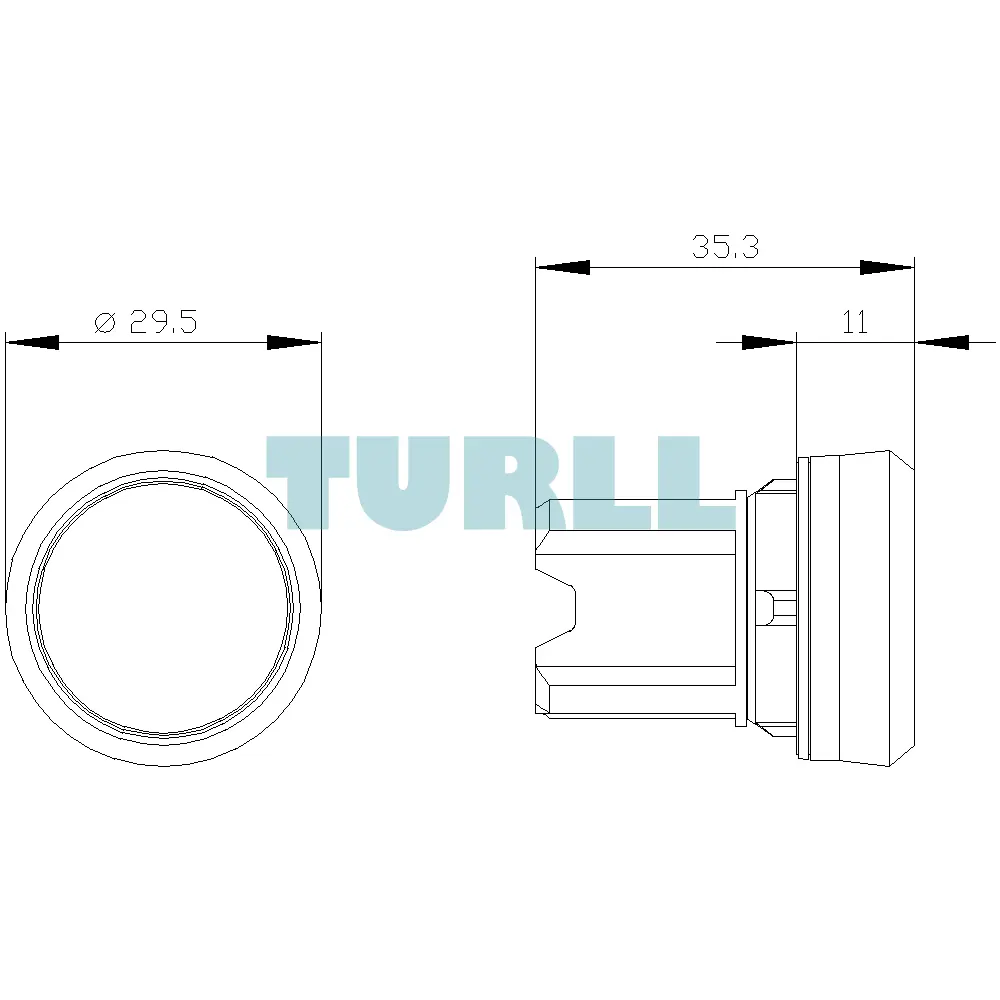

| outer diameter of the actuating element | 29.5 mm |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 3 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
