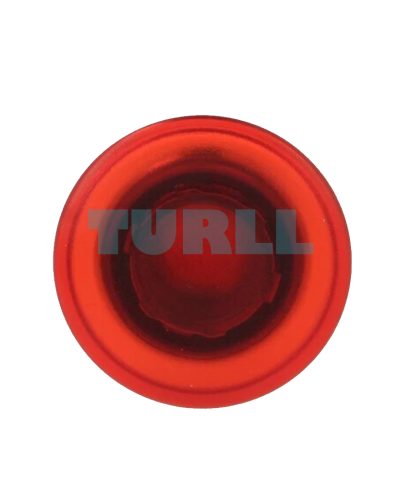

Siemens 3SU1051-1BA20-0AA0 Illuminated Mushroom Pushbutton, 22 mm, Red Metal Latching Switch Original Brand New
$19.36

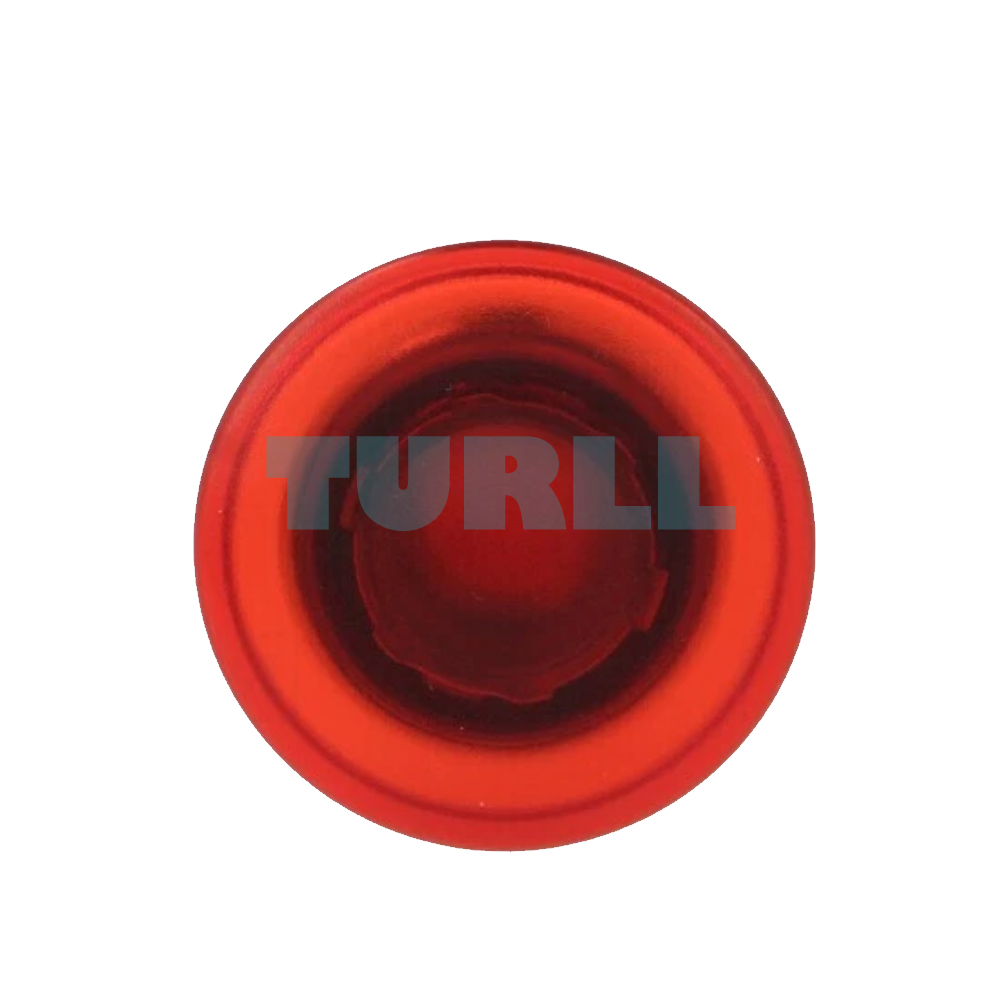

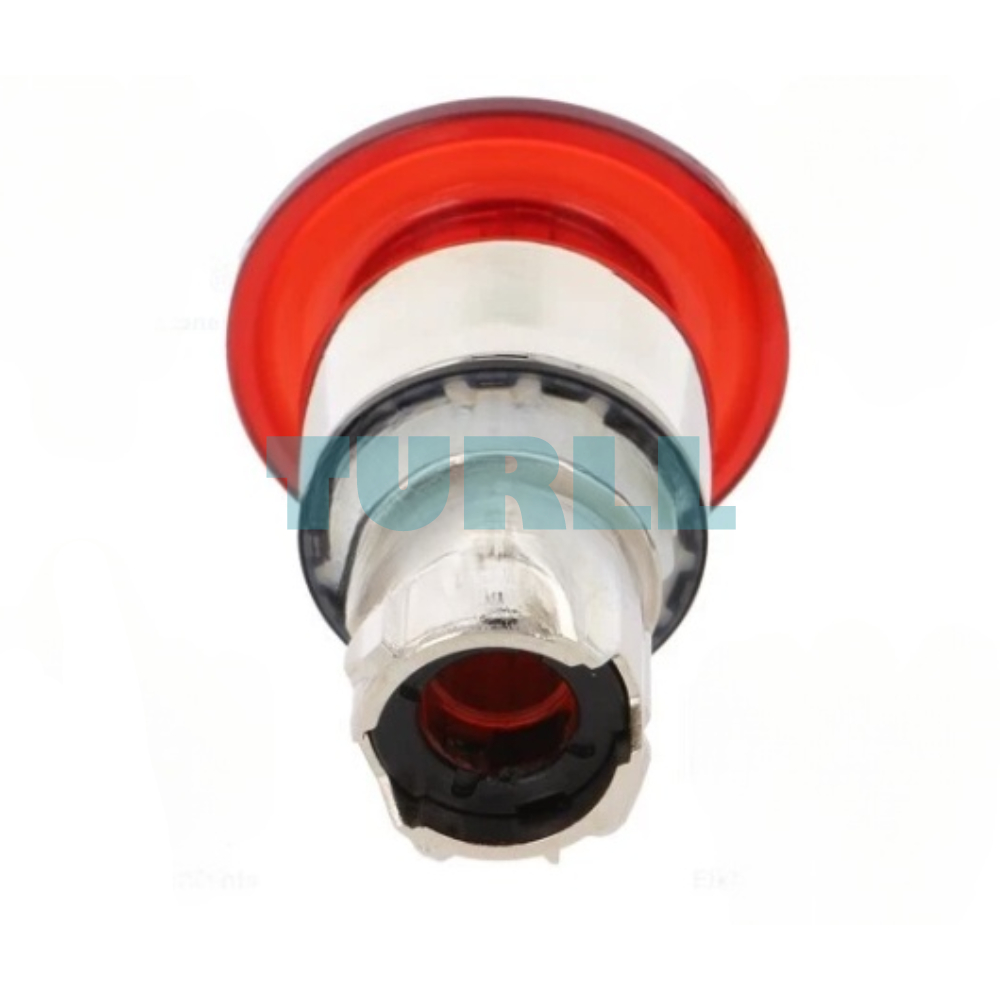

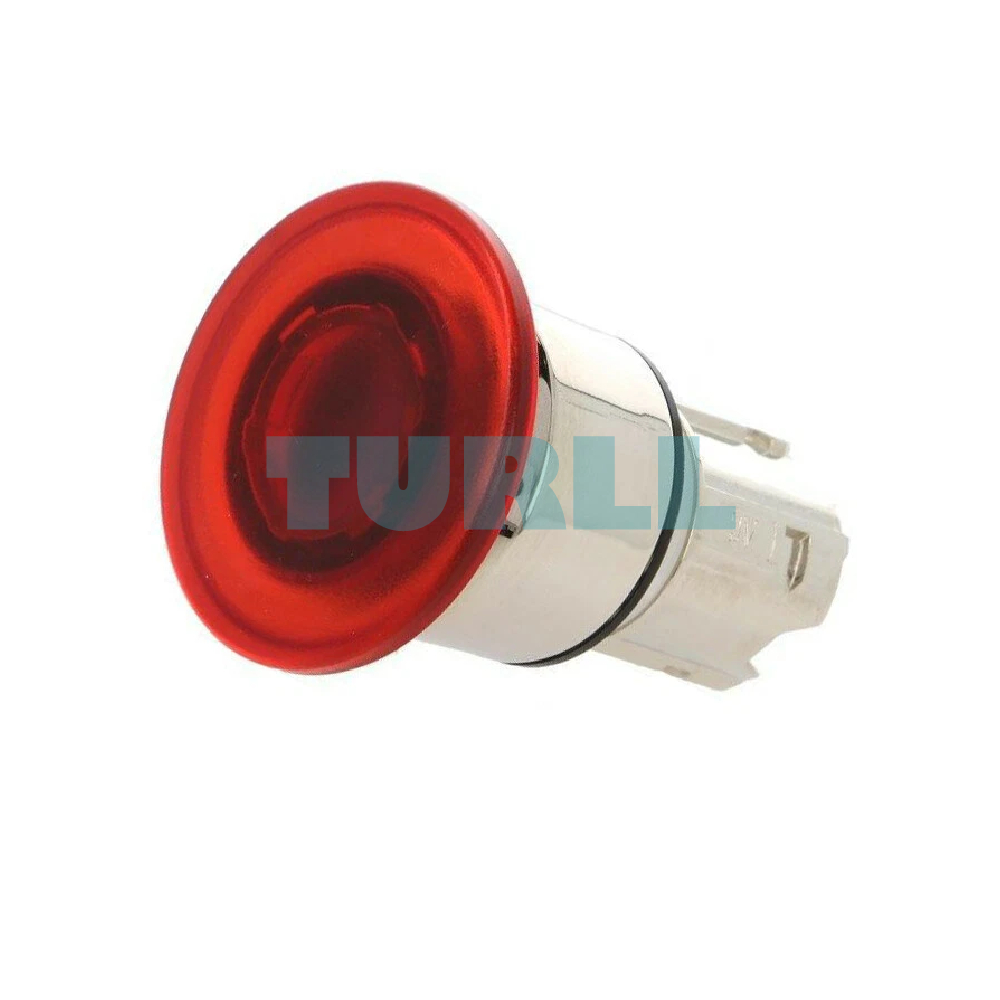

Illuminated mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, latching with a reliable pull-to-unlatch mechanism. Part of the robust Siemens SIRIUS ACT line.
Availability: In stock
Overview
The Siemens 3SU1051-1BA20-0AA0 is a premium, high-visibility control component from the SIRIUS ACT portfolio, designed for robust industrial environments. This illuminated mushroom-head pushbutton features a substantial 40 mm diameter head, making it highly conspicuous and easy to operate. Crafted with a shiny, high-quality metal front ring, it ensures maximum durability and a professional aesthetic for control panels.
Designed for standard 22 mm mounting cutout applications, the red color and illumination (requires separate LED element) provide immediate visual feedback on the control’s status. It features a reliable latching function, meaning the button remains depressed until manually reset via the pull-to-unlatch mechanism. This makes the 3SU1051-1BA20-0AA0 ideal for applications requiring continuous or sustained machine stop/start, mode selection, or critical process holds.
Benefit
-
Superior Visibility: The illuminated, large 40 mm red head ensures operators can quickly locate and actuate the control, reducing response time.
-
Industrial Durability: Features a robust metal, shiny front ring that withstands harsh industrial conditions, ensuring a long operational lifespan.
-
Reliable Latching: The secure latching mechanism guarantees the control status remains constant until manually reset, crucial for safety and process integrity.
-
Easy Reset: The intuitive pull-to-unlatch mechanism allows for simple and rapid resetting of the button after actuation.
-
Modular SIRIUS ACT: Integrates seamlessly with the flexible SIRIUS ACT system, allowing easy installation and combination with necessary contact and LED elements.
Functions & Features
-
Type: Illuminated Mushroom Pushbutton
-
Actuator Size: 40 mm
-
Mounting Diameter: 22 mm
-
Material: Metal, shiny finish
-
Color: Red (illuminated)
-
Operation: Latching pushbutton
-
Reset Type: Pull-to-unlatch
-
Design: Round, ergonomically accessible
-
Brand: Siemens
-
Product Number: 3SU1051-1BA20-0AA0
Visit 3SU1051-1BA20-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.060 kg |
|---|---|
| Dimensions | 40.00 × 40.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Mushroom pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | illuminated |
| principle of operation of the actuating element | latching |
| product extension optional light source | Yes |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 40 mm |
| marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| type of unlocking device | pull-to-unlatch mechanism |
| number of switching positions | 2 |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| product function | – |
| ● EMERGENCY OFF function | No |
| ● EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |

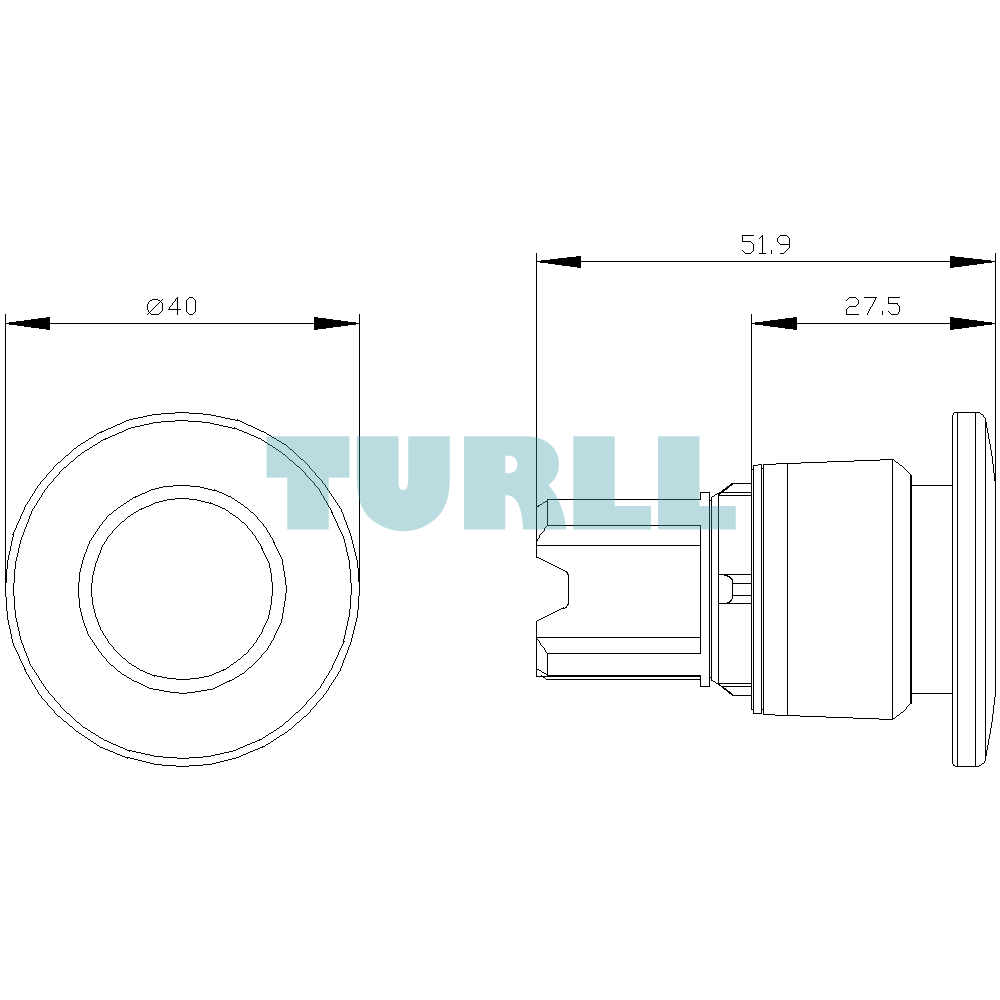

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 27.5 mm |
| installation width | 40 mm |
| installation depth | 24.4 mm |
| last modified: | 11/18/2021 |
