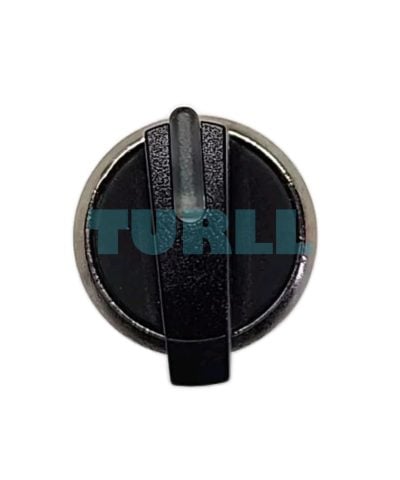

Siemens 3SU1052-2BL10-0AA0 Illuminable Selector Switch, 22mm Round Metal, Black, 3 Positions Original Brand New
$9.68
High-quality Siemens illuminable selector switch, 22 mm round, metal shiny black, 3 switch positions (I-O-II), latching, actuating angle 2×45°, ideal for industrial control panels.
Availability: In stock
Overview

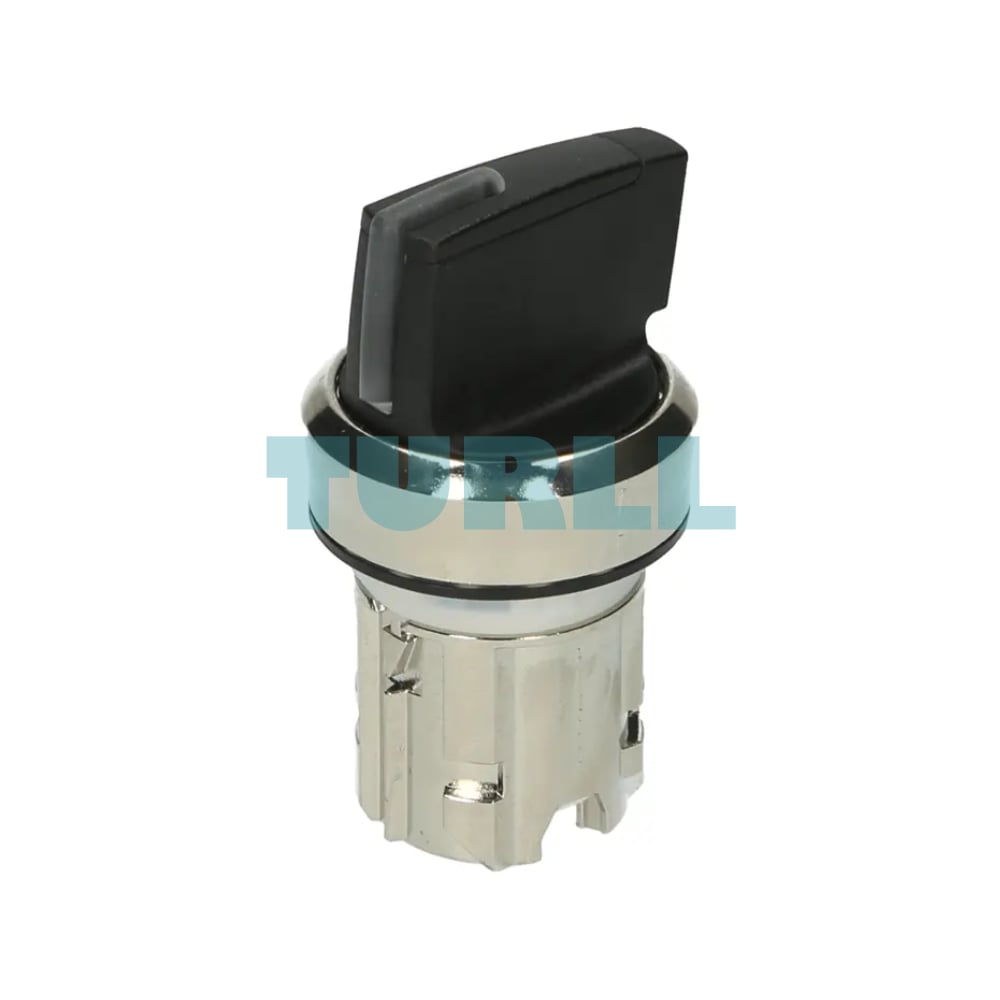

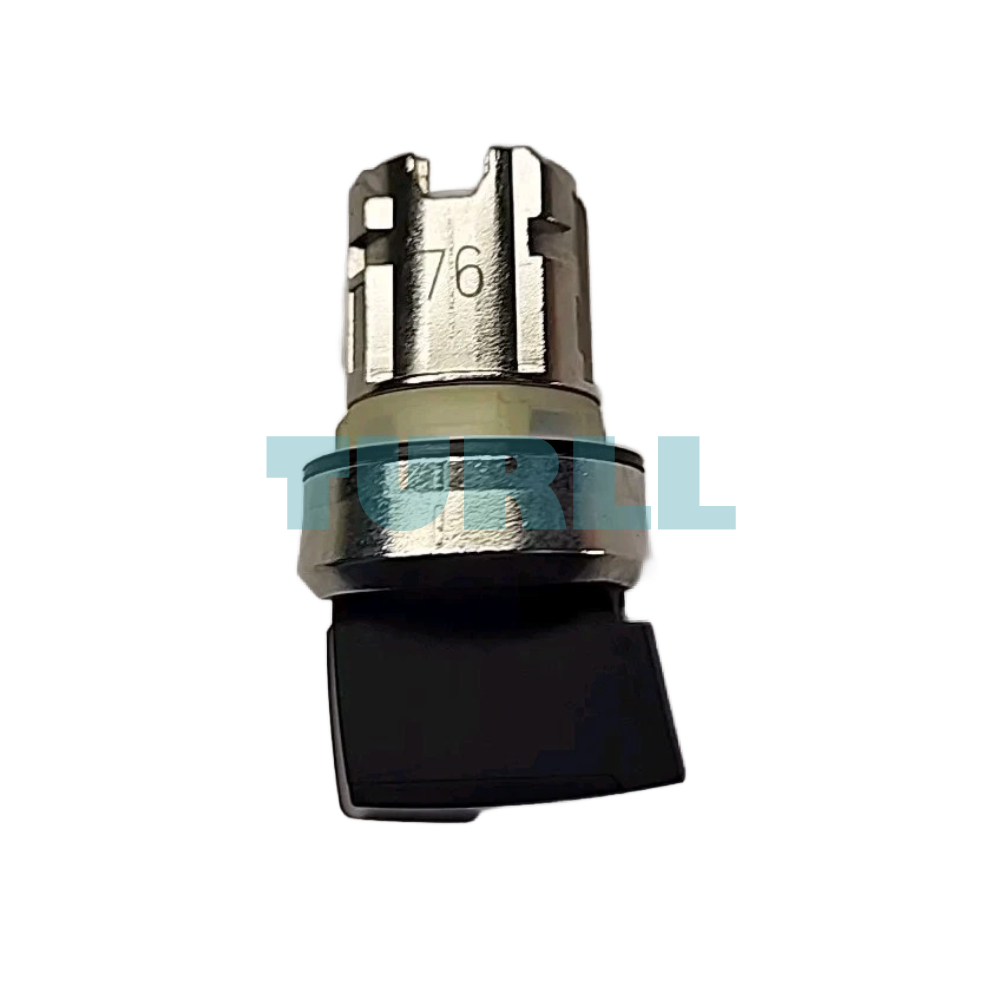

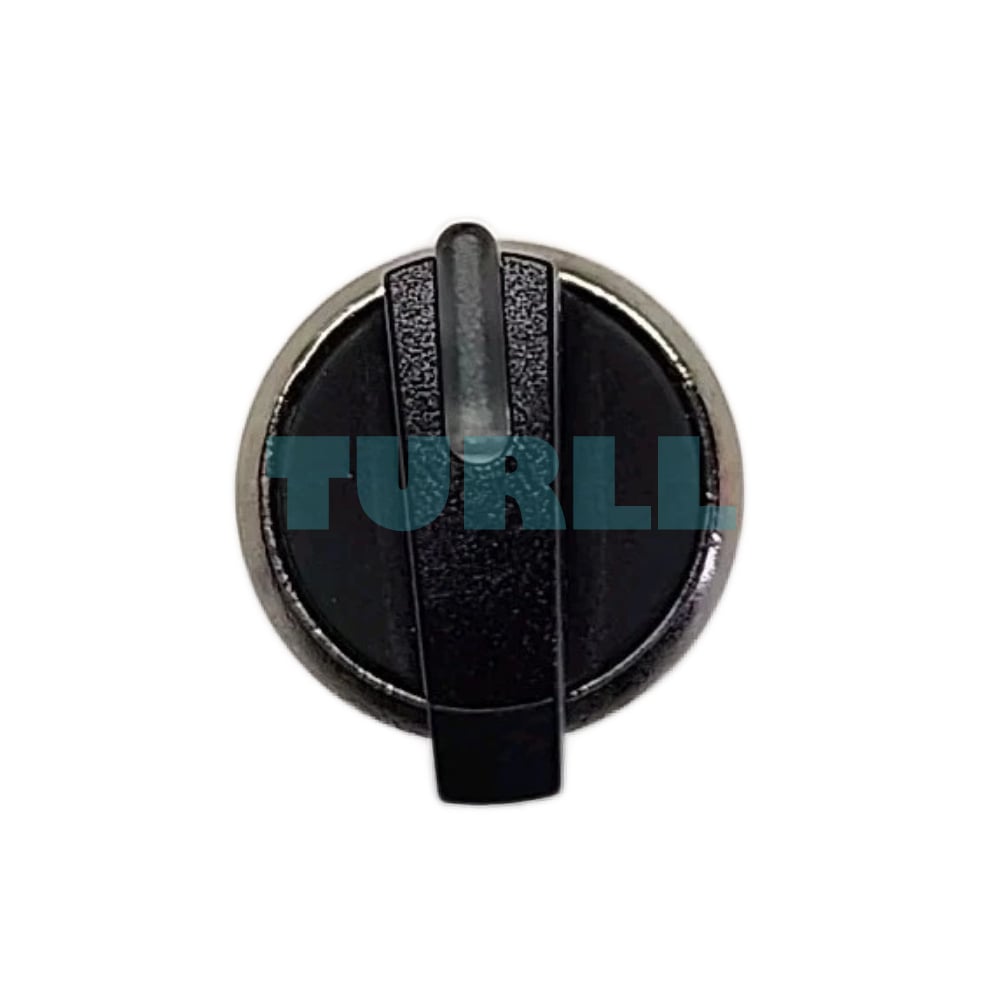

The Siemens 3SU1052-2BL10-0AA0 is a high-quality, illuminable selector switch head from the SIRIUS ACT 3SU1 series, designed for industrial control and signaling applications. This component features a robust 22 mm round design with a shiny metal front ring and a black, short selector switch handle. It offers reliable, three-position control (I-O-II) with a latching mechanism, ensuring the switch remains in the selected position until manually changed. Its ability to be illuminated enhances operational visibility in diverse industrial environments. Note: This is the operator head only. Holder and contact/LED modules must be ordered separately.
Key Features & Function
-
Illuminable Selector Switch: Provides clear visual feedback for each switch position.
-
Three Switch Positions (I-O-II): Offers precise control options for machinery or systems.
-
Latching Mechanism: Maintains position until intentionally changed.
-
Actuating Angle 2×45°: Ensures smooth and precise operation.
-
High-Quality Metal Construction: Durable, long-lasting performance in industrial environments.
-
Compact 22mm Round Design: Fits standard industrial control panels.
Benefit
-
Enhanced Safety & Visibility: Illuminable feature ensures clear status indication, reducing errors and improving safety, especially in low-light conditions.
-
Extreme Durability: Robust metal design and exceptional IP69K/NEMA protection rating ensure reliable performance and extended mechanical service life in demanding industrial settings (e.g., machinery, food & beverage industry).
-
Simplified Installation: Part of the innovative SIRIUS ACT system, allowing for fast, easy, and tool-free snap-on installation of the holder and modules, saving time and effort during commissioning.
-
Flexible Integration: Modular design allows for combination with standard wiring (screw/spring-type) or modern communication interfaces like PROFINET, IO-Link, or AS-Interface via specialized modules (purchased separately).
Visit 3SU1052-2BL10-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 62.00 × 68.00 × 45.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 2×45° (10:30 h/12 h/13:30 h) |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 32.3 mm |
| number of switching positions | 3 |
| actuating angle | – |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 300 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

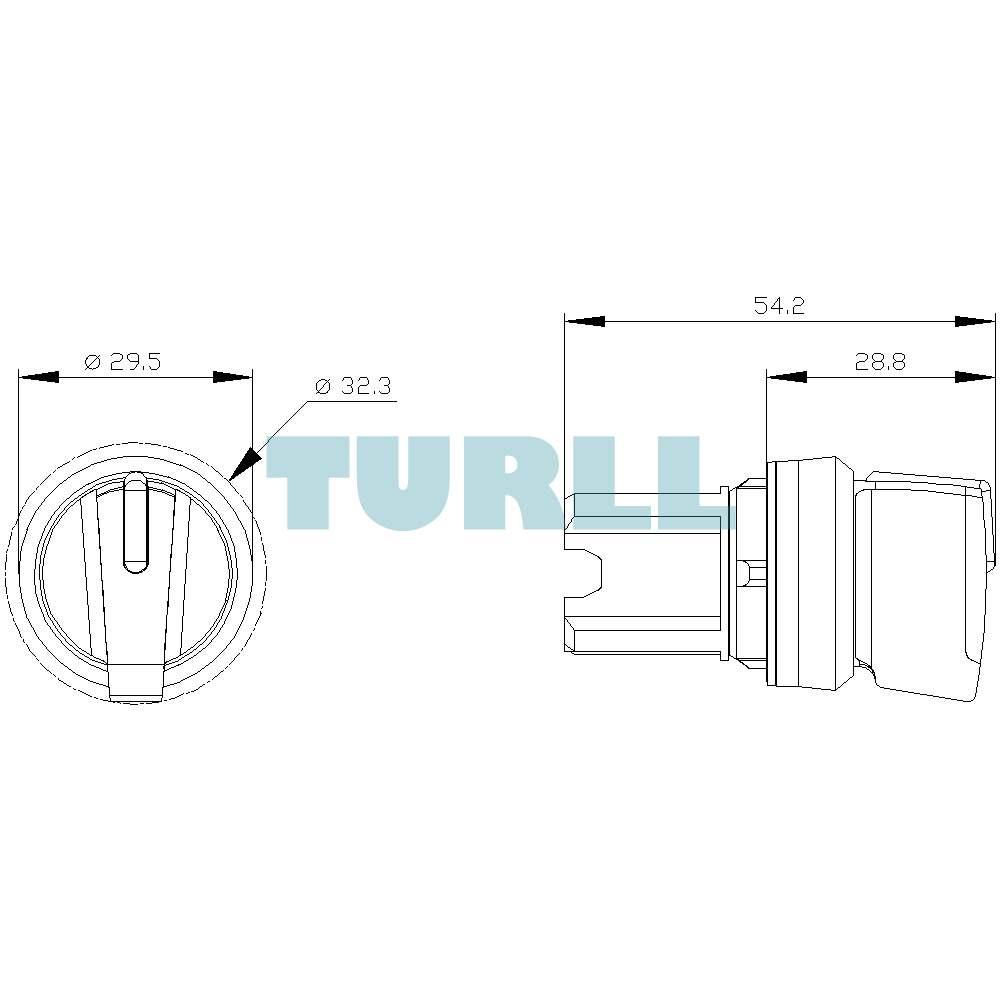

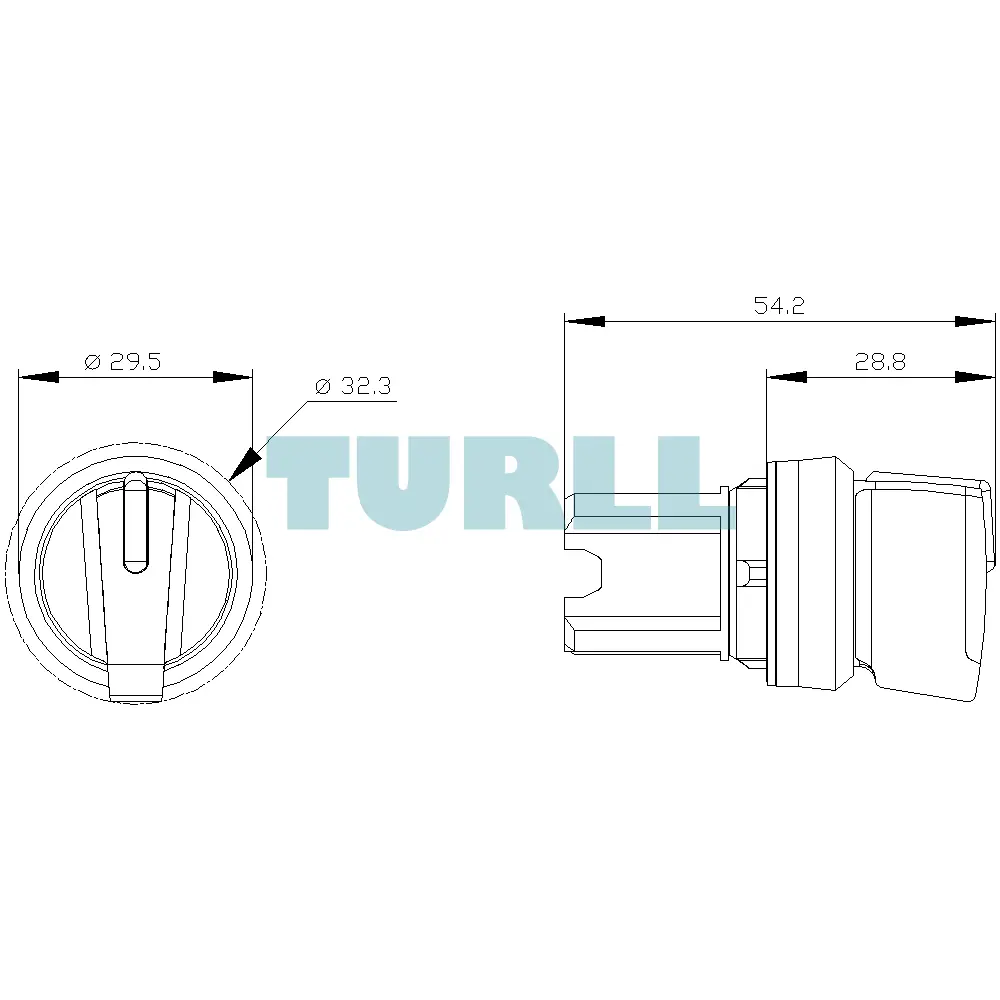

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 25.4 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
