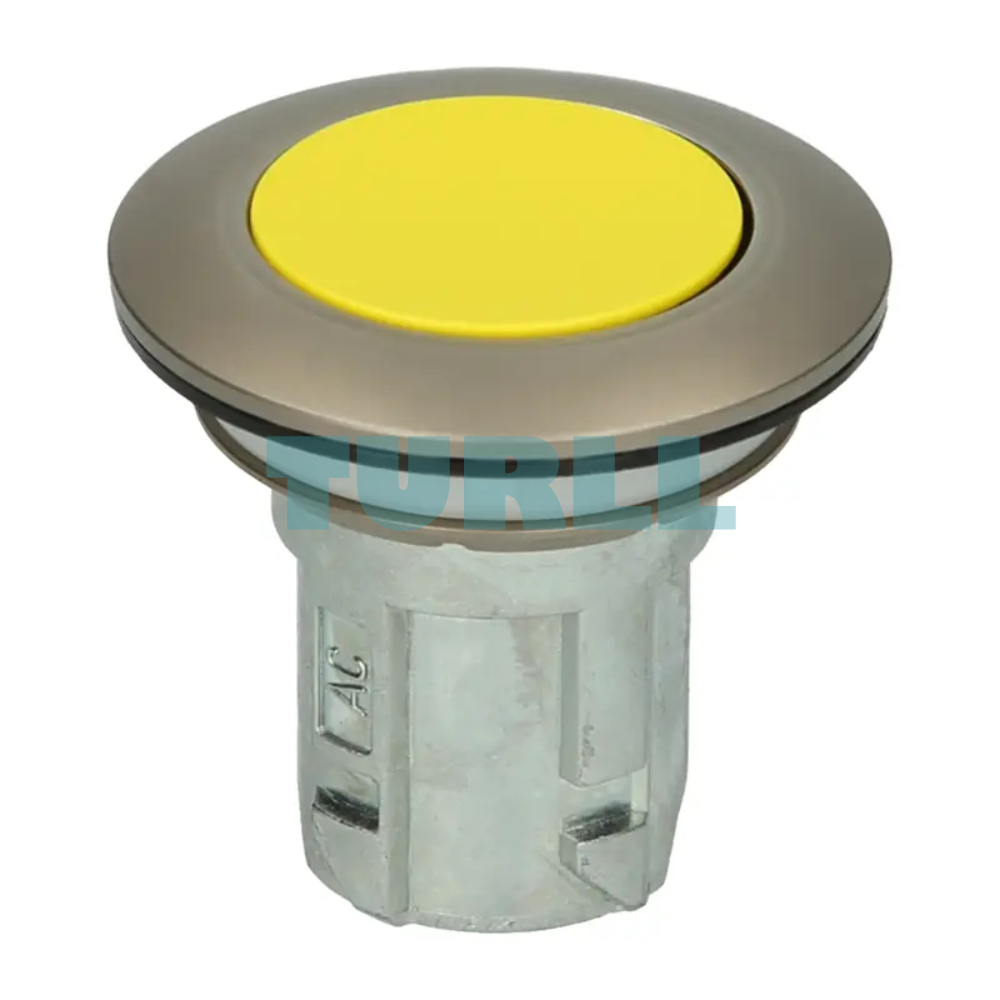

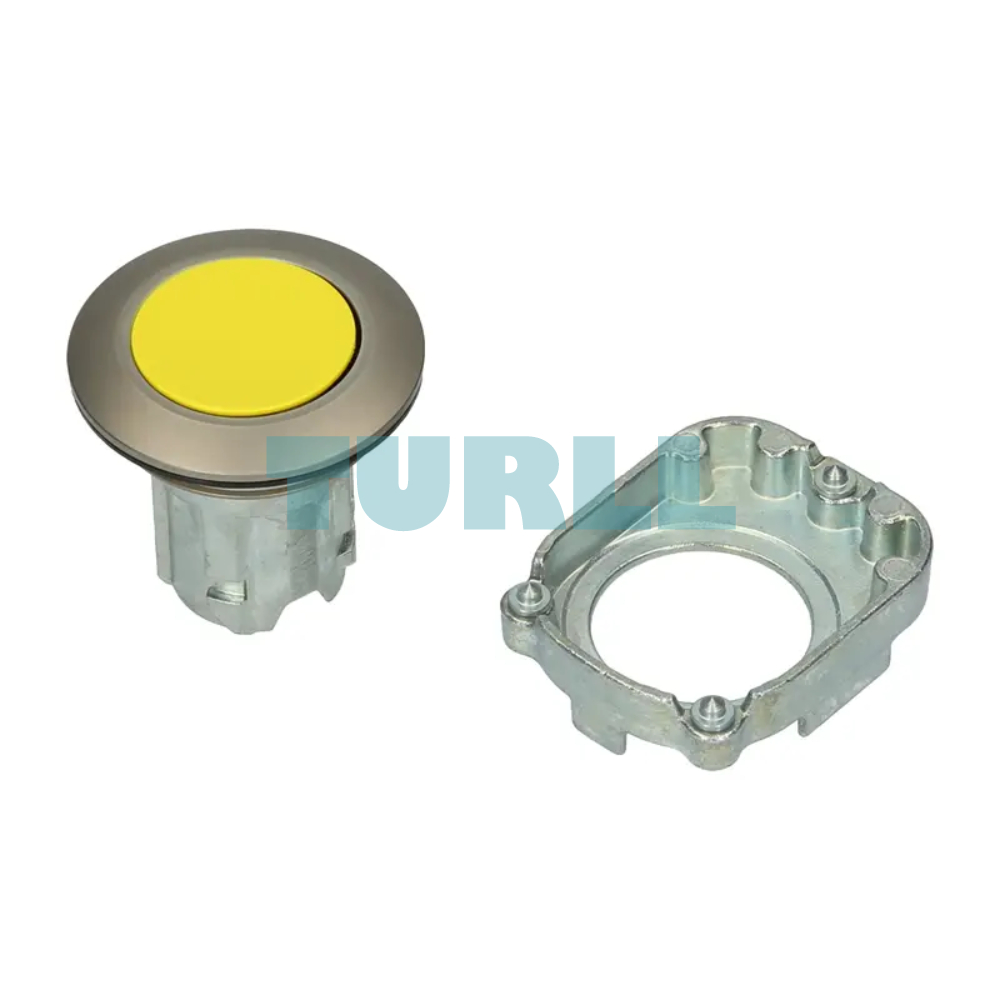

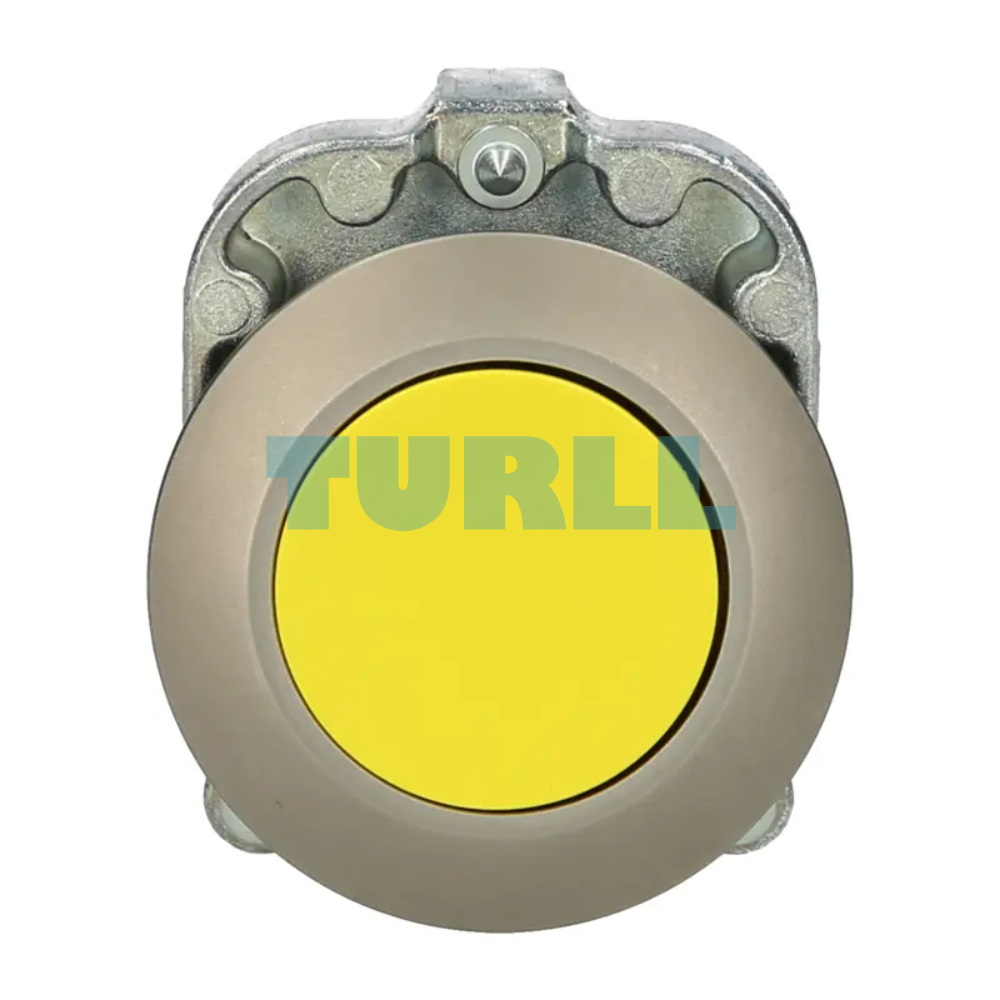

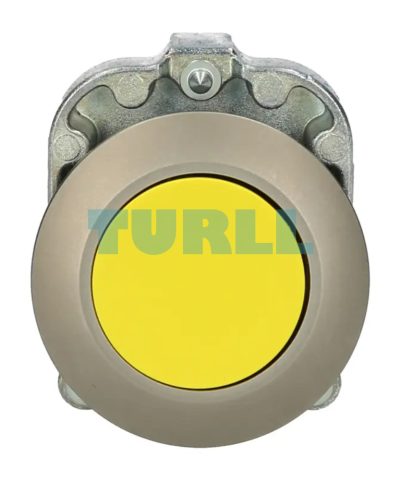

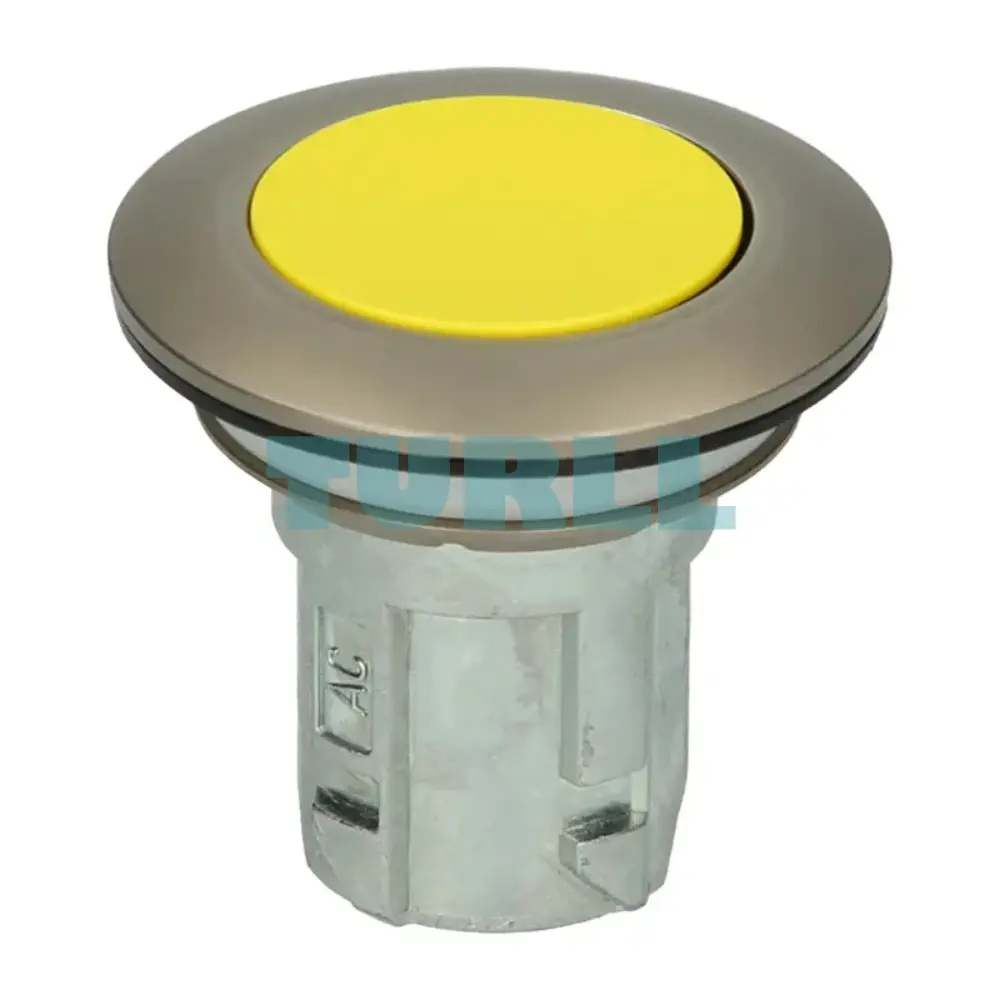

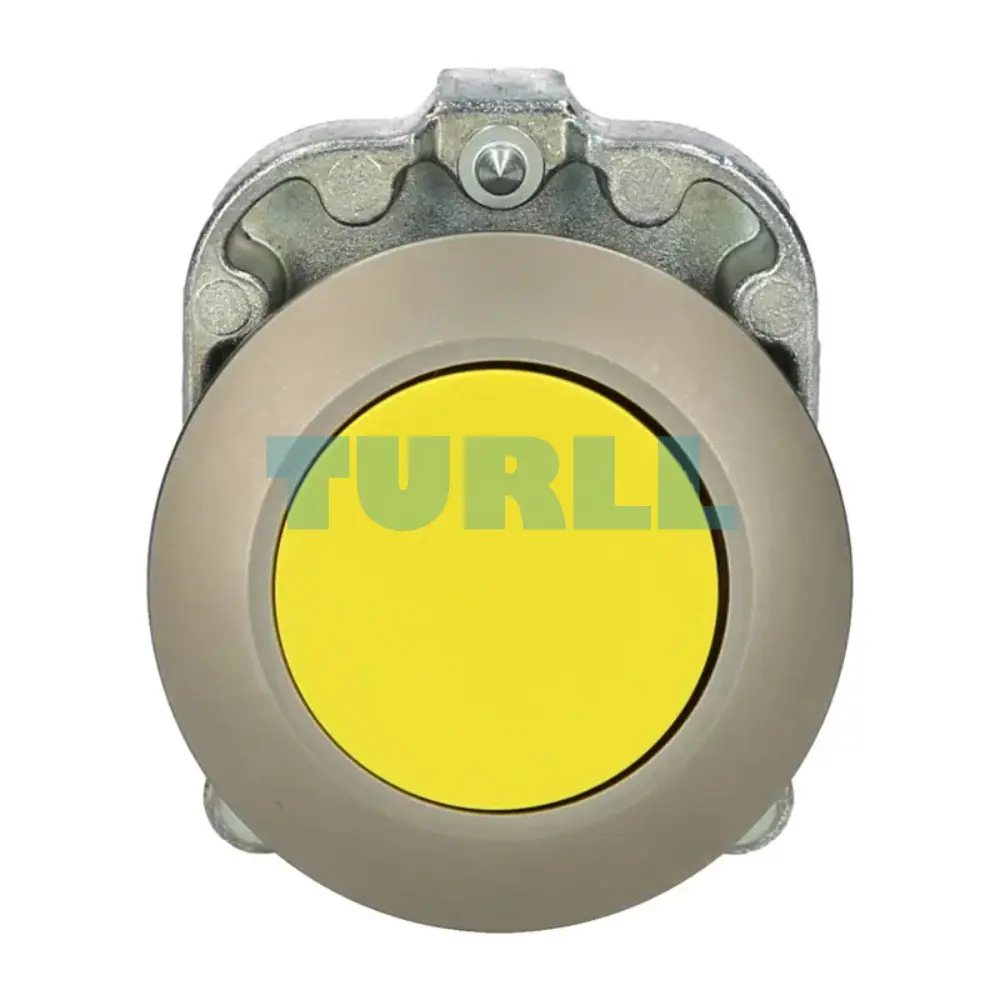

Siemens 3SU1060-0JA30-0AA0 Pushbutton, 30 mm, Round Metal, Yellow, Latching Original Brand New
$17.71
The Siemens 3SU1060-0JA30-0AA0 is a yellow, 30 mm, metal, matte pushbutton from the SIRIUS ACT series. It features a reliable latching (stay-put) function and push-to-release mechanism for robust industrial control. Designed for a clean, flush-mount installation.
Availability: In stock
Overview
The Siemens 3SU1060-0JA30-0AA0 Pushbutton is a premium 30 mm industrial control switch designed for exceptional durability and reliability in demanding environments. Featuring a round metal body with a matte yellow actuator, this pushbutton is engineered for flush installation and supports a latching mechanism with push-to-release functionality. It’s ideal for machinery, automation panels, and safety stations that require clear visual signaling and dependable operator control.
Benefit
-
Enhanced Visibility: The bright yellow color ensures high visibility for critical functions or emergency stop applications.
-
Durable Construction: The metal, matte enclosure offers maximum robustness against industrial environments, dust, and moisture.
-
Space-Saving Design: Flush installation provides a professional, clean panel surface and prevents accidental activation.
-
Reliable Operation: The latching function guarantees the machine state is maintained, reducing the risk of unintended operation.
-
Modular System: Part of the flexible SIRIUS ACT line, allowing for easy assembly and customization with various contact blocks.
-
Ease of Use: Simple and clear Push-to-release mechanism for manual reset.
Function & Features
-
Pushbutton Type: Latching with push-to-release
-
Mounting Diameter: 30 mm
-
Design: Round, metal, matte finish
-
Color: Yellow
-
Installation Style: Front ring for flush mounting
-
Ideal For: Industrial machinery, automation systems, safety and signaling applications
-
Brand Quality: Engineered to Siemens’ high safety and durability standards
Visit 3SU1060-0JA30-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.064 kg |
|---|---|
| Dimensions | 93.00 × 141.00 × 42.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Any inscription, text or symbol, can only be ordered via SIRIUS ACT configurator/Configuration Identification Number (CIN) |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
