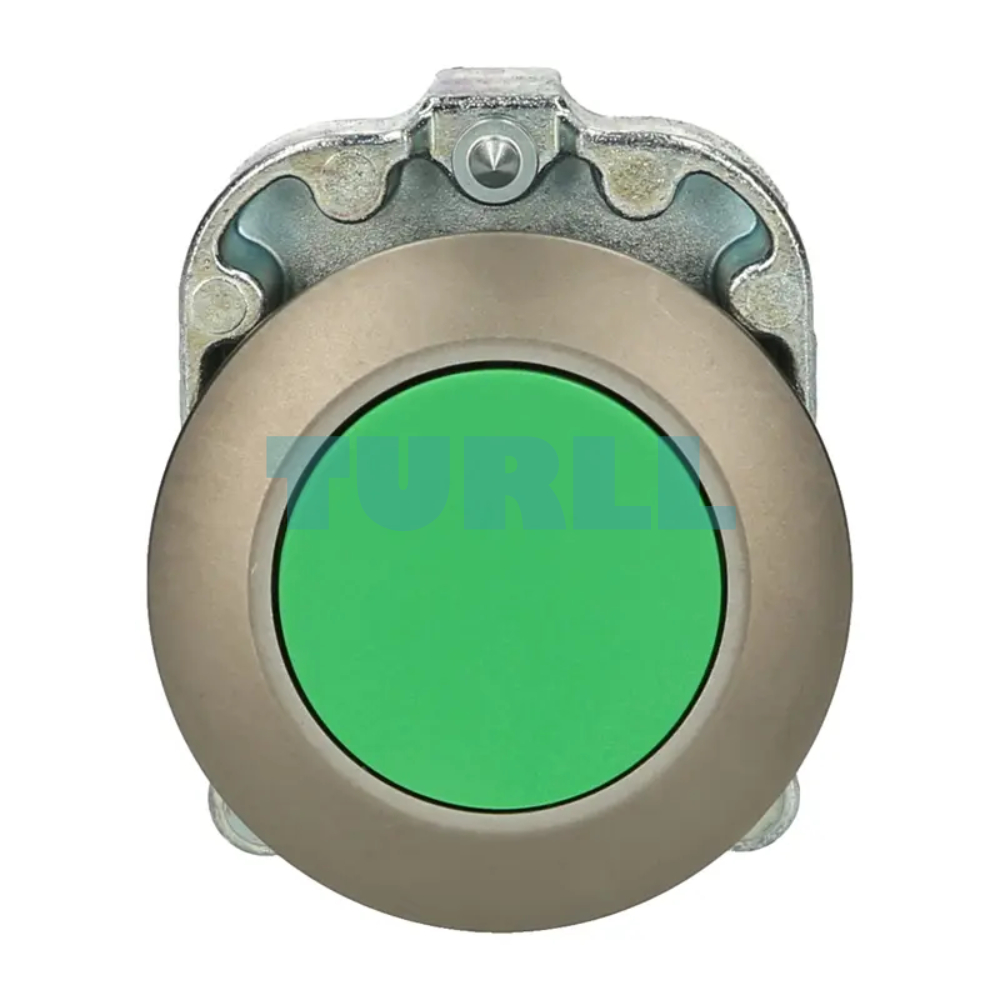

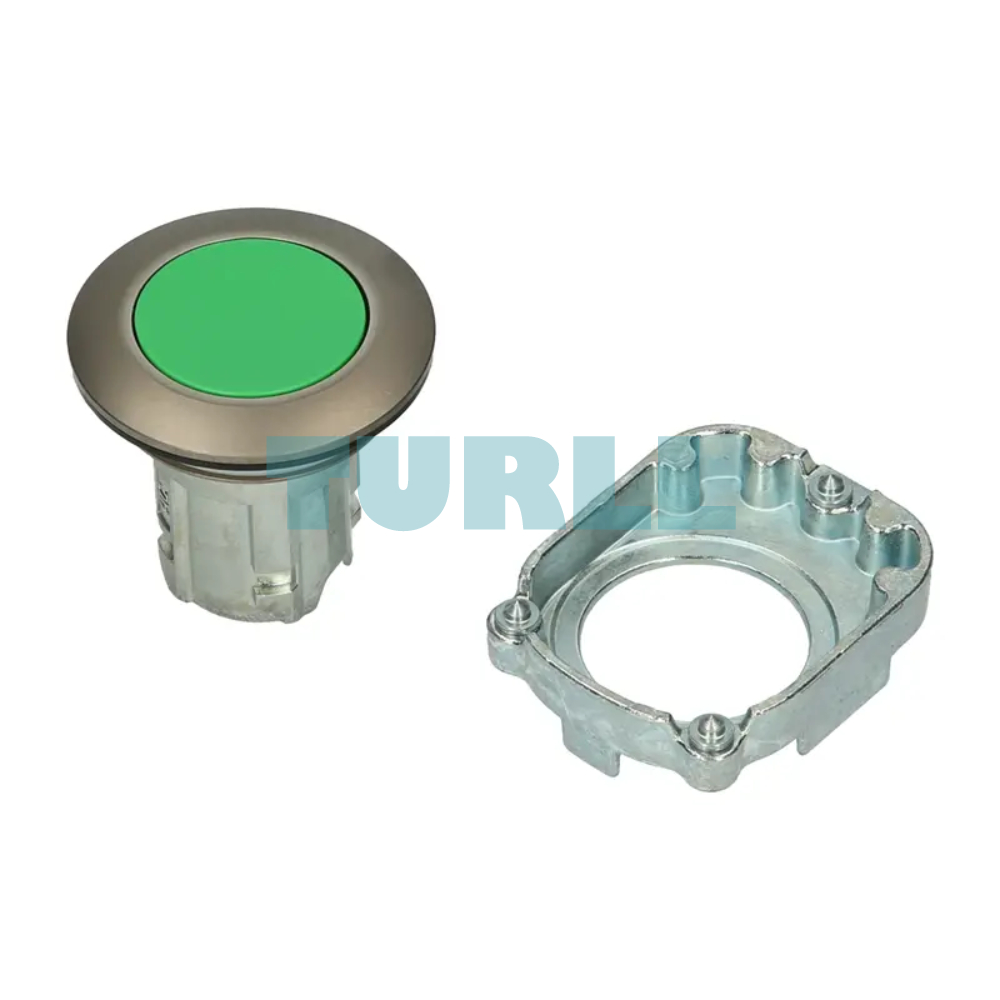

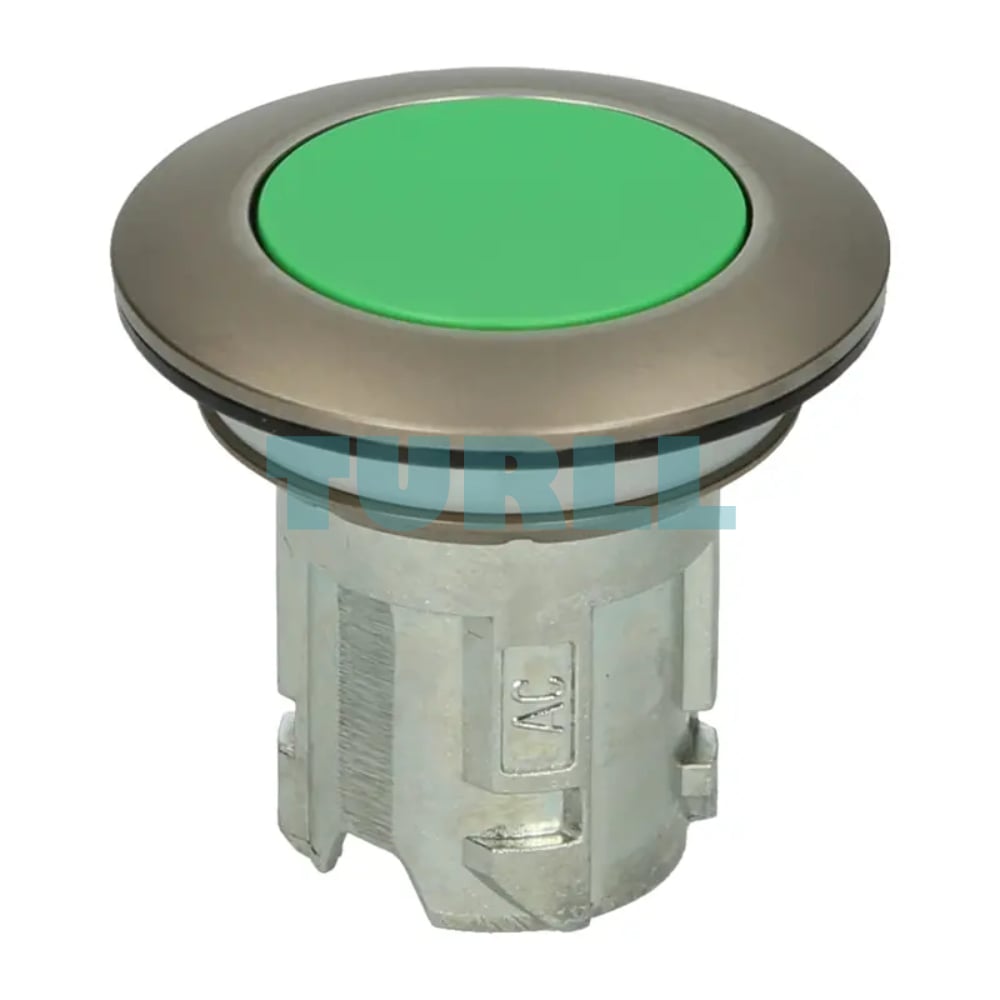

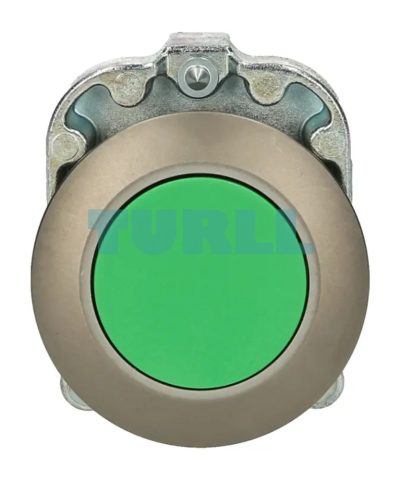

Siemens 3SU1060-0JA40-0AA0 SIRIUS ACT Pushbutton 30mm, Round, Matte Metal, Green Original Brand New
Model / SKU3SU1060-0JA40-0AA0
High-durability 30mm round pushbutton designed for industrial control panels. This green, matte metal actuator features a latching function with a push-to-release mechanism, ensuring secure operation and a sleek, flush-mounted aesthetic.
Original price was: $116.95.$65.42Current price is: $65.42.
Available on backorder
- ConditionOriginal Brand New
- Warranty12 months
Backorder available · Factory lead time 2–3 weeks.
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 3SU1060-0JA40-0AA0 belongs to the renowned SIRIUS ACT series, representing the pinnacle of design and reliability in command and signaling devices. Specifically engineered for 30.5 mm mounting diameters, this pushbutton provides a modern "flat" look thanks to its matte metal front ring, which is designed for flush installation.
Its latching functionality is ideal for applications requiring the device to remain in an "on" or "active" state until manually released by the operator, while the vibrant green color ensures high visibility for "Start" or "Go" functions.
Key Features & Benefit
-
Robust Construction: Crafted from high-quality matte metal for extreme durability in harsh industrial environments.
-
Modern Aesthetics: The 30mm round design and flat front ring allow for a low-profile, flush-mounted finish on control panels.
-
Latching Mechanism: Features a reliable "Push-to-Release" function, preventing accidental state changes.
-
Weather Resistant: Built to withstand vibration, dust, and moisture, maintaining long-term electrical integrity.
-
Easy Installation: Designed for rapid, one-handed installation without specialized tools.
Functionality
-
Latching Mechanism: Once pressed, the button stays in the actuated position.
-
Push-to-Release: A second press releases the button, returning it to its original state.
-
Flush Mounting: Specifically designed for a seamless, low-profile fit in 30mm diameter holes.
Visit 3SU1060-0JA40-0AA0 for more detail info
For more our products visit turll
Download
Specifications
| SKU / Model | 3SU1060-0JA40-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | - |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Any inscription, text in upper case |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
| Weight | 0.063 kg |
| Dimensions | 40.00 × 90.00 × 40.00 mm |
