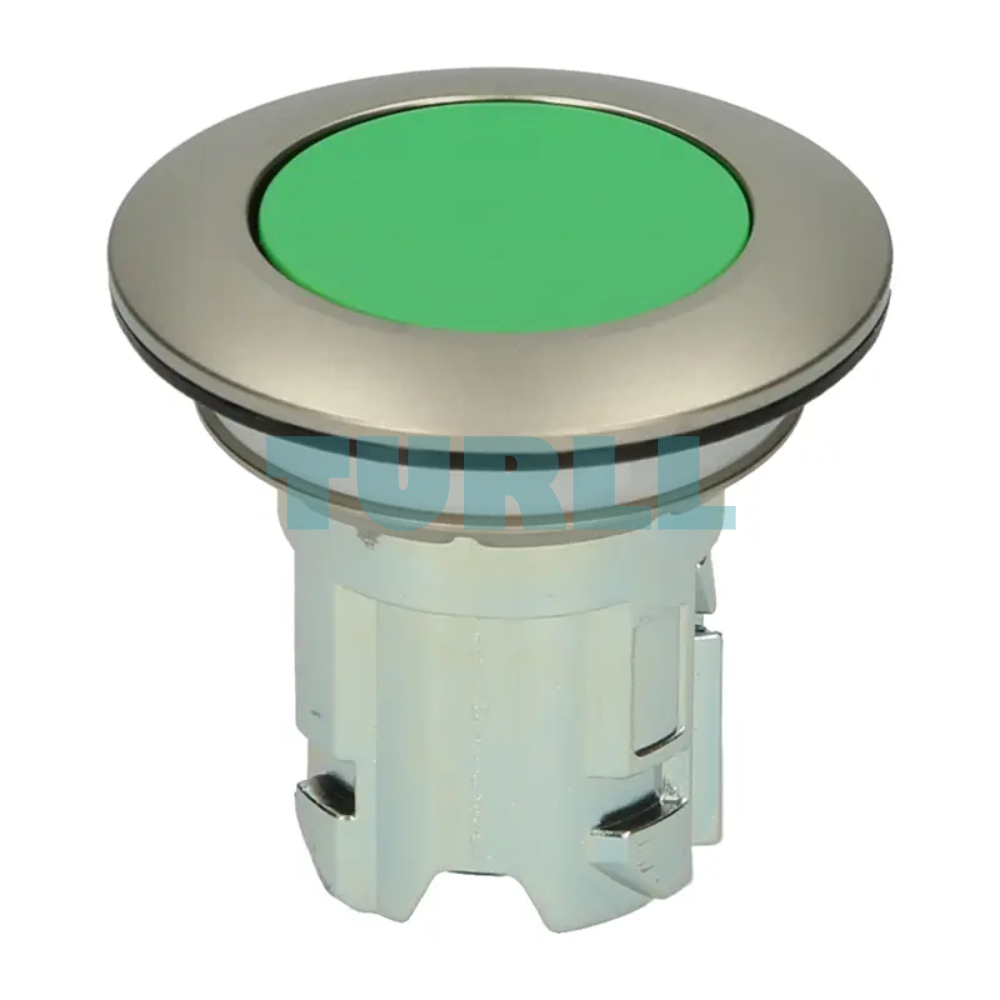

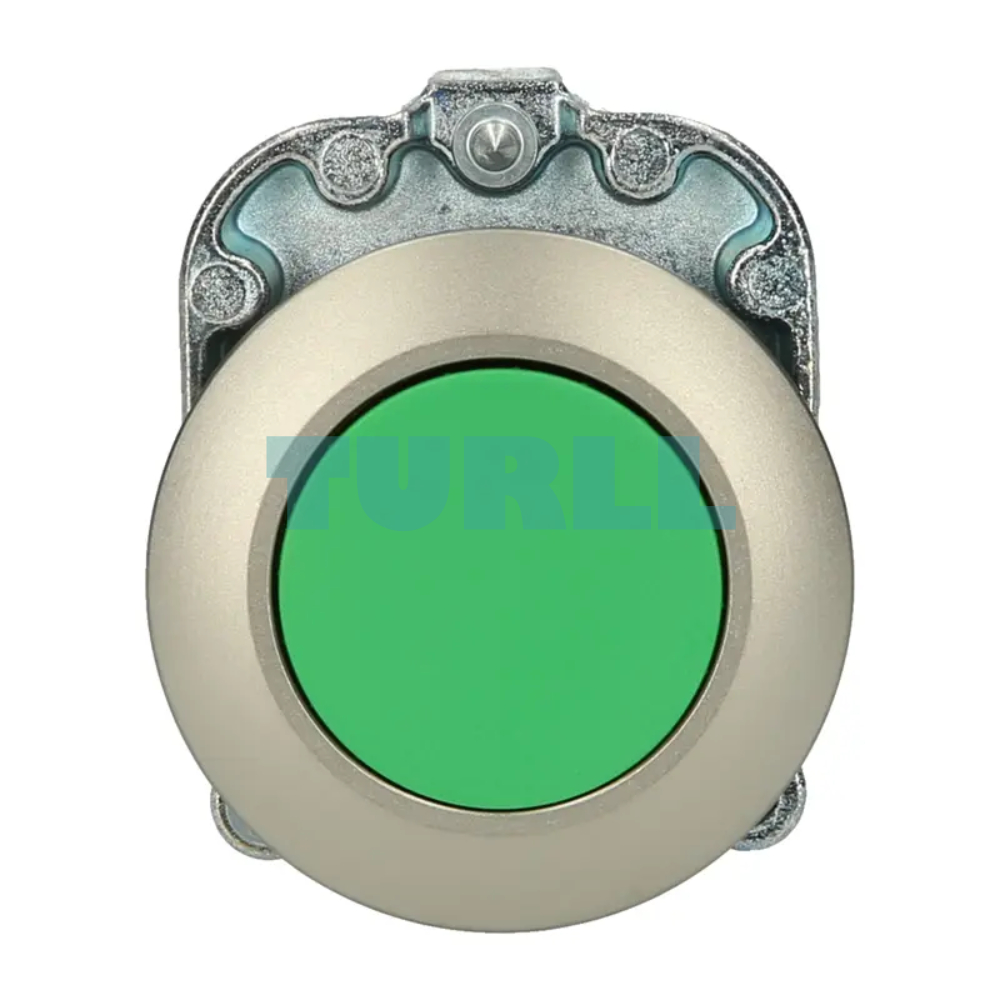

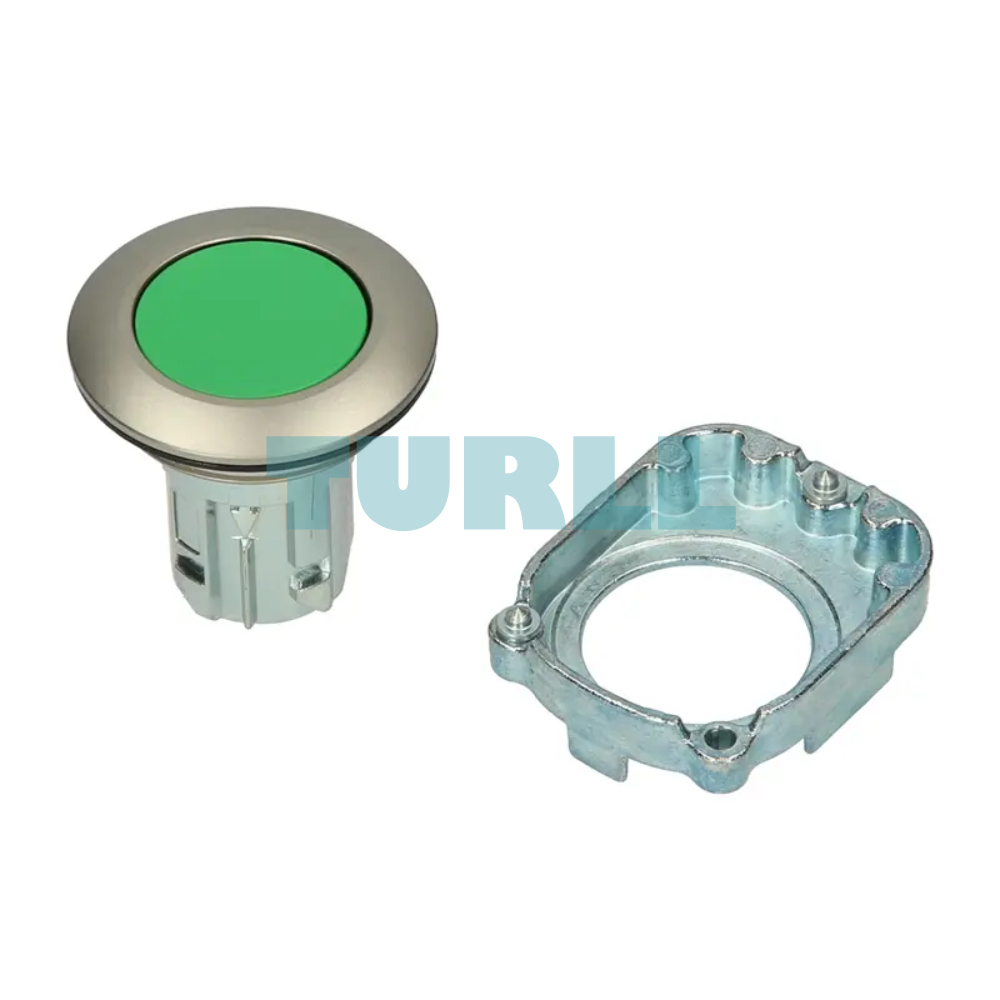

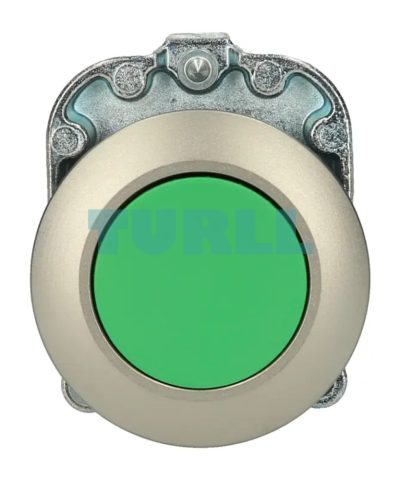

Siemens 3SU1060-0JB40-0AA0 Green Metal Flush Pushbutton, 30 mm, Momentary Original Brand New
$12.65
A rugged 30 mm green metal flush‑mount pushbutton, ideal for industrial control panels. Momentary contact type ensures reliable start/stop or reset control in machinery and automation systems.
Availability: In stock
Overview
The Siemens SIRIUS ACT 3SU1060-0JB40-0AA0 is a premium, aesthetically designed pushbutton from the SIRIUS ACT series, engineered for modern, flush-mounted control panels. Featuring a 30 mm round metal construction with a sleek matte, green finish, this component provides a professional, high-end look while maintaining the ruggedness required for industrial environments. It is a momentary contact type, meaning the circuit is closed only while the button is actively pressed.
Benefits & Function
-
Durable Metal Construction: Built with a robust metal housing that resists wear, making it suitable for heavy-duty industrial environments.
-
Standard 30 mm Size: Universally compatible with most control panel cutouts and operator interface designs.
-
Flush‑Mount Front Ring: Enables clean, flush installation — ideal for sleek control panels and safety‑first machine designs.
-
Matte Green Finish: Provides a clear visual indicator to operators (e.g., “start”, “go”, “safe”), enhancing usability and reducing mis‑presses.
-
Momentary Contact Type: Returns to default position when released — perfect for functions like start/stop, reset, or emergency signals where momentary activation is needed.
Application
-
Industrial machinery control panels
-
Automation systems and control boards
-
Start/stop/reset buttons on production lines
-
Control panels in factories, workshops, and heavy‑duty facilities
Visit 3SU1060‑0JB40‑0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.075 kg |
|---|---|
| Dimensions | 40.00 × 60.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all lines start with capital letter |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
