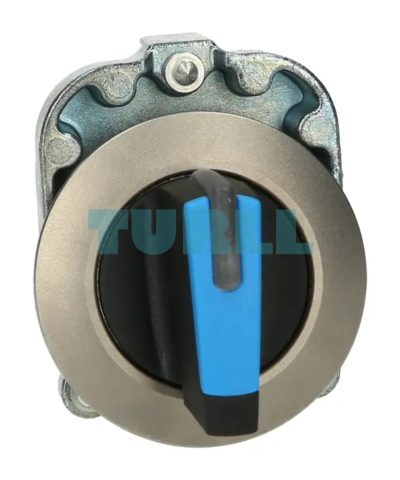

Siemens 3SU1062-2DF50-0AA0 Illuminable Selector Switch, 30mm, Round, Metal Matte Blue Original Brand New
$17.27
Siemens 30 mm illuminable round selector switch in matte blue metal finish, designed for flush installation. Featuring 2 switch positions (O-I), latching mechanism, and 90° actuating angle, this switch ensures reliable operation in industrial applications.
Availability: In stock
Overview

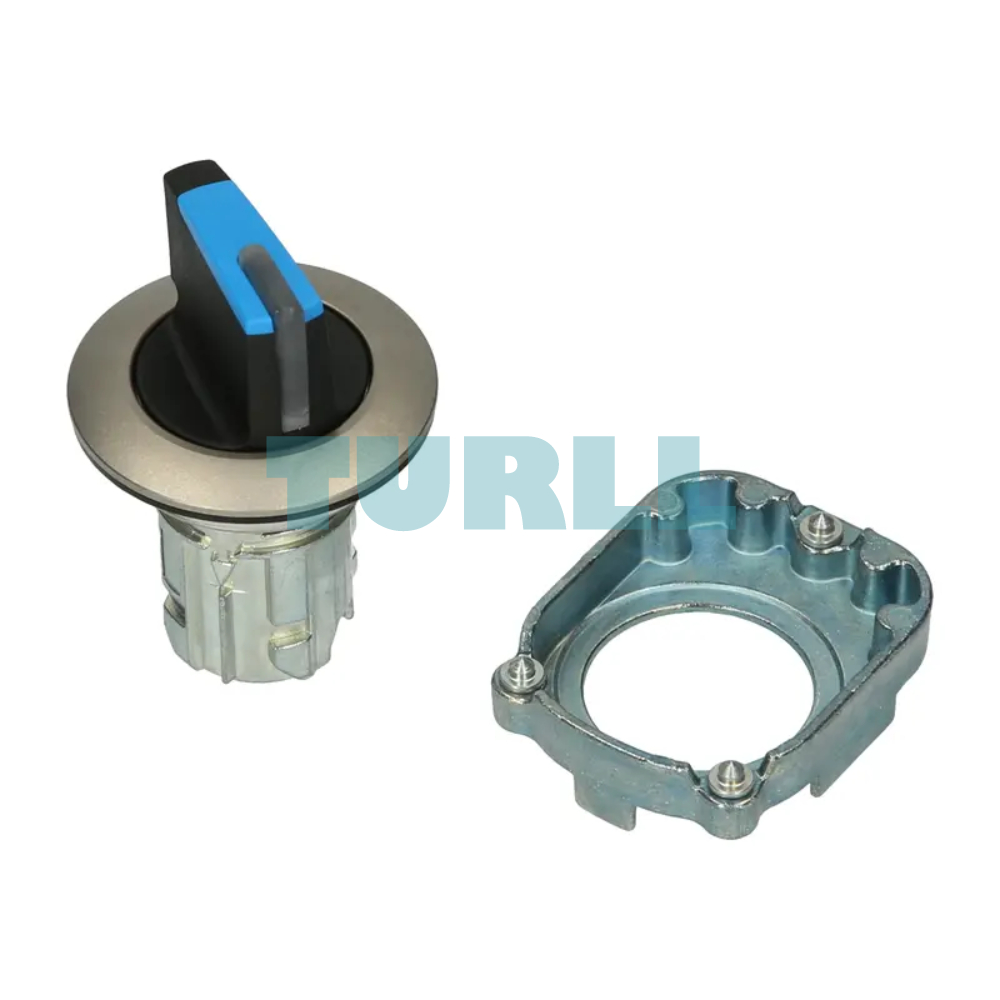

The Siemens 3SU1062-2DF50-0AA0 is a high-quality, illuminable selector switch head from the SIRIUS ACT product line, specifically designed for industrial control and signaling applications. This component is the front-panel actuator for a modular control system, featuring a flat, modern design with a matte metal front ring and a distinct blue short selector switch handle. It requires separate ordering of a holder and switching/LED modules to form a complete unit.
Key Features
-
Illuminable selector switch, 30 mm round design
-
Metal matte blue finish for enhanced durability and professional appearance
-
Short selector switch with front ring for flush mounting
-
2 switch positions: O-I
-
Latching mechanism ensures secure operation
-
Actuating angle: 90°
-
Position markings: 10:30h / 13:30h
Benefit
-
Reliable Performance: Precision-engineered for long-lasting operation in industrial settings.
-
Easy Installation: Flush installation design simplifies integration into panels.
-
Enhanced Visibility: Illuminable design ensures status is clearly visible even in low-light environments.
-
Durable Construction: Metal matte finish resists wear and tear for extended service life.
Function
-
Control and monitor industrial machinery
-
Switch between two operational states with tactile feedback
-
Serve as part of complex automation or control panel setups
Visit 3SU1062-2DF50-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.073 kg |
|---|---|
| Dimensions | 100.00 × 140.00 × 35.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | blue |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all words start with capital letters |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 300 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

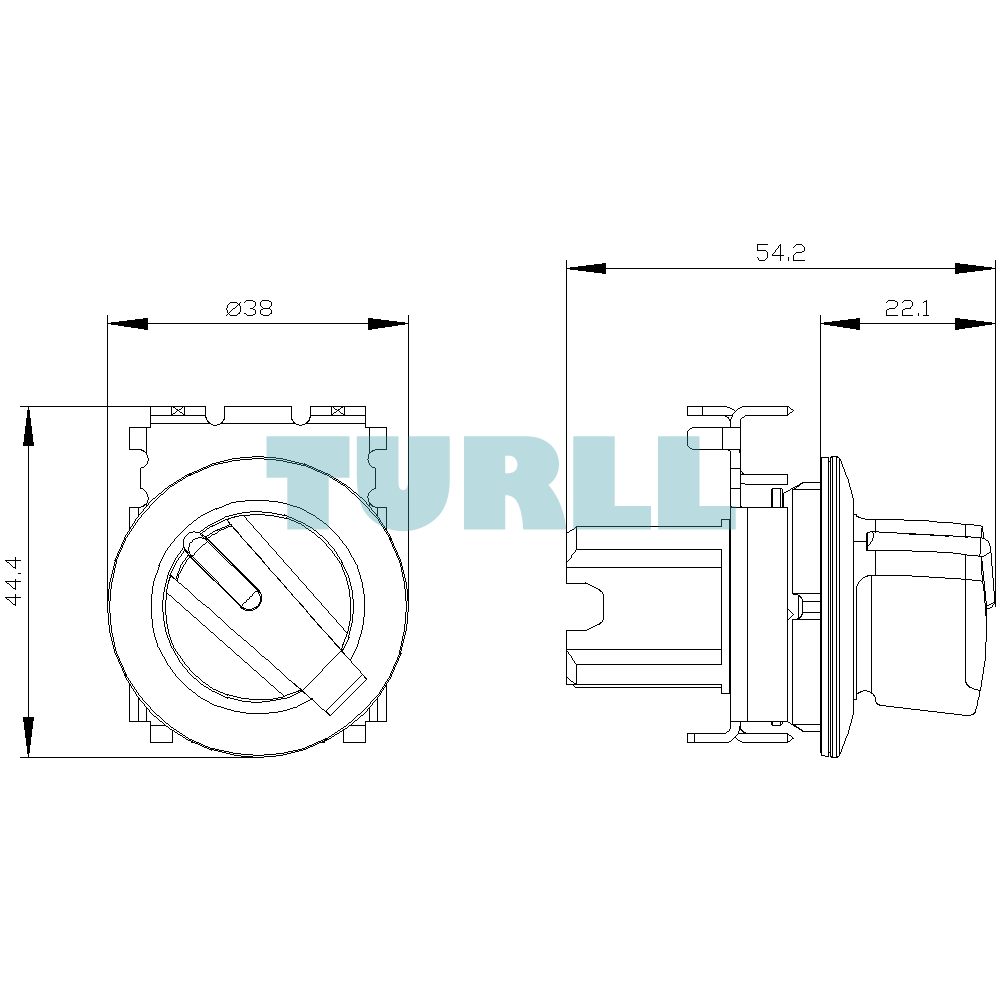

| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 22.1 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
| last modified: | 10/6/2021 |
