SIEMENS

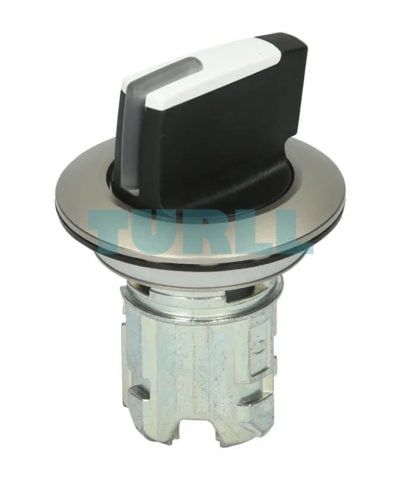

Siemens 3SU1062-2DF60-0AA0 Selector Switch, Illuminable, 30mm, Metal Round, O-I Latching Original Brand New
Model / SKU3SU1062-2DF60-0AA0
Illuminable 30 mm round selector switch with matte metal finish, white lighting, flush front ring, 2 latching positions (O-I), 90° actuating angle.
Original price was: $156.25.$87.40Current price is: $87.40.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 3SU1062-2DF60-0AA0 is a high-quality, illuminable 30 mm selector switch engineered for reliable operation in industrial control panels. Featuring a durable matte metal finish, a flush-mount front ring, and white illumination, this selector switch ensures excellent visibility and long-lasting performance. Designed with 2 switch positions (O–I) and a latching mechanism, it provides secure and intuitive control for a wide range of automation and electrical applications.
Benefit
-
Enhanced Visibility: White illumination ensures clear operation, even in low-light environments.
-
Durable Construction: Tough metal housing with matte finish delivers long service life.
-
Ergonomic Design: 30 mm round actuator designed for comfortable and easy switching.
-
Flush Installation: Modern flush front ring improves panel aesthetics.
-
Reliable Switching: Latching design ensures positive and secure switch positions.
-
Flexible Application: Suitable for industrial machinery, automation systems, and control cabinets.
Features & Functions
-
Product Model: Siemens 3SU1062-2DF60-0AA0
-
Type: Illuminable selector switch
-
Actuator Shape: Round, 30 mm
-
Material: Metal, matte finish
-
Color: White (illumination)
-
Switch Positions: 2 positions (O-I)
-
Switching Type: Latching
-
Actuating Angle: 90°
-
Position Orientation: 10:30h / 13:30h
-
Mounting Style: Flush installation
-
Panel Component: Short selector switch actuator
Download
Visit 3SU1062-2DF60-0AA0 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 3SU1062-2DF60-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case letters |
| number of switching positions | 2 |
| actuating angle | - |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 300 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | - |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |

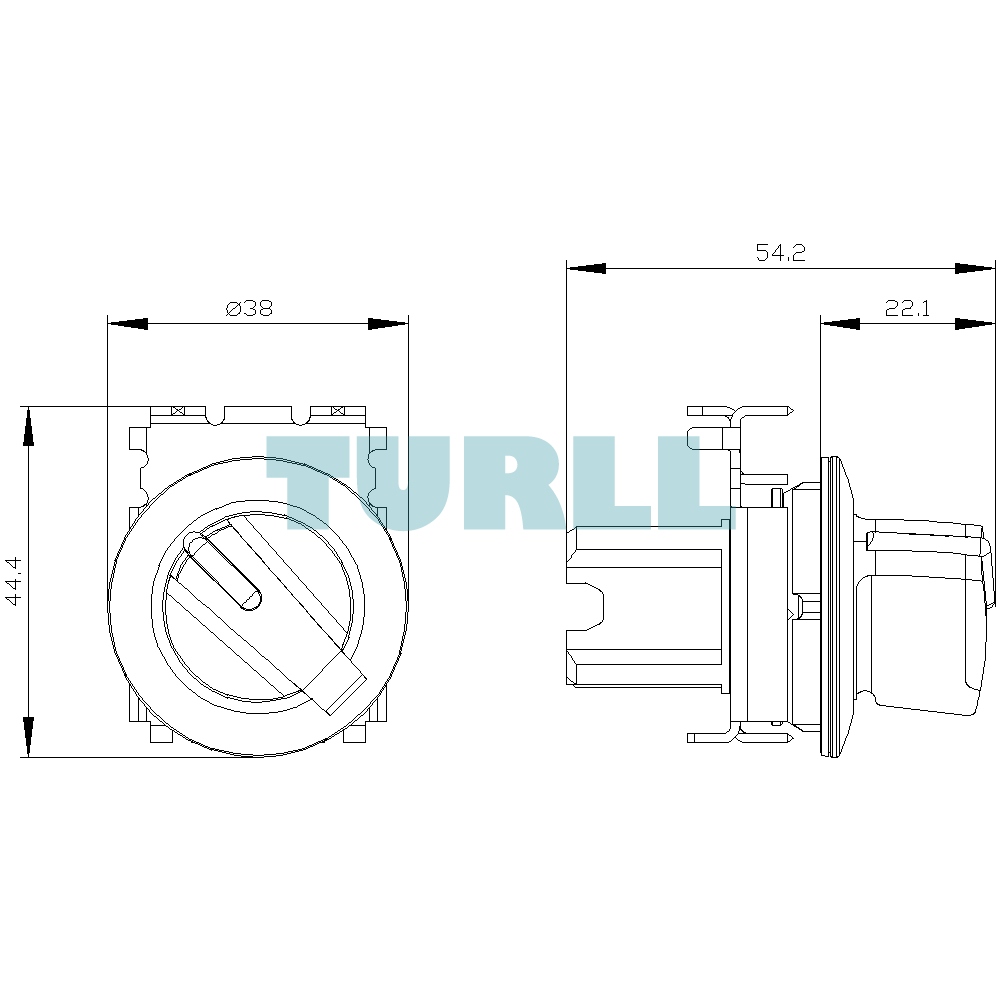

| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 22.1 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
| last modified: | 10/6/2021 |
| Weight | 0.078 kg |
| Dimensions | 70.00 × 80.00 × 40.00 mm |
