3SU1062-2DL40-0AA0

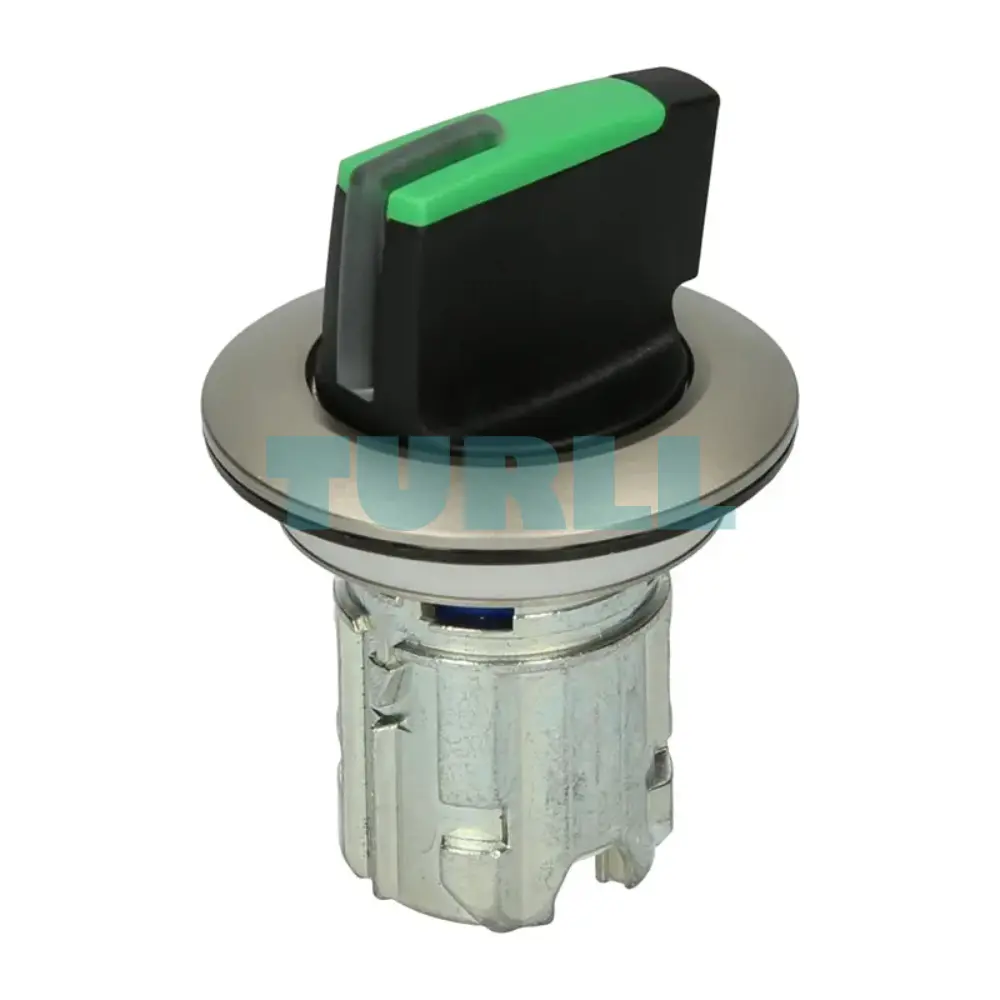

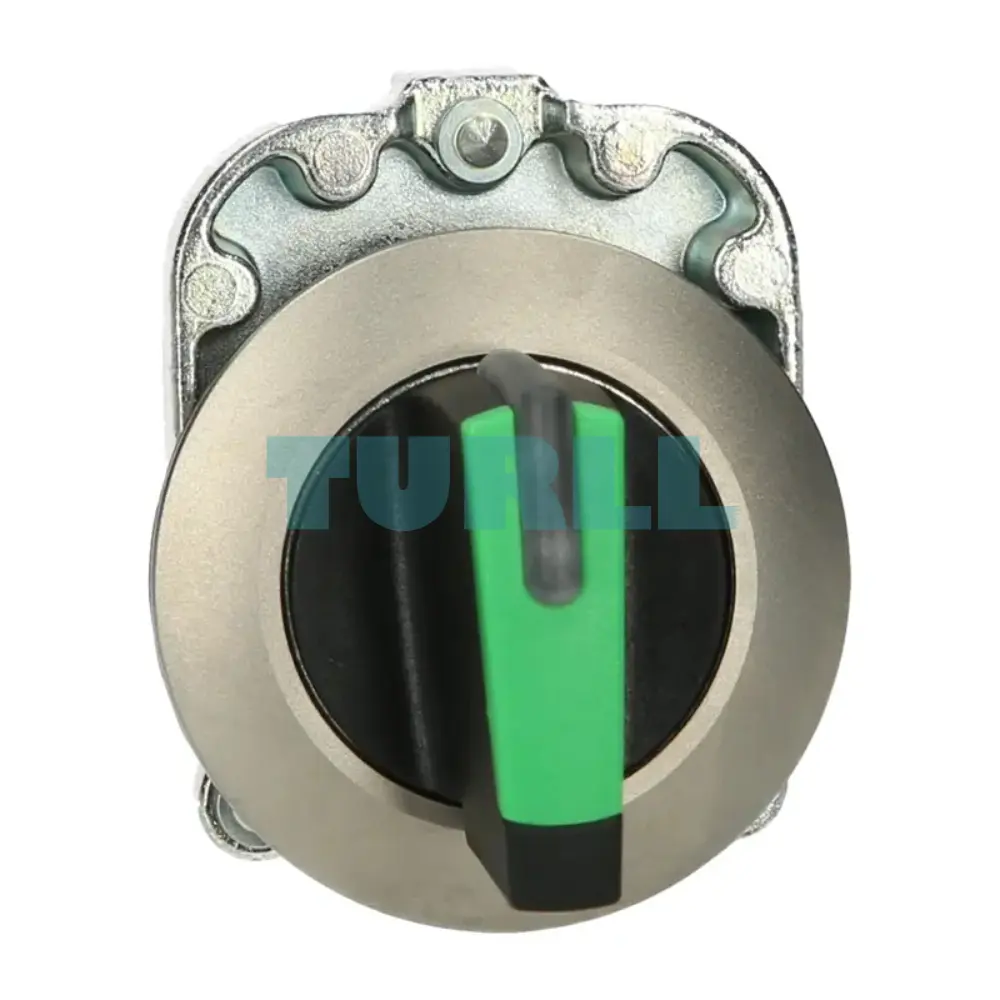

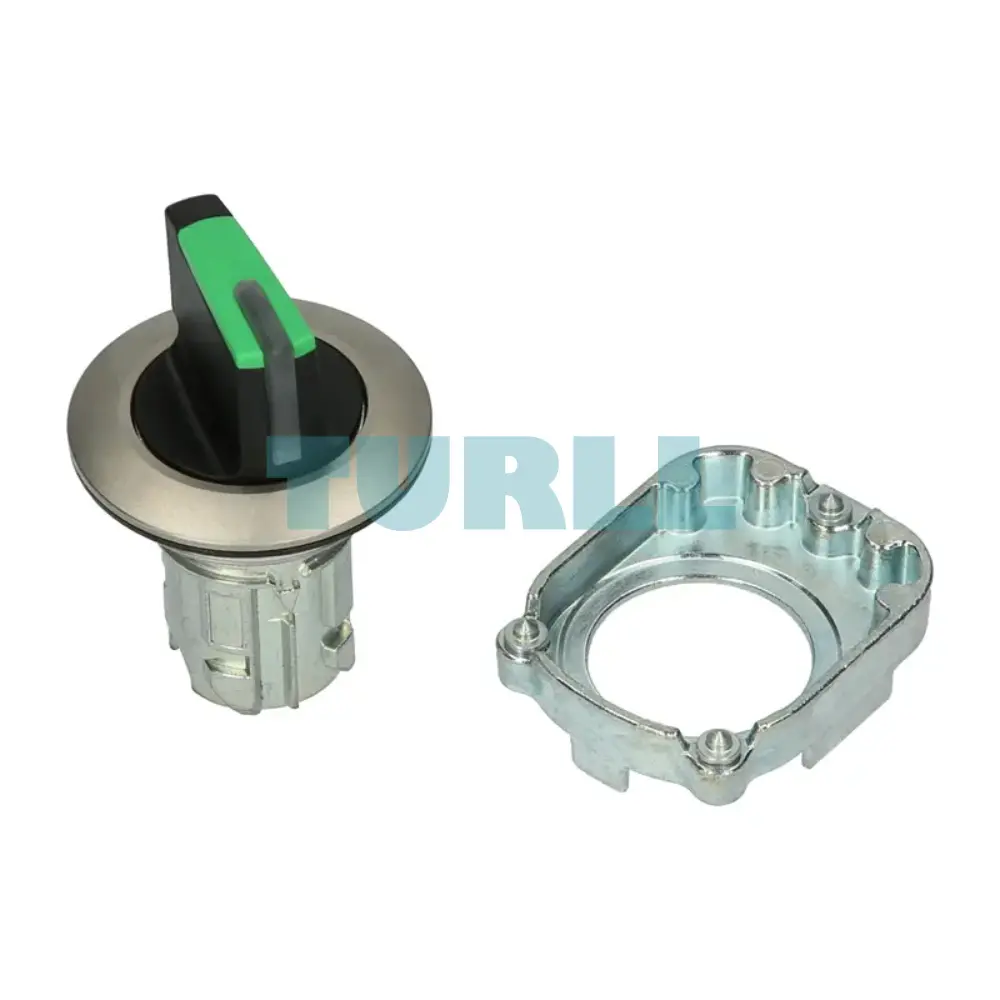

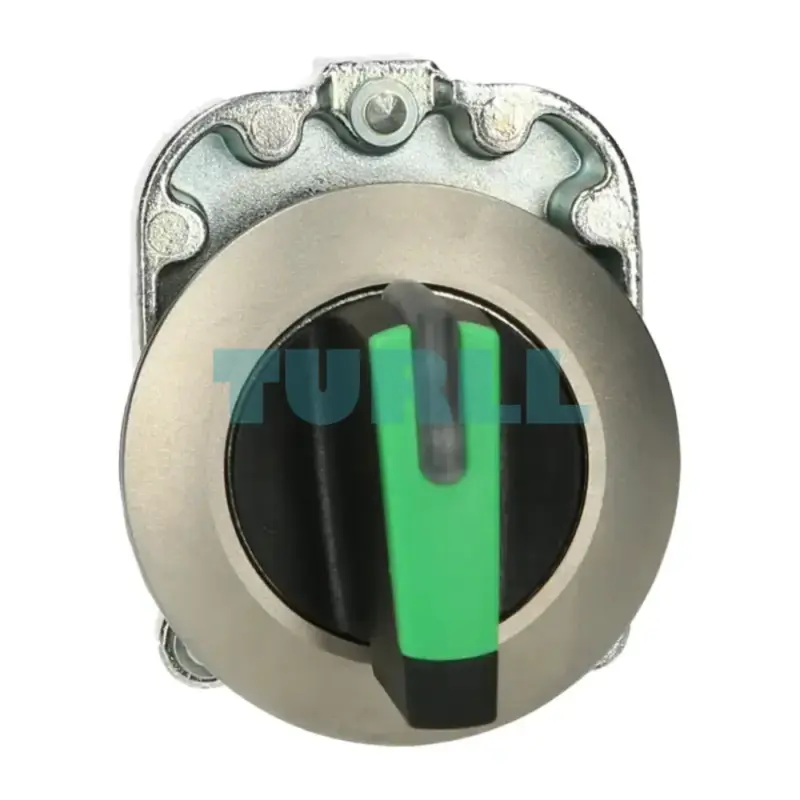

Siemens 3SU1062-2DL40-0AA0 Illuminable Selector Switch, 30mm Round Metal, Green, 3 Positions Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1062-2DL40-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 2x45° (10:30 h/12 h/13:30 h) |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all lines start with capital letter |
| number of switching positions | 3 |
| actuating angle | - |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 300 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 300 000 |
| proportion of dangerous failures | - |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |

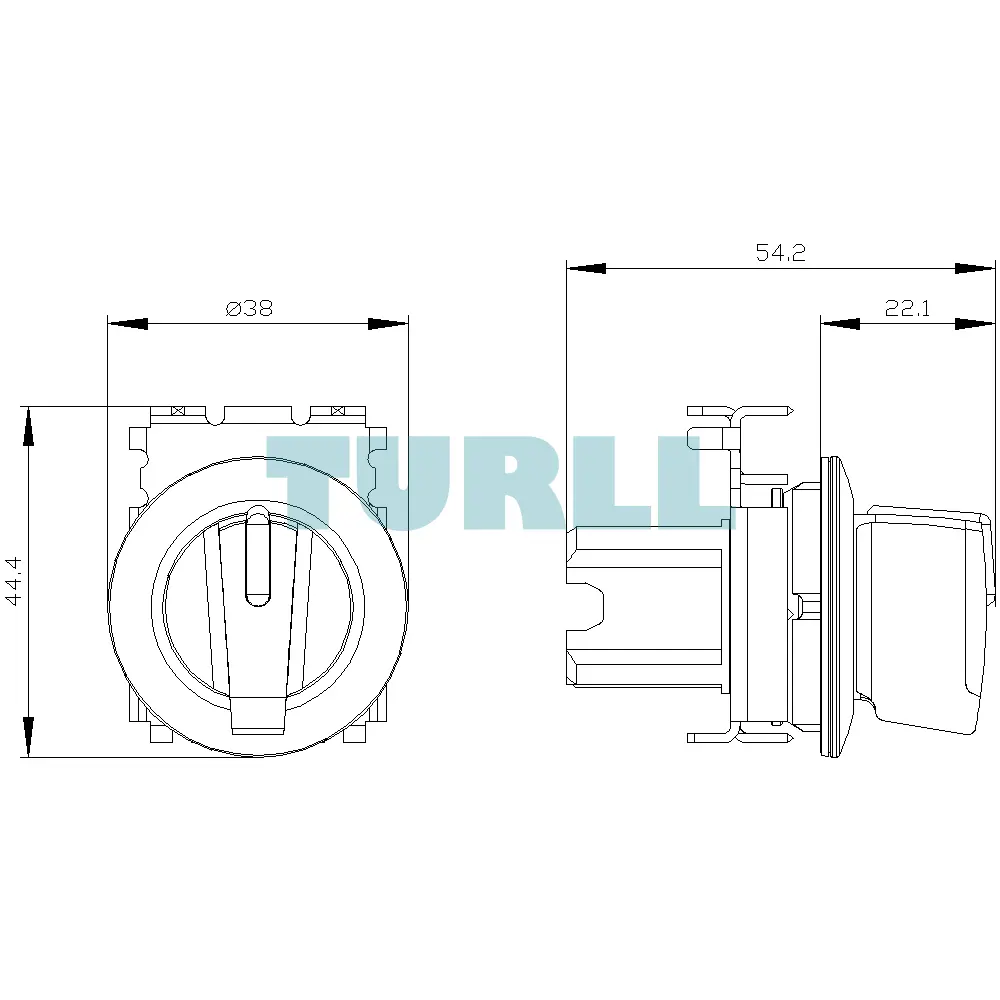

| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 22.1 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.070 kg |
| Dimensions for shipping | 40.00 × 80.00 × 40.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1062-2DL40-0AA0 is a high-quality, illuminable selector switch designed for industrial control panels. With a robust 30 mm round metal construction in matte green, it ensures durability and professional aesthetics. Its three switch positions (I-O-II) with a latching mechanism and precise actuating angles of 2×45° make it perfect for reliable control applications. The short version with a flush installation front ring guarantees a compact, streamlined design, suitable for modern industrial environments.
Key Features & Benefit
-
Enhanced Safety & Visibility: The illuminable feature and clear green color allow operators to immediately confirm the switch position, reducing the risk of errors and improving operational safety.
-
Aesthetic & Space-Saving Design: The flush-mount, matte metal front ring provides a professional, high-end look while preventing accidental operation and making panel cleaning easier.
-
Extreme Durability: As part of the SIRIUS ACT line, the robust metal construction ensures a long service life and high resistance to dust, dirt, and harsh industrial conditions.
-
Reliable Control: The latching function maintains the chosen state until manually changed, making it perfect for modes, speed, or process-step selection where the setting must remain constant.
Functionality
This selector switch is ideal for controlling electrical circuits in industrial equipment, machinery, and automated systems. The illuminable feature allows operators to quickly identify the switch position, while the latching mechanism ensures secure operation without accidental resets.
