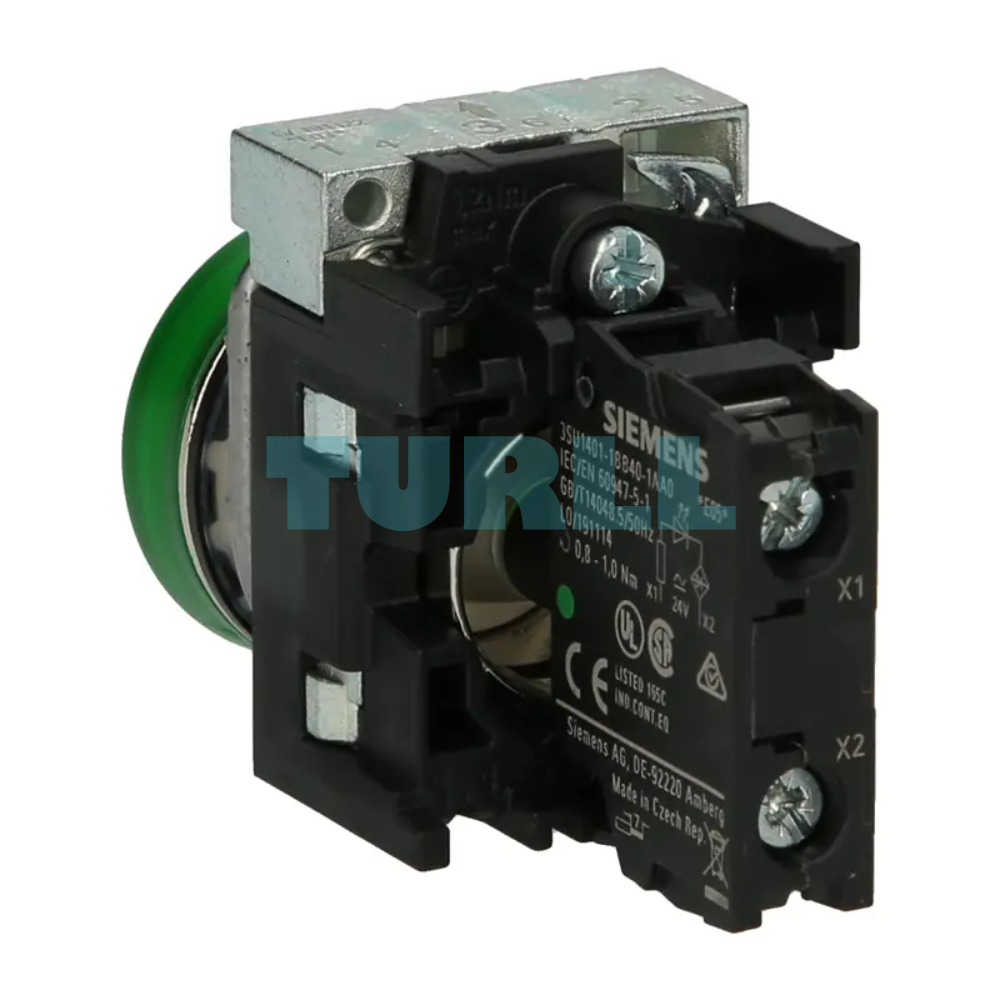

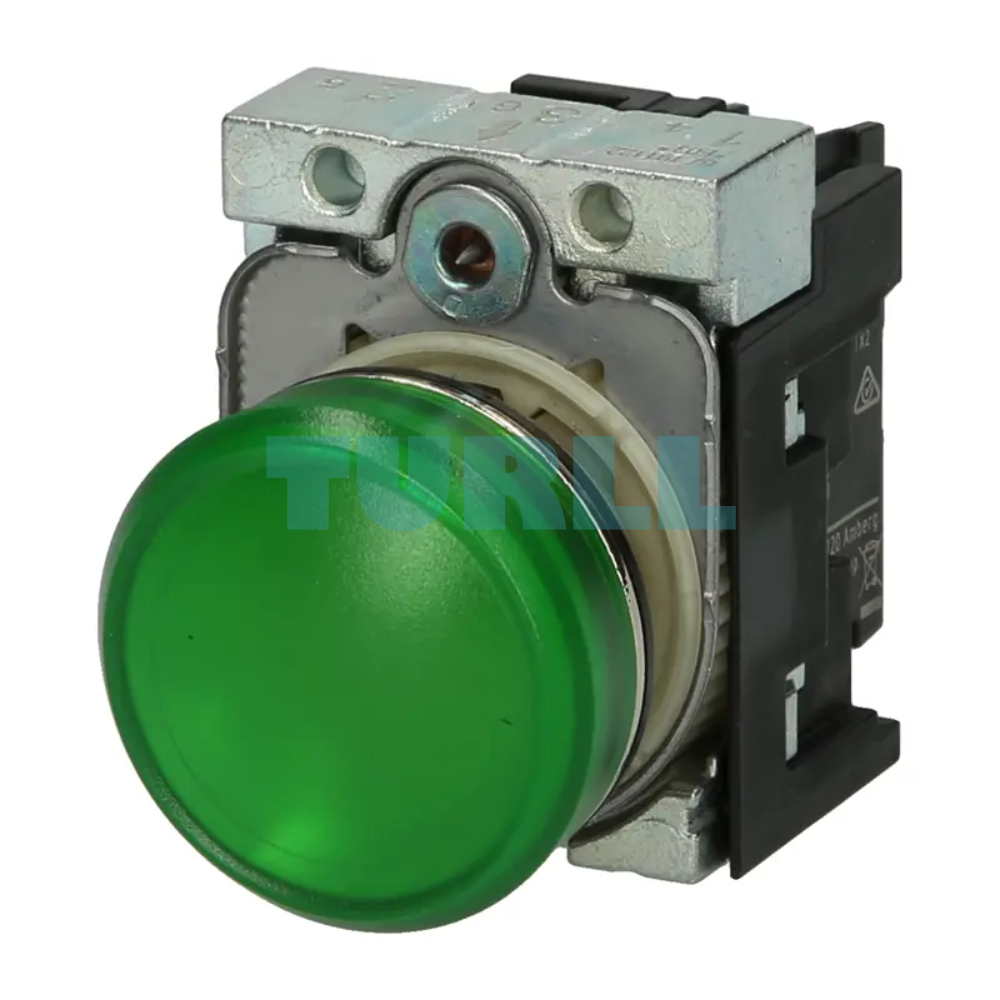

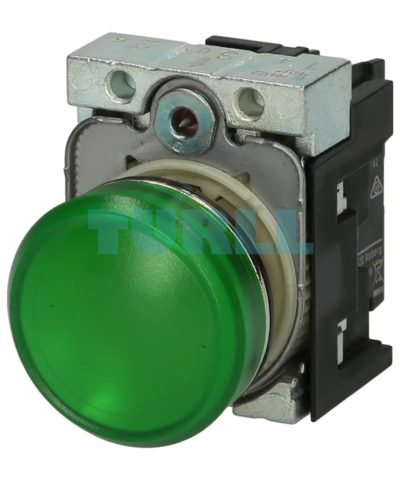

Siemens 3SU1152-6AA40-1AA0 Indicator Light, 22mm, Round Green LED, Metal, 24V AC/DC Original Brand New
Model / SKU3SU1152-6AA40-1AA0
SIRIUS ACT 22 mm round metal indicator light. It features a shiny green, smooth lens and an integrated 24 V AC/DC LED module with reliable screw terminal connection, ideal for clear operational status indication in industrial environments.
Original price was: $17.53.$7.92Current price is: $7.92.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 3SU1152-6AA40-1AA0 is a premium-quality 22 mm round indicator light designed for industrial control panels and automation systems. Built with a durable metal housing and a shiny green smooth lens, this indicator provides clear visual signaling in demanding environments. With an integrated LED module (24 V AC/DC) and a screw terminal connection, installation is efficient, secure, and maintenance-free.
Engineered by Siemens, this indicator light delivers long service life, reliability, and outstanding illumination for a wide range of control applications.
Benefit
-
Maximum Reliability: As part of the SIRIUS ACT family, it guarantees high performance and long-term operational stability in harsh industrial conditions.
-
High Visibility: The bright green LED and smooth lens ensure immediate and clear visibility of the operational status, improving safety and response times.
-
Simple Wiring: The integrated design with a secure screw terminal connection allows for fast, reliable, and error-free wiring.
-
Durable Construction: The shiny metal front ring provides IP66, IP67, and IP69 (IP69K) protection, making it resistant to dust, water jets, and high-pressure cleaning.
Features
-
Product Type: Indicator Light
-
Diameter: 22 mm
-
Shape: Round
-
Material: Metal (shiny finish)
-
Lens Color: Green
-
Lens Type: Smooth lens
-
Holder: Included
-
Lighting Module: LED with integrated LED
-
Operating Voltage: 24 V AC/DC
-
Connection Type: Screw terminal
Function and Application
The primary function of the 3SU1152-6AA40-1AA0 indicator light is to provide a clear visual status indication for machinery and processes. It is typically used for:
-
Status Monitoring: Indicating "Machine ON," "Ready to Run," or "Normal Operation."
-
System Diagnostics: Highlighting power status or a successful step completion.
-
Industrial Panels: Integration into main control desks, operator panels, and HMI units across various sectors, including manufacturing, automation, and process control.
Download
Visit 3SU1152-6AA40-1AA0 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 3SU1152-6AA40-1AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | - |

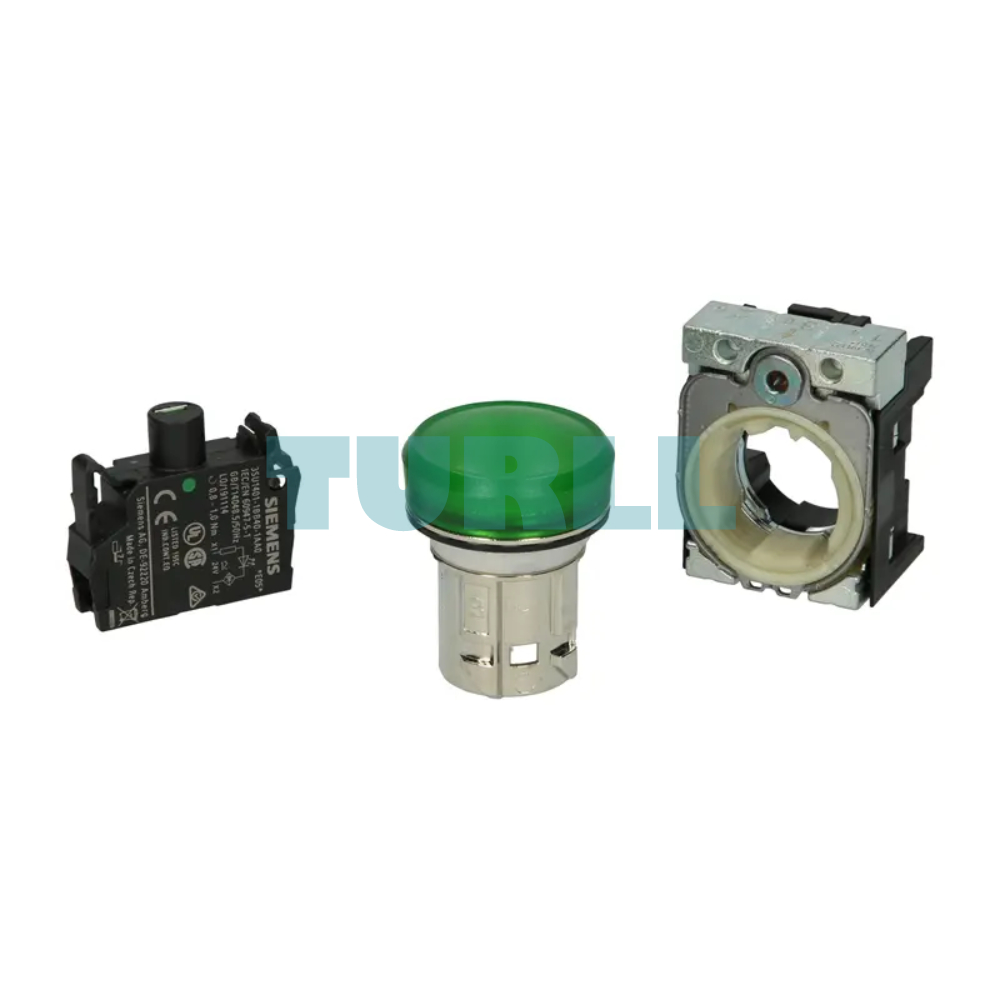

| ● of supplied LED module | 3SU1401-1BB40-1AA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of supplied repeater | 3SU1051-6AA40-0AA0 |
| number of command points | 1 |
| product extension optional light source | Yes |
| color | - |
| ● of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| product component front ring | No |
| material of the holder | Plastic |
| number of LED modules | 1 |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | P |
| type of voltage of the supply voltage of the light source | AC/DC |
| supply voltage of the light source at AC | - |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 ... 24 V |
| supply voltage of the light source at DC | - |
| ● rated value | 24 ... 24 V |
| relative negative tolerance of the supply voltage | 20 % |
| relative positive tolerance of the supply voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | other |
| type of connectable conductor cross-sections | - |
| ● solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| ● at AWG cables | 2x (18 ... 14) |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
| type of light source | LED |
| color of the light source | green |
| light intensity | 900 ... 1 800 mcd |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

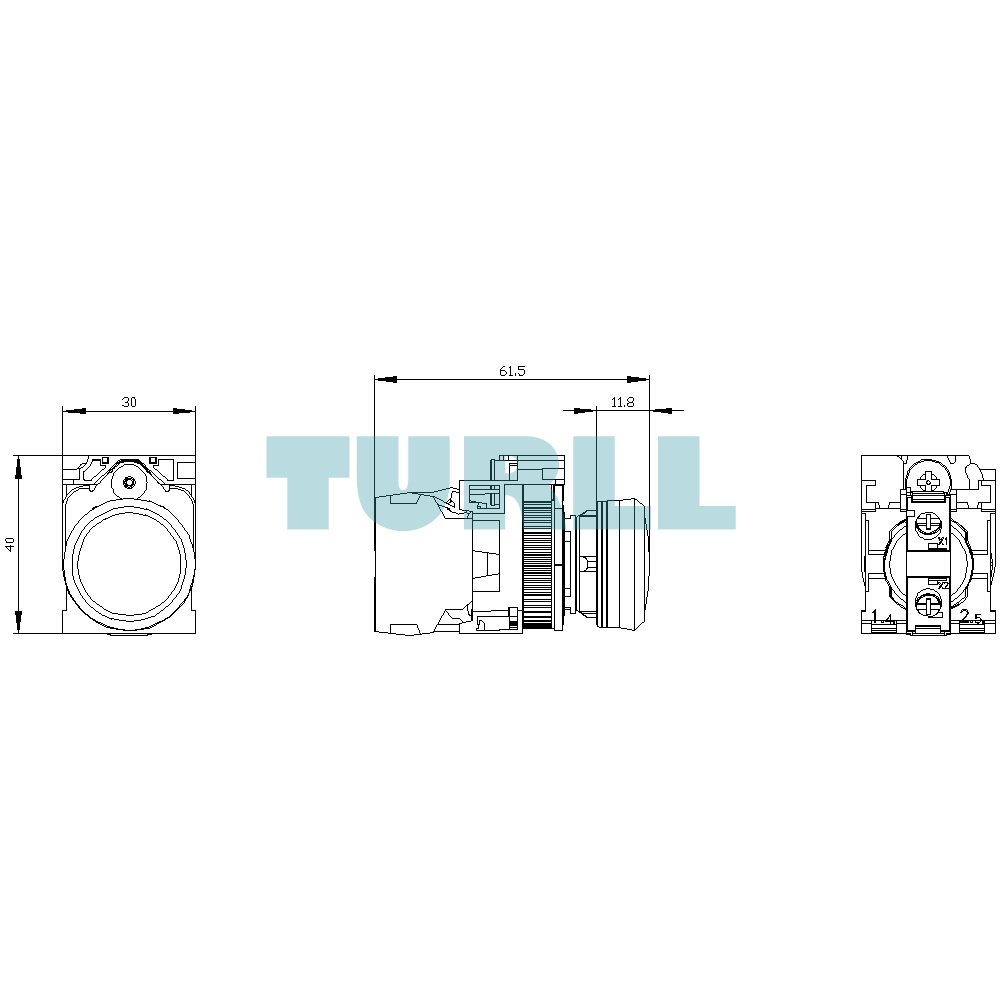

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/27/2021 |
| Weight | 0.079 kg |
