High-performance electronics module designed for IO-Link integration within the SIRIUS ACT system. Featuring 8 user-programmable inputs/outputs (default 6 DI/2 DQ) and a convenient Spring-type (Push-in) terminal, this floor-mounted module ensures seamless communication and easy installation for industrial automation.
Backorder available · Factory lead time 2–3 weeks.

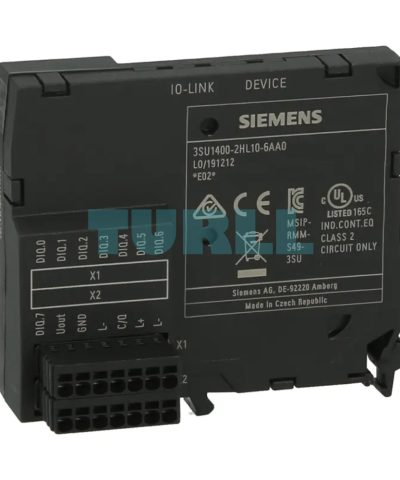

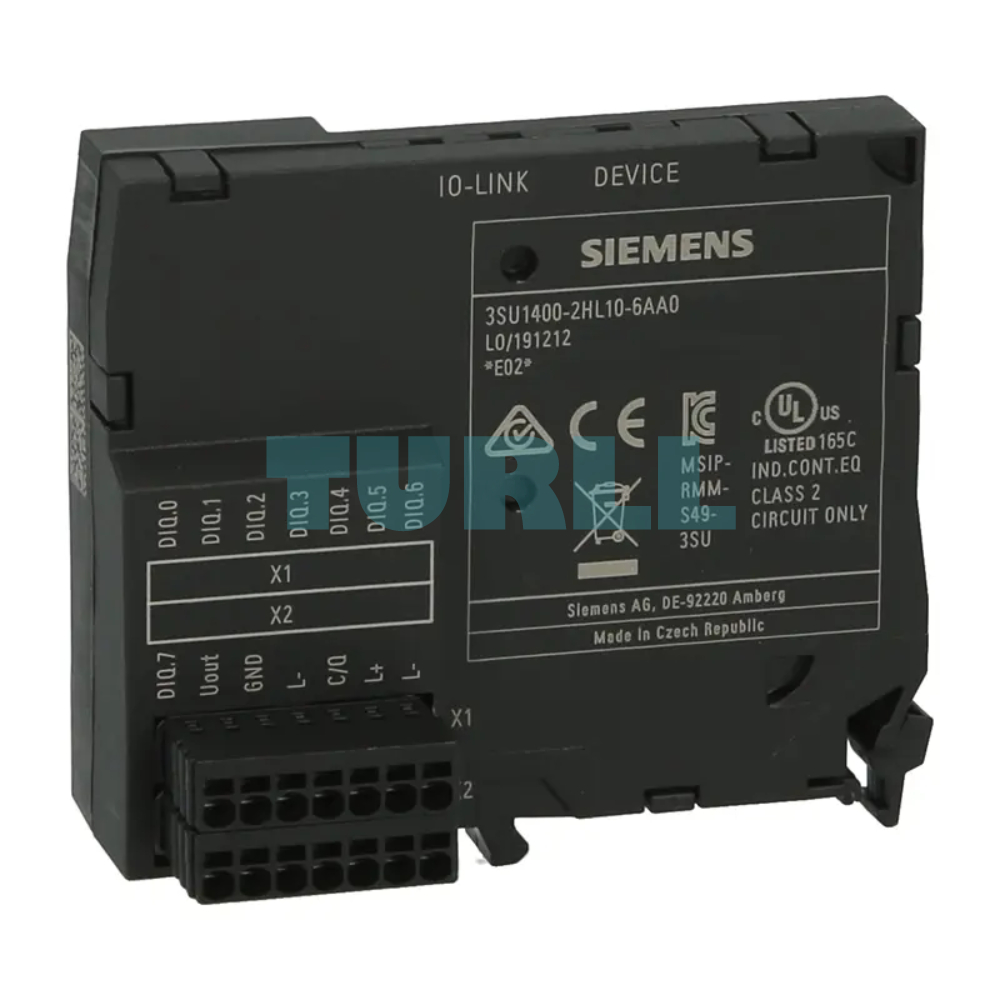

Upgrade your industrial control panel with the Siemens 3SU1400-2HL10-6AA0. Part of the SIRIUS ACT 3SU1 series, this black electronics module acts as the bridge between your physical command devices and your IO-Link master. It offers unmatched flexibility by allowing users to program the 8 available I/O points to suit specific application needs, though it comes pre-configured with 6 Digital Inputs and 2 Digital Outputs.
The module is specifically designed for floor mounting (base mounting) within enclosures, providing a stable and vibration-resistant connection for your automation architecture.
IO-Link Communication: Reduces wiring effort and enables remote diagnostics and parameterization.
Flexible I/O Configuration: 8 programmable channels, factory-set to 6 digital inputs (DI) and 2 digital outputs (DQ).
Push-in Technology: Spring-type terminals allow for tool-free, permanent connection, significantly reducing installation time.
Floor Mounting: Specifically designed for secure installation in command enclosures or control cabinets.
Industrial Reliability: Built to Siemens’ high standards for long-term operation in demanding environments.
IO-Link Communication: Facilitates bidirectional data exchange between the field level and the PLC.
Programmable I/O Logic: Users can adjust the configuration of the 8 channels, allowing for various combinations of sensors and actuators.
Secure Mounting: Optimized for floor-mounted installations to ensure durability in high-vibration environments.
Visit 3SU1400-2HL10-6AA0 for more detail info
For more our products visit turll
| SKU / Model | 3SU1400-2HL10-6AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Electronic module for IO-Link |
| product type designation | 3SU1 |
| insulation voltage rated value | 30 V |
| degree of pollution | 3 |
| type of voltage | - |
| ● of the operating voltage | DC |
| ● of the input voltage | DC |
| surge voltage resistance rated value | 0.8 kV |
| consumed current maximum | 41 mA |
| protection class IP | IP20 |
| shock resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| vibration resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| reference code acc. to IEC 81346-2 | P |
| operating voltage rated value | 18 ... 30 V |
| operating voltage 1 at DC rated value | 24 V |
| protocol is supported | - |
| ● AS-Interface protocol | No |
| ● IO-Link protocol | Yes |
| IO-Link transfer rate | COM2 (38,4 kBaud) |
| point-to-point cycle time between master and IO-Link device minimum | 10 ms |
| type of voltage supply via input/output link master | Yes |
| data volume | - |
| ● of the address range of the inputs with cyclical transfer total | 3 byte |
| ● of the address range of the outputs with cyclical transfer total | 1 byte |
| number of digital inputs | - |
| ● note | freely programmable |
| number of digital outputs | freely programmable |
| type of electrical connection | Push-in terminal |
| type of connectable conductor cross-sections | - |
| ● solid with core end processing | 1x (0.14 ... 0.5 mm²) |
| ● solid without core end processing | 1x (0.14 ... 0.5 mm²) |
| ● finely stranded without core end processing | 1x (0.2 ... 0.5 mm²) |
| ● at AWG cables | 1x (26 ... 20) |
| suitability for use safety-related circuits | No |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |
| fastening method of modules and accessories | Floor mounting |
| product function | freely programmable (default 6DI / 2DQ) |
| last modified: | 3/22/2021 |
| Weight | 0.050 kg |
| Dimensions | 83.00 × 53.00 × 63.00 mm |
