Siemens 3SU1401-1BB30-1AA0 LED Module, 24V AC/DC, Yellow, Front Plate Mounting, Screw Terminal Original Brand New
$6.60
LED module with integrated LED 24 V AC/DC, yellow, screw terminal, front plate mounting. Minimum order quantity: 5 or multiples of 5.
Availability: In stock
Overview
The Siemens 3SU1401-1BB30-1AA0 is a high-quality LED module engineered for reliable signaling in industrial control systems. Featuring an integrated yellow LED, 24 V AC/DC voltage compatibility, and a durable screw terminal connection, this module ensures long-lasting performance and simplified installation. Designed for front plate mounting, it is ideal for a wide range of automation environments. (Minimum order quantity: 5 units or multiples of 5.)
Benefit
-
Universal Voltage: Operates seamlessly on both 24 V AC and 24 V DC power supplies, simplifying inventory and application planning.
-
High Visibility: The integrated yellow/amber LED provides a clear, unmistakable visual signal, essential for operator safety and process monitoring.
-
Secure Connection: Features robust screw terminals for quick, reliable, and secure wiring, minimizing downtime and maintenance.
-
Industrial Durability: Part of the proven SIRIUS ACT range, ensuring high resistance to vibration, shock, and temperature variations common in demanding industrial settings.
-
Easy Installation: Designed for simple and fast assembly into front plates and control stations.
Function
The primary function of the 3SU1401-1BB30-1AA0 is to convert an electrical signal (24V) into a visual status display (yellow light). It is mounted behind the front plate and connected to the appropriate lens/indicator light element (sold separately or as part of a complete unit) to provide operators with immediate feedback on the status of a machine, process, or safety interlock.
Visit 3SU1401-1BB30-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.030 kg |
|---|---|

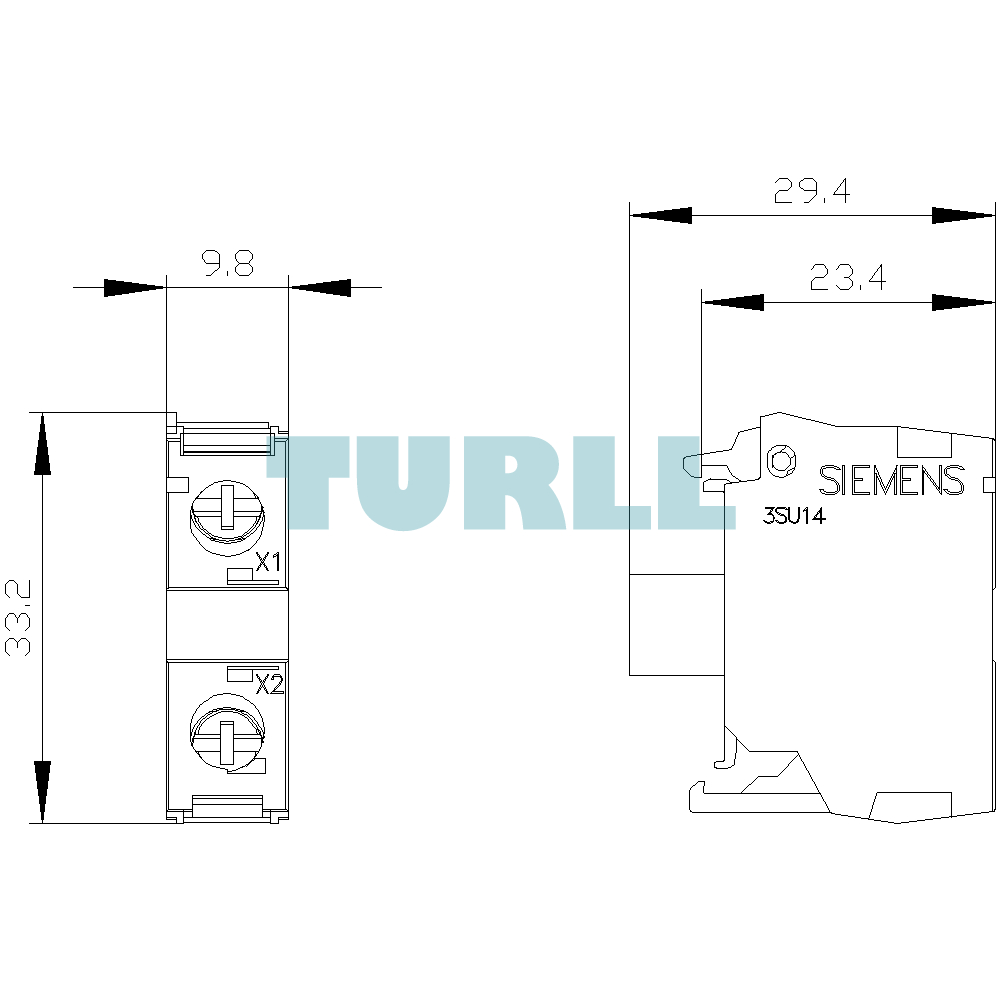

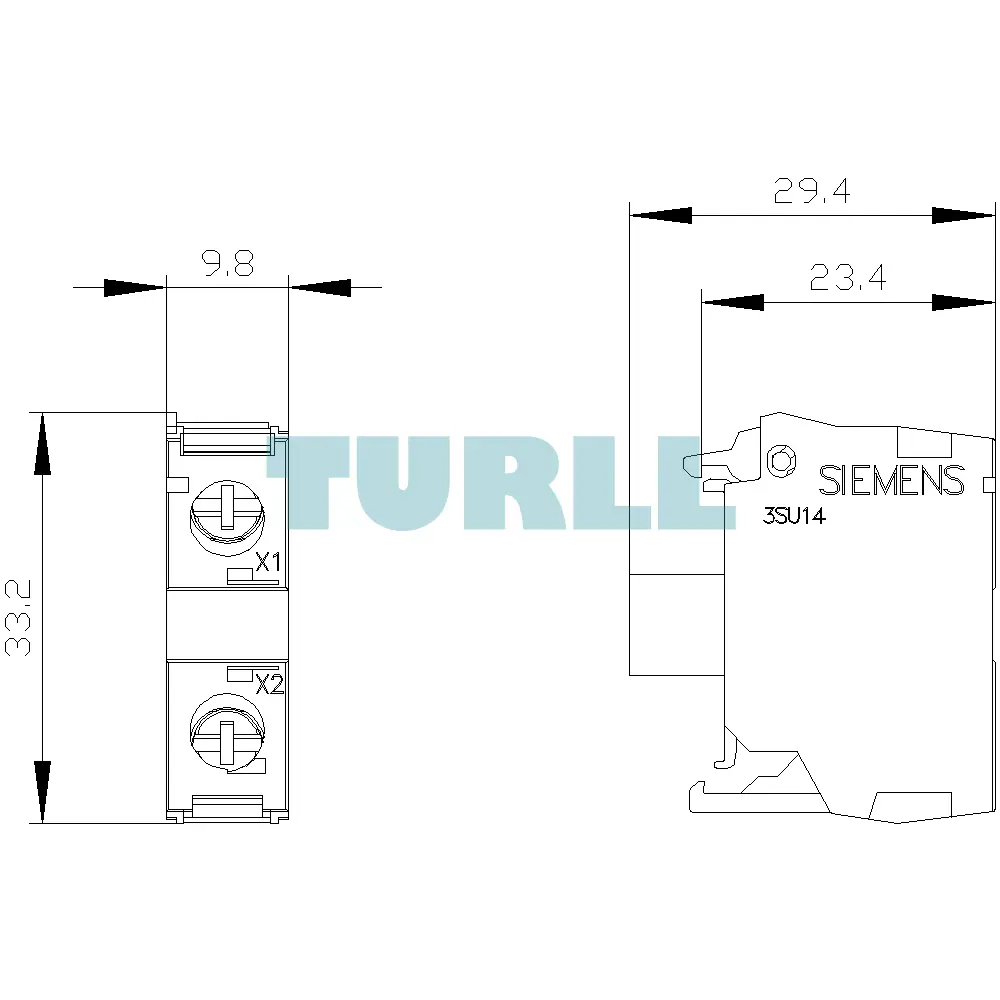

| Dimensions | 30.00 × 30.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |

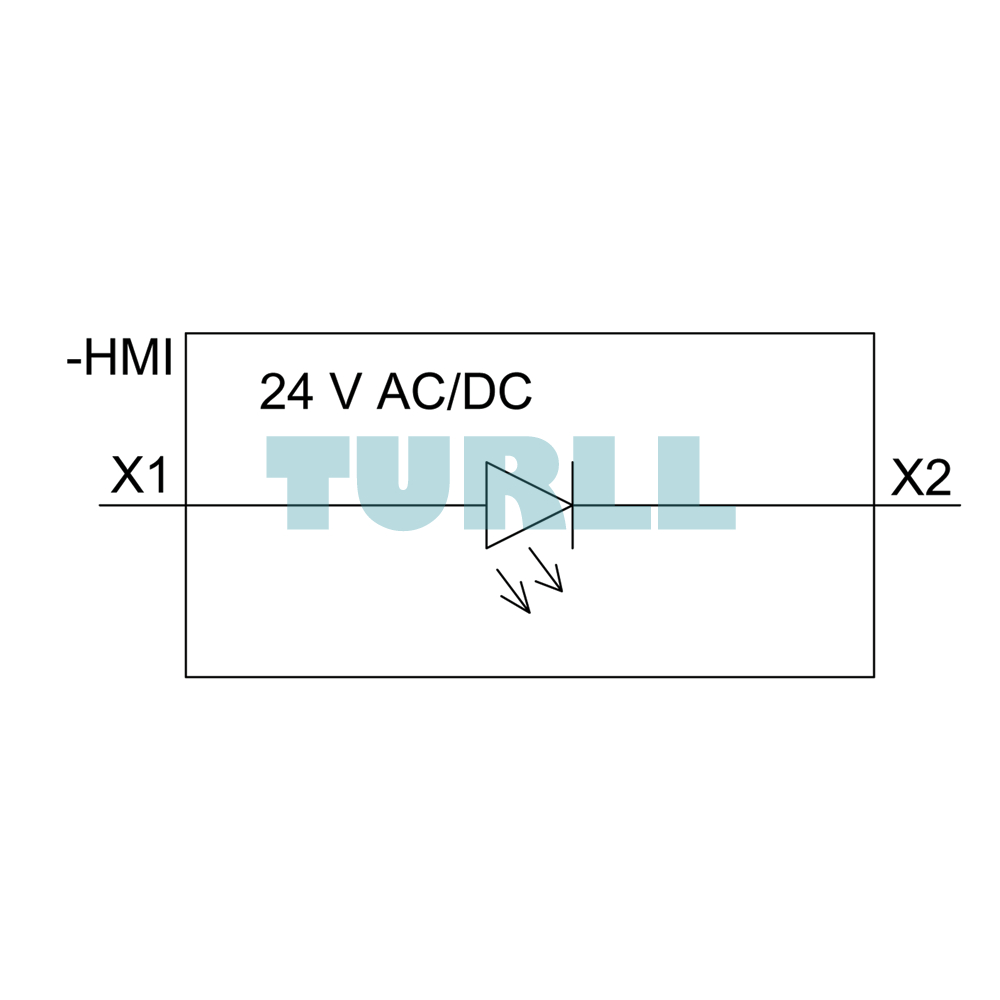

| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |

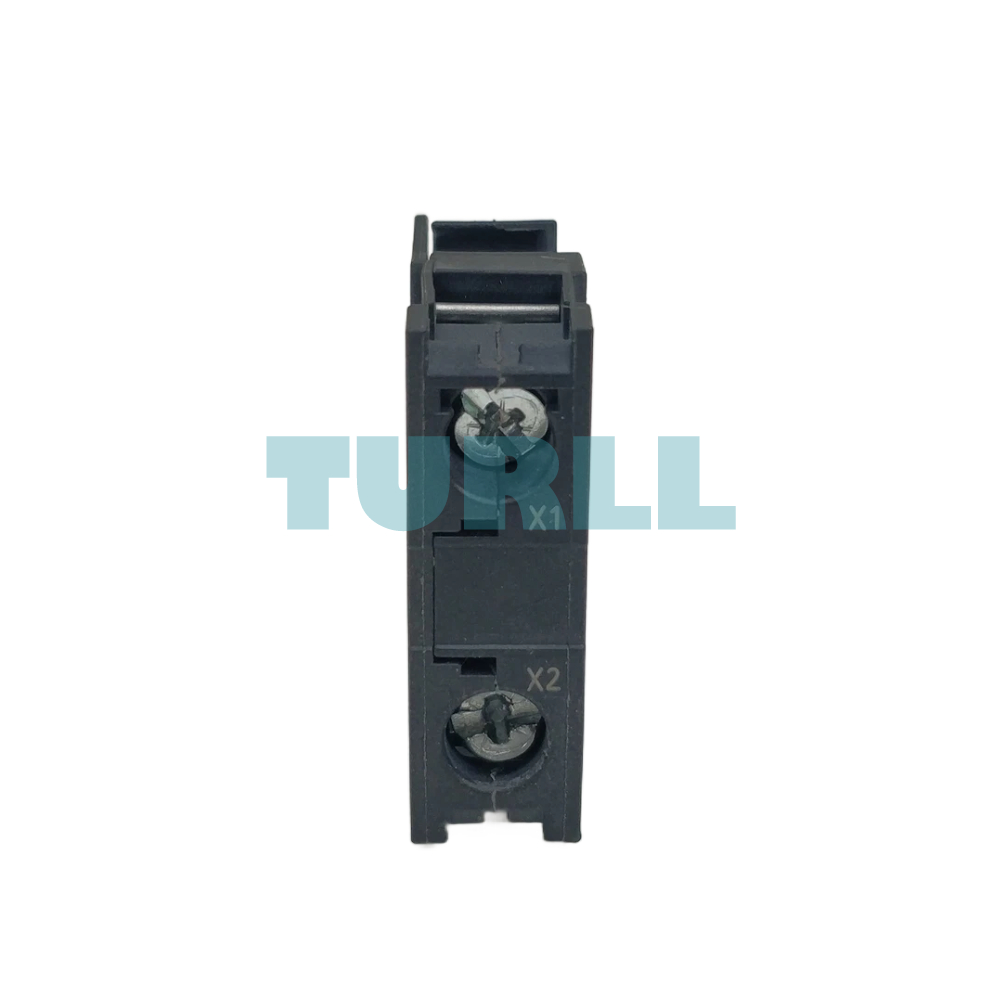

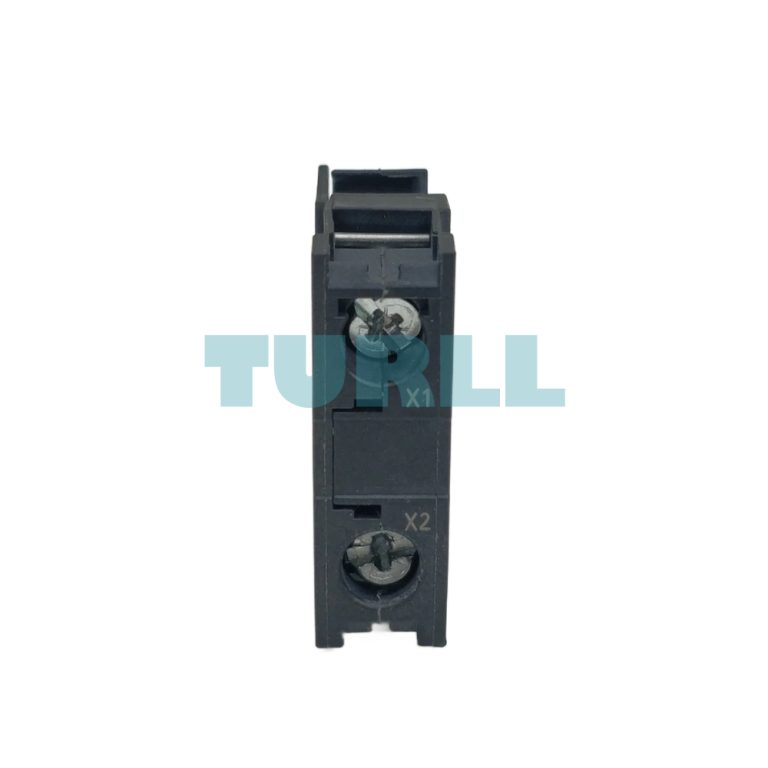

| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | yellow |
| light intensity | 900 … 1 400 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
