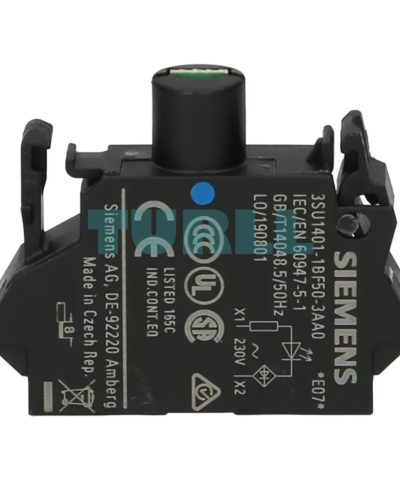

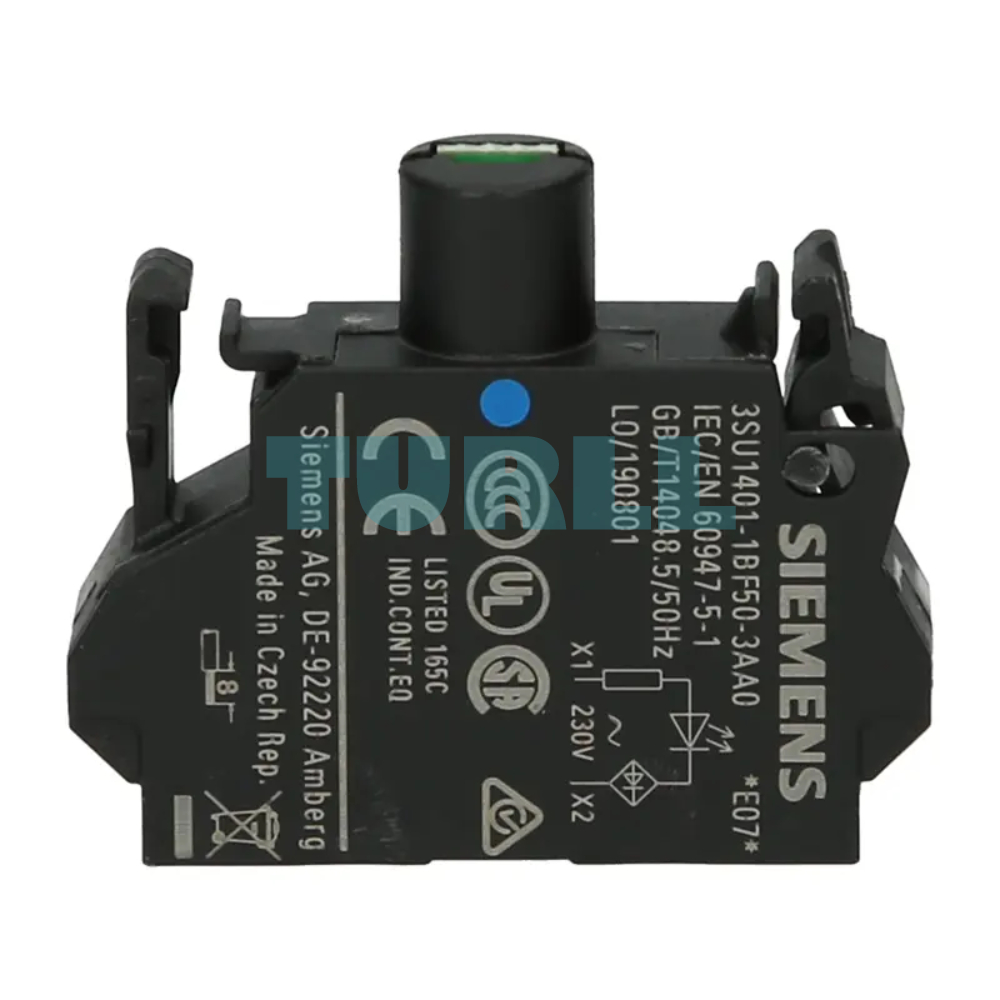

Siemens 3SU1401-1BF50-3AA0 Blue LED Module 230V AC, Spring-Type Terminal, Front Plate Mounting
Siemens 3SU1401-1BF50-3AA0 Blue LED Module 230V AC, Spring-Type Terminal, Front Plate Mounting
Siemens 3SU1401-1BF50-3AA0 Blue LED Module 230V AC, Spring-Type Terminal, Front Plate Mounting
Siemens 3SU1401-1BF50-3AA0 Blue LED Module 230V AC, Spring-Type Terminal, Front Plate Mounting

SIEMENS

Siemens 3SU1401-1BF50-3AA0 Blue LED Module 230V AC, Spring-Type Terminal, Front Plate Mounting Original Brand New

Model / SKU3SU1401-1BF50-3AA0

LED module with integrated, bright blue LED for the Siemens SIRIUS ACT line. Operates on 230 V AC and features fast, secure spring-type terminal connection. Ready for front plate mounting.

Original price was: $14.24.Current price is: $6.52.
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3SU1401-1BF50-3AA0 LED Module is a high-quality industrial signaling component designed for reliable visual indication in control panels and automation systems. Featuring an integrated blue LED operating at 230 V AC, this module ensures consistent illumination, long service life, and energy efficiency. Its spring-type terminal allows for quick and secure wiring, while front plate mounting enables easy installation and maintenance.

Engineered to Siemens’ rigorous industrial standards, this LED module is ideal for use in machinery, electrical panels, and automation environments where durability and performance are critical.

Benefit

  • Long-lasting integrated LED technology reduces maintenance needs

  • Blue illumination ensures clear and distinct visual signaling

  • Spring-type terminals allow fast, tool-free wiring

  • 230 V AC operation suitable for standard industrial power systems

  • Compact and robust design for industrial control panels

  • Trusted Siemens quality for reliability and safety

Function

  • Provides visual status indication in control and signaling systems

  • Enhances operator awareness and system monitoring

  • Supports efficient panel design with front plate mounting

  • Ensures stable operation in industrial environments

Technical Specification

  • Brand: Siemens

  • Model: 3SU1401-1BF50-3AA0

  • Voltage Rating: 230 V AC

  • LED Color: Blue

  • Terminal Type: Spring-type terminal

  • Mounting Type: Front plate mounting

  • Product Type: LED Module with integrated LED

Download

Datasheet in PDF

Visit 3SU1401-1BF50-3AA0 for more detail info

For more our products visit turll



Specifications

SKU / Model3SU1401-1BF50-3AA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationLED module
product type designation3SU1
product component-
● diodeYes
● lamp transformerNo
● light sourceYes
● series resistorNo
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC
● for actuationAC
surge voltage resistance rated value4 kV
consumed current maximum20 mA
protection class IP-
● of the enclosureIP40
● of the terminalIP20
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
operating period typical100 000 h
reference code acc. to IEC 81346-2P
operating voltage 1-
● at AC-
— at 50 Hz rated value230 V
— at 60 Hz rated value230 V
relative positive tolerance of the operating voltage20 %
relative negative tolerance of the operating voltage20 %
inrush current maximum3 A
type of electrical connectionspring-loaded terminals
type of connectable conductor cross-sections-
● solid without core end processing2x (0.25 ... 1.5 mm²)
● finely stranded with core end processing2x (0.25 ... 0.75 mm²)
● finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables2x (24 ... 16)
type of light sourceLED
color of the light sourceblue
light intensity280 ... 710 mcd
certificate of suitability-
● ATEXNo
● IECExNo
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted)
fastening method-
● of modules and accessoriesFront plate mounting
last modified:10/6/2021
Weight0.013 kg

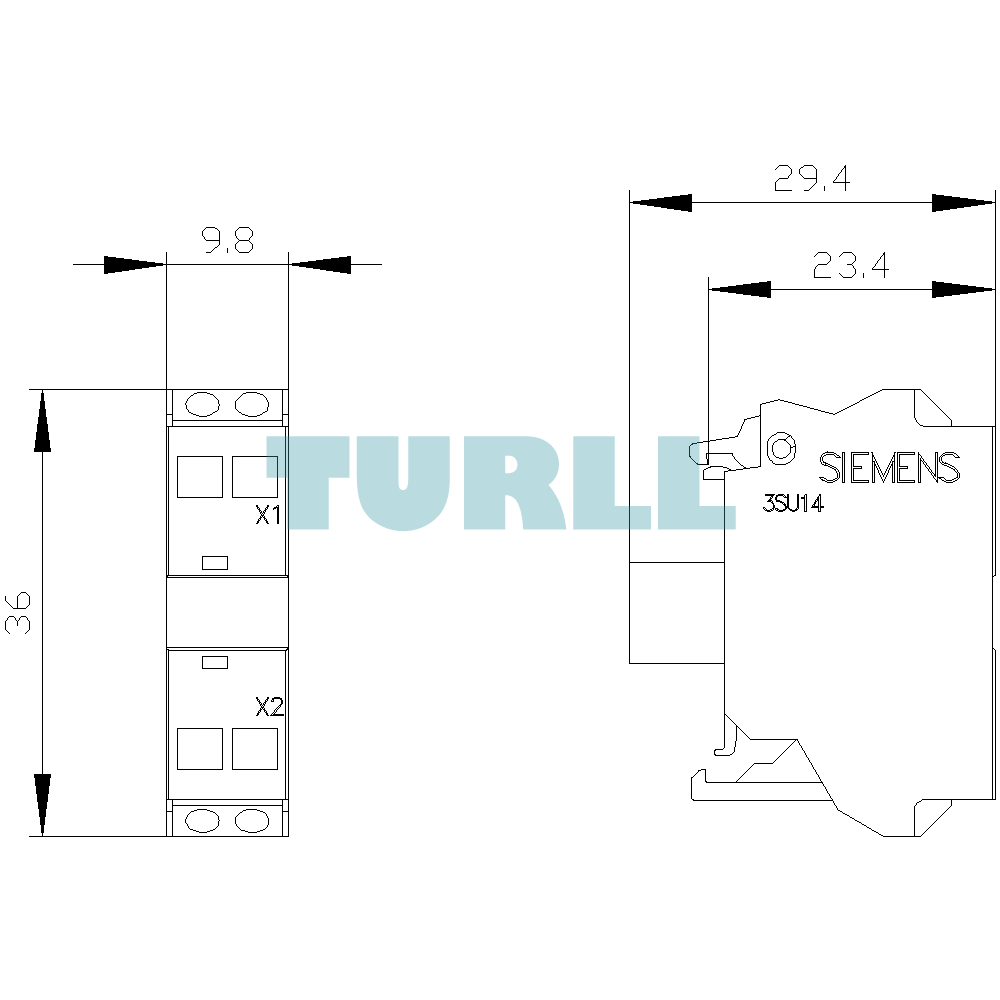

Dimensions60.00 × 103.00 × 22.00 mm
