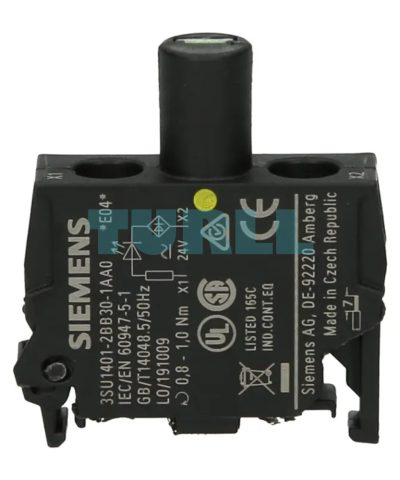

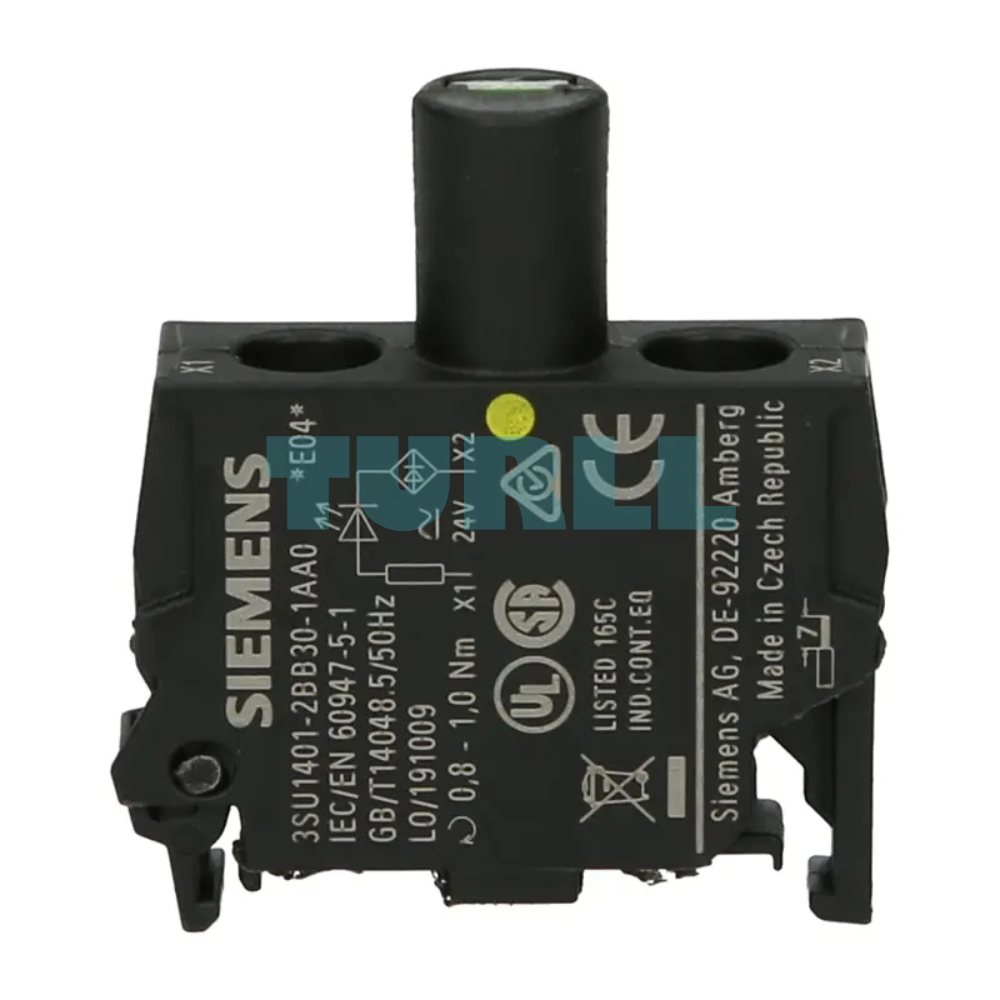

Siemens 3SU1401-2BB30-1AA0 LED Module 24V AC/DC, Yellow, Floor Mount, Screw Terminal Original Brand New
$7.04
High-performance SIRIUS ACT LED module featuring an integrated yellow LED. Designed for 24V AC/DC operation and secure floor mounting, it utilizes a reliable screw terminal connection for industrial signaling and control applications.
Availability: In stock
Overview
The Siemens 3SU1401-2BB30-1AA0 LED module is a high-quality, durable solution for industrial and commercial applications. Designed for floor mounting, this LED module features an integrated 24 V AC/DC yellow LED and screw terminal connections, ensuring reliable performance and easy installation. Ideal for use in machinery, control panels, and signaling systems, it guarantees long-lasting visibility and efficiency.
Key Benefit
-
Long Operational Life: Integrated LED technology ensures thousands of hours of maintenance-free signaling.
-
Simplified Wiring: Equipped with robust screw terminals for a secure, vibration-proof electrical connection.
-
Energy Efficient: Optimized for 24V AC/DC power consumption, reducing heat buildup in control cabinets.
-
Industrial Durability: Built to withstand harsh industrial environments, consistent with Siemens’ high manufacturing standards.
Function
-

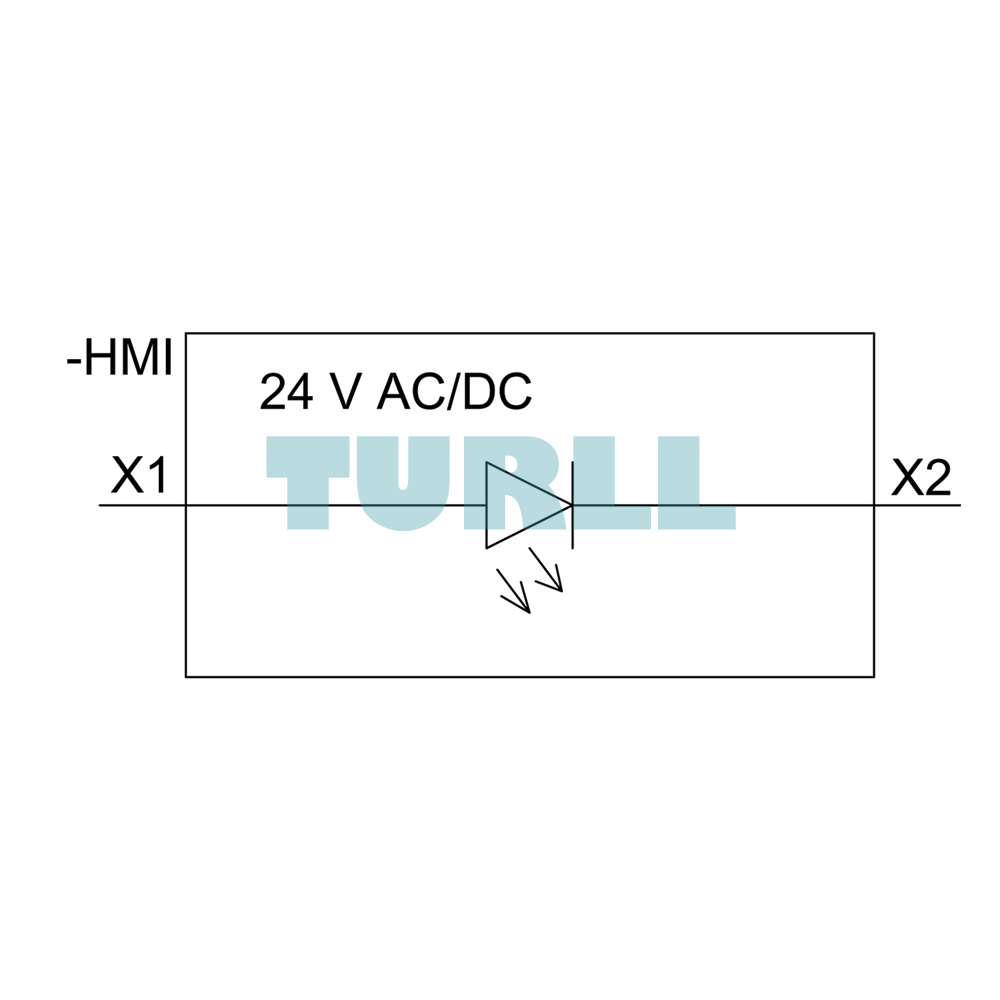

Integrated yellow LED indicator
-
Compatible with 24 V AC/DC power systems
-
Screw terminal connection for secure wiring
-
Suitable for floor mounting
-
High-quality Siemens engineering for reliability
-
Minimum order quantity: 5 units or multiples
Specification
-
Light Color: Yellow
-
Supply Voltage: 24V AC/DC (50/60 Hz)
-
Mounting Type: Floor mounting (Base mounting)
-
Connection Method: Screw-type terminals
-
Compatibility: Part of the Siemens SIRIUS ACT 3SU1 series
-
Protection Class: IP20 (Terminals)
Visit 3SU1401-2BB30-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.010 kg |
|---|---|

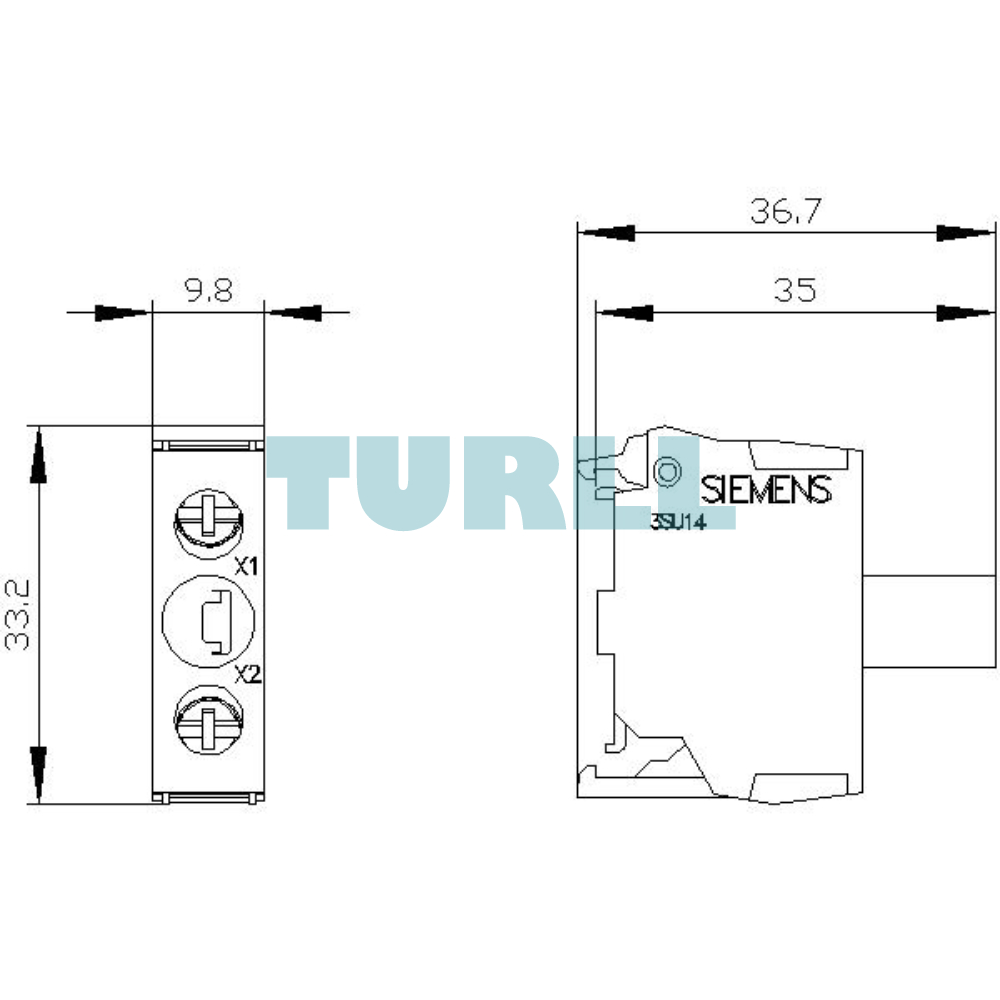

| Dimensions | 30.00 × 40.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | yellow |
| light intensity | 900 … 1 400 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
