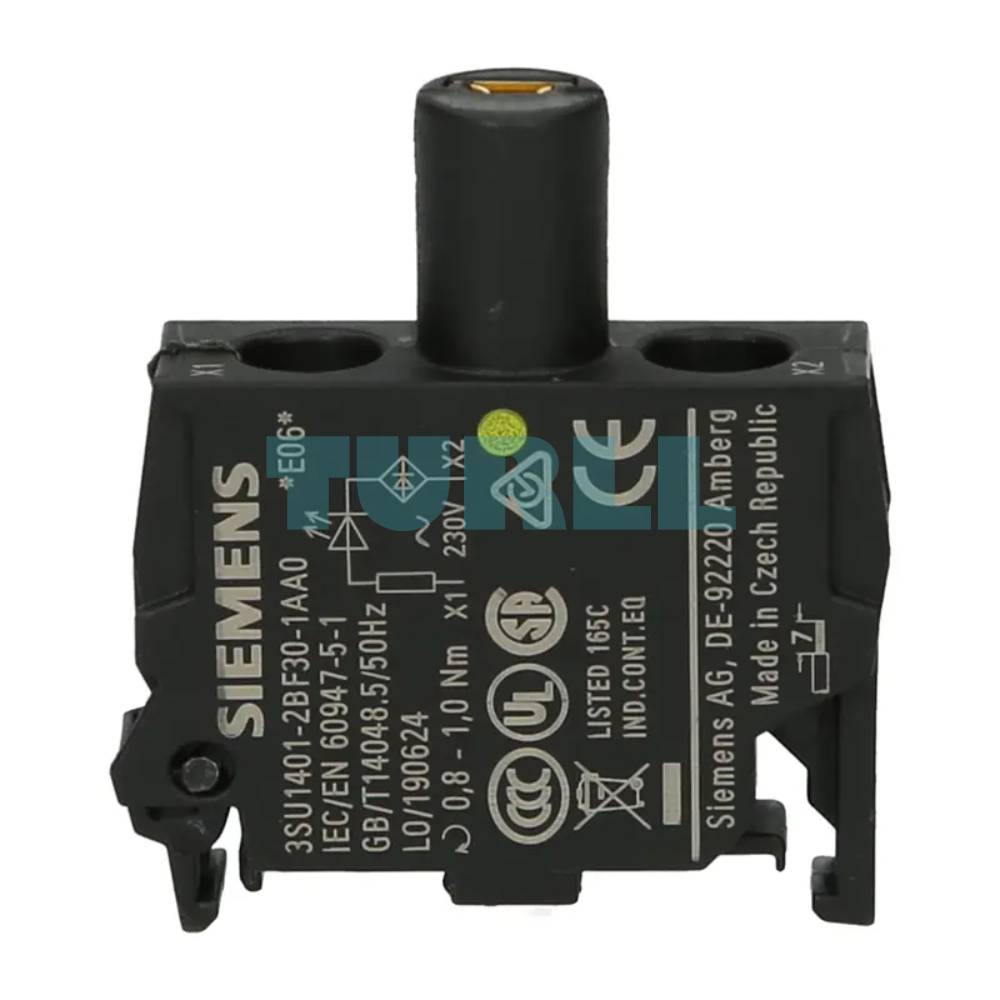

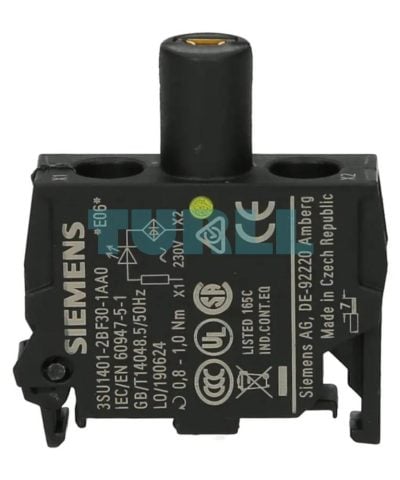

Siemens 3SU1401-2BF30-1AA0 LED Module, 230V AC, Yellow, Screw Terminal for Floor Mounting Original Brand New
$12.87
High-performance Siemens LED module (Yellow) with integrated LED and 230V AC operation. Features a reliable screw terminal connection and is designed for secure floor mounting within SIRIUS ACT assemblies.
Availability: In stock
Overview
The Siemens SIRIUS ACT 3SU1401-2BF30-1AA0 is a high-quality LED module designed for seamless integration into the SIRIUS ACT command and signaling device series. This specific model features an integrated LED with a vibrant yellow light source and operates on a standard control supply voltage of 230V AC. The robust design incorporates a reliable screw terminal connection, making it ideal for secure and straightforward floor mounting applications in industrial control panels. As a core component of the Siemens industrial portfolio, it ensures long-term operational stability and clear visual status indication.
Benefit
-
Reliable Visual Indication – Bright yellow LED ensures clear status signaling
-
Long Service Life – Integrated LED technology minimizes maintenance
-
Easy Installation – Screw terminal design allows fast and secure wiring
-
Industrial-Grade Quality – Built to Siemens’ high manufacturing standards
-
Versatile Application – Suitable for floor-mounted control and signaling systems
Function

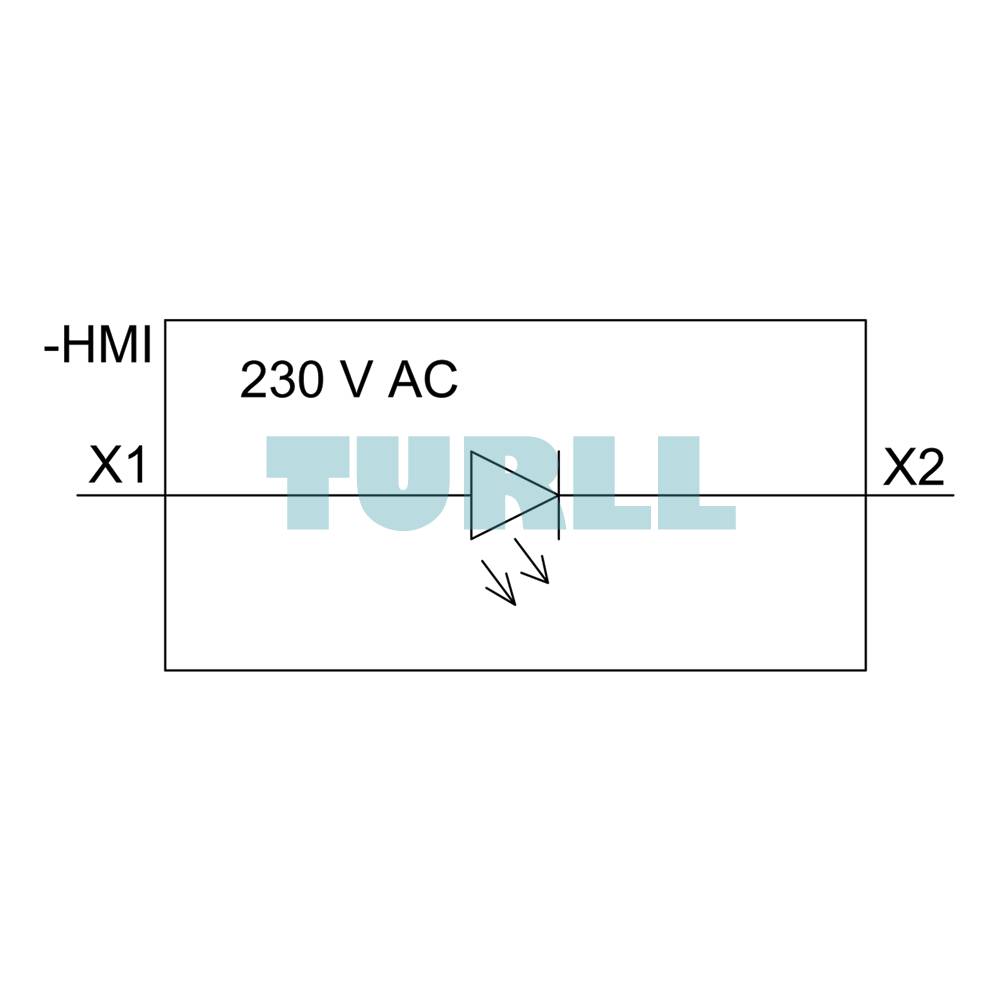

The 3SU1401-2BF30-1AA0 LED module serves as the primary visual indicator within a push button, indicator light, or selector switch assembly. When energized by a 230V AC signal, it illuminates the associated lens, providing operators with immediate and unambiguous feedback on the machine or process status (e.g., Warning, Start/Stop, Mode selection). The yellow color is typically used to signify a non-critical warning or change in state.
Visit 3SU1401-2BF30-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.008 kg |
|---|---|

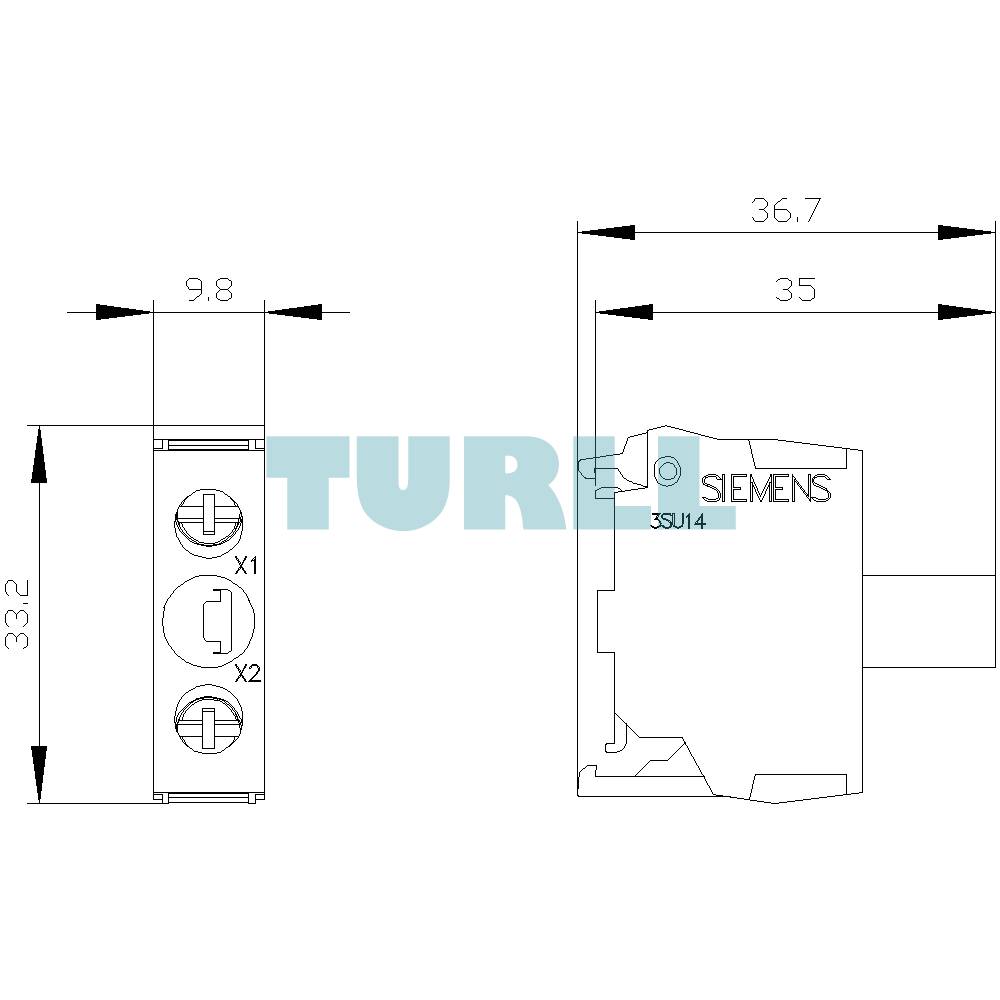

| Dimensions | 30.00 × 35.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | yellow |
| light intensity | 900 … 1 400 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
