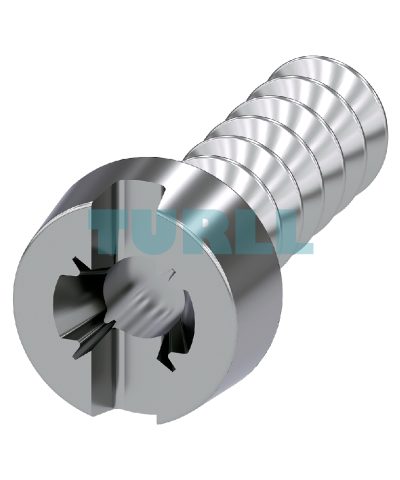

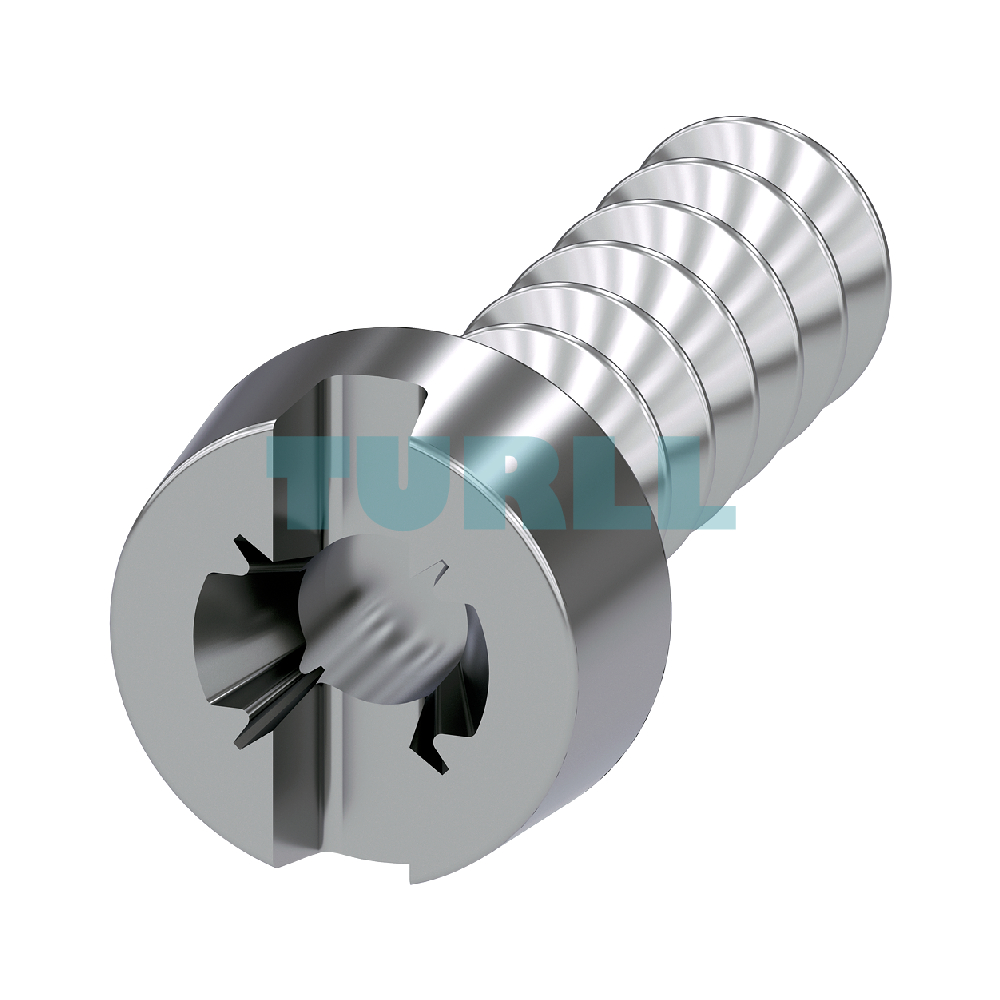

Siemens 3SU1950-0KK80-0AA0 Grounding Screw for 3-Fold Holder, Universal for Plastic & Metal Original Brand New

Overview

The Siemens 3SU1950-0KK80-0AA0 grounding screw is designed for 3-fold holders, providing universal compatibility with both plastic and metal components. It enables reliable metal grounding of actuators, especially when installing in front plates made of non-conductive materials. Durable and easy to install, this grounding screw is essential for maintaining safety and optimal electrical performance in industrial control systems.

Benefit

• Universal Compatibility: Works seamlessly with both plastic and metal 3-fold holders (e.g., 3SU1500-0AA10-0AA0), simplifying inventory and selection.

• Enhanced Safety: Provides a secure and reliable metal grounding path for actuators, minimizing electrical hazards.

• Improved EMC: Establishes necessary ground continuity to reduce electrical noise and interference.

• Compliance: Helps meet industrial standards for grounding and safety in control panel construction.

• Easy Installation: Designed for quick and straightforward mounting to the holder, streamlining assembly.

Function

The grounding screw serves as a reliable bridge to connect the metallic components of the actuator (like the mounting ring or the actuator body) to a grounding point, even if the surrounding front plate is non-conductive.

1. It is installed into the designated hole on the 3-fold holder.

2. It makes direct electrical contact with the metal parts of the mounted actuators.

3. An external ground wire is then connected to the screw, completing the protective earth (PE) circuit.
