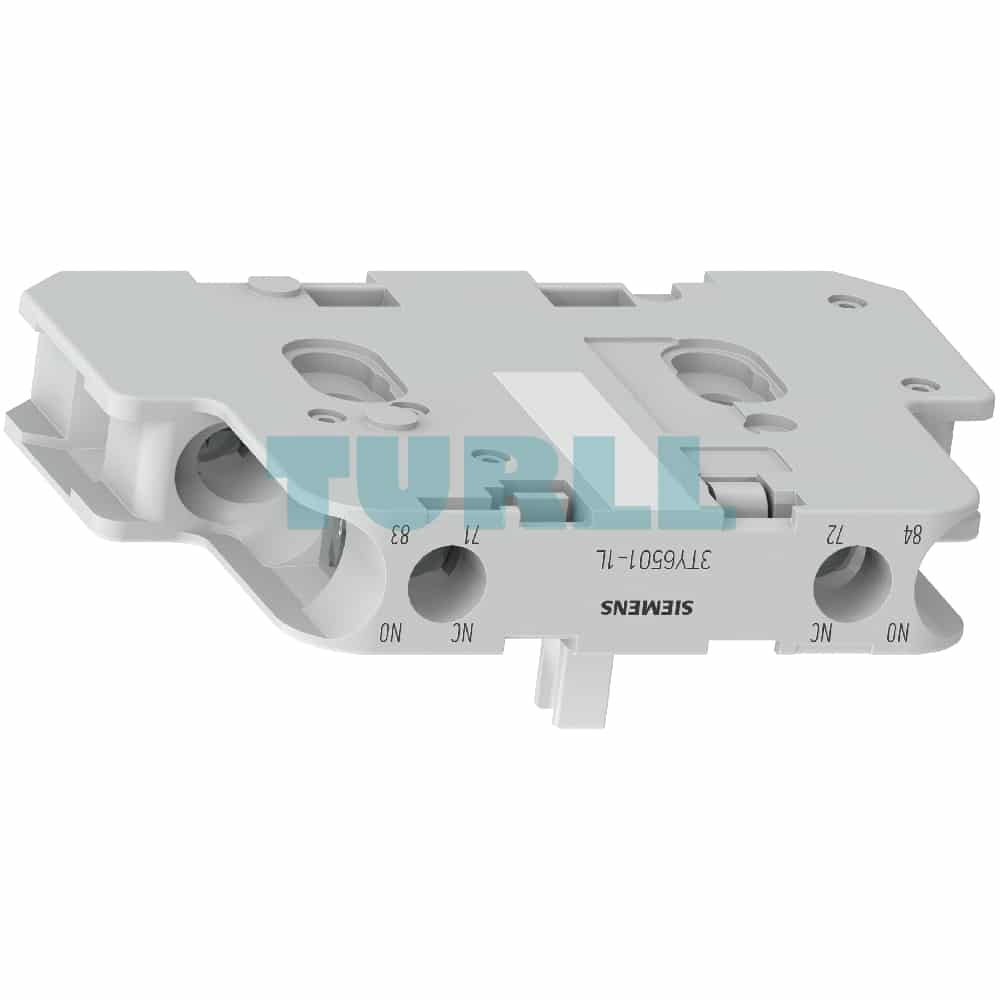

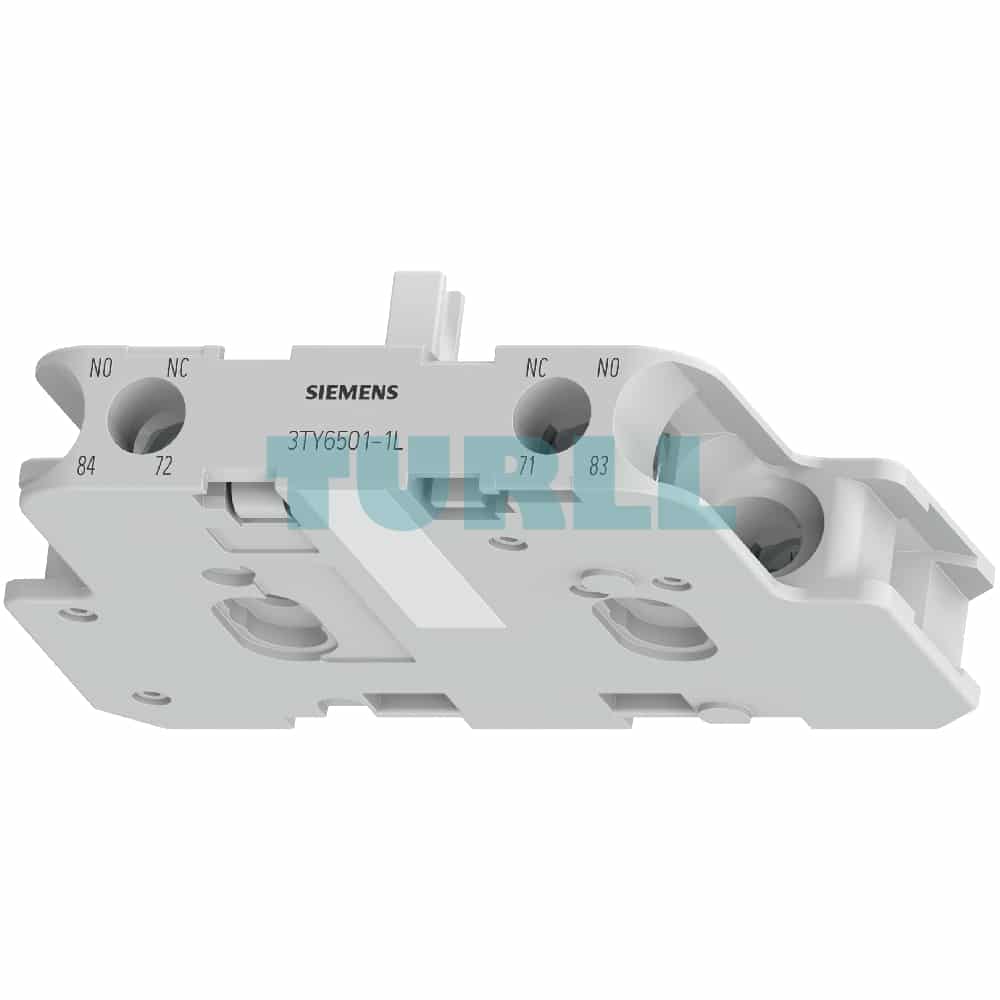

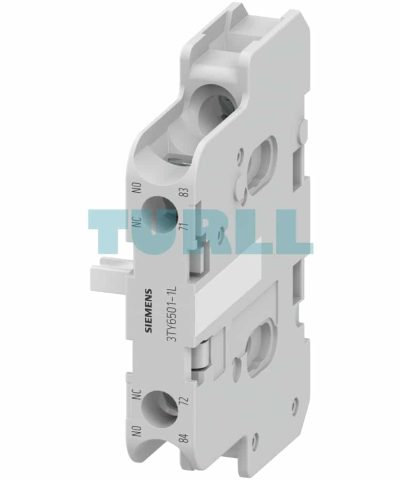

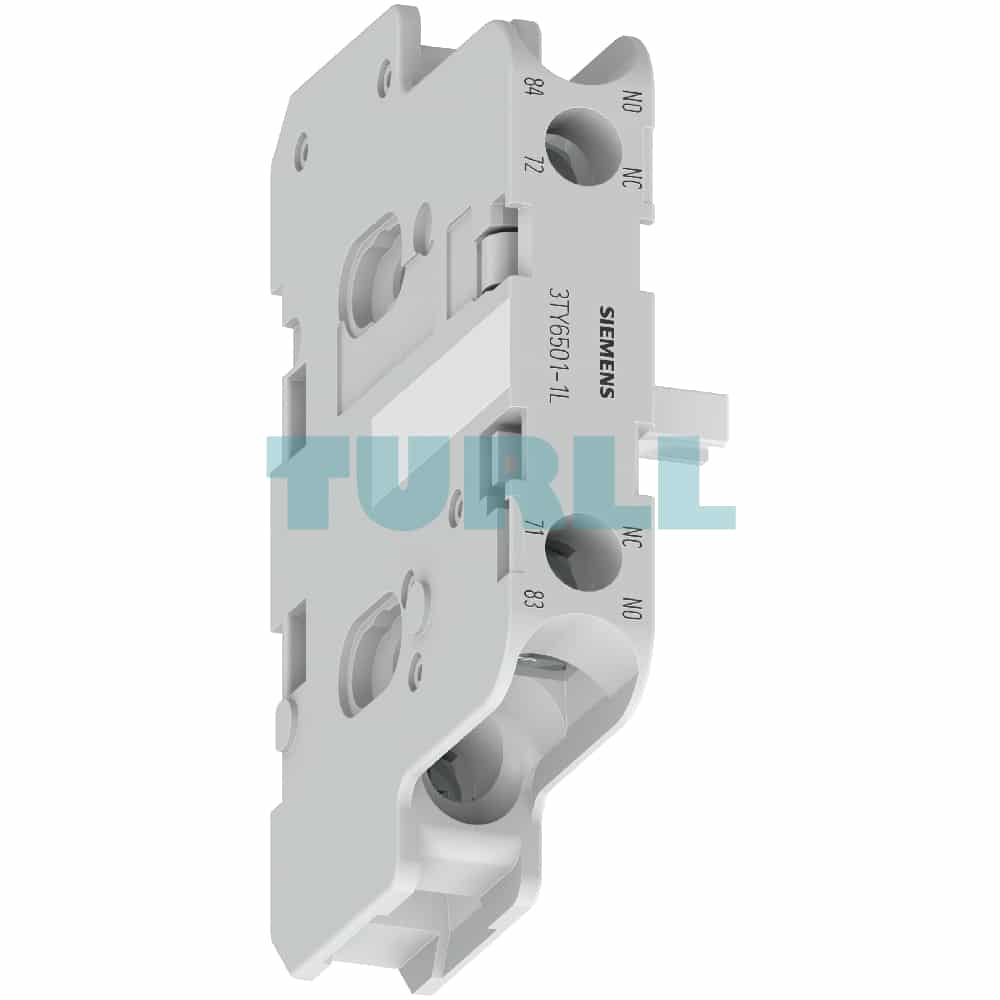

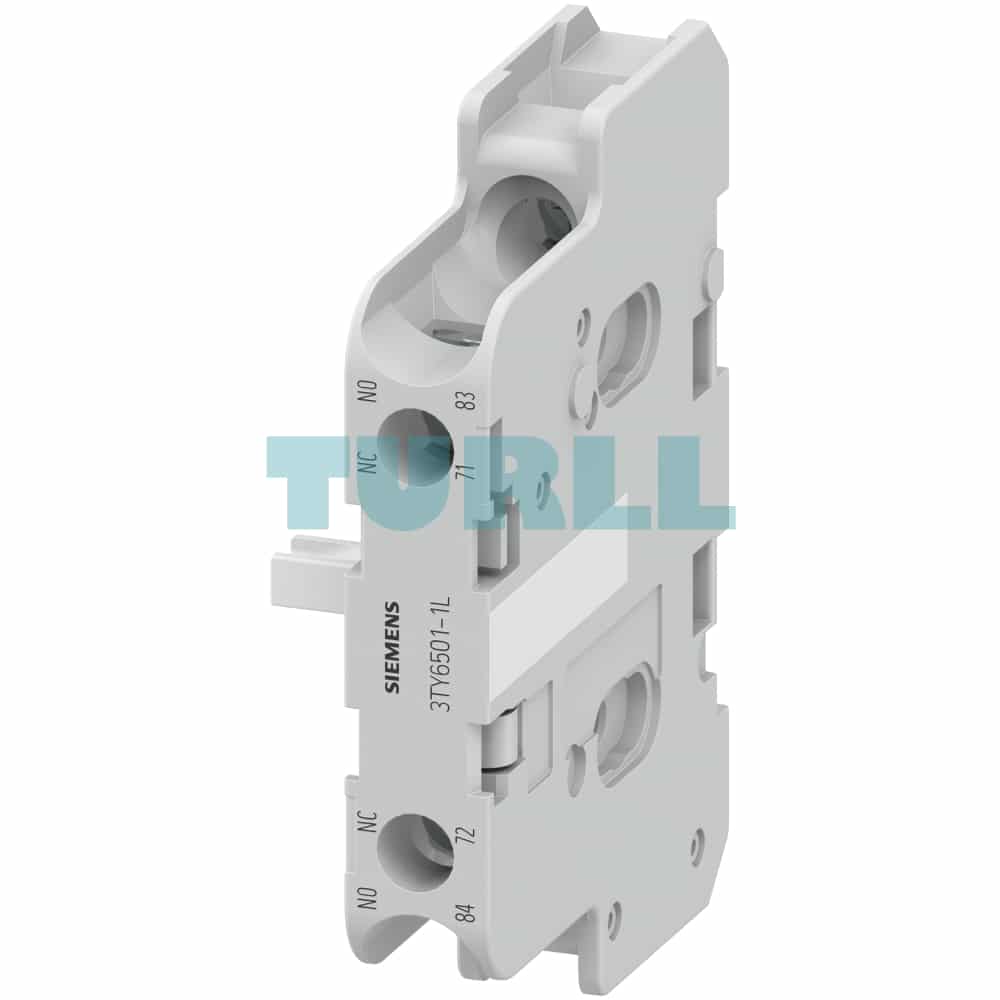

Siemens 3TY6501-1L 2nd Auxiliary Switch Block for 3TB46-3TB50 Contactor (Right-Side Mount) Original Brand New

Overview

The Siemens 3TY6501-1L is a high-quality, reliable second auxiliary switch block designed specifically for use with Siemens 3TB46 through 3TB50 series contactors. This essential component allows you to expand the functionality of your control circuits by adding an extra set of switching contacts. As an original Siemens part, it guarantees seamless integration and dependable performance, meeting the same rigorous standards as the contactors themselves.

Key Features & Specifications

• Part Number: 3TY6501-1L
• Compatibility: Siemens 3TB46, 3TB47, 3TB48, 3TB49, and 3TB50 contactors
• Mounting Position: Right-side mount
• Contact Configuration: 1 normally open (NO) and 1 normally closed (NC) contact
• Function: Provides additional signaling and control options for your electrical circuits
• Durability: Built to withstand demanding industrial environments
• Installation: Easy and secure snap-on mounting

Benefit

• Expanded Functionality: Adds a second set of auxiliary contacts, enabling more complex control logic and signaling.
• Enhanced Safety: Can be used to create redundant safety circuits or to provide status feedback to PLCs and other control systems.
• Reliable Performance: As an original Siemens part, the 3TY6501-1L ensures long-term reliability and precise switching.
• Simple Integration: Designed for a perfect fit and easy installation with compatible 3TB series contactors, reducing installation time and effort.
• Cost-Effective: A great way to upgrade existing systems without replacing the entire contactor.

Function

The 3TY6501-1L auxiliary switch block plays a crucial role in electrical control systems. When mounted on the right side of a 3TB46-3TB50 contactor, it operates in tandem with the contactor's main contacts. The NO contact closes and the NC contact opens when the contactor is energized. This action can be used for a wide range of applications, including:

• Status Indication: Illuminating a pilot light to show if the contactor is energized.
• Interlocking: Preventing other contactors or equipment from operating simultaneously.
• Sequence Control: Activating the next step in a manufacturing process.
• PLC/DCS Feedback: Sending a signal to a programmable logic controller (PLC) or distributed control system (DCS) to confirm the contactor's state.
