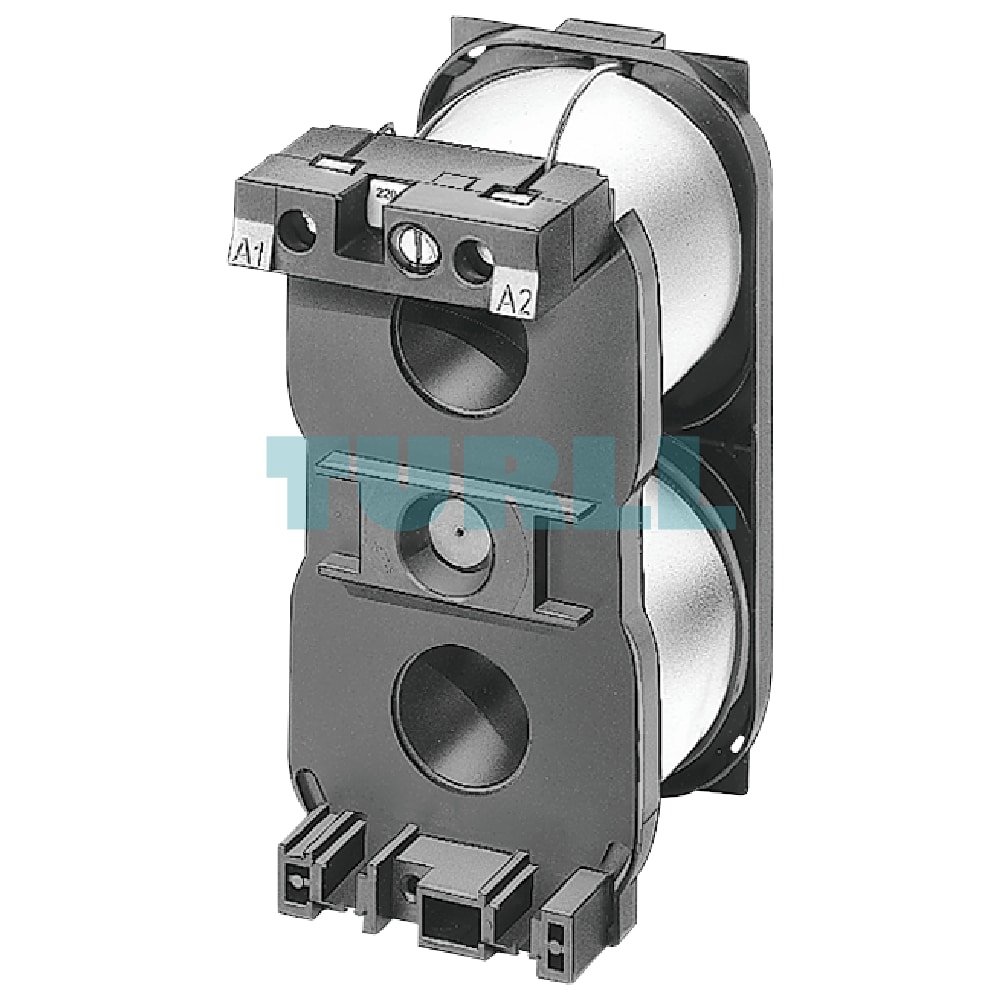

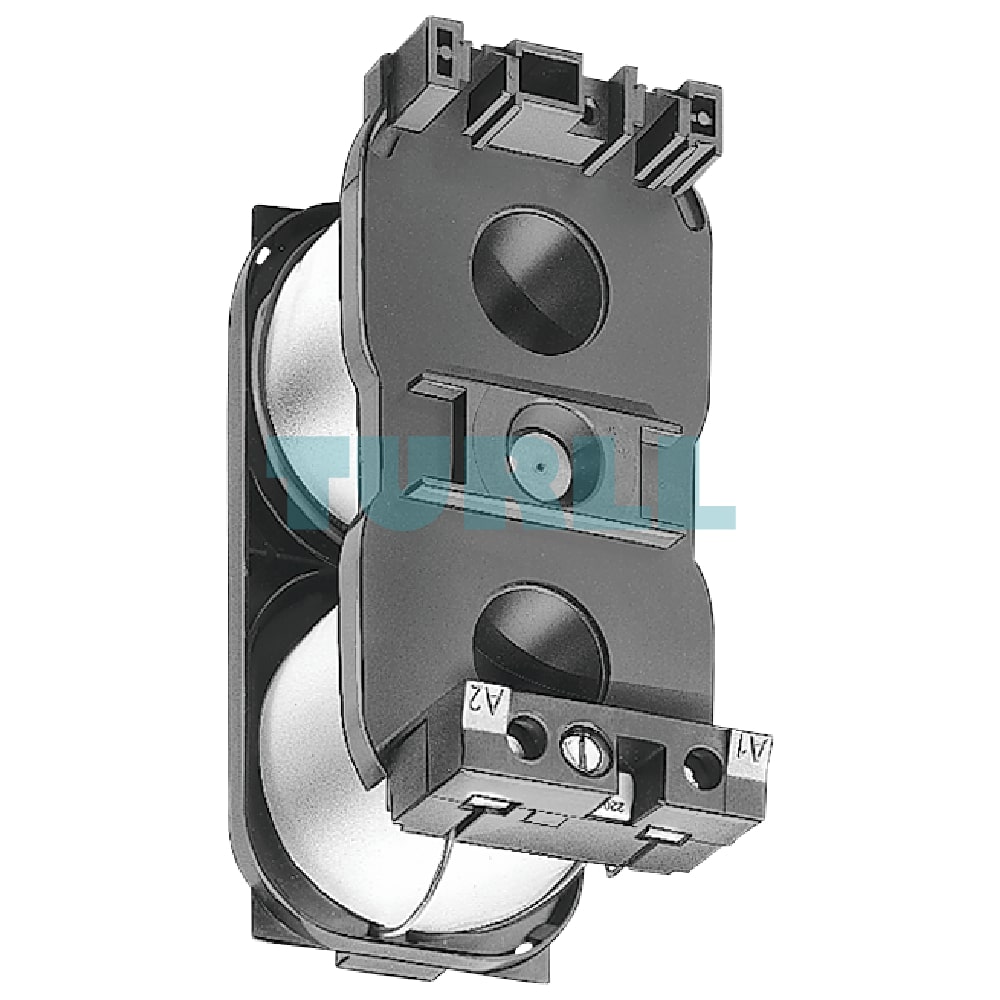

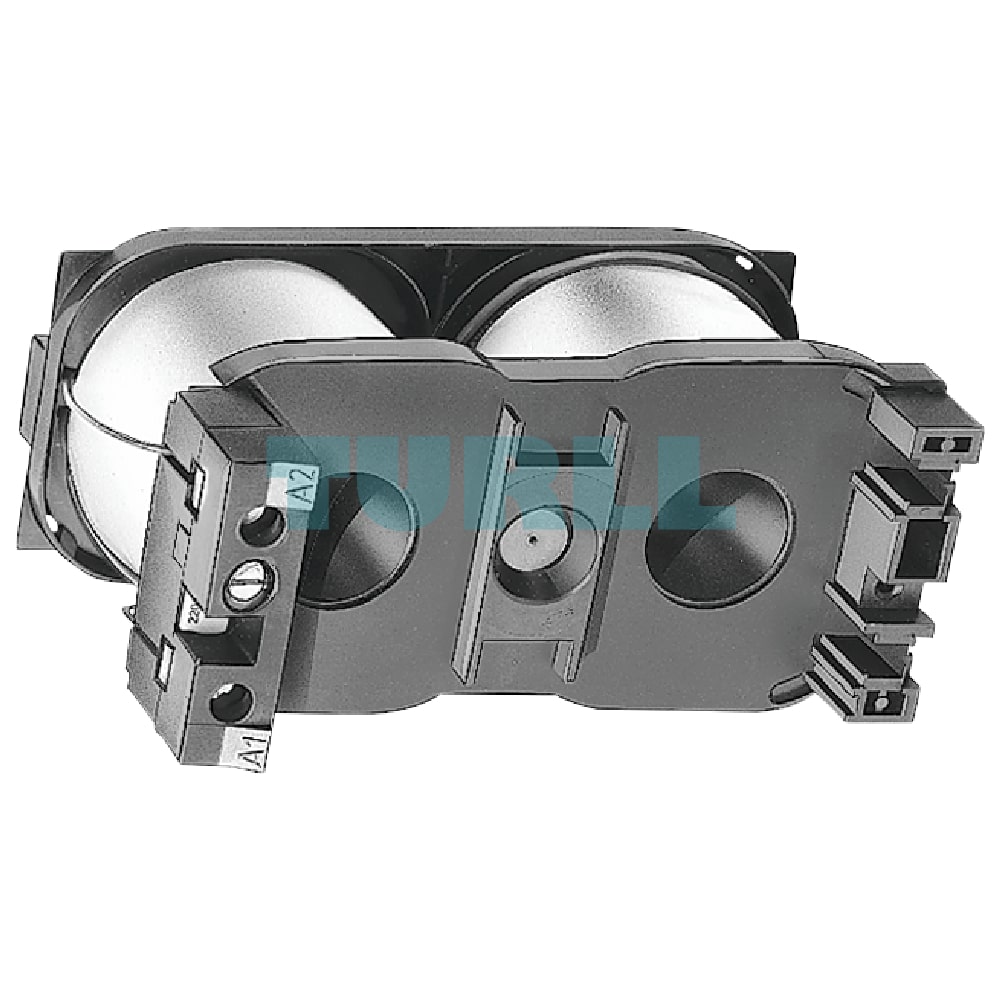

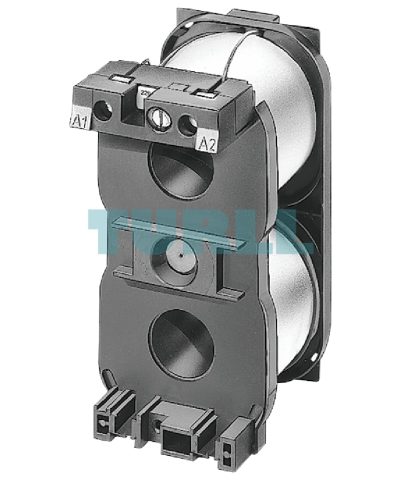

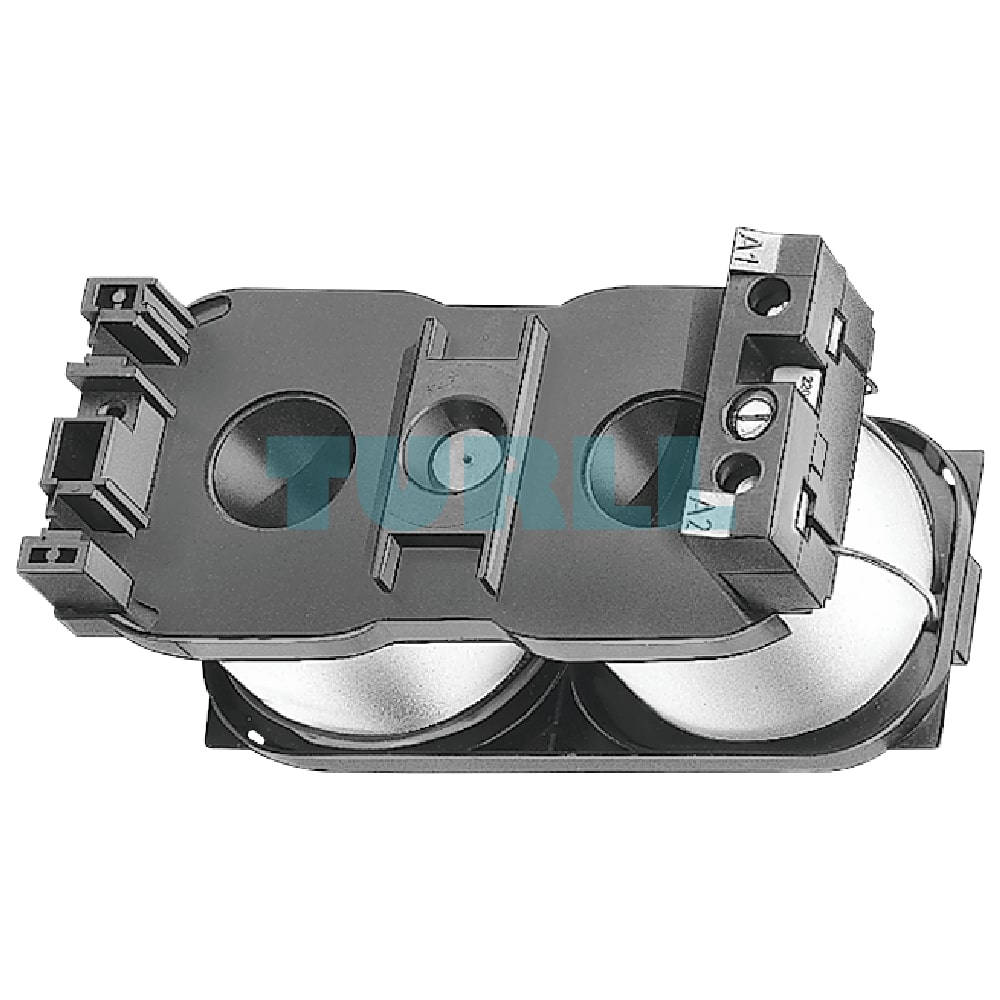

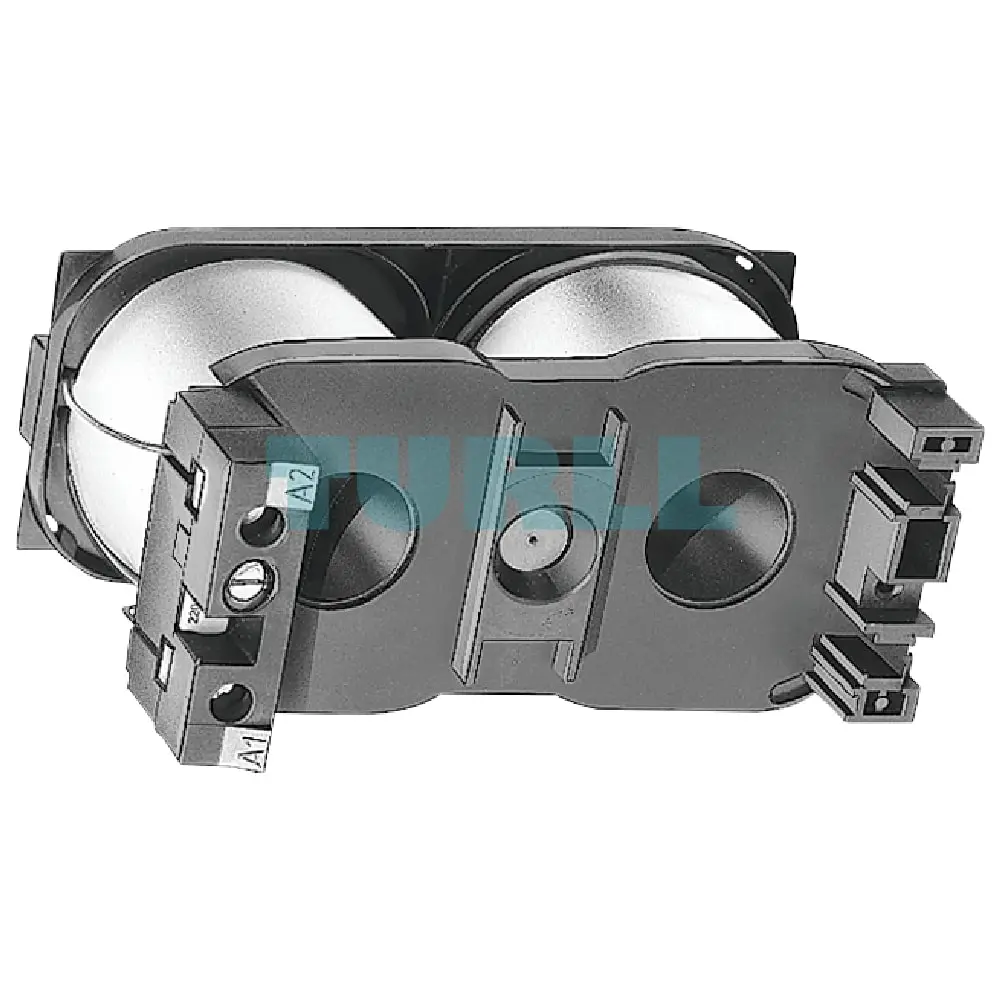

Siemens 3TY6563-0BP4 Magnet Coil 230V DC for 3TB56 & 3TC56 Contactor Original Brand New

Overview

The Siemens 3TY6563-0BP4 is a high-quality magnet coil engineered for the specific demands of industrial electrical systems. This essential component is designed as a direct replacement or spare part for Siemens 3TB56 and 3TC56 series contactors. Operating on a 230V DC power supply, the 3TY6563-0BP4 ensures reliable and efficient magnetic field generation to actuate the contactor’s switching mechanism. Its robust construction and precise engineering guarantee a seamless fit and long-lasting performance, minimizing downtime and maintenance costs.

Benefit

• Optimal Performance: Engineered to meet Siemens’ stringent quality standards, this magnet coil provides the exact specifications needed for the 3TB56 and 3TC56 contactors, ensuring proper and consistent operation.
• Extended Lifespan: Constructed from durable materials, the 3TY6563-0BP4 is built to withstand the rigors of industrial environments, offering a long service life and reducing the frequency of replacements.
• Easy Installation: Designed for a perfect fit, this coil can be easily installed by qualified technicians, simplifying maintenance and repair processes.
• Reliable Operation: A properly functioning magnet coil is critical for the safe and effective operation of a contactor. The Siemens 3TY6563-0BP4 guarantees reliable actuation, preventing operational failures.
• Cost-Effective Solution: As a genuine Siemens replacement part, it offers a cost-effective way to restore a contactor to full functionality without the need for a complete unit replacement.

Function

The magnet coil is the core electromechanical component of a contactor. When the specified 230V DC voltage is applied to the coil’s terminals, it generates a powerful magnetic field. This magnetic field attracts an armature, which in turn causes the contactor’s main contacts to close, completing the electrical circuit to a connected load, such as an electric motor. When the voltage is removed, the magnetic field collapses, and a spring forces the contacts back to their open position, breaking the circuit.

Application

The Siemens 3TY6563-0BP4 magnet coil is used in a wide range of industrial applications where Siemens 3TB56 and 3TC56 contactors are deployed, including:

• Motor control centers (MCCs)
• Heating, ventilation, and air conditioning (HVAC) systems
• Industrial machinery and automation
• Power distribution panels
• Pump and compressor control

Technical Specification

• Product Number: 3TY6563-0BP4
• Compatible Contactors: Siemens 3TB56, 3TC56
• Operating Voltage: 230V DC
• Manufacturer: Siemens
• Category: Contactor Accessories / Replacement Parts
