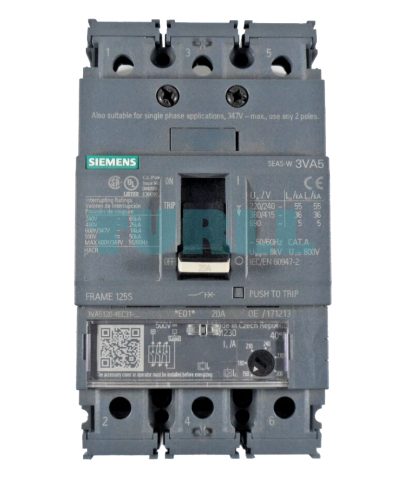

Siemens 3VA5120-4EC31-0AA0 Circuit Breaker 3VA5 UL Frame 125, 3-Pole, 20A, 25kA @ 480V Original Brand New
Model / SKU3VA5120-4EC31-0AA0
High-performance Molded Case Circuit Breaker (MCCB) from the 3VA5 UL Frame 125 series. Featuring a 20A current rating and a breaking capacity of 25kA at 480V, this 3-pole breaker is designed for robust line protection using the TM230 thermal-magnetic trip unit.
Original price was: $209.20.$144.20Current price is: $144.20.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 3VA5120-4EC31-0AA0 is a high-performance 3VA5 UL molded case circuit breaker designed for reliable line protection in industrial and commercial electrical systems. Built on the UL Frame 125, this circuit breaker delivers a breaking capacity of 25 kA at 480 V and ensures dependable protection against overloads and short circuits.
Equipped with TM230 thermal-magnetic trip unit (FTAM), the breaker provides fixed overload and short-circuit protection, making it an ideal solution for stable and secure power distribution.
Key Benefit
-
Reliable overload and short-circuit protection
-
High breaking capacity of 25 kA at 480 V
-
Compact UL Frame 125 design
-
Durable Siemens engineering for long service life
-
Suitable for industrial and commercial power systems
-
Fixed settings reduce risk of misconfiguration
Product Function
-
Line protection for low-voltage power distribution
-
Overload protection (Ir) permanently set at 20 A
-
Short-circuit protection (Ii) fixed between 7.5 to 15 × In
-
Safe interruption of fault currents
-
Ensures compliance with UL standards
Technical Specification
-
Manufacturer: Siemens
-
Series: 3VA5
-
Frame Size: UL Frame 125
-
Poles: 3-Pole
-
Rated Current (In): 20 A
-
Overload Protection (Ir): 20 A, permanently set
-
Short-Circuit Protection (Ii): 7.5…15 × In
-
Breaking Capacity: 25 kA @ 480 V
-
Trip Unit: TM230, FTAM
-
Connection: Without connection
Visit 3VA5120-4EC31-0AA0 for more detail info
For more our products visit turll
Download
Specifications
| SKU / Model | 3VA5120-4EC31-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Molded-case circuit breaker |
| product designation / according to UL file | SEAS |
| Product version | System protection |
| design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| design of the load switch / acc. to UL 489 / High-Intensity-Discharge circuit breaker (HID Type) | Yes |
| design of the load switch / acc. to UL 489 / Switching Duty circuit breaker (SWD Type) | Yes |
| design of the overcurrent release | TM230 |
| protection function of the overcurrent release | LI |
| number of poles | 3 |
| rated insulation voltage Ui | 800 V |
| Max. rated operational voltage Ue with DC | 500 V |
| power loss [W] / maximum | 12.2 W |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 4.07 W |
| mechanical service life (switching cycles) / typical | 20 000 |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 8 000 |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 4 000 |
| electrical endurance (switching cycles) / at 480 V | 8 000 |
| electrical endurance (switching cycles) / at 600 V | 4 000 |
| Neutral conductors / upgradeable/retrofittable | No |
| product function | - |
| ● communication function | No |
| ● other measurement function | No |
| marking / acc. to UL 489 / 100%-rated breaker | No |
| operational current | - |
| ● at 40 °C | 20 A |
| ● at 45 °C | 20 A |
| ● at 50 °C | 19 A |
| ● at 55 °C | 19 A |
| ● at 60 °C | 19 A |
| ● at 65 °C | 18 A |
| ● at 70 °C | 18 A |
| switching capacity class of the circuit breaker | S |
| breaking capacity maximum short-circuit current (Icu) | - |
| breaking capacity operating short-circuit current (Ics) | - |
| short-circuit current making capacity (Icm) | - |
| ● at 415 V | 75.6 kA |
| ● at 690 V | 7.5 kA |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
| breaking capacity current | - |
| ● at 240 V | 65 kA |
| ● at 480 V | 25 kA |
| ● at 600 Y/347 V | 14 kA |
| Adjustable response value current / lg min. | 20 A |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |

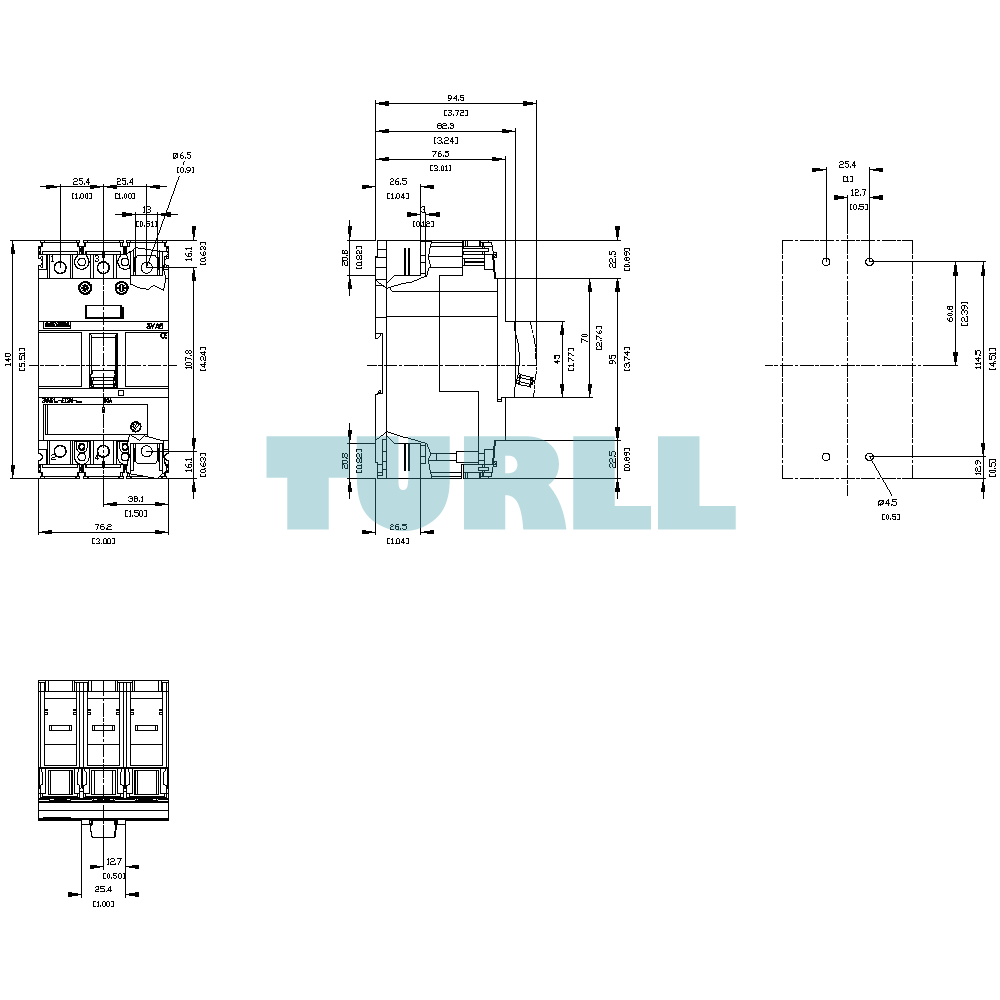

| height [in] | 5.51 in |
| Height | 140 mm |
| width [in] | 3 in |
| Width | 76.2 mm |
| depth [in] | 3.01 in |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| product component | - |
| ● undervoltage release | No |
| ● voltage trigger | No |
| ● trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| product extension / optional / motor drive | Yes |
| protection class IP / on the front | IP40 |
| ambient temperature | - |
| ● during operation / minimum | -25 °C |
| ● during operation / maximum | 70 °C |
| ● during storage / minimum | -40 °C |
| ● during storage / maximum | 80 °C |
| reference code / acc. to IEC 81346-2 | Q |
| certificate of suitability / as approval for NAVAL (no combat vessels) / supplement SB | No |
| last modified: | 10/11/2021 |
| Weight | 0.963 kg |
| Dimensions | 35125254803-230.2020 × -75.15 mm |
