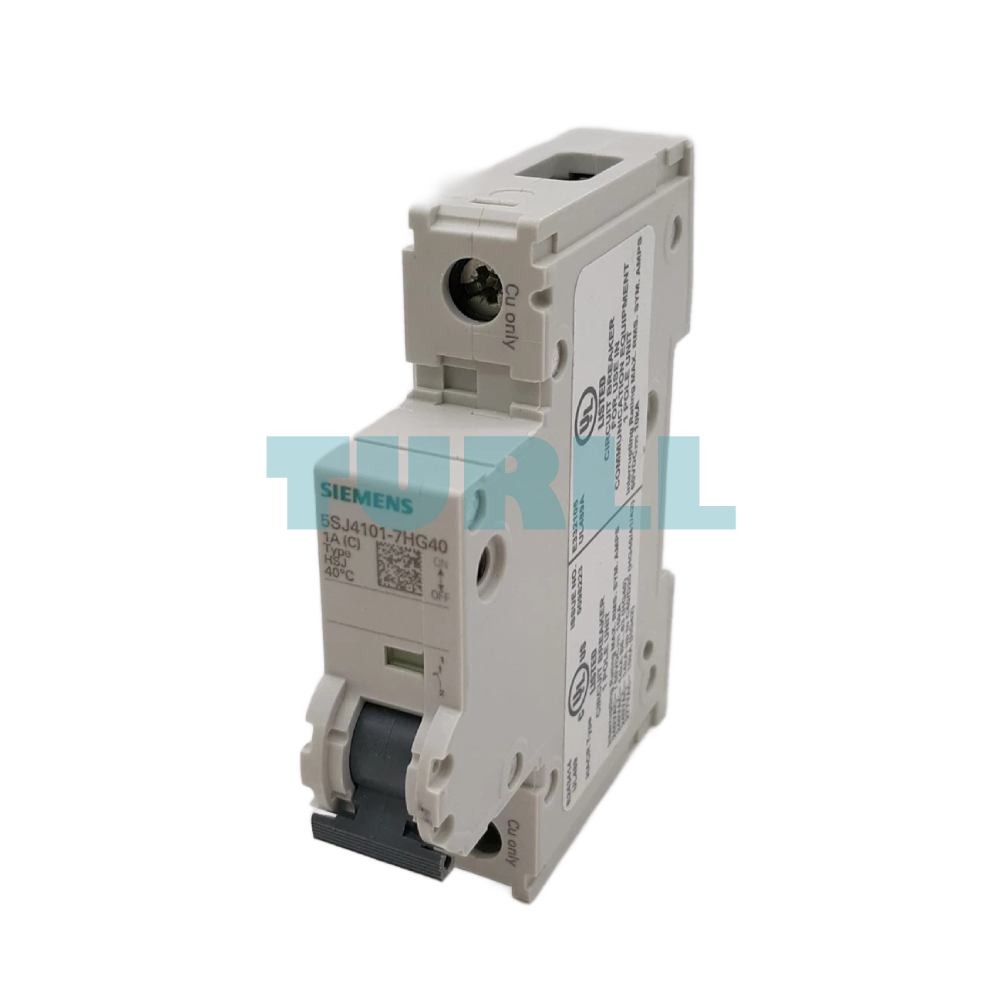

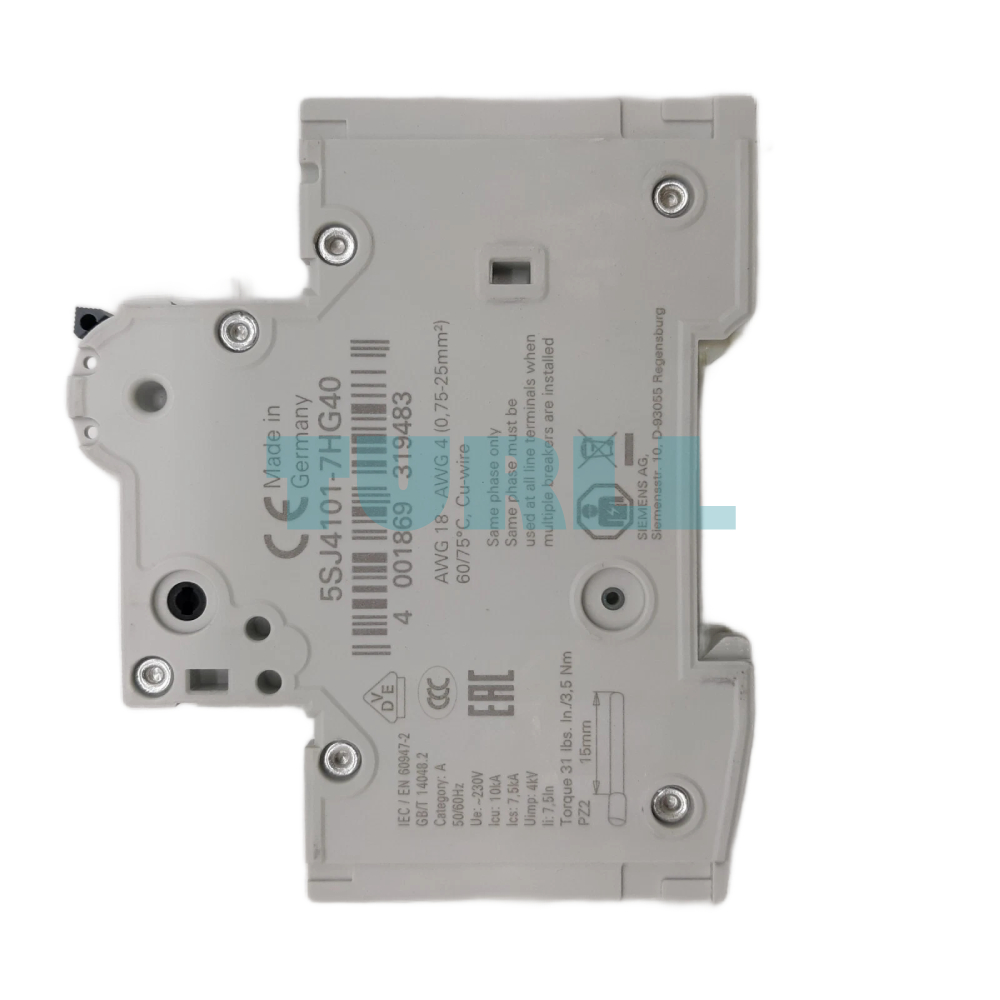

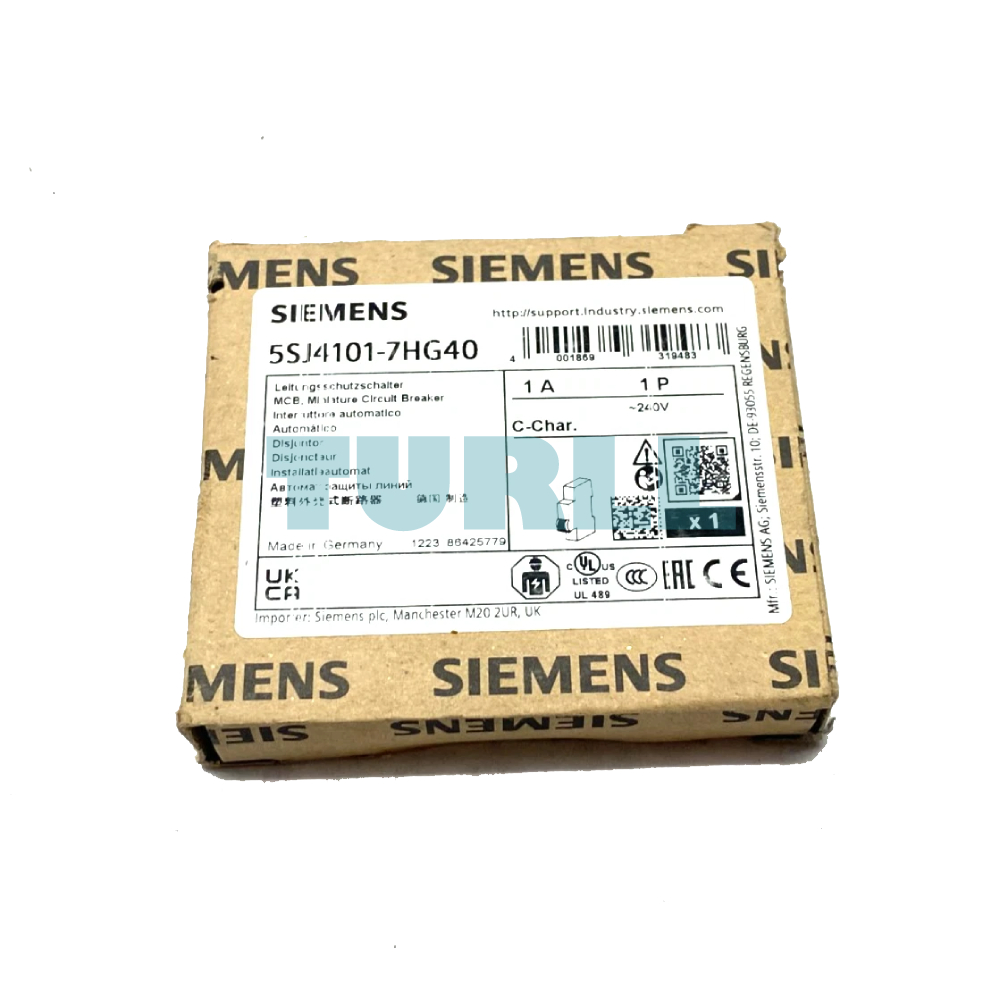

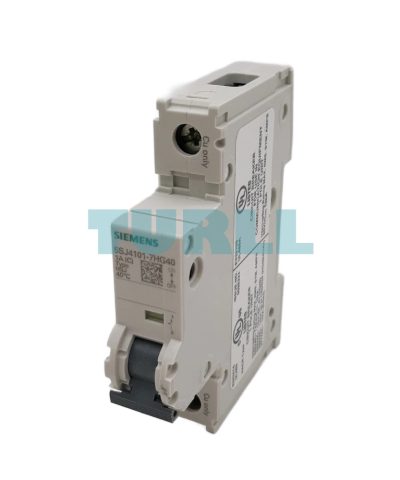

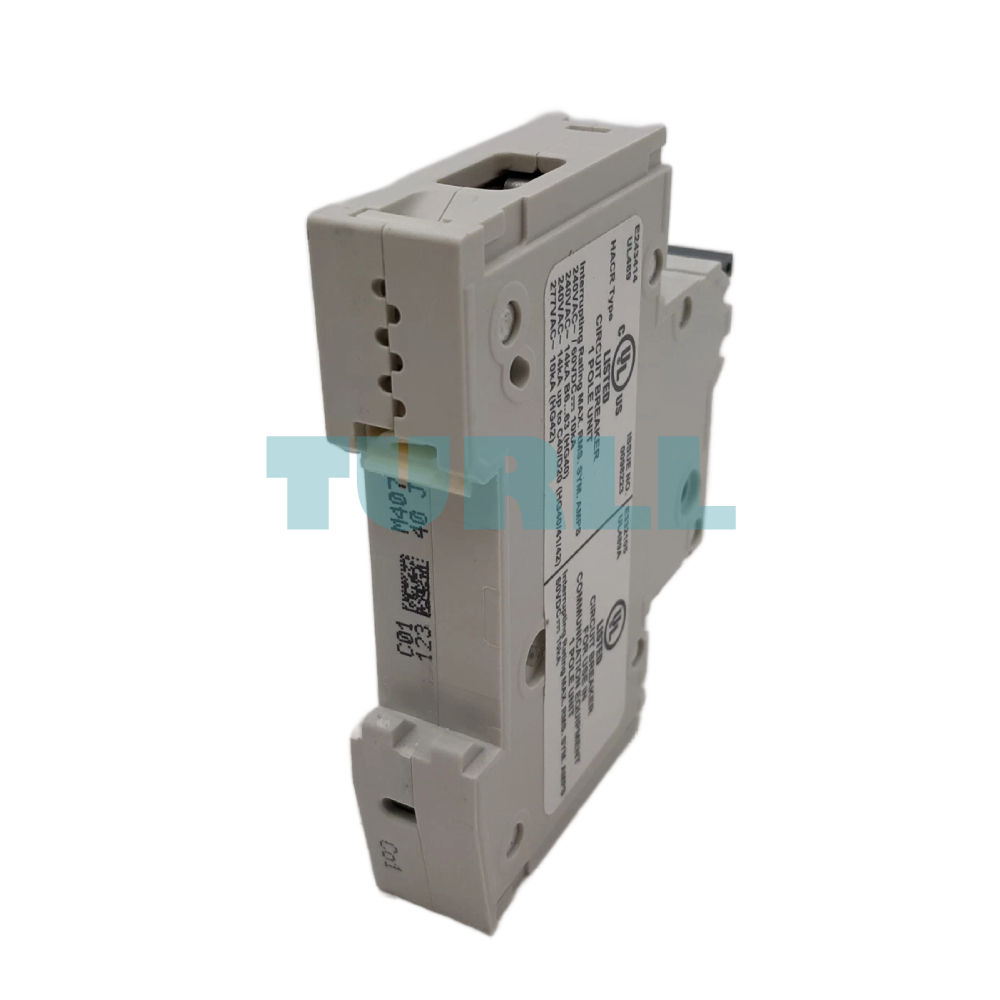

Siemens 5SJ4101-7HG40 Miniature Circuit Breaker 1-Pole, 1A, 240V, 14kA, Type C Trip Curve
Siemens 5SJ4101-7HG40 Miniature Circuit Breaker 1-Pole, 1A, 240V, 14kA, Type C Trip Curve
Siemens 5SJ4101-7HG40 Miniature Circuit Breaker 1-Pole, 1A, 240V, 14kA, Type C Trip Curve
Siemens 5SJ4101-7HG40 Miniature Circuit Breaker 1-Pole, 1A, 240V, 14kA, Type C Trip Curve
Siemens 5SJ4101-7HG40 Miniature Circuit Breaker 1-Pole, 1A, 240V, 14kA, Type C Trip Curve

SIEMENS

Siemens 5SJ4101-7HG40 Miniature Circuit Breaker 1-Pole, 1A, 240V, 14kA, Type C Trip Curve Original Brand New

Model / SKU5SJ4101-7HG40

High-performance UL 489 miniature circuit breaker designed for branch circuit protection. Featuring a 14kA breaking capacity, 1A current rating, and a compact 70mm mounting depth.

Original price was: $102.58.Current price is: $55.17.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SJ4101-7HG40 is a professional-grade Miniature Circuit Breaker (MCB) specifically engineered for North American and global industrial applications. As part of the Siemens Sentron family, this 1-pole device meets the rigorous UL 489 standards, making it suitable for branch circuit protection in control panels and machinery.

With a Type C tripping characteristic, it is ideal for circuits with medium inrush currents, providing reliable protection against overloads and short circuits.

Key Benefit

  • UL 489 Certified: Approved for branch circuit protection in industrial installations.

  • High Interrupting Capacity: Rated for 14kA at 240V, providing superior protection against high-fault currents.

  • Compact Design: The 70 mm depth allows for efficient use of space within control panels and distribution boards.

  • Global Compliance: Meets international standards, making it suitable for export-oriented equipment.

Function & Features

  • Pole Configuration: 1-Pole design for single-phase protection.

  • Tripping Characteristic: Type C (trips at 5-10x rated current), perfect for general-purpose lighting and motor circuits.

  • Equal Polarity: Simplifies wiring and installation.

  • Termination: Secure screw terminals designed for industrial-grade durability.

Visit 5SJ4101-7HG40 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SJ4101-7HG40
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breakers
design of the productMiniature circuit-breaker 5SJ4
number of poles1
tripping characteristic classC
mechanical service life (switching cycles) / typical10 000
installation environment regarding EMCSuitable for environment B (immunity to interference not applicable)
reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750F
overvoltage category3
degree of pollution3
insulation voltage (Ui) / at AC / rated value440 V
supply voltage / at AC / rated value400 V
operating voltage-
● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum120 V
● at DC / rated value / maximum60 V
● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum60 V
protection class IPIP20, with connected conductors, IP 40 in the handle range
switching capacity current-
● acc. to EN 60898 / rated value10 kA
● acc. to IEC 60947-2 / rated value15 kA
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.7 W
operational current-
● at 30 °C / rated value1 A
● at 40 °C / rated value1 A
● at 45 °C / rated value0.96 A
● at 50 °C / rated value0.9 A
● at 55 °C / rated value0.9 A
● at 60 °C / rated value0.84 A
● at AC / rated value1 A
type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02240/120
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● tunnel terminals topNo
● tunnel terminals bottomNo
● combined terminal topYes
● combined terminal bottomYes
product feature-
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
product function / noteTerminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in
breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.23514 kA
connectable conductor cross-section / finely stranded / with core end processing-
tightening torque / with screw-type terminals / maximum3.5 N·m
position / of power supply cordAny

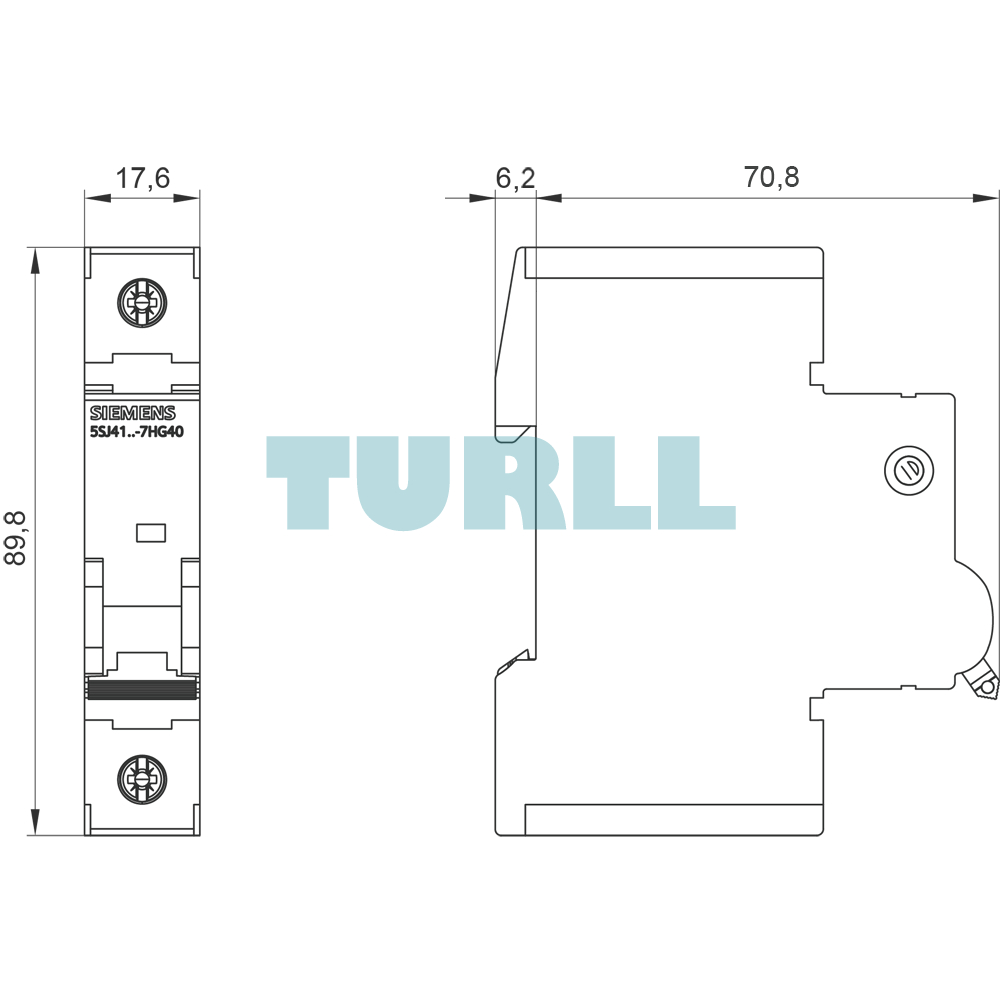

installation depth70 mm
number of modular width units1
fastening methodon standard mounting rail
mounting positionany
vibration resistance50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Test Certificatesother
Special Test CertificateMiscellaneous
Weight0.164 kg
Dimensions21.00 × 93.00 × 83.00 mm
