Siemens 5SJ4103-7HG41 Miniature Circuit Breaker 240V 14kA, 1-Pole, C, 3A, UL 489 Compliant Original Brand New
$45.85
High-performance miniature circuit breaker (MCB) designed for branch circuit protection. Rated at 3 Amps with a Type C trip characteristic, this 1-pole breaker provides a 14kA interrupting capacity at 240V, fully compliant with UL 489 standards for industrial and commercial applications.
Availability: In stock
Overview
The Siemens 5SJ4103-7HG41 is a high-performance miniature circuit breaker designed for protecting electrical circuits against overloads and short circuits. It operates at 240V, has a breaking capacity of 14kA, and features a 1-pole configuration. This model is specifically designed to meet UL 489 standards, ensuring reliability and safety for residential and commercial electrical systems.
Benefit
-
High Breaking Capacity (14kA): Provides superior protection against faults and short circuits, preventing damage to electrical equipment.
-
Compact Design: With a D=70 mm dimension, this circuit breaker fits into smaller enclosures, saving space while maintaining excellent performance.
-
UL 489 Compliant: Adheres to UL 489 standards, ensuring compatibility with international electrical safety codes.
-
Reliable Protection: Features a C characteristic curve ideal for a wide range of applications, offering efficient protection for devices with moderate inrush currents.
-
1-Pole Configuration: Perfect for single-phase circuits, commonly used in residential and light commercial setups.
Functionality
The Siemens 5SJ4103-7HG41 is built to ensure the highest standards of electrical protection in circuits running on 240V with a 14kA short-circuit protection. It automatically interrupts the circuit in the event of overload or short circuit, preventing further damage to the connected system.
Visit 5SJ4103-7HG41 for more detail info
For more our products visit turll
Download
| Weight | 0.171 kg |
|---|---|

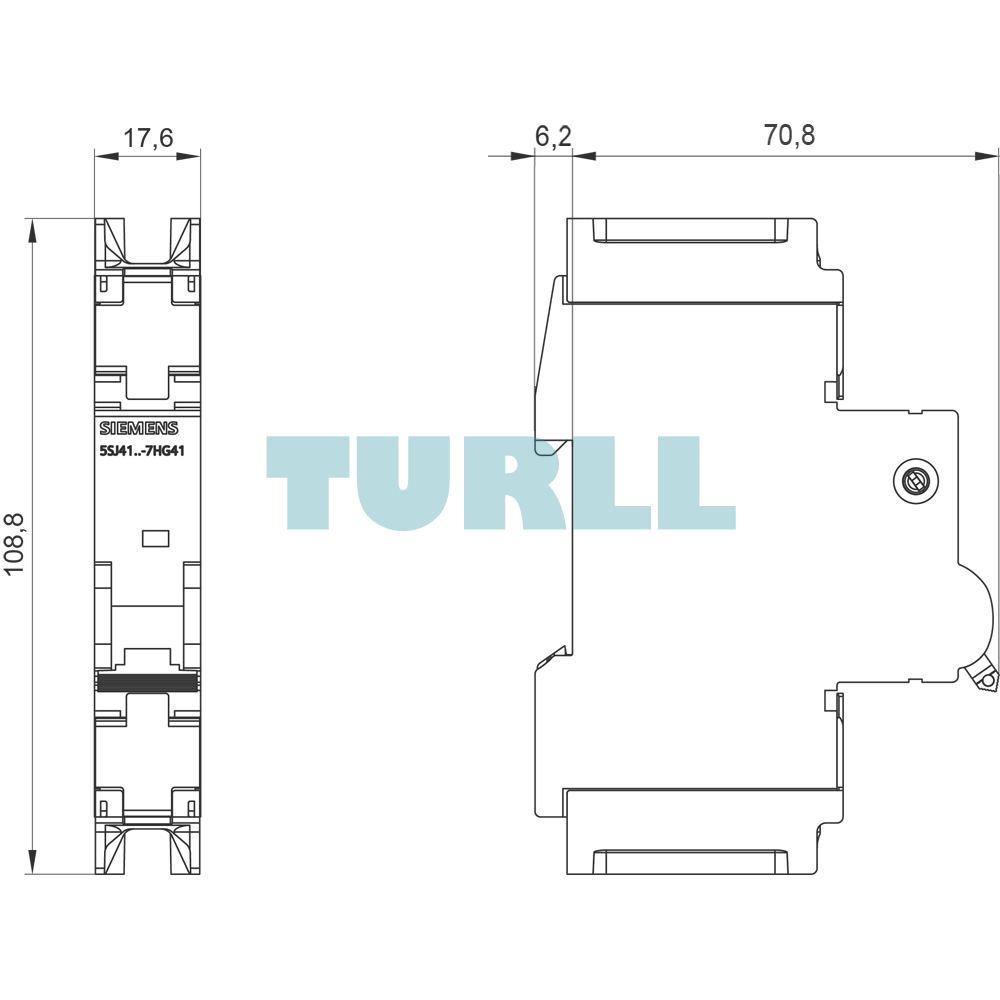

| Dimensions | 23.00 × 114.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 1 |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | – |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 240 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| ● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 125 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.8 W |
| operational current | – |
| ● at 30 °C / rated value | 3 A |
| ● at 40 °C / rated value | 3 A |
| ● at 45 °C / rated value | 2.9 A |
| ● at 50 °C / rated value | 2.8 A |
| ● at 55 °C / rated value | 2.7 A |
| ● at 60 °C / rated value | 2.6 A |
| ● at AC / rated value | 3 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 240 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 14 kA |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Test Certificates | other |
| Special Test Certificate | Miscellaneous |
