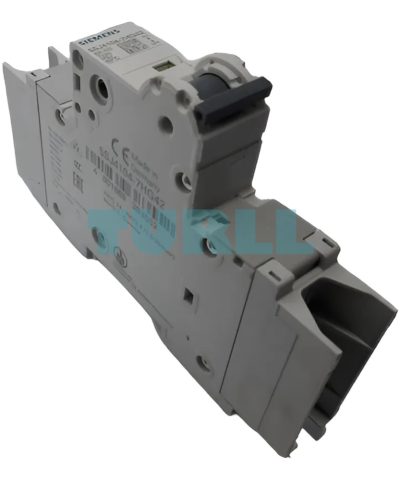

Siemens 5SJ4104-7HG42 10kA 1-Pole Circuit Breaker, C Curve, 4A, UL 489-277V Original Brand New
$54.22
High-performance 1-pole miniature circuit breaker designed for industrial protection. Rated at 4 Amps with a Type C tripping characteristic, it ensures reliable safety for branch circuits up to 277V AC according to UL 489 standards.
Availability: In stock
Overview
The Siemens 5SJ4104-7HG42 is a high-quality 1-pole circuit breaker designed for reliable protection in electrical systems. With a 10kA breaking capacity and C curve characteristics, this circuit breaker provides optimal protection against short circuits and overloads. Certified according to UL 489, it operates efficiently within a voltage range of 277V. Ideal for industrial and residential applications, it is built for durability and ease of use.
Benefit
-
High Breaking Capacity: Capable of handling up to 10kA, ensuring your electrical system is protected against high-energy faults.
-
UL 489 Certification: Meets stringent safety standards for electrical protection, ensuring reliability and trust.
-
C Curve Characteristics: Provides selective tripping to avoid unnecessary disruptions in your electrical system.
-
Compact Design: Space-saving and easy to install in any electrical panel.
-
Long Lifespan: Engineered for long-term performance, making it a cost-effective solution for protecting circuits.
-
Versatile Use: Suitable for both industrial and residential applications, including commercial facilities and light-duty systems.
Function and Features
-
Single-Pole Protection: Protects a single electrical circuit from overload and short circuit conditions.
-
Breaking Capacity: Rated for a 10kA breaking capacity, ensuring the breaker can safely interrupt high fault currents.
-
Current Rating: 4A capacity, designed for lower-power applications, offering reliable performance for various circuits.
-
Voltage Rating: Works within the voltage range of 277V, making it perfect for systems requiring reliable, low-voltage protection.
-
C Curve: Specifically designed for use in circuits with moderate inrush currents, ideal for applications such as lighting, heating, and motors.
Visit 5SJ4104-7HG42 for more detail info
For more our products visit turll
Download
| Weight | 0.174 kg |
|---|---|

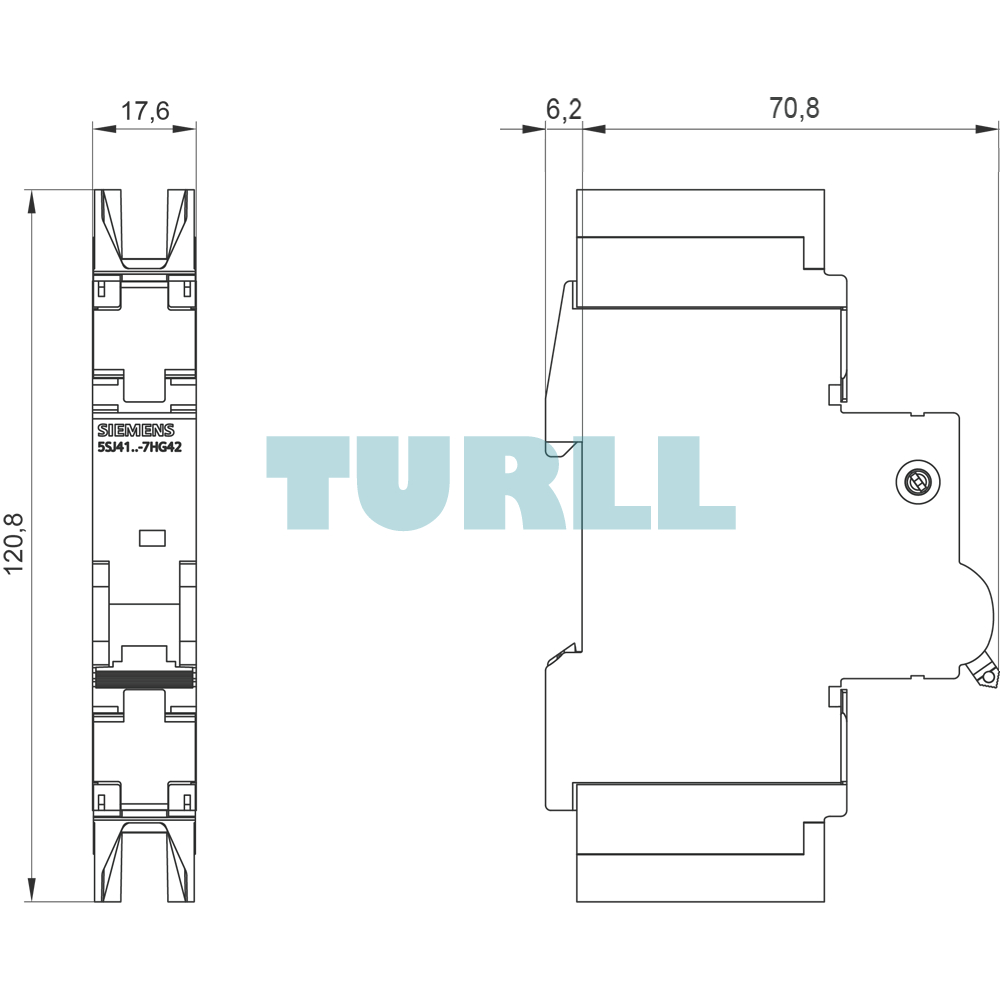

| Dimensions | 22.00 × 125.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 1 |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | – |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 277 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| ● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 125 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.8 W |
| operational current | – |
| ● at 30 °C / rated value | 4 A |
| ● at 40 °C / rated value | 4 A |
| ● at 45 °C / rated value | 3.9 A |
| ● at 50 °C / rated value | 3.8 A |
| ● at 55 °C / rated value | 3.7 A |
| ● at 60 °C / rated value | 3.6 A |
| ● at AC / rated value | 4 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 480/277 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 10 kA |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Miscellaneous | – |
