5SJ4106-6HG40

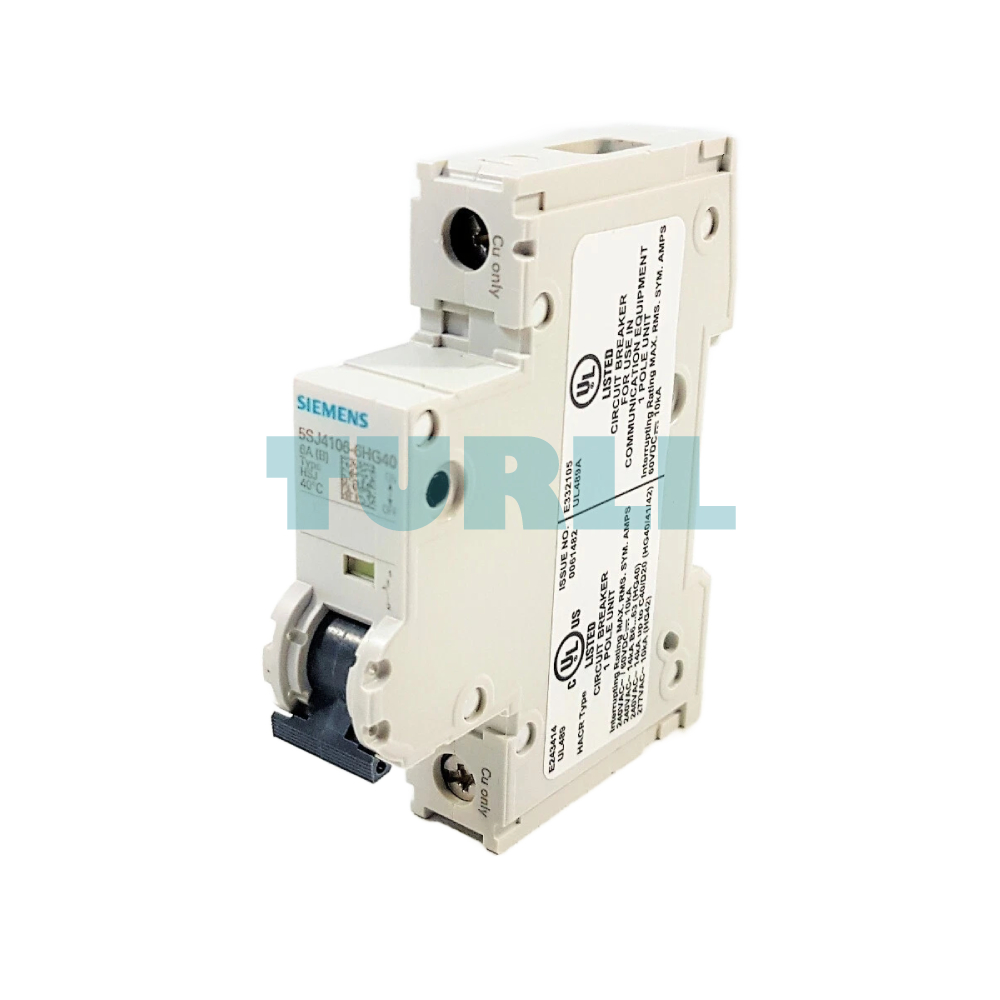

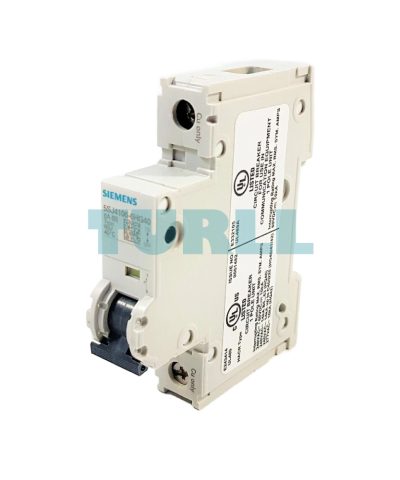

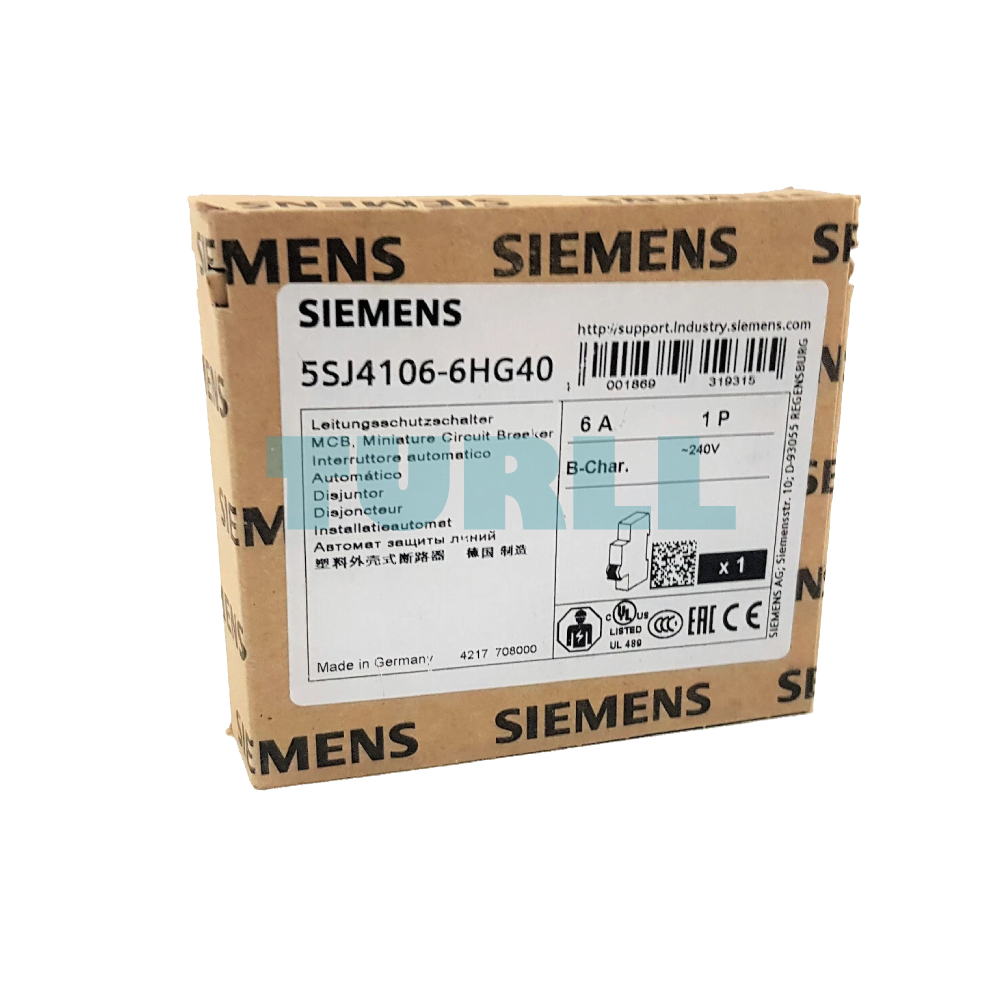

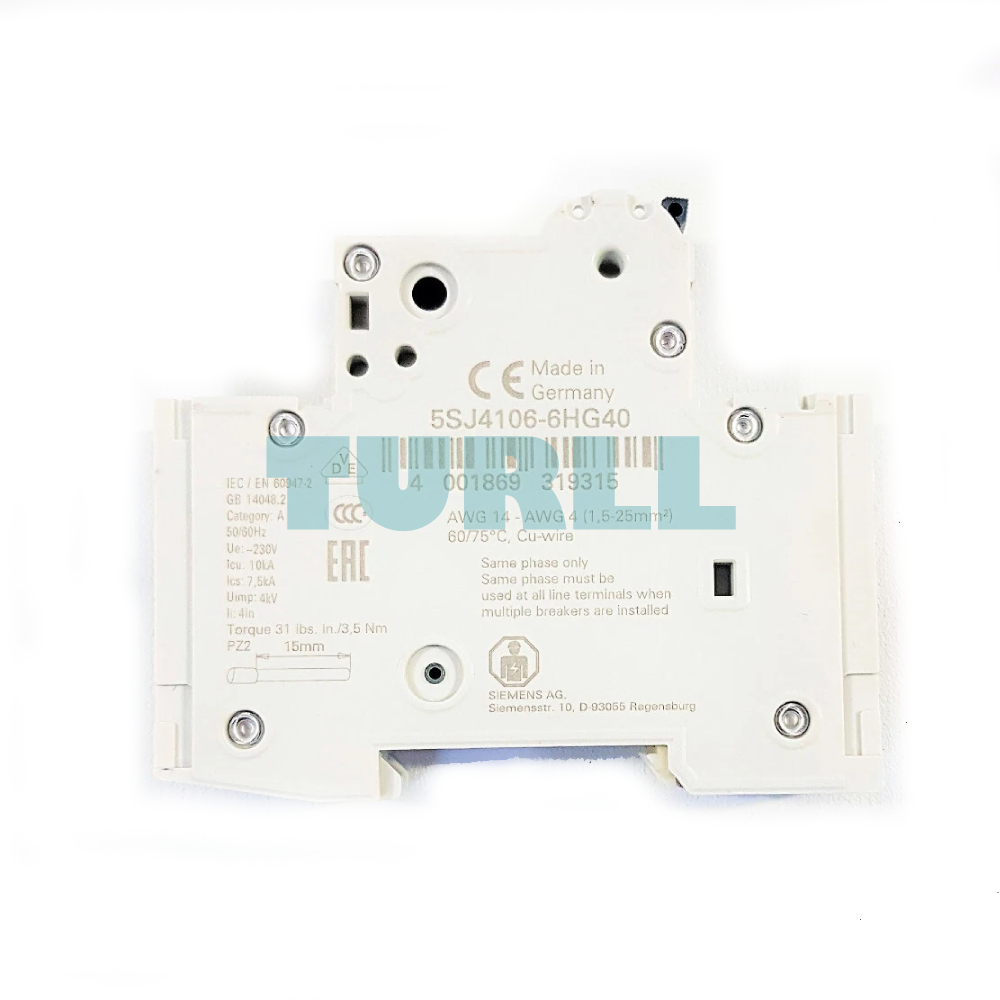

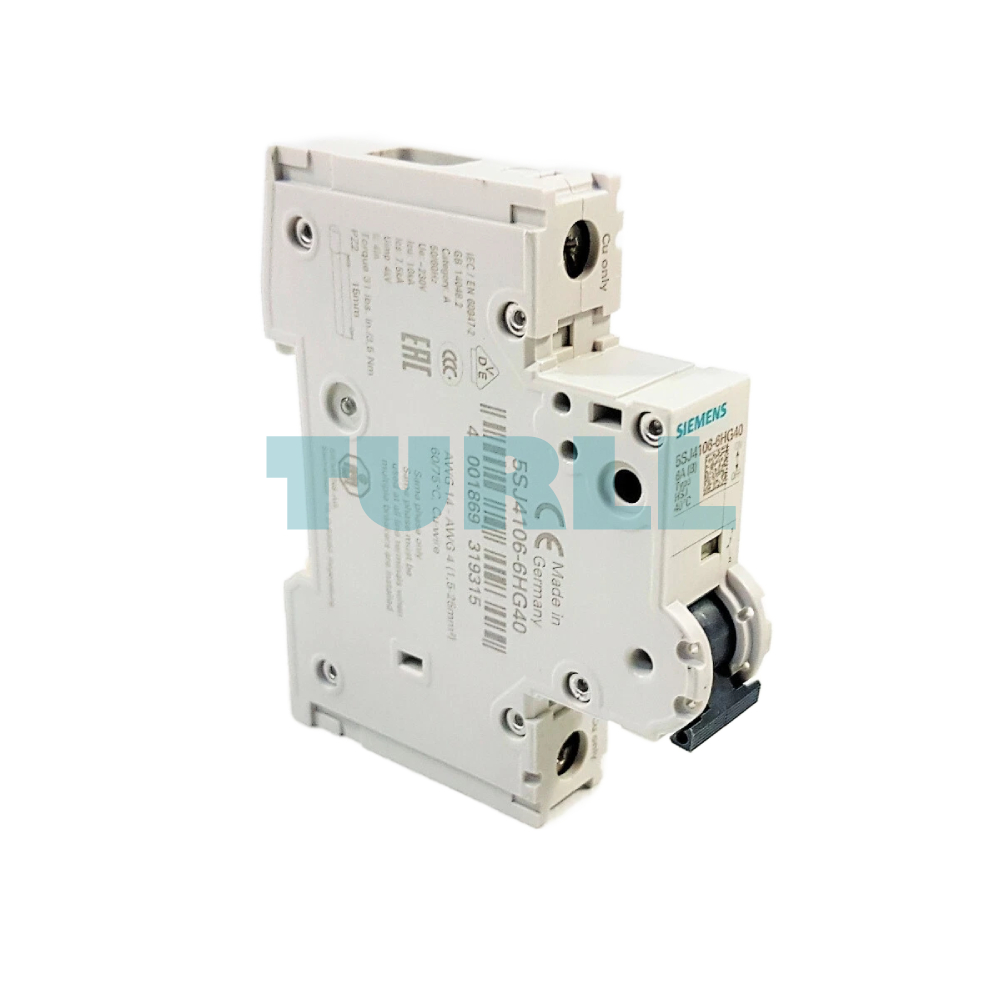

Siemens 5SJ4106-6HG40 Miniature Circuit Breaker 1-Pole, 6A, Type B, 240V Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Save 2% on merchandise with bank transfer
Request price & availabilityReview shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 5SJ4106-6HG40 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 1 |
| tripping characteristic class | B |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | - |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 120 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | - |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3 W |
| operational current | - |
| ● at 30 °C / rated value | 6 A |
| ● at 40 °C / rated value | 6 A |
| ● at 45 °C / rated value | 5.8 A |
| ● at 50 °C / rated value | 5.7 A |
| ● at 55 °C / rated value | 5.6 A |
| ● at 60 °C / rated value | 5.4 A |
| ● at AC / rated value | 6 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 240/120 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | - |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | - |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 14 kA |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |

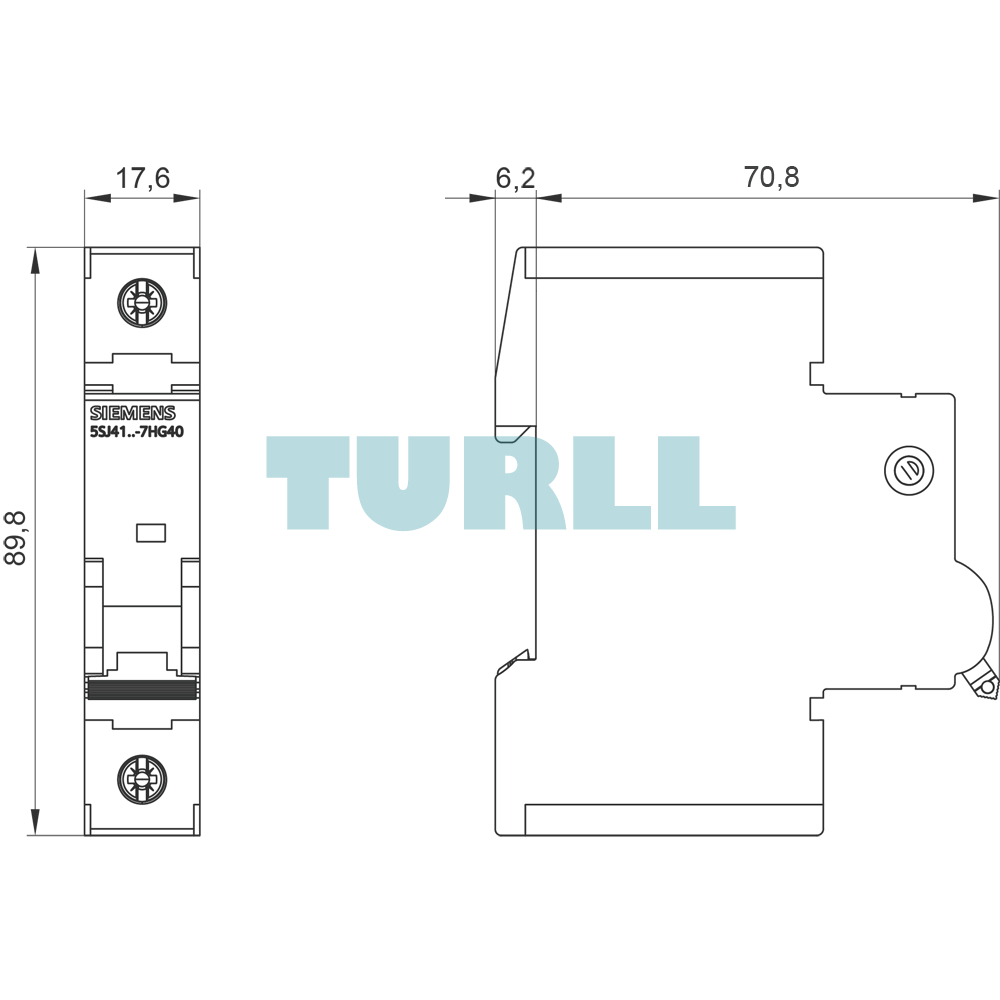

| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | - |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Test Certificates | other |
| Special Test Certificate | Miscellaneous |
| Net weight | 0.162 kg |
| Package dimensions (L × W × H) | 21.00 × 93.00 × 83.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 5SJ4 series is engineered specifically for the North American market, meeting the rigorous UL 489 standards for branch circuit protection. The 5SJ4106-6HG40 model provides reliable overcurrent and short-circuit protection in a compact 70mm mounting depth. Its “equal polarity” design allows it to be used in both AC and DC applications where applicable, ensuring versatility across various industrial and commercial control panels.
Key Benefit
-
Certified Safety: Fully compliant with UL 489 and CSA C22.2 No. 5-02 for global export equipment.
-
Space-Efficient: A standard 70mm depth allows for seamless integration into compact distribution boards.
-
Enhanced Protection: The Type B tripping characteristic is perfect for protecting sensitive electronics and standard circuits with low inrush currents.
-
Ease of Installation: Features visible indicator windows and secure terminal connections for reduced maintenance time.
Function
The Siemens 5SJ4106-6HG40 Miniature Circuit Breaker is designed to interrupt electrical currents in the event of an overload or short circuit, helping to prevent damage to connected electrical equipment. With a 6A current rating and a 240V voltage, this circuit breaker provides peace of mind by safeguarding your electrical system from unexpected faults.
Specification
-
Product Number: 5SJ4106-6HG40
-
Voltage Rating: 240V
-
Current Rating: 6A
-
Breaking Capacity: 14kA
-
Pole Configuration: 1-pole
-
Characteristic Curve: B
-
Width: 70mm
-
Compliance: UL 489
-
Polarity: Equal
-
Application: Residential, Commercial, Industrial
-
Certifications: UL Listed, CE Marked
Application
-
Industrial Control Panels
-
Heating, Ventilation, and Air Conditioning (HVAC) systems
-
Lighting circuits
-
PLC I/O point protection
-
General branch circuit protection
