Siemens 5SJ4204-7HG42 Circuit Breaker 10kA, 2-Pole, C Curve, 4A, UL 489 Rated Original Brand New

Model / SKU5SJ4204-7HG42

High-performance 2-pole miniature circuit breaker designed for branch circuit protection. Rated at 4A with a C-trip characteristic, it meets stringent UL 489 standards for 480Y/277V applications.

Original price was: $308.42.Current price is: $151.61.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SJ4204-7HG42 Circuit Breaker is a high-performance miniature circuit breaker designed to provide reliable protection for electrical systems operating at 480Y/277V. Built according to UL 489 standards, this 2-pole, C-curve, 4 amp circuit breaker ensures safe and efficient protection against overloads and short circuits in commercial and industrial applications.

Engineered with Siemens’ trusted quality, this breaker offers long-term durability, high interrupting capacity, and dependable operation in demanding environments.

Benefit

  • High Safety Standards – Certified according to UL 489, ensuring compliance with strict electrical safety regulations

  • Reliable Circuit Protection – 10kA breaking capacity for effective short-circuit interruption

  • Durable & Long-Lasting – Siemens-engineered construction for extended service life

  • Industrial & Commercial Ready – Ideal for distribution panels and control systems

  • Efficient Power Management – C-curve tripping characteristic for moderate inrush currents

Function

  • Protects electrical circuits from overloads and short circuits

  • Ensures stable operation in 480Y/277V electrical systems

  • Automatically disconnects faulty circuits to prevent equipment damage

  • Supports safe and compliant electrical installations

Technical Specification

  • Brand: Siemens

  • Product Number: 5SJ4204-7HG42

  • Type: Circuit Breaker

  • Poles: 2-Pole

  • Current Rating: 4 A

  • Tripping Characteristic: C Curve

  • Breaking Capacity: 10 kA

  • Voltage Rating: 480Y/277V

  • Standard: UL 489

Visit 5SJ4204-7HG42 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SJ4204-7HG42
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breakers
design of the productMiniature circuit-breaker 5SJ4
number of poles2
tripping characteristic classC
mechanical service life (switching cycles) / typical10 000
installation environment regarding EMCSuitable for environment B (immunity to interference not applicable)
reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750F
overvoltage category3
degree of pollution3
type of voltage / of the operating voltageAC/DC
insulation voltage (Ui) / at AC / rated value440 V
supply voltage / at AC / rated value400 V
operating voltage-
● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum277 V
● at DC / rated value / maximum60 V
● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum60 V
● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum125 V
protection class IPIP20, with connected conductors, IP 40 in the handle range
switching capacity current-
● acc. to EN 60898 / rated value10 kA
● acc. to IEC 60947-2 / rated value15 kA
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.8 W
operational current-
● at 30 °C / rated value4 A
● at 40 °C / rated value4 A
● at 45 °C / rated value3.9 A
● at 50 °C / rated value3.8 A
● at 55 °C / rated value3.7 A
● at 60 °C / rated value3.6 A
● at AC / rated value4 A
type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02480/277
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● tunnel terminals topNo
● tunnel terminals bottomNo
● combined terminal topYes
● combined terminal bottomYes
product feature-
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
product function / noteTerminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in
breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.23510 kA
connectable conductor cross-section / finely stranded / with core end processing-
tightening torque / with screw-type terminals / maximum3.5 N·m
position / of power supply cordAny
installation depth70 mm
number of modular width units2
fastening methodon standard mounting rail
mounting positionany
vibration resistance50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Miscellaneous-
Weight0.337 kg

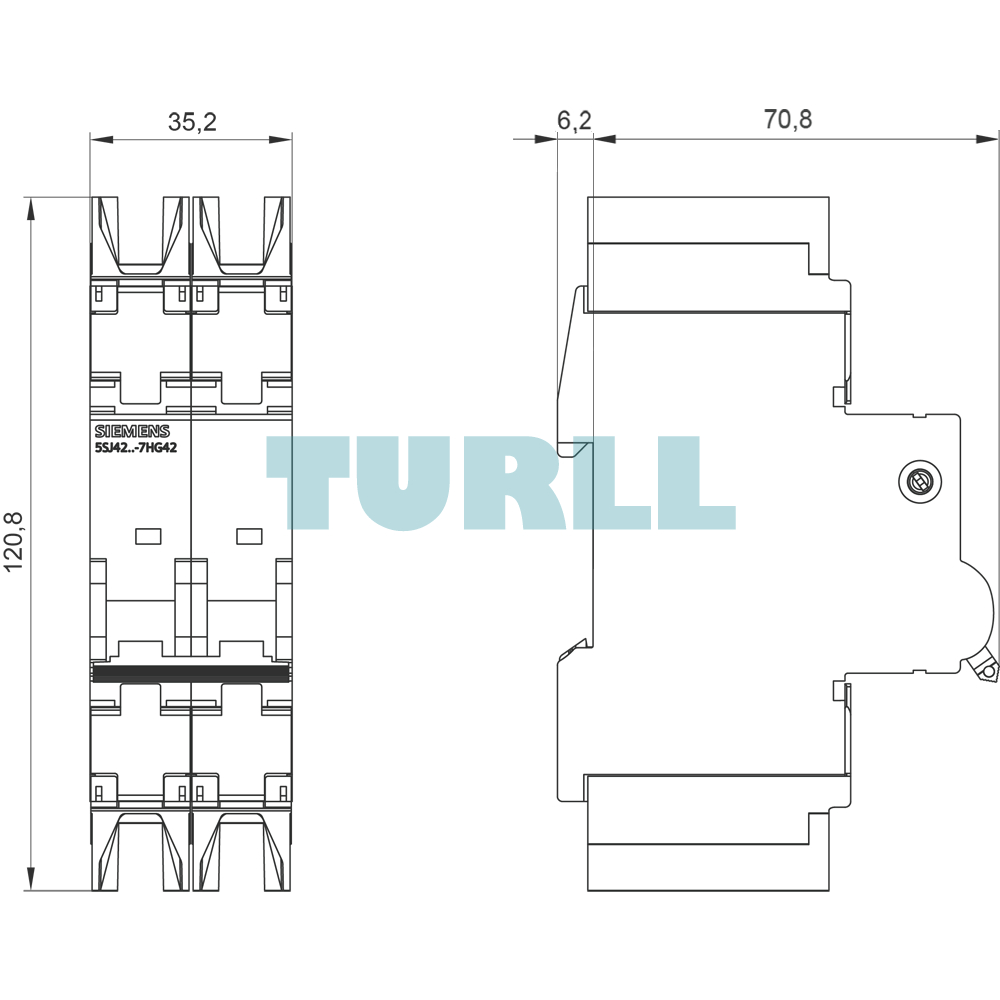

Dimensions40.00 × 125.00 × 84.00 mm
