Siemens 5SJ4206-7HG41 Miniature Circuit Breaker 240 V, 14kA, 2-Pole, C, 6A, UL 489 Original Brand New
$91.66
High-performance, 2-pole miniature circuit breaker (MCB) rated for 6A and 240V. Engineered according to UL 489 standards, this Type C trip characteristic breaker provides reliable branch circuit protection with a 14kA interrupting capacity and a compact 70mm mounting depth.
Availability: In stock
Overview
The Siemens 5SJ4206-7HG41 Miniature Circuit Breaker is a high-quality, reliable circuit protection solution designed for residential, commercial, and industrial applications. This 2-pole breaker operates at 240V with a 14kA breaking capacity, ensuring robust protection for electrical circuits. With a 6A current rating and a C-curve trip characteristic, it provides accurate, fast tripping under overload conditions, making it ideal for devices and circuits that require medium inrush current protection.
Key Benefit
-
High Break Capacity: 14kA breaking capacity at 240V to protect circuits from short circuits and overloads.
-
Compact Design: Standard 70mm width fits in most panels and reduces the need for space.
-
UL 489 Compliance: Meets international safety standards for reliable circuit protection.
-
Fast and Reliable: C-curve tripping characteristic provides quick disconnection in case of overloads, ensuring sensitive devices are protected.
-
Easy Installation: Designed for seamless installation in standard DIN rail systems.
-
Durable Construction: Built to last with high-quality materials for long-term reliability.
Key Features & Function
-
Voltage Rating: 240 V
-
Current Rating: 6 A
-
Number of Poles: 2-pole
-
Breaking Capacity: 14kA
-
Trip Curve: C (for general applications with moderate inrush current)
-
Width (D): 70 mm
-
Compliance: UL 489 standard, ensuring high reliability and safety.
-
Durability: Designed to withstand heavy-duty use in demanding environments.
Visit 5SJ4206-7HG41 for more detail info
For more our products visit turll
Download
| Weight | 0.330 kg |
|---|---|

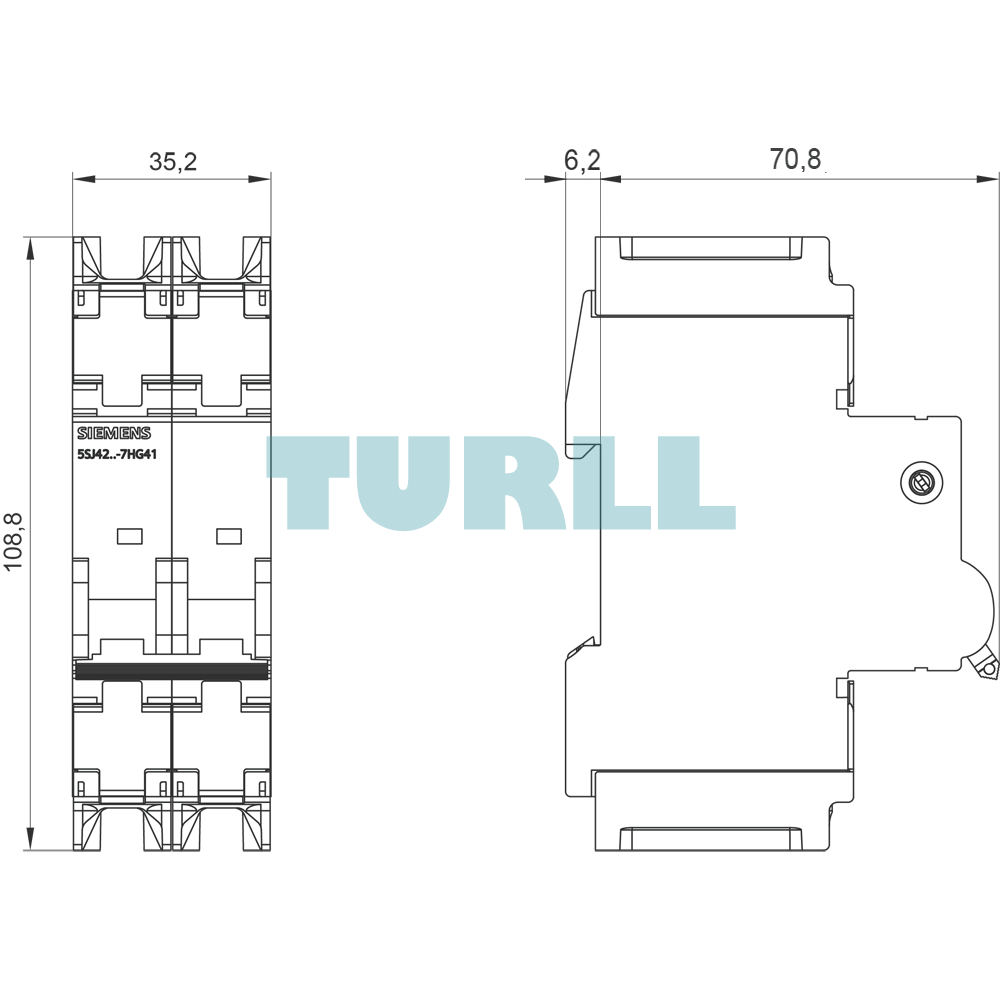

| Dimensions | 40.00 × 114.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 2 |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC/DC |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | – |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 240 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| ● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 125 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.7 W |
| operational current | – |
| ● at 30 °C / rated value | 6 A |
| ● at 40 °C / rated value | 6 A |
| ● at 45 °C / rated value | 5.8 A |
| ● at 50 °C / rated value | 5.7 A |
| ● at 55 °C / rated value | 5.6 A |
| ● at 60 °C / rated value | 5.4 A |
| ● at AC / rated value | 6 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 240 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |

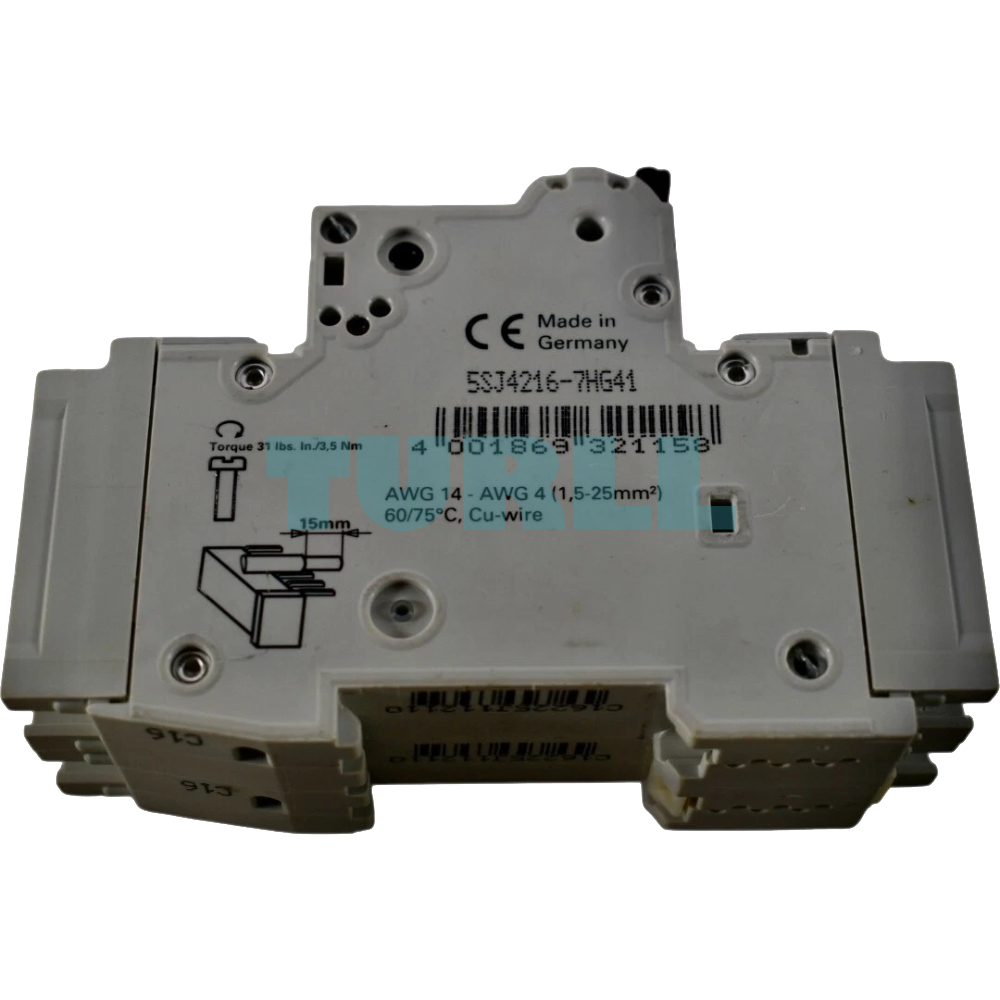

| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 14 kA |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Test Certificates | other |
| Special Test Certificate | Miscellaneous |
