Siemens 5ST3010 Auxiliary Switch, 1 NO + 1 NC for Miniature Circuit Breakers Original Brand New
$9.24
High-quality Siemens 5ST3010 auxiliary switch, featuring 1 NO + 1 NC contacts, compatible with miniature circuit breakers 5SL, 5SY, 5SP, incorporated switch 5TL1, RCBO 5SU1 (excluding 5SU1…FP/FR), and RCCB 5SV (requires handle coupler 5ST3805-1). Reliable, durable, and easy to install.
Availability: In stock
Overview
The Siemens 5ST3010 Auxiliary Switch is a crucial accessory designed to integrate seamlessly with a wide range of Siemens SENTRON protection devices. This compact, high-performance switch provides vital remote status indication for your miniature circuit breakers (MCBs), residual current operated circuit breakers (RCBOs), and residual current circuit breakers (RCCBs). Featuring a 1 NO (Normally Open) and 1 NC (Normally Closed) contact configuration, the 5ST3010 allows electrical control systems, PLCs, or remote monitoring panels to accurately track the operational status (ON/OFF/Tripped) of the primary protective device. It is an indispensable component for safety-critical industrial, commercial, and residential automation systems.
Benefit
-
Provides reliable auxiliary signaling for electrical systems
-
Enhances the functionality of compatible circuit breakers and RCBOs
-
Compact design ensures easy installation without additional modifications
-
Durable construction for long-term performance in industrial and commercial settings
-
Helps maintain safety and monitoring standards in electrical networks
Functions & Features
The 5ST3010 Auxiliary Switch operates mechanically, mirroring the exact position and switching status of the attached primary device (MCB, RCBO, or RCCB).
-

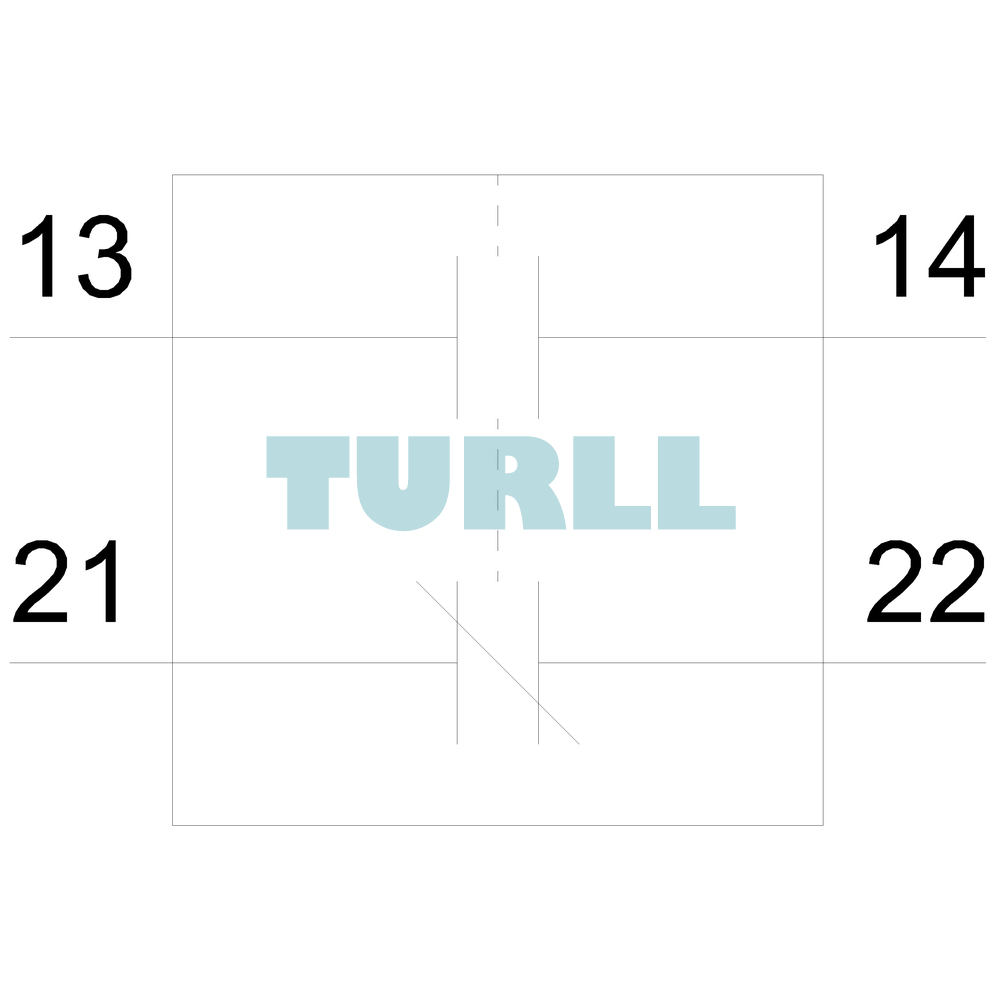

Contact Configuration: 1 NO + 1 NC (One Normally Open, One Normally Closed)
-
Application: Status signaling for:
-
Miniature Circuit Breakers (MCBs): 5SL, 5SY, 5SP
-
Incorporated Switch: 5TL1
-
RCBOs: 5SU1 (Excluding 5SU1…FP/FR models)
-
RCCBs: 5SV
-
-
Note on 5SU1/5SV Integration: A separate Handle Coupler (Siemens 5ST3805-1) is required to correctly mount and couple the 5ST3010 switch to the 5SU1 RCBO and 5SV RCCB devices.
Visit 5ST3010 for more detail info
For more our products visit turll
Download
| Weight | 0.057 kg |
|---|---|

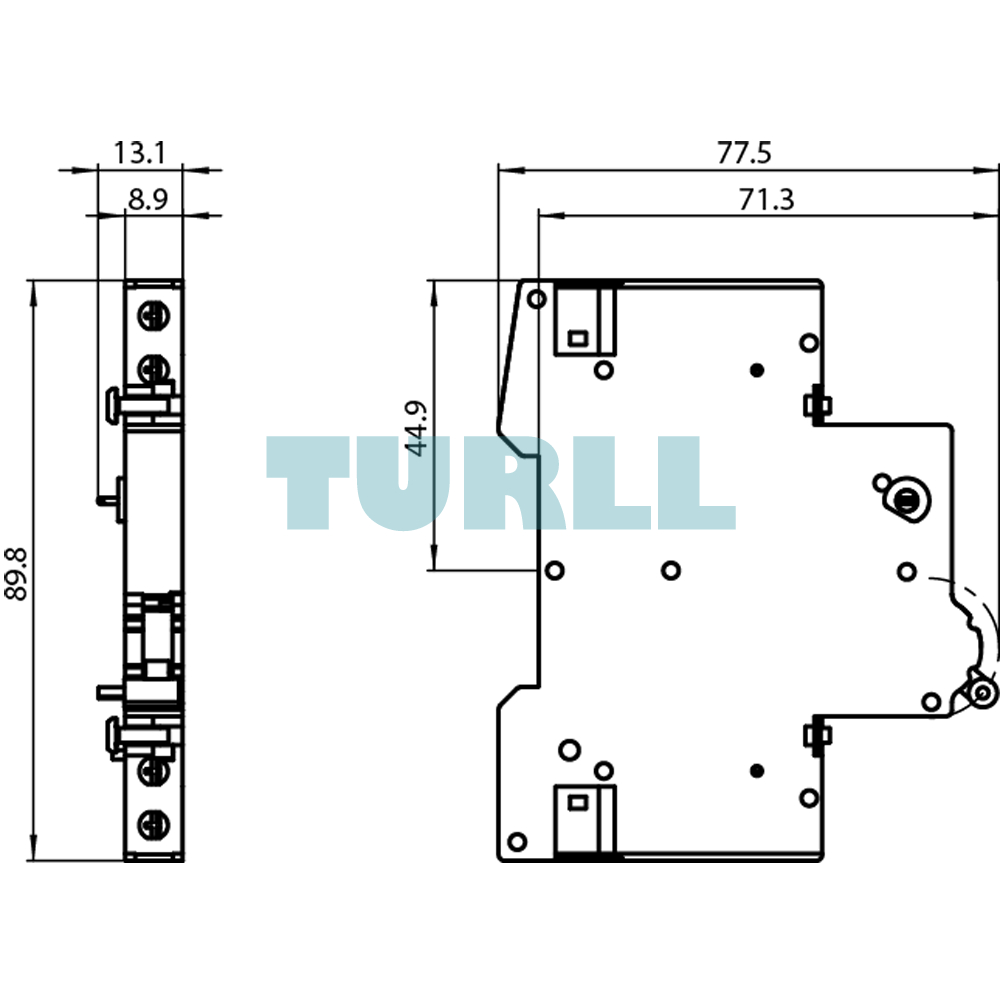

| Dimensions | 82.00 × 92.00 × 18.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Auxiliary current switch |
| design of the product | Mountable |
| electrical endurance (switching cycles) / typical | 10 000 |
| insulation voltage / rated value | 440 V |
| surge voltage resistance / rated value | 4 kV |
| operating frequency | 50/60 Hz |
| protection class IP | IP20 |
| product component | – |
| ● auxiliary switch | Yes |
| number of fault signal contacts | 0 |
| number of NC contacts | 1 |
| number of NO contacts | 1 |
| number of CO contacts | 0 |
| product extension | auxiliary switch |
| connectable conductor cross-section | – |
| tightening torque / with screw-type terminals | – |
| type of connectable conductor cross-sections / at AWG cables | 24 … 12 |
| ambient temperature / during operation | – |
| ● minimum | -25 °C |
| ● maximum | 55 °C |
| ambient temperature / during storage | – |
| ● minimum permissible | -40 °C |
| ● maximum permissible | 75 °C |
