High-performance AFDD/MCB combination unit designed for space-sensitive installations. Providing comprehensive protection against overloads, short circuits, and dangerous arc faults, this 1MW (18mm) compact device ensures maximum safety in a minimal footprint.

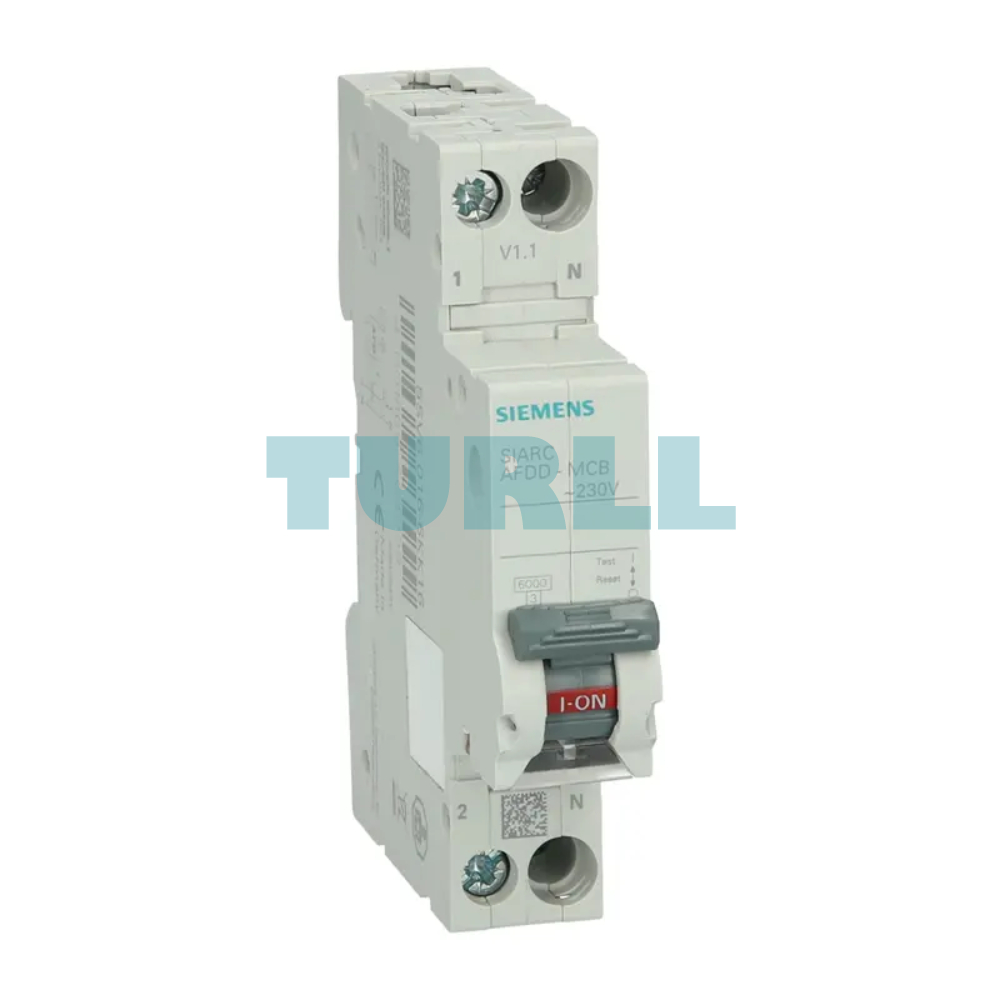

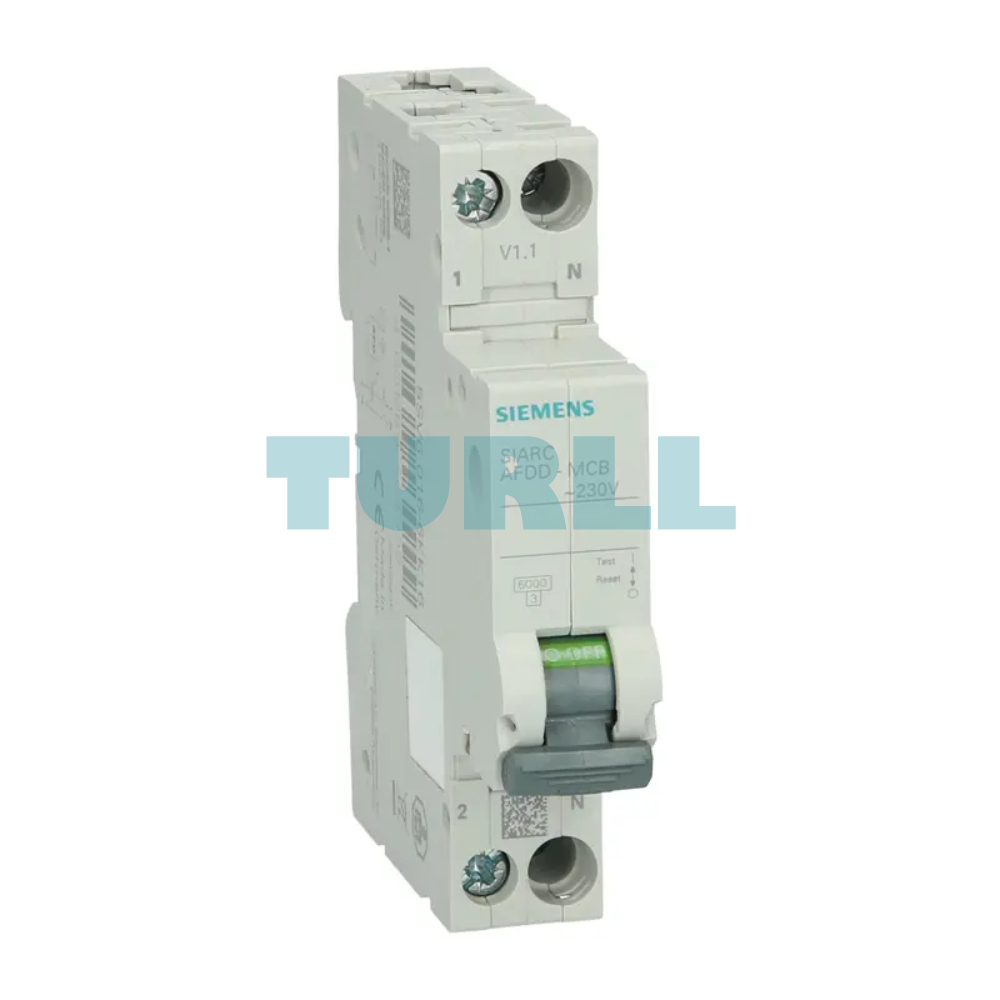

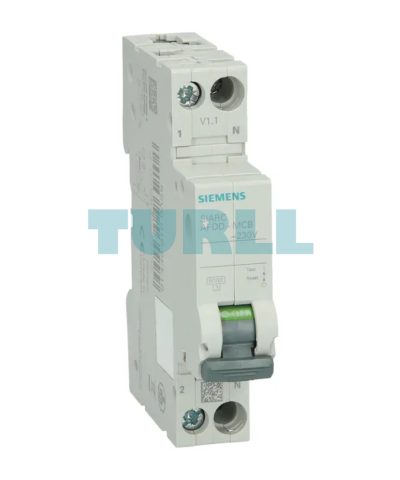

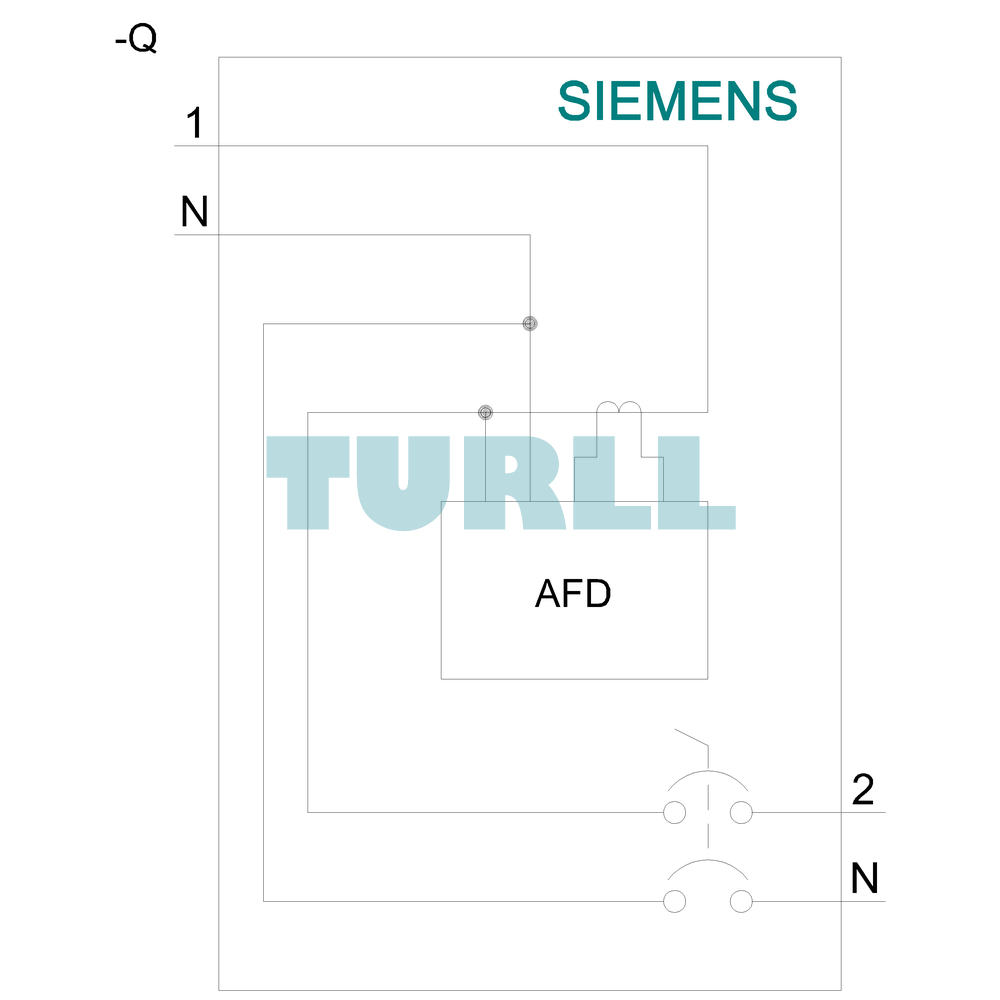

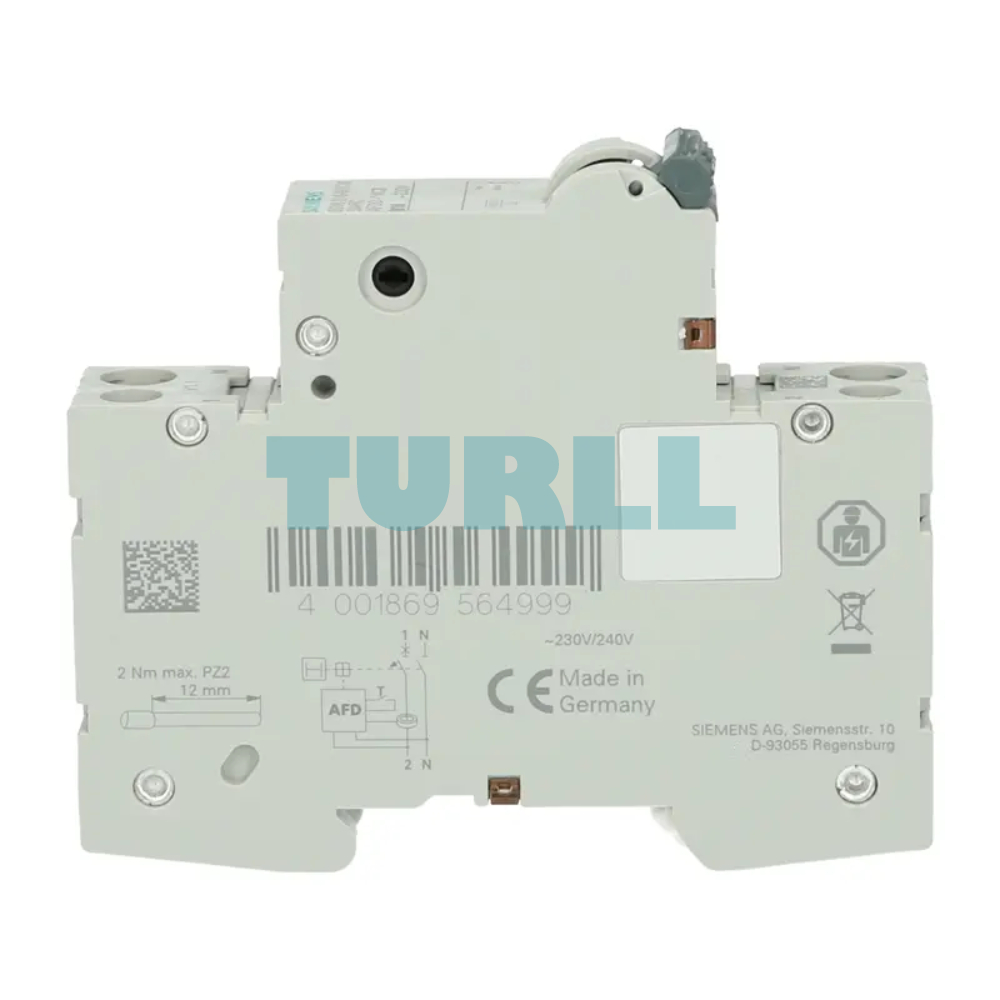

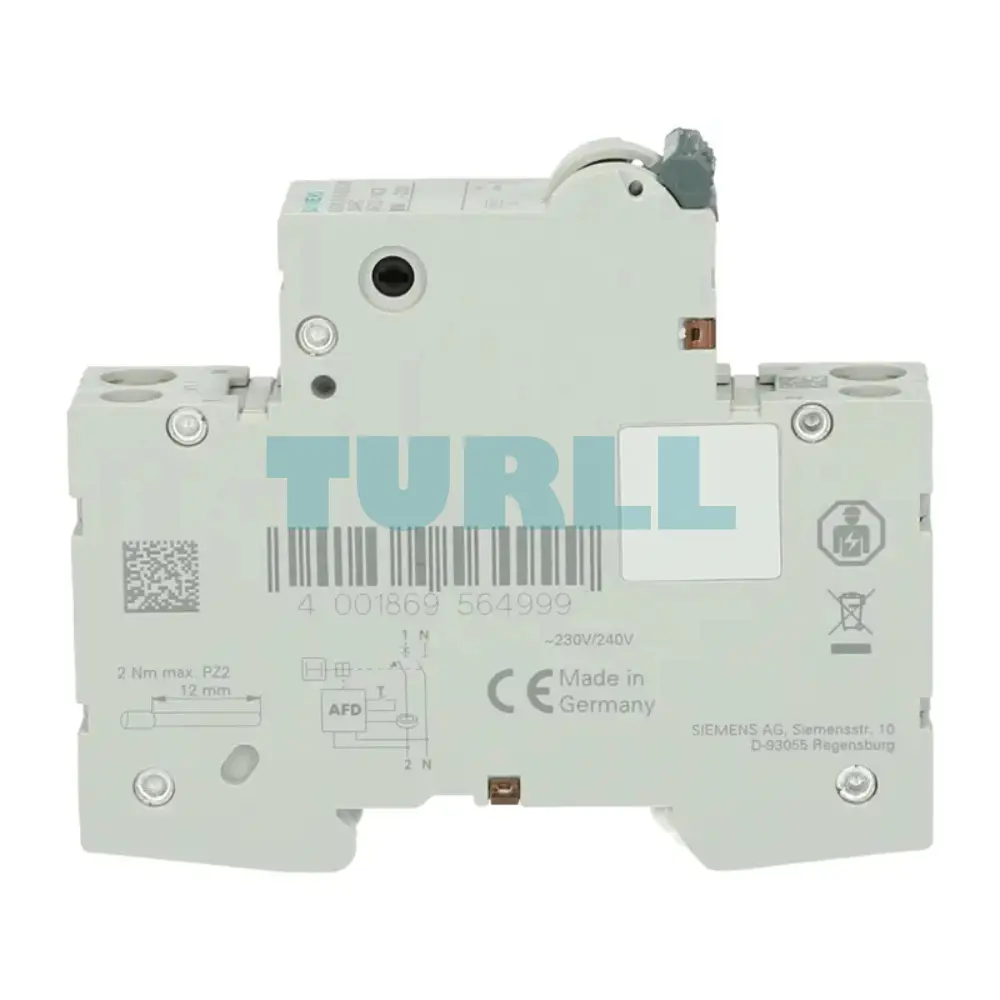

The Siemens 5SV6016-6KK06 AFDD-MCB Combination is an advanced electrical protection device designed to enhance fire and circuit safety in residential and commercial installations. By integrating Arc Fault Detection Device (AFDD) and Miniature Circuit Breaker (MCB) technology into a compact unit, it offers reliable protection against arc faults, overloads, and short circuits.
Operating at 230V with a 6kA breaking capacity, this 1+N, B-curve, 6A device ensures fast and precise disconnection, reducing the risk of electrical fires caused by dangerous arc faults.
Enhanced Fire Protection – Detects and disconnects dangerous arc faults before they cause fires
Reliable Circuit Safety – Protects against overloads and short circuits
Compact Design – Space-saving 1MW form factor for modern distribution boards
Trusted Siemens Quality – Engineered for long-term performance and safety
Easy Integration – Ideal for new installations and system upgrades
Arc fault detection and interruption
Overcurrent and short-circuit protection
Automatic disconnection in fault conditions
Safe and stable electrical distribution
Brand: Siemens
Model: 5SV6016-6KK06
Rated Voltage: 230V
Breaking Capacity: 6kA
Current Rating: 6A
Tripping Curve: B
Poles: 1+N
Form Factor: Compact (1MW)
Device Type: AFDD-MCB Combination
Visit 5SV6016-6KK06 for more detail info
For more our products visit turll
| SKU / Model | 5SV6016-6KK06 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | B |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | - |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | - |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.87 W |
| tripping current | - |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 6 A |
| operational current / at AC / rated value | 6 A |
| product feature | - |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Weight | 0.134 kg |

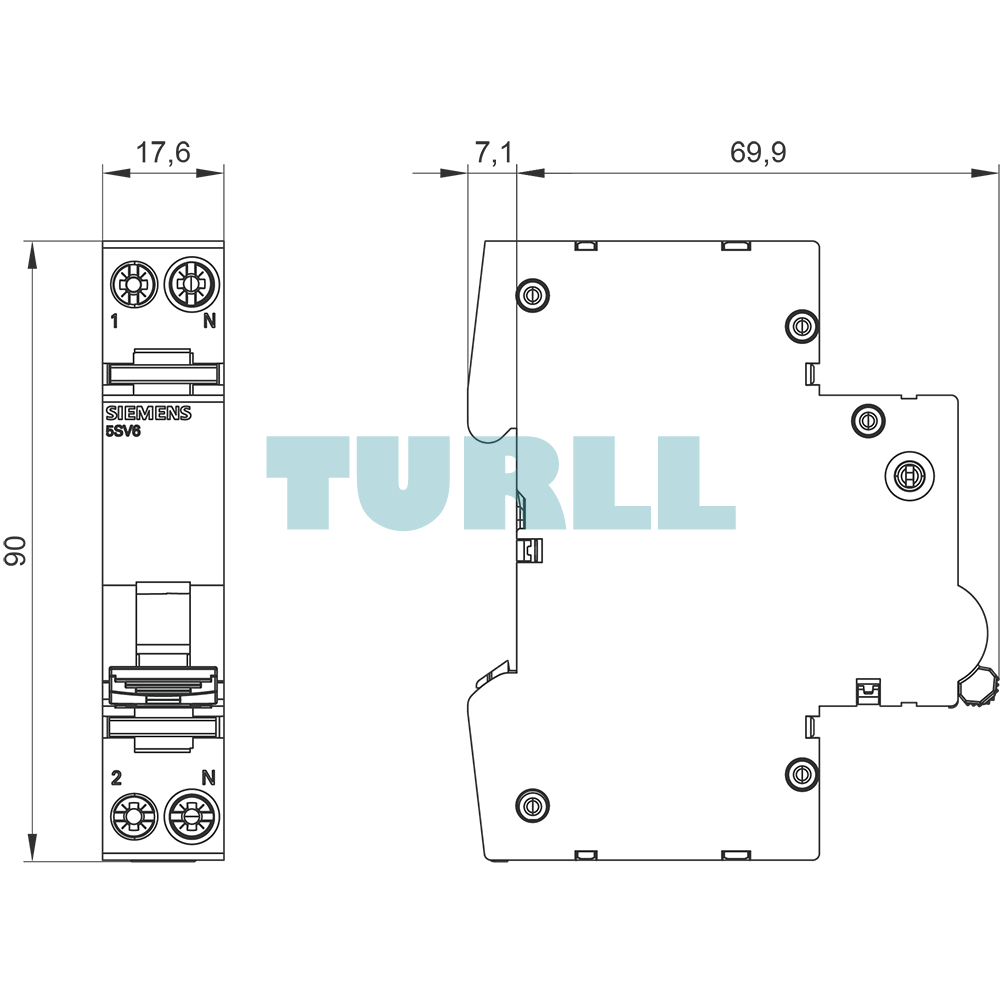

| Dimensions | 80.00 × 100.00 × 44.00 mm |
