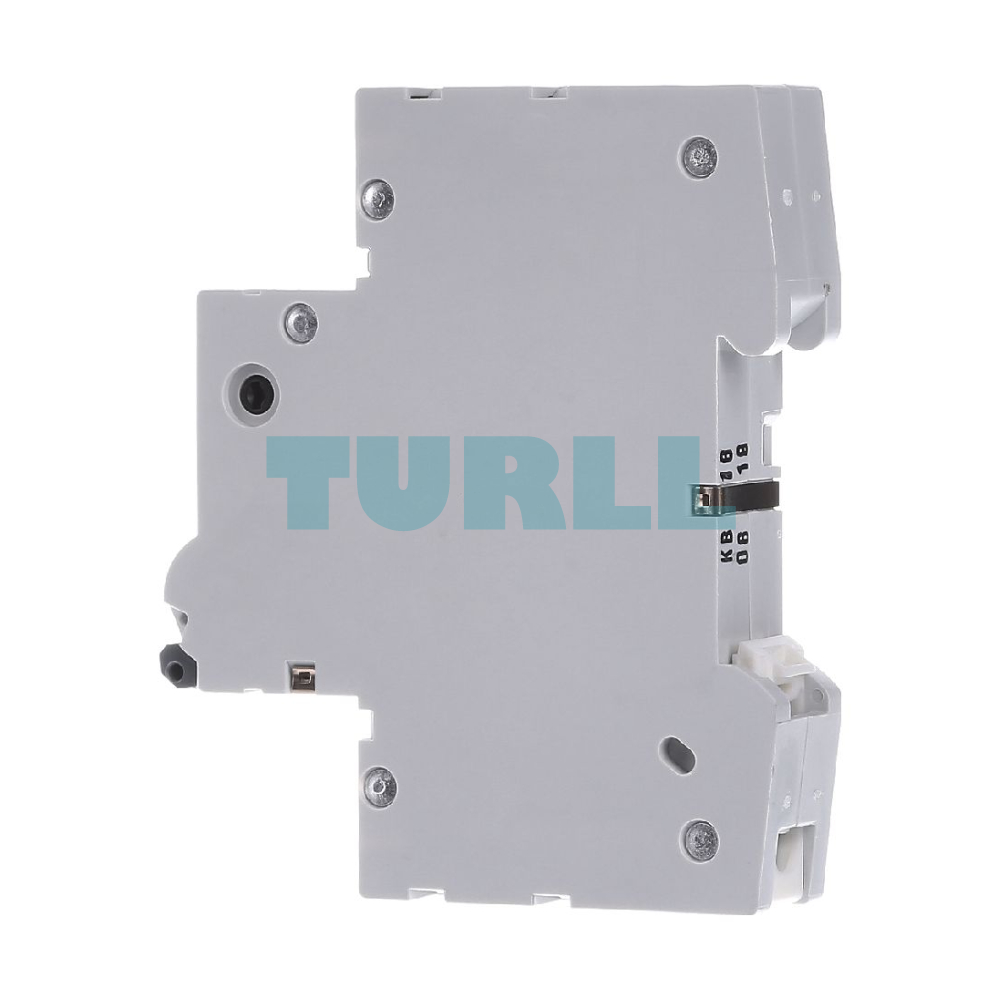

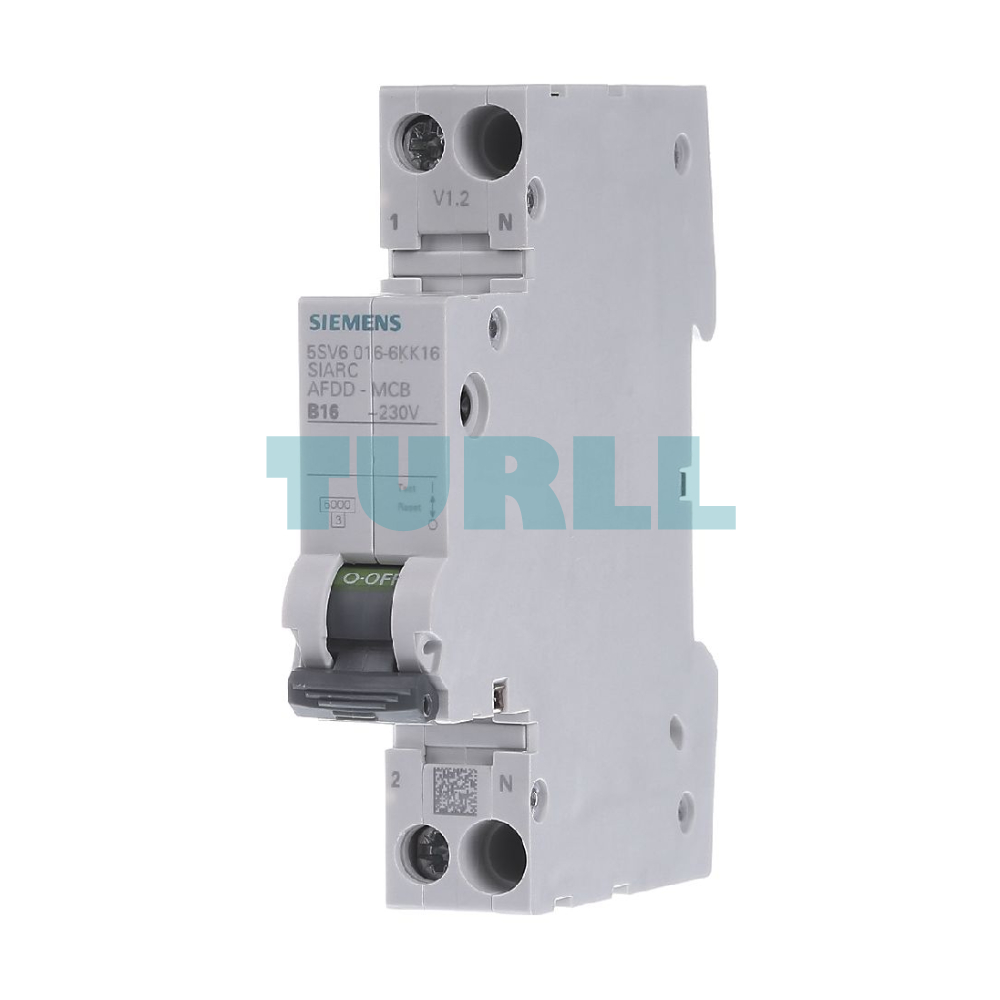

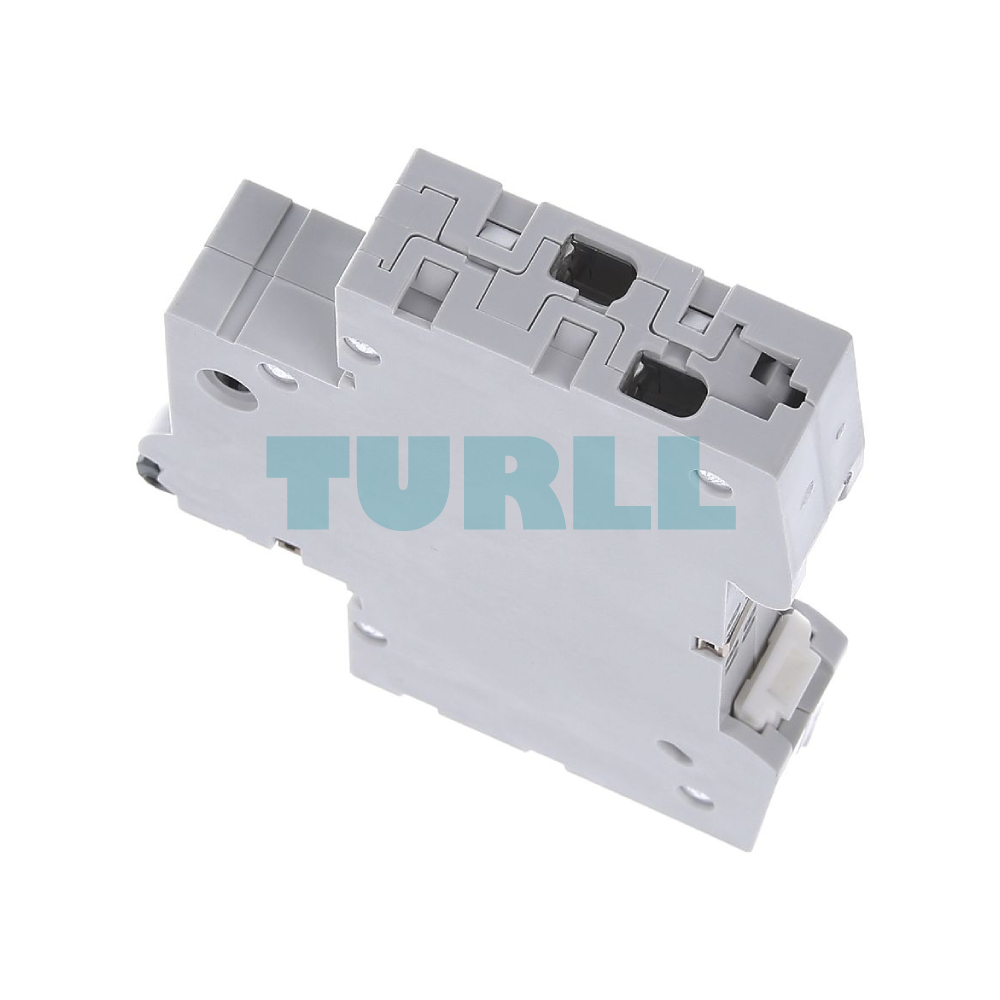

Siemens 5SV6016-6KK16 is a compact, 1-module width (1MW) AFDD-MCB combination. It provides integrated protection against arc faults, short circuits, and overloads in a 16A, B-curve configuration, specifically designed for 230V applications where space in the distribution board is limited.
The Siemens 5SV6016-6KK16 AFDD-MCB Combination is a compact and advanced electrical protection device designed to provide maximum safety in low-voltage electrical installations. This innovative unit combines Arc Fault Detection Device (AFDD) and Miniature Circuit Breaker (MCB) functionality in a single compact module, ensuring reliable protection against arc faults, overloads, and short circuits.
Operating at 230V with a breaking capacity of 6kA, this 1+N, B-curve, 16A device is ideal for residential, commercial, and light industrial applications. Its compact 1MW design allows easy installation while saving valuable space in distribution boards.
Enhanced fire protection through arc fault detection
Combines AFDD and MCB in one compact device
Protects against overloads and short circuits
Space-saving 1MW compact design
High reliability backed by Siemens quality
Ideal for modern electrical safety standards
Detects and interrupts dangerous arc faults
Provides overload protection (MCB functionality)
Provides short-circuit protection
Automatically disconnects faulty circuits
Ensures safe and stable electrical operation
Manufacturer: Siemens
Product Number: 5SV6016-6KK16
Rated Voltage: 230V
Breaking Capacity: 6kA
Current Rating: 16A

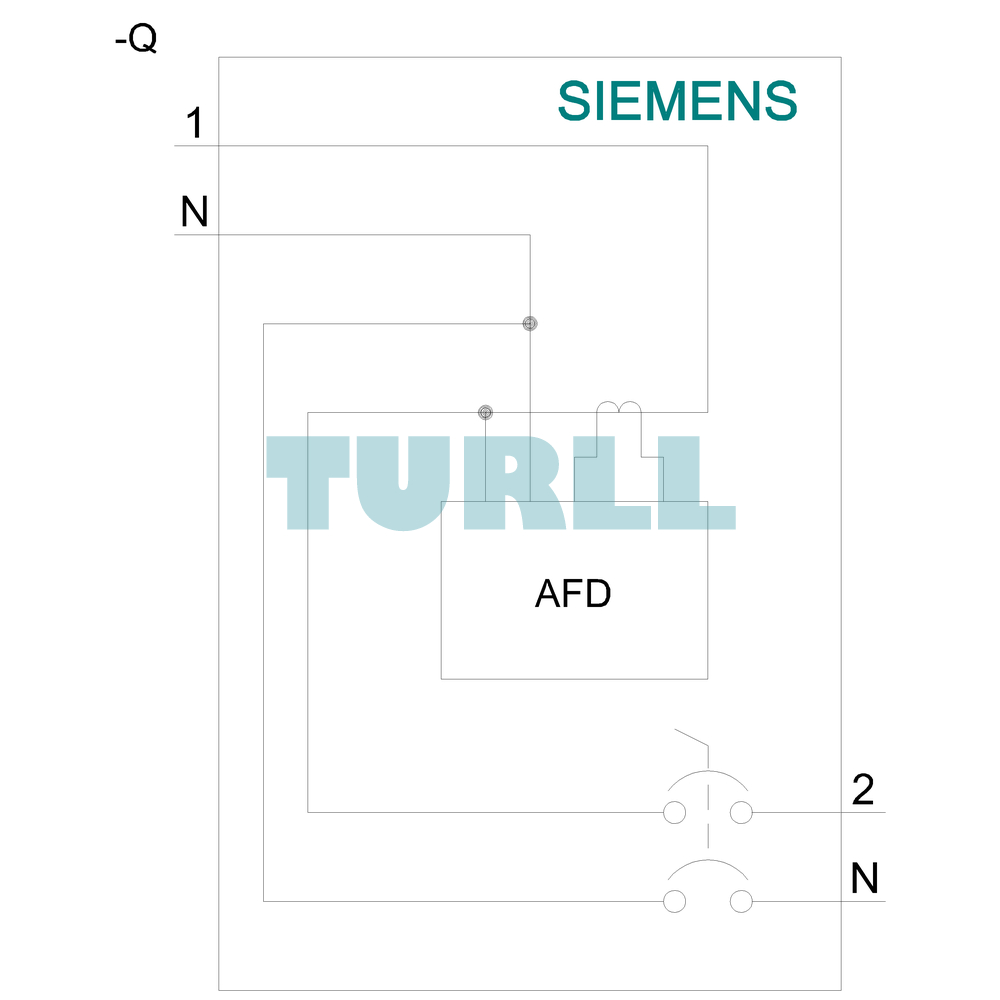

Poles: 1+N
Tripping Curve: B-Curve
Design: Compact (1MW)
Protection Type: AFDD + MCB Combination
Visit 5SV6016-6KK16 for more detail info
For more our products visit turll

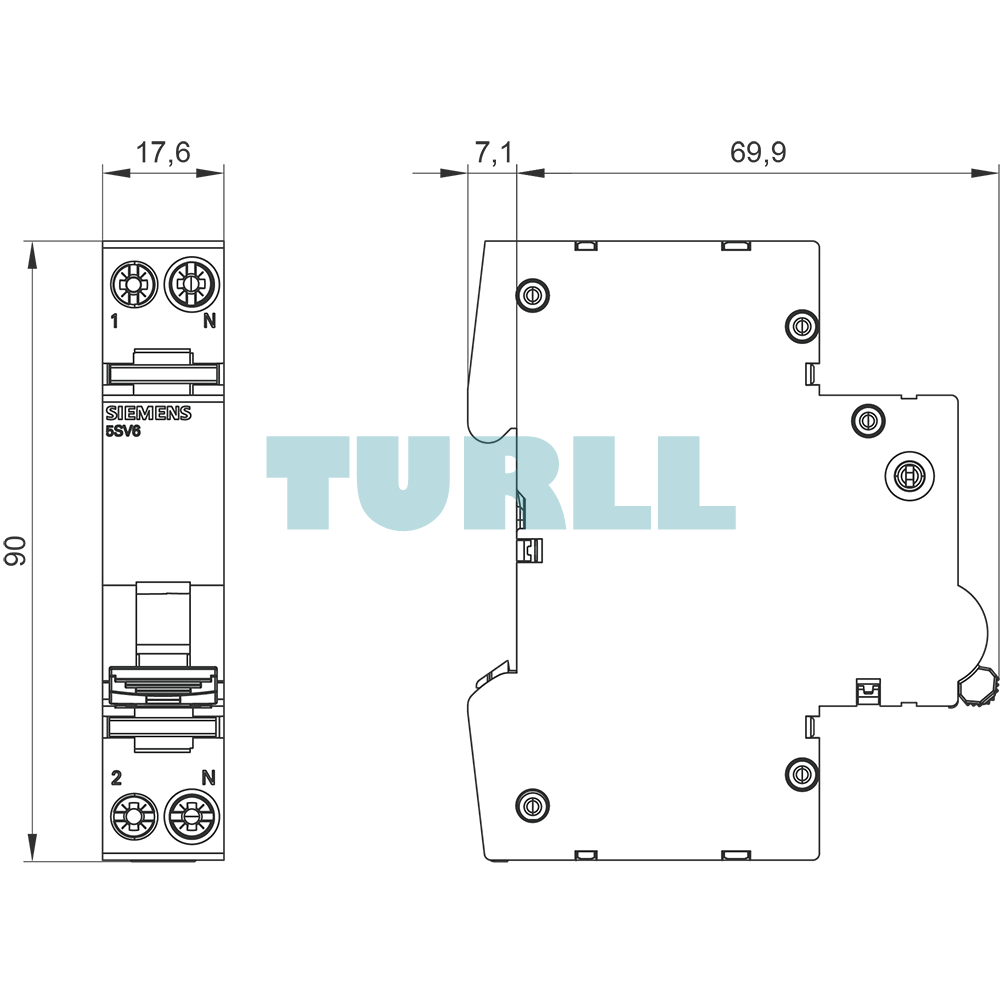

| SKU / Model | 5SV6016-6KK16 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | B |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | - |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | - |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.81 W |
| tripping current | - |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 16 A |
| operational current / at AC / rated value | 16 A |
| product feature | - |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Weight | 0.134 kg |
| Dimensions | 80.00 × 100.00 × 44.00 mm |
