High-performance AFDD-MCB combination from the SENTRON series. Designed for space-saving efficiency, this 1MW compact unit provides simultaneous protection against arc faults, short circuits, and overloads in a single-module width.

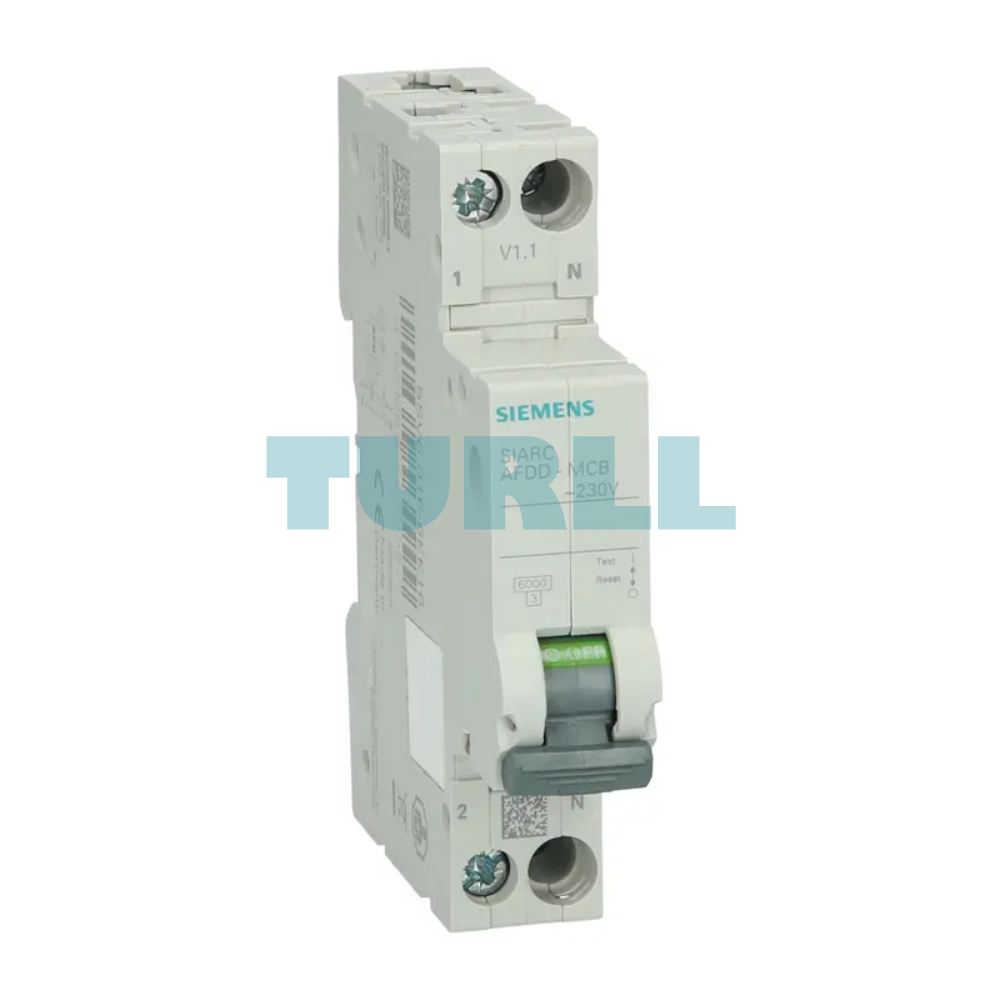

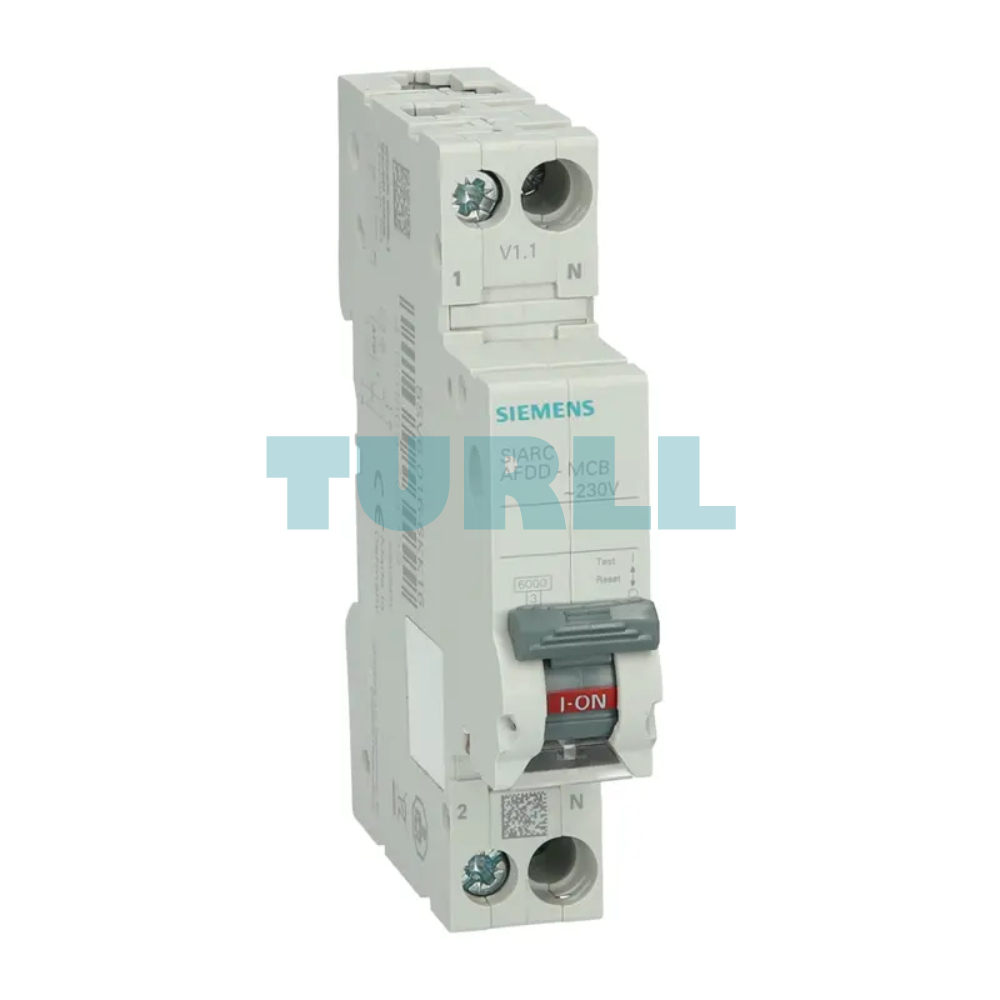

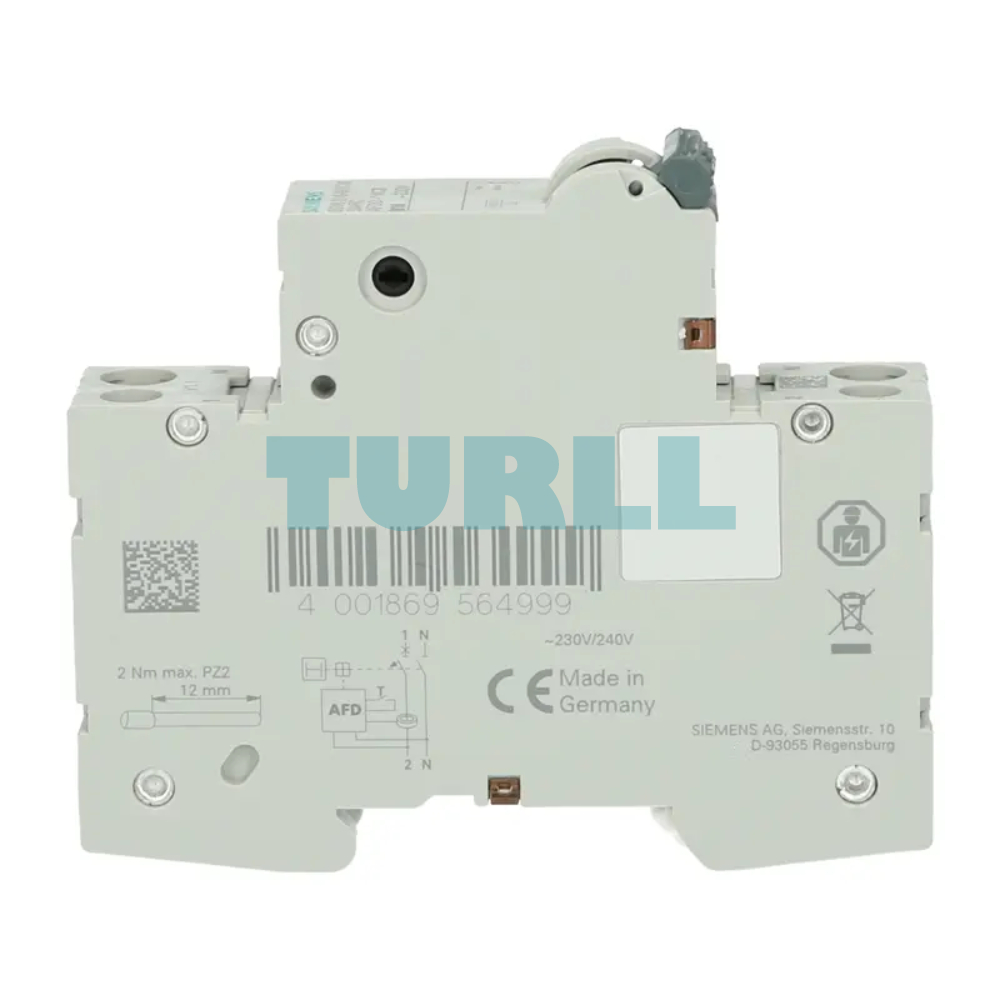

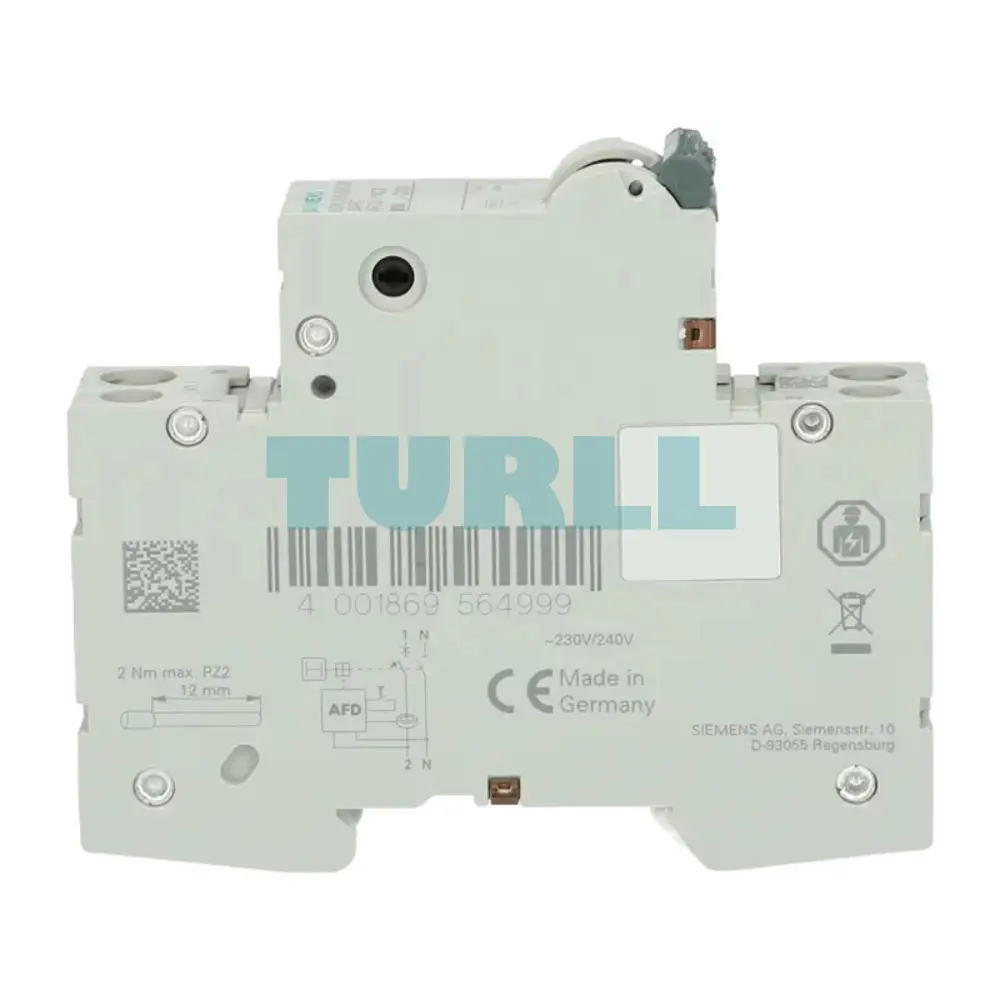

The Siemens 5SV6016-6KK20 is a state-of-the-art AFDD-MCB combination designed for optimal electrical protection in residential and commercial installations. Engineered to provide both Arc Fault Detection (AFDD) and Miniature Circuit Breaker (MCB) functionality in a single compact unit, this device ensures maximum safety and reliability. With a rated current of 20A, 230V operation, and a breaking capacity of 6kA, it is ideal for modern electrical networks demanding high-performance protection.
Space Saving: Only 18mm wide (1MW), allowing you to double the protection without increasing the size of your distribution board.
Superior Fire Prevention: Detects serial and parallel arc faults that standard MCBs or RCCBs cannot identify.
Enhanced Reliability: Part of the Siemens SENTRON portfolio, ensuring long-term durability and international standards compliance.
Easy Installation: Simplified wiring with 1+N pole configuration, saving time for electrical contractors.
Arc Fault Detection: Actively monitors for hazardous electrical arcs to prevent electrical fires.
Short Circuit Protection: Rated for breaking capacities up to 6kA.
Overload Protection: Protects cables and systems from excessive current at a 20A threshold.
Tripping Characteristic B: Optimized for standard residential and light commercial lighting and power circuits.
Product Number: 5SV6016-6KK20
Voltage Rating: 230V
Current Rating: 20A
Breaking Capacity: 6kA
Pole Configuration: 1+N
Tripping Curve: B

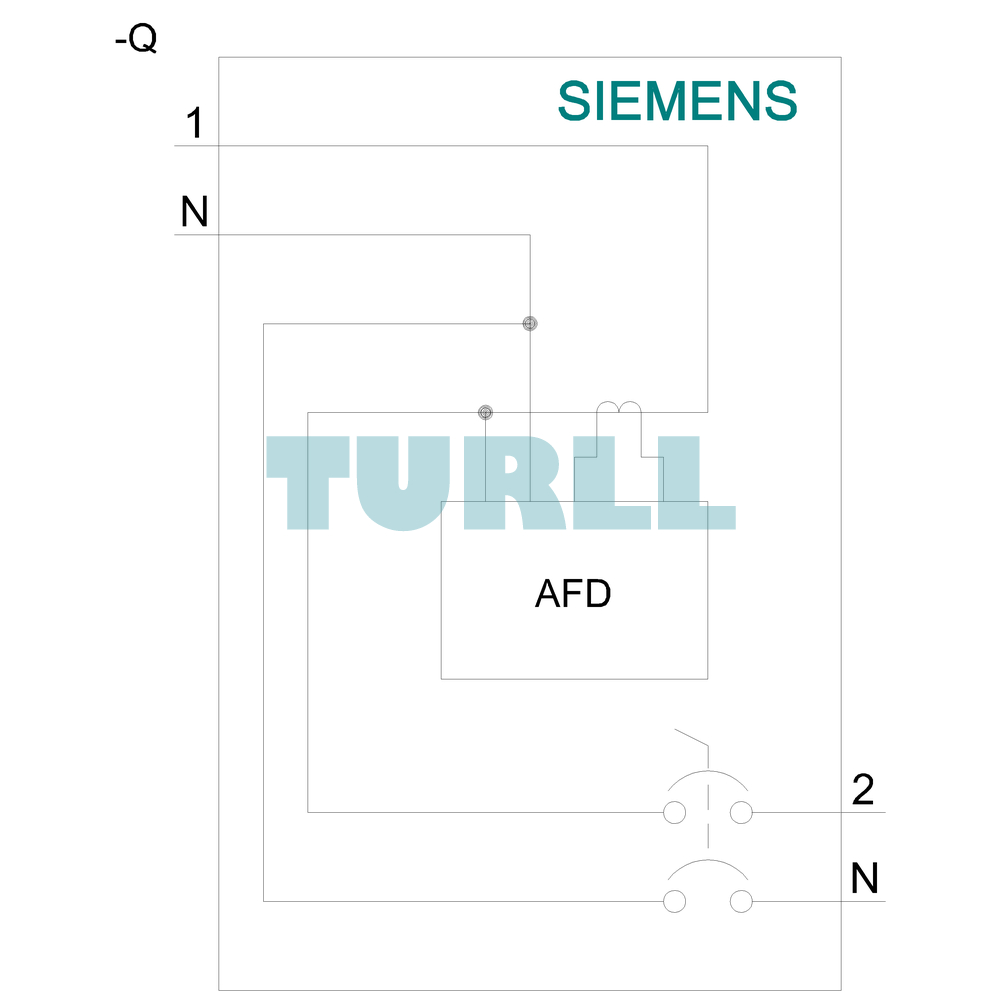

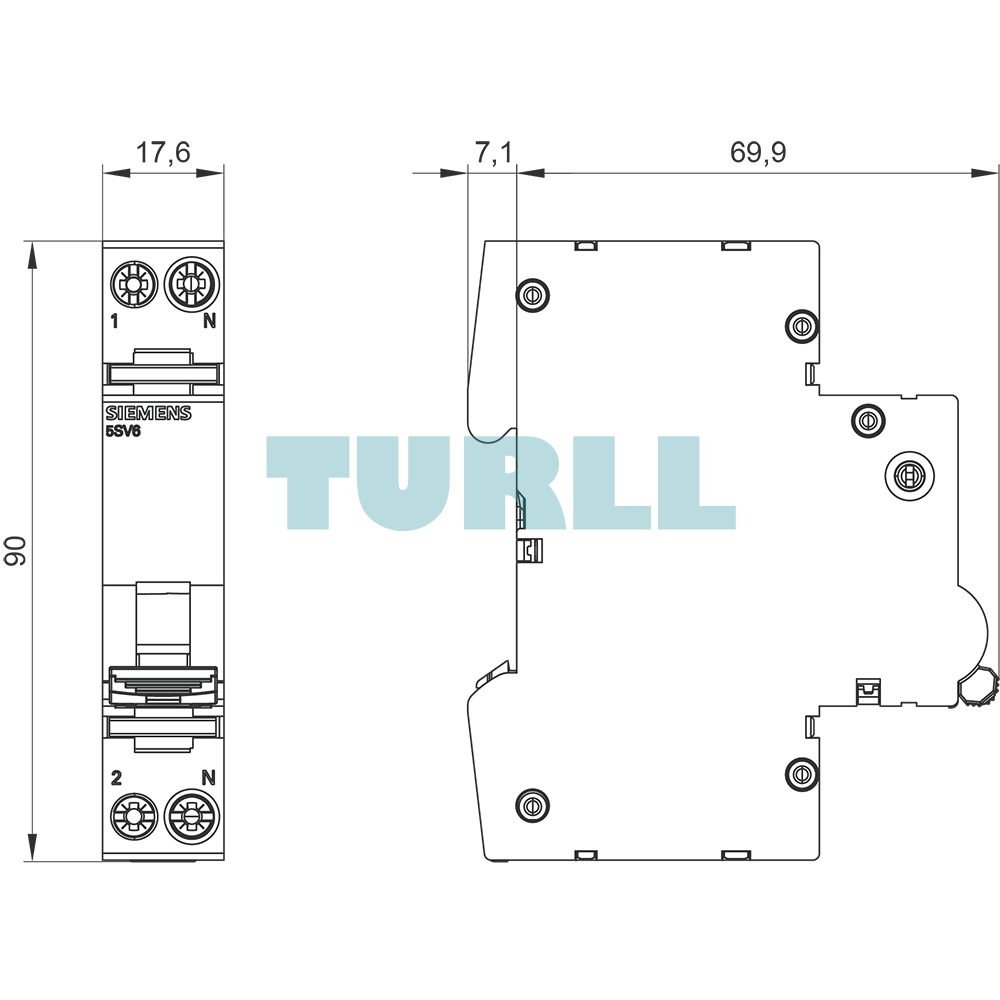

Width: 1MW (18mm)
Visit 5SV6016-6KK20 for more detail info
For more our products visit turll
| SKU / Model | 5SV6016-6KK20 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | B |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | - |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | - |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.65 W |
| tripping current | - |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 20 A |
| operational current / at AC / rated value | 20 A |
| product feature | - |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Weight | 0.137 kg |
| Dimensions | 80.00 × 100.00 × 44.00 mm |
