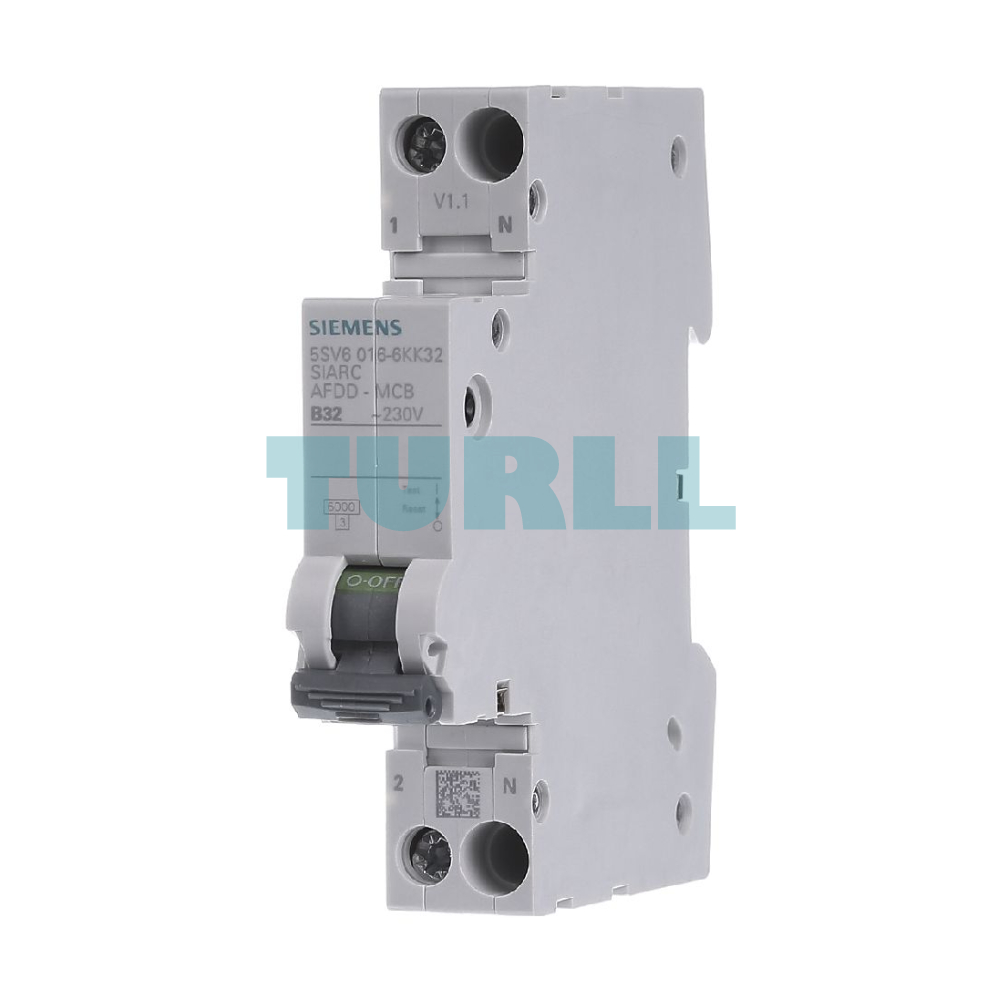

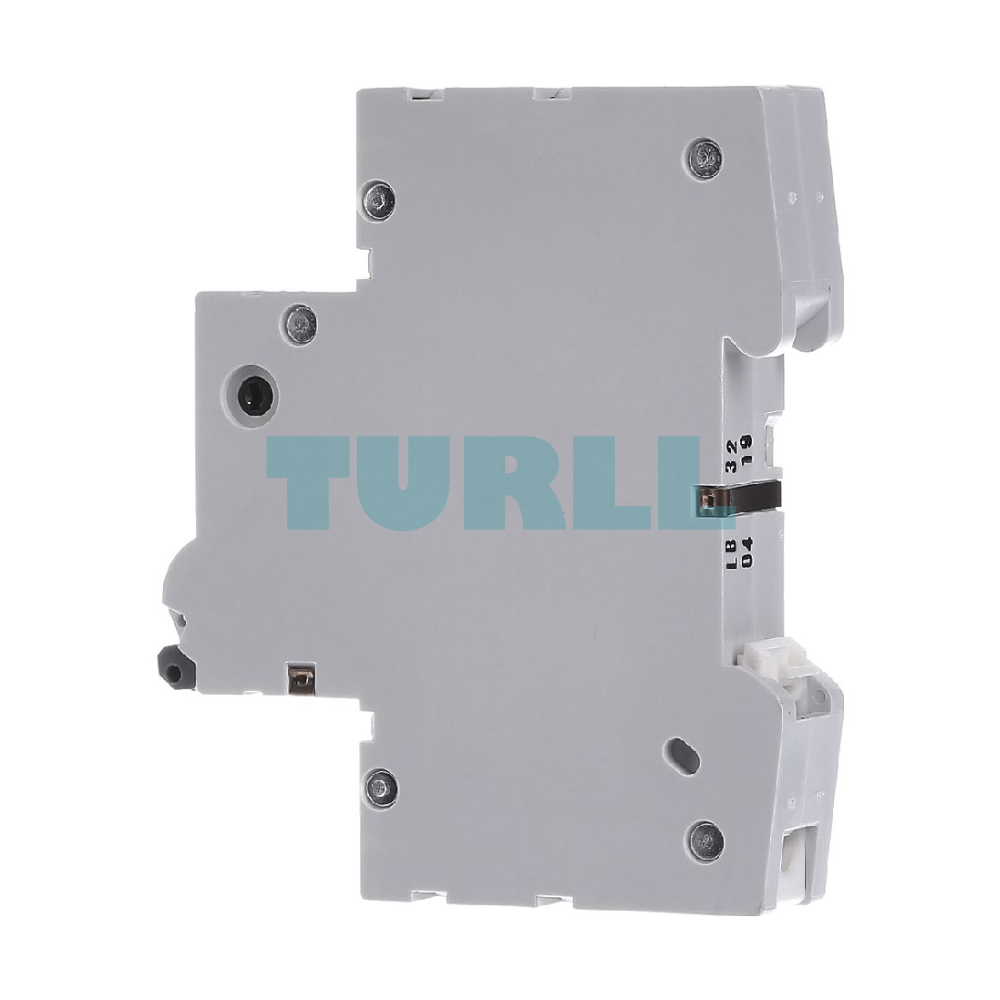

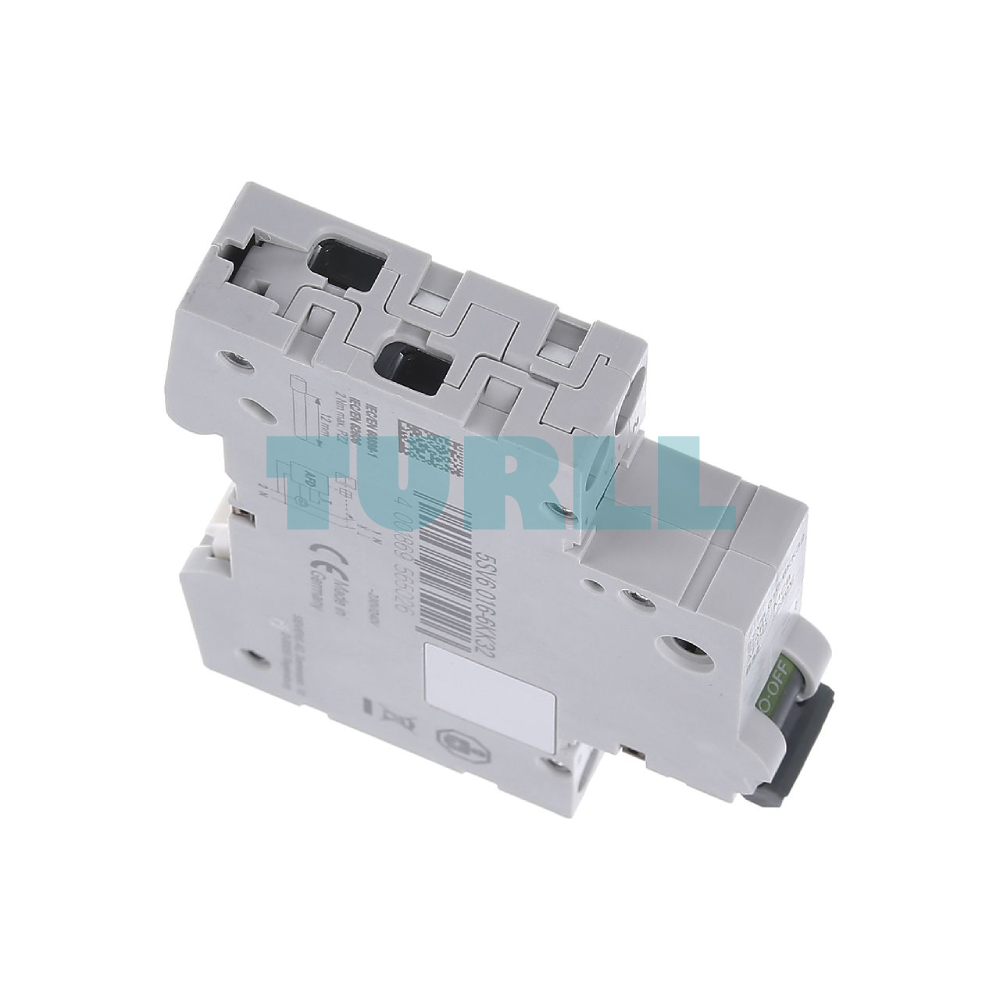

Siemens 5SV6016-6KK32 AFDD-MCB Combination 230V, 6kA, 1+N, B Curve, 32A Compact (1MW) Original Brand New
$129.69
A highly compact, 1-module wide AFDD-MCB combination that provides combined protection against series and parallel arc faults, overload, and short-circuit in one device. Rated for 230V, 32A, and a 6kA breaking capacity, it features a B-Characteristic, making it ideal for residential and smaller commercial installations requiring maximum safety and space efficiency.
Availability: In stock
Overview
The Siemens SENTRON 5SV6016-6KK32 AFDD-MCB Combination represents the latest in electrical safety technology, integrating three crucial protective functions—Arc Fault Detection Device (AFDD), Miniature Circuit Breaker (MCB), and overload protection—into a single, exceptionally compact 1-module (1MW) unit. This innovative design saves valuable space in the consumer unit or distribution board while delivering the highest level of fire protection prescribed by modern wiring regulations (e.g., IEC/EN 60364-4-42). It is specifically designed for 230V installations.
Key Benefit
-
Dual Protection: Combines arc fault detection and overcurrent protection in one device.
-
High Safety Standard: Prevents electrical fires caused by arc faults.
-
Compact Design: Ideal for modern switchboards where space is limited.
-
Reliable Performance: Supports up to 6kA short-circuit capacity for enhanced system safety.
-
Easy Installation: 1+N configuration for quick integration into existing setups.
Product Function
-
Protects electrical installations from arc faults and overcurrent situations.
-
Ensures continuous power supply without compromising safety.
-
Supports B curve tripping characteristics, suitable for typical residential and light commercial applications.
-
Rated for 230V single-phase systems and 32A nominal current.

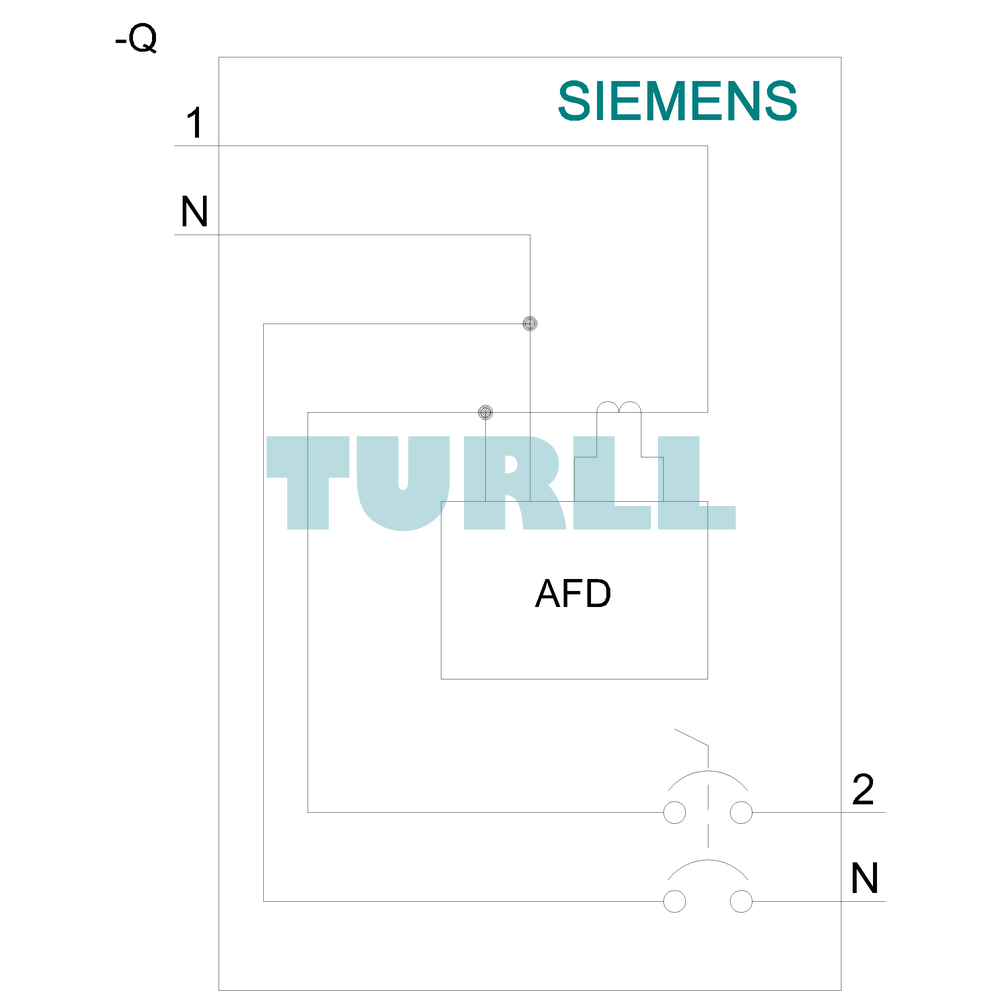

Technical Specification
-
Model Number: 5SV6016-6KK32
-
Type: AFDD-MCB Combination
-
Rated Voltage: 230V
-
Short-Circuit Breaking Capacity: 6kA
-
Configuration: 1+N
-
Curve Type: B
-
Rated Current: 32A
-
Compact Size: 1MW
Visit 5SV6016-6KK32 for more detail info
For more our products visit turll
Download
| Weight | 0.139 kg |
|---|---|

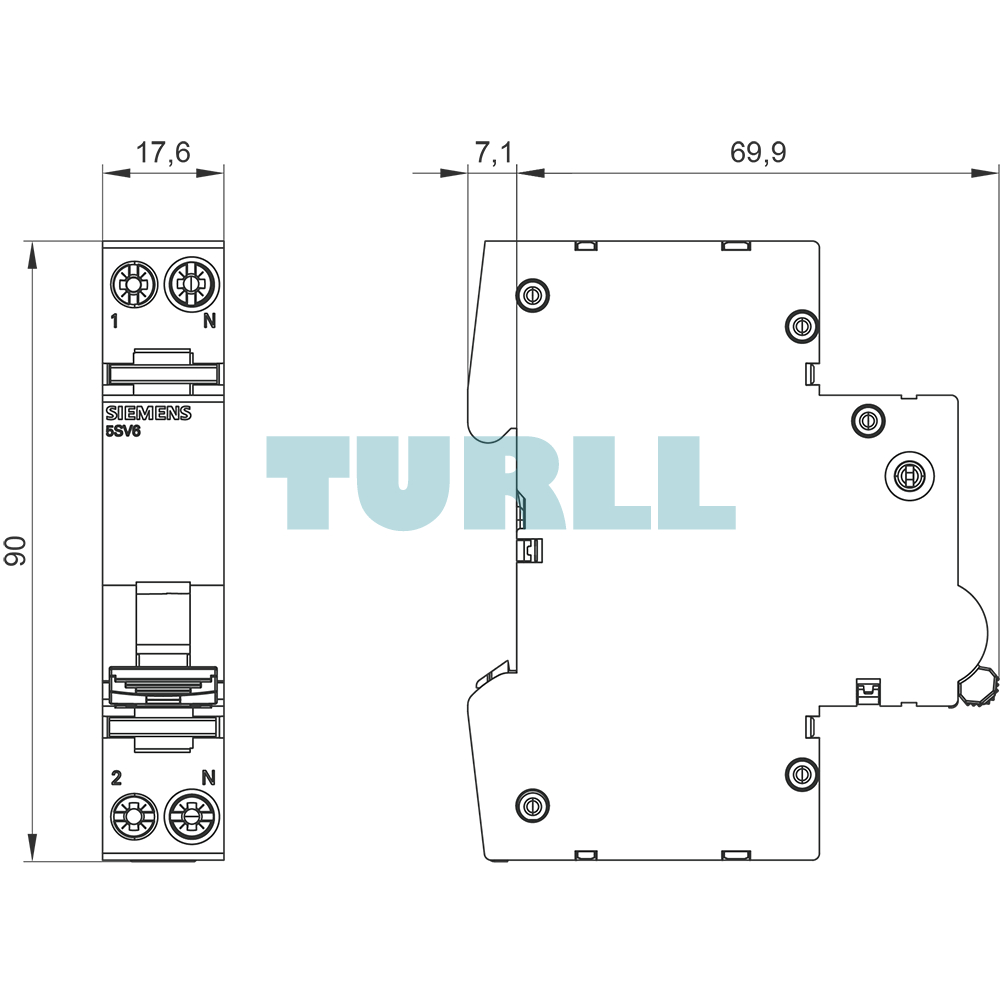

| Dimensions | 80.00 × 100.00 × 44.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | B |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | – |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | – |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.85 W |
| tripping current | – |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 32 A |
| operational current / at AC / rated value | 32 A |
| product feature | – |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
