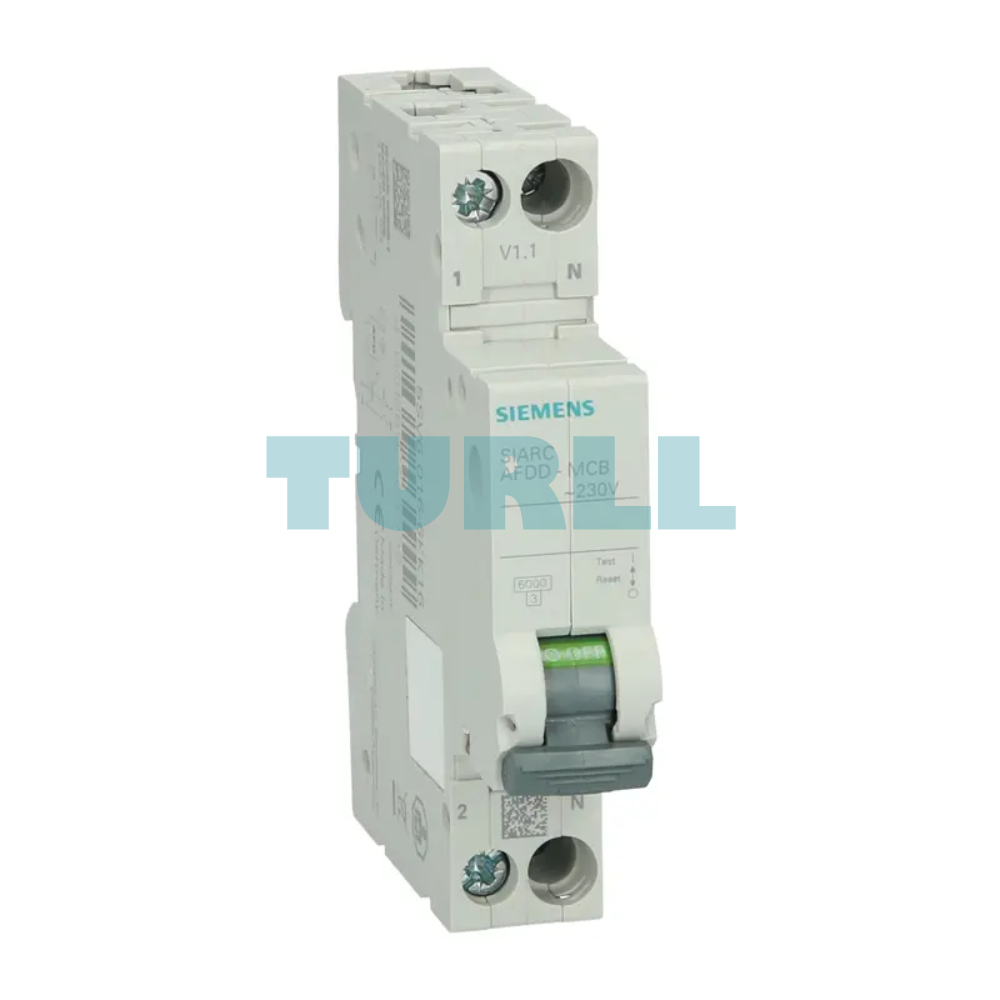

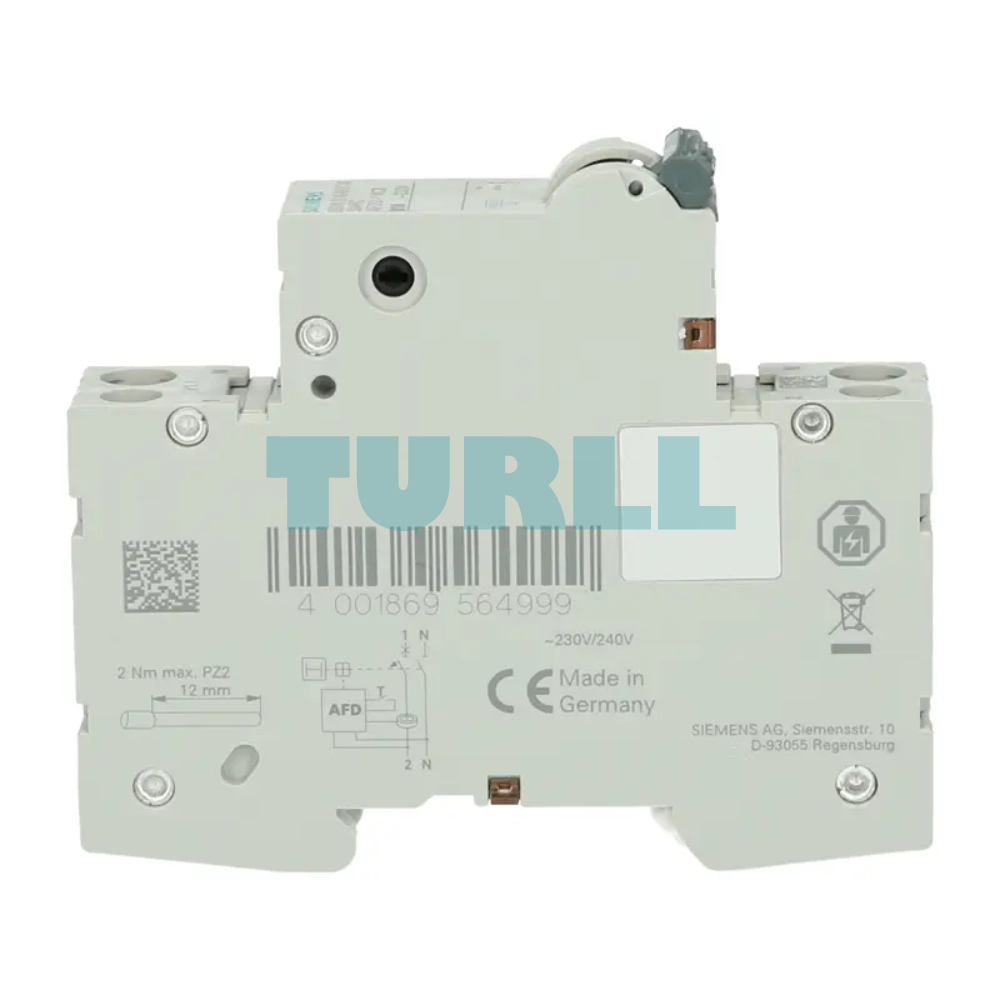

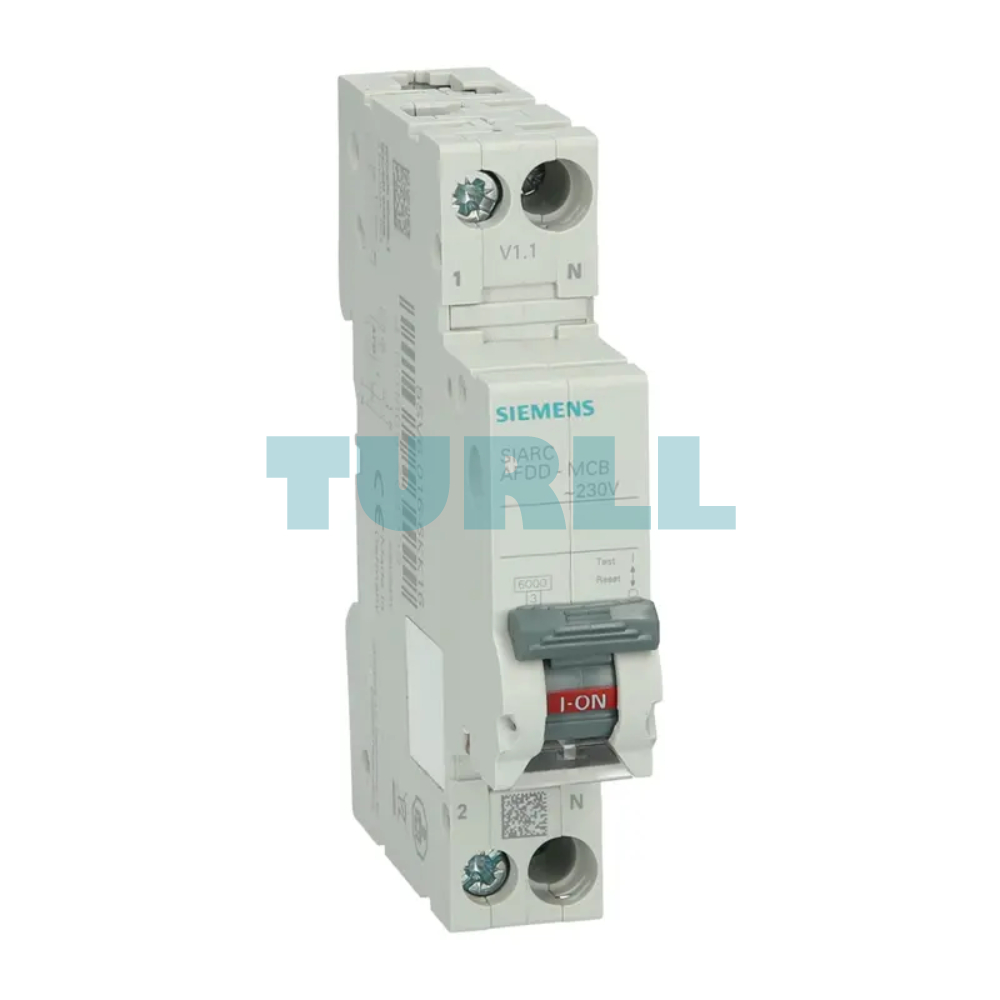

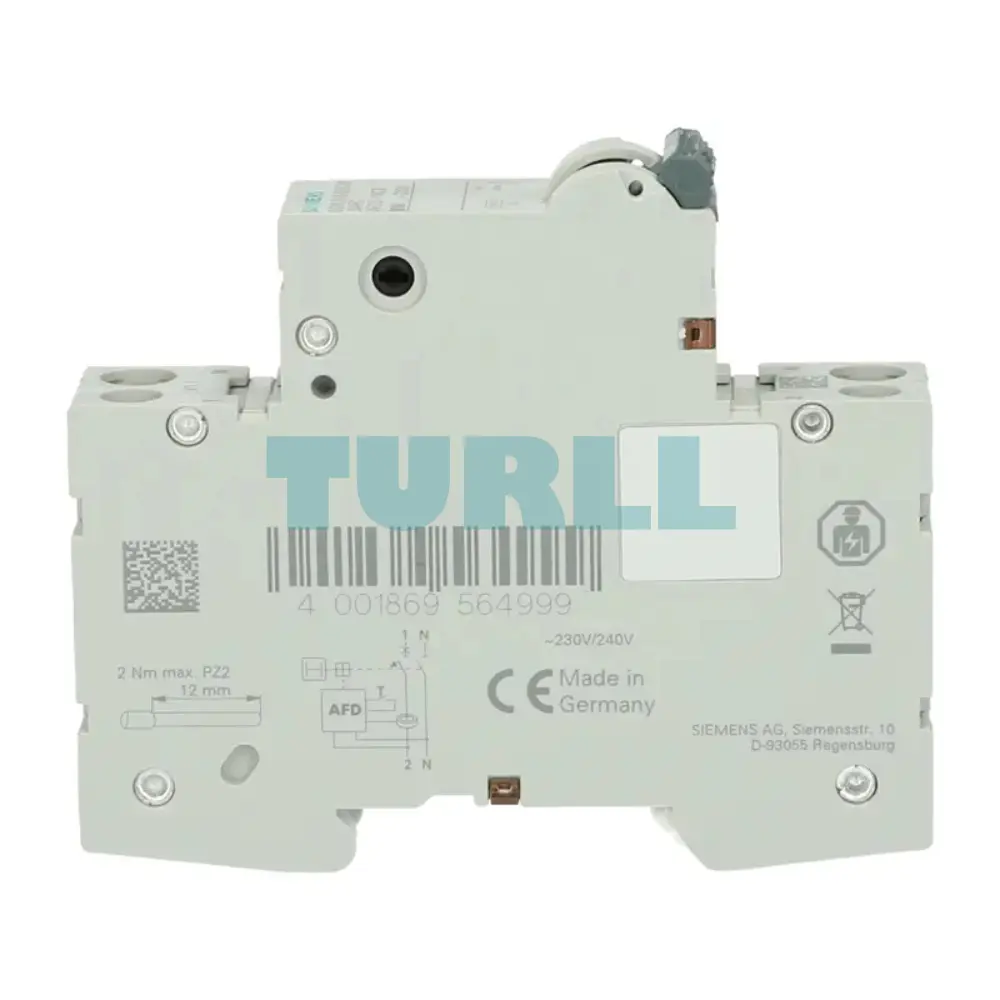

Siemens 5SV6016-7KK10 AFDD-MCB Combination 230V, 6kA, 1+N, C, 10A Compact (1MW) Original Brand New

Overview

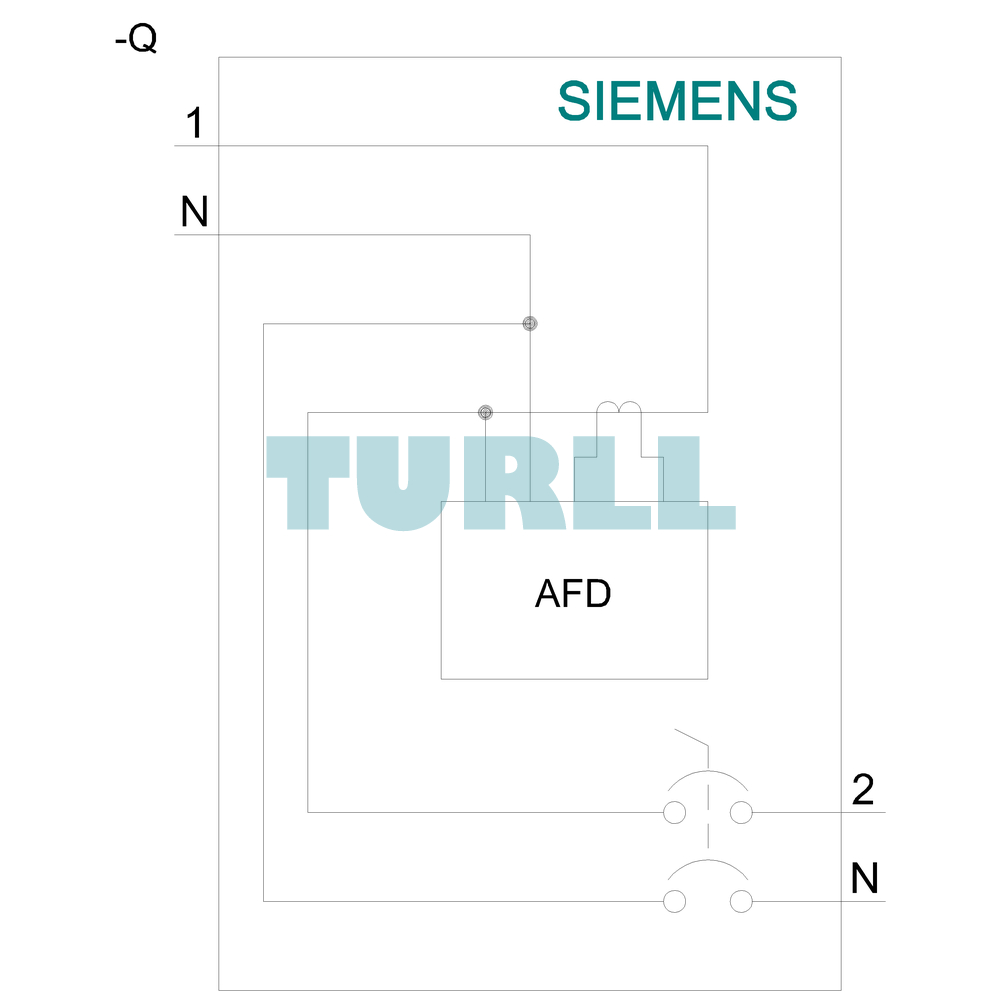

The Siemens 5SV6016-7KK10 is an innovative and space-saving solution for electrical installation safety. As a genuine AFDD/MCB Combination (Arc Fault Detection Device with Miniature Circuit Breaker), this single, 1-module wide (1MW) device provides three essential layers of protection:

1. Arc Fault Protection (AFDD): Detects and safely disconnects in the event of dangerous serial and parallel arc faults that can cause electrical fires.

2. Overcurrent Protection (MCB): Trips on short circuits (up to 6kA) and overloads, protecting conductors and equipment.

3. Surge Protection: Built-in protection against transient overvoltages.

This 230V, 1P+N (1-pole plus neutral) device features a C-Characteristic and is rated for 10A, making it ideal for standard lighting and power circuits.

Key Features & Function

• Voltage Rating: 230V

• Rated Current: 10A

• Breaking Capacity: 6kA

• Poles: 1+N

• Tripping Curve: Type C

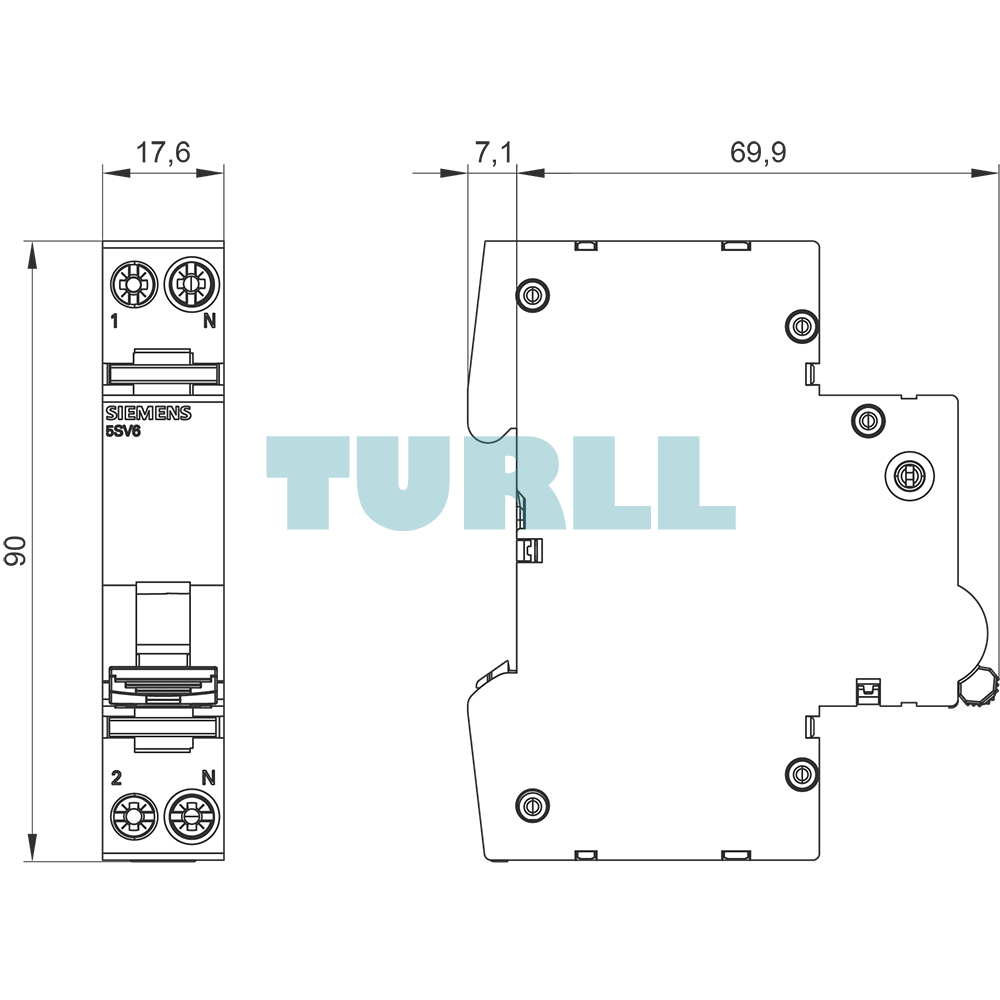

• Compact Design: Saves space in distribution boards

• Integrated AFDD & MCB: Provides dual protection against arc faults and short circuits

• High Safety Standard: Meets IEC and national electrical standards

Benefit

• Enhanced Safety: Protects your home or workplace from electrical fires caused by arc faults.

• Dual Functionality: Combines MCB and AFDD in one device, reducing installation complexity.

• Space-Saving: Compact 1MW size is ideal for modern distribution boards.

• Reliable Protection: With 6kA breaking capacity, it handles high fault currents safely.

• Easy Installation: Plug-and-play design reduces installation time.

Download

Datasheet in PDF
