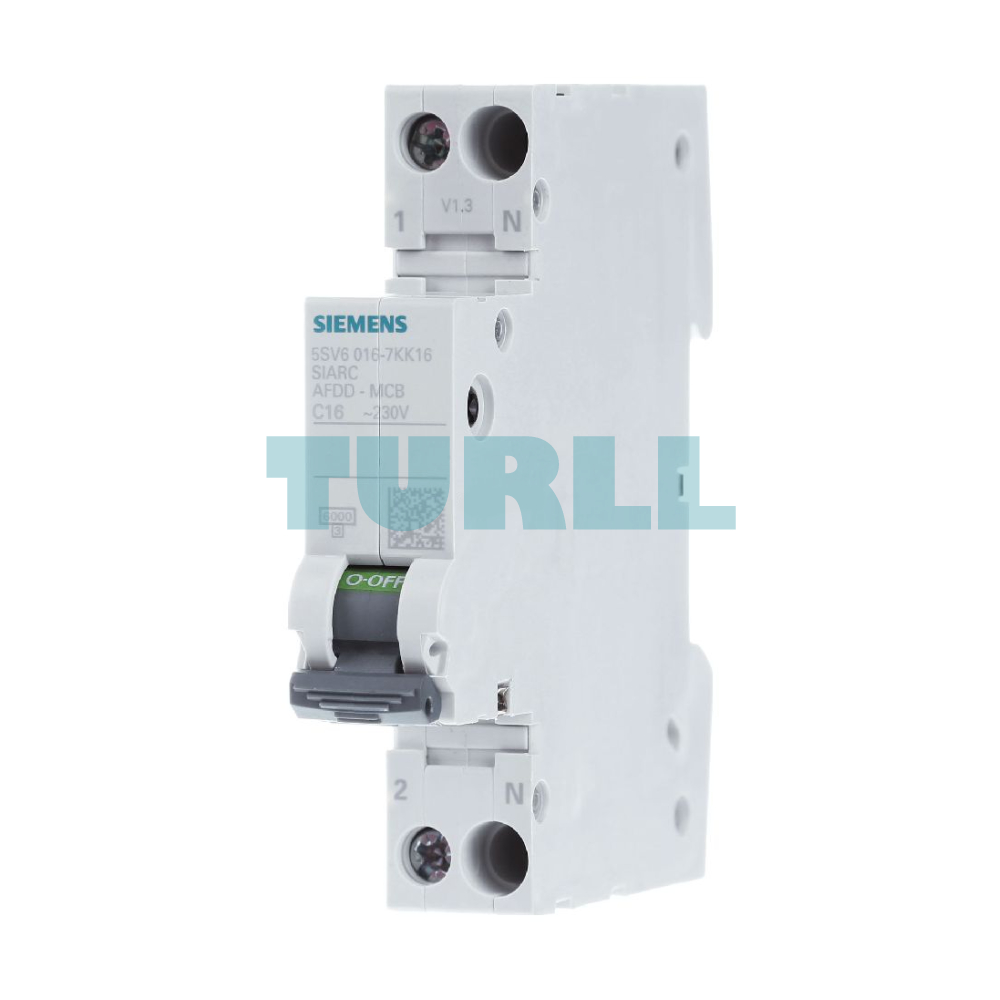

Siemens 5SV6016-7KK16 AFDD-MCB Combination 230V, 6kA, 1+N, C, 16A Compact (1MW) Original Brand New
$100.87
A compact (1MW) AFDD/MCB combination device with a rating of 16A (C-characteristic) and a breaking capacity of 6kA. It provides comprehensive fire and electrical protection in a single, space-saving unit.
Availability: In stock
Overview

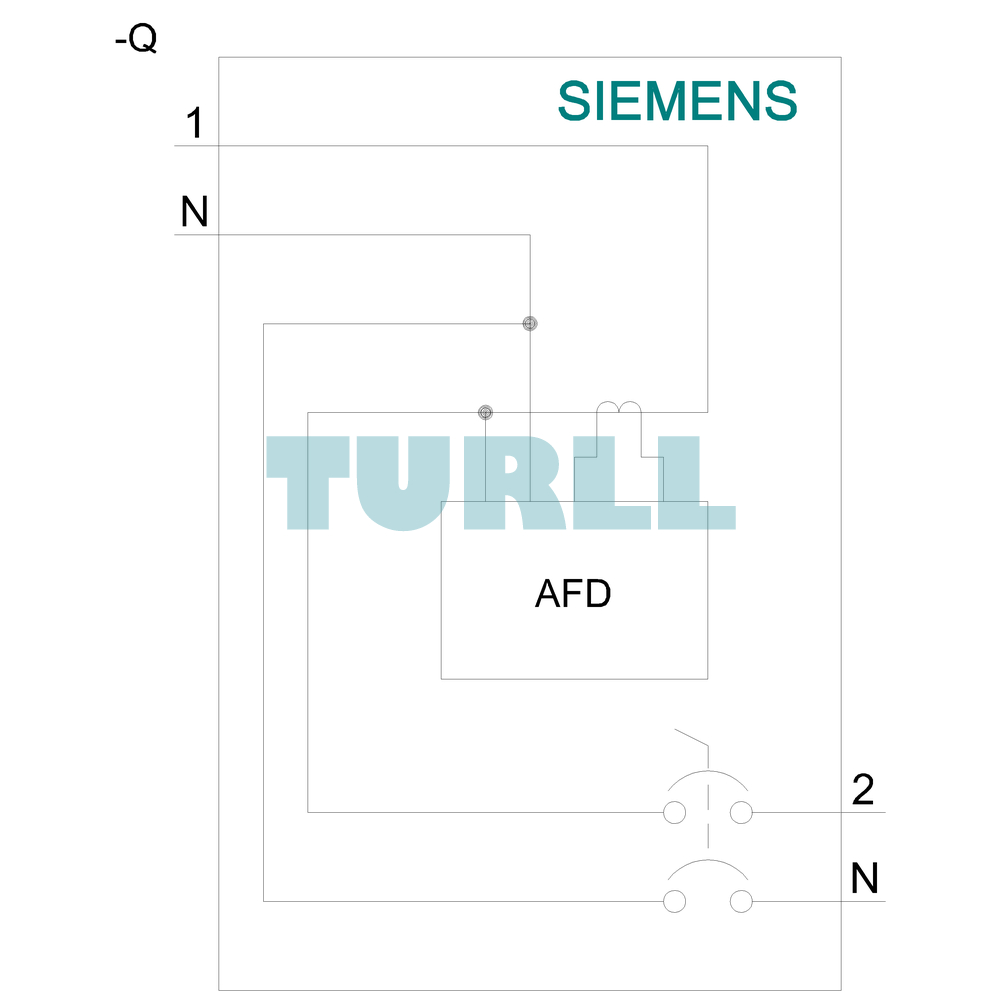

The Siemens 5SV6016-7KK16 is a state-of-the-art protective device from the SENTRON range, designed for maximum safety in electrical installations. It uniquely combines an Arc Fault Detection Device (AFDD) with a Miniature Circuit Breaker (MCB) in an incredibly compact 1-Module Width (1MW) housing. This device is rated for 230V, 6kA, with a 1+N configuration and a C-characteristic, making it ideal for standard household and commercial applications. Its compact design saves valuable space in distribution boards while ensuring compliance with stringent safety standards.
Key Benefit
-
Space-Saving Design: The Compact (1MW) size replaces two separate devices (AFDD and MCB), significantly reducing the required space in the electrical enclosure.
-
Comprehensive Protection: Provides protection against Series and Parallel Arc Faults (AFDD), Short Circuits (MCB), and Overload (MCB).
-
Enhanced Fire Safety: Arc Fault Detection is critical for preventing electrical fires caused by damaged insulation, loose contacts, or crimped wires.
-
Simplified Installation: As a single, integrated unit, it simplifies wiring and reduces installation time compared to installing two separate devices.
-
Reliable Brand Quality: Manufactured by Siemens, a trusted leader in electrical safety technology, ensuring high reliability and longevity.
Functionality / Features
-
AFDD-MCB combination for arc fault and overload protection
-
Rated for 230V AC supply
-
Breaking capacity: 6kA
-
Pole configuration: 1+N
-
Type C characteristic suitable for general electrical loads
-
Rated current: 16A
-
Compact 1MW design for efficient panel integration
-
High-quality Siemens engineering ensuring long-lasting performance
Visit 5SV6016-7KK16 for more detail info
For more our products visit turll
Download

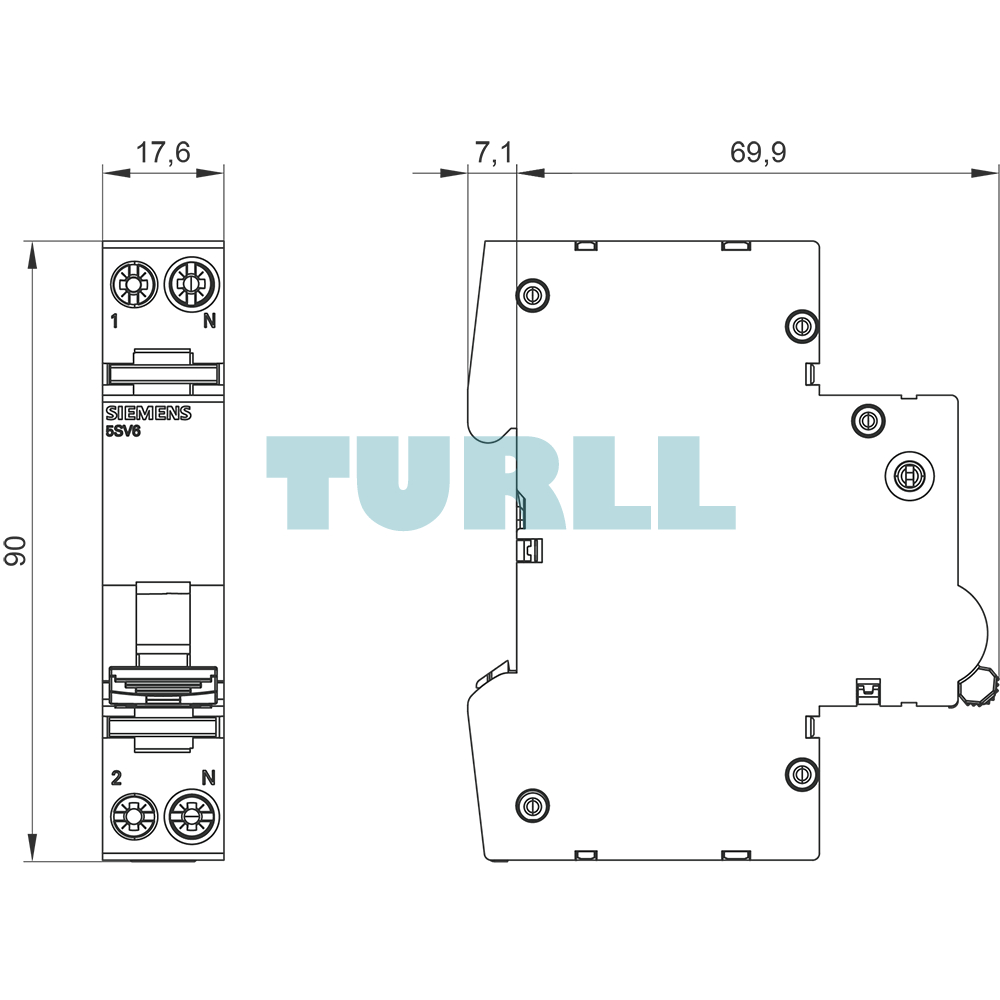

| Weight | 0.133 kg |
|---|---|
| Dimensions | 80.00 × 100.00 × 44.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | C |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | – |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | – |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.81 W |
| tripping current | – |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 16 A |
| operational current / at AC / rated value | 16 A |
| product feature | – |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
