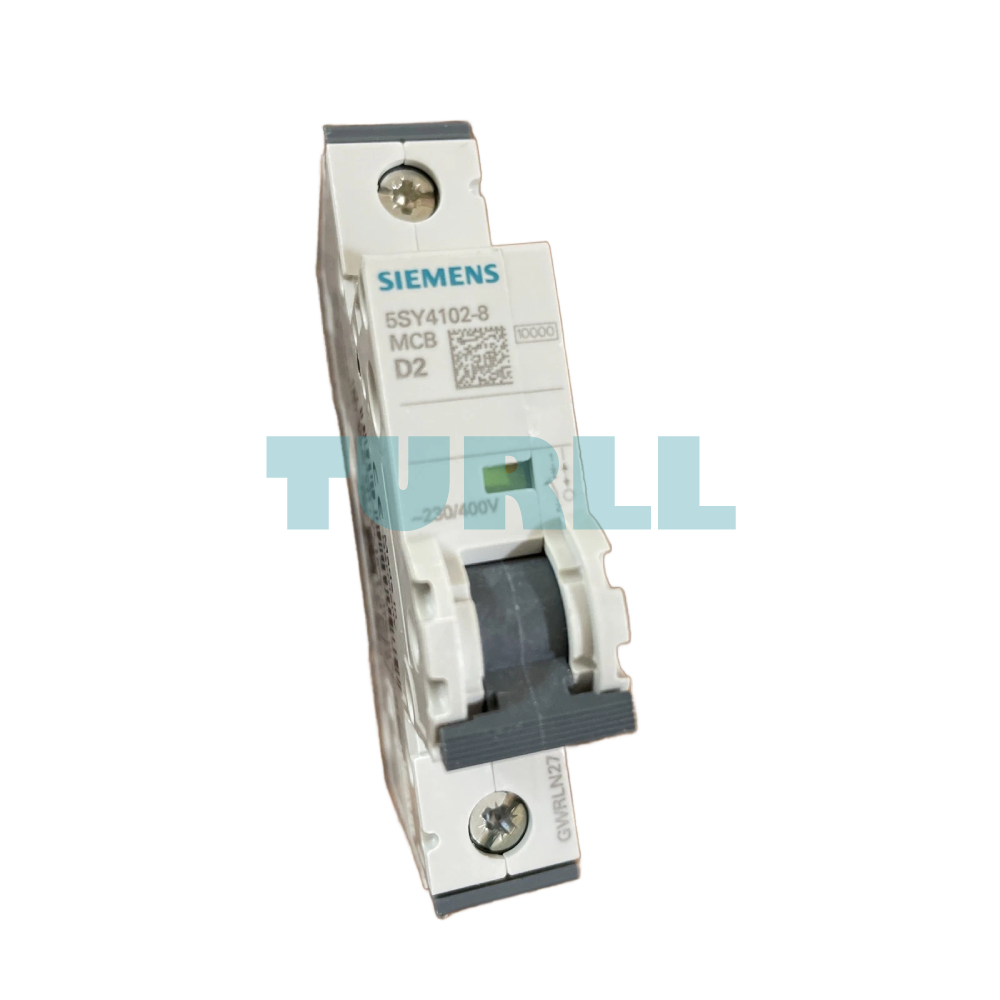

Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA
Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA
Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA
Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA
Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA
Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA

SIEMENS

Siemens 5SY4102-8 Miniature Circuit Breaker 1-Pole, 2A, Type D Curve, 10kA Original Brand New

Model / SKU5SY4102-8

High-performance 1-pole Miniature Circuit Breaker (MCB) designed for superior circuit protection. Featuring a 2A rated current, Type D tripping characteristic, and a 10kA breaking capacity, this 70mm depth unit ensures reliable safety for industrial and commercial electrical systems.

Original price was: $37.90.Current price is: $19.70.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SY4102-8 belongs to the renowned SENTRON series, offering industry-leading protection against overloads and short circuits. This single-pole MCB is specifically engineered for circuits with high inrush currents, making it an essential component for demanding electrical environments. With a compact 70mm mounting depth, it integrates seamlessly into standard distribution boards.

Key Benefit

  • High Breaking Capacity: Rated at 10kA, providing robust protection against high-magnitude fault currents.

  • Precision Engineering: The Type D tripping curve is ideal for inductive loads, preventing nuisance tripping during initial power surges.

  • Global Standards: Fully compliant with international safety regulations for residential and industrial applications.

  • Compact Design: Optimized for space-saving installation in control cabinets and power distribution panels.

Function & Application

  • Overload Protection: Automatically disconnects power when current exceeds 2A to prevent cable damage.

  • Short-Circuit Protection: Instantaneous tripping during electrical faults to safeguard equipment.

  • Versatile Use: Ideal for protecting transformers, solenoid valves, and motors that experience significant startup surges.

Technical Specification

  • Brand: Siemens

  • Product Number: 5SY4102-8

  • Rated Voltage: 230/400 V

  • Rated Current: 2A

  • Number of Poles: 1-Pole

  • Tripping Curve: D Curve

  • Breaking Capacity: 10kA

  • Depth (D): 70 mm

  • Mounting Type: DIN Rail

Visit 5SY4102-8 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SY4102-8
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breaker
number of poles1
design of pole1P
tripping characteristic classD
mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
degree of pollution3
type of voltage / of the operating voltageAC
insulation voltage (Ui)-
● with single-phase operation / at AC / rated value440 V
● with multi-phase operation / at AC / rated value440 V
supply voltage / with single-phase operation / at AC / rated value230 V
supply voltage-
operating voltage / at DC / rated value / maximum72 V
protection class IPIP20, with connected conductors
switching capacity current-
● at DC / acc. to IEC 60947-2 / rated value15 kA
● acc. to EN 60898 / rated value10 kA
● acc. to IEC 60947-2 / rated value35 kA
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.2 W
operational current-
● at 35 °C / rated value2 A
● at 40 °C / rated value1.9 A
● at 45 °C / rated value1.85 A
● at 50 °C / rated value1.8 A
● at 55 °C / rated value1.75 A
● at 60 °C / rated value1.7 A
● at AC / rated value2 A
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● combined terminal topYes
● combined terminal bottomYes
product feature-
● properties for main switches in accordance with EN 60204-1Yes
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
breaking capacity short-circuit current (Icn)-
● at AC / acc. to UL 1077 and CSA C22.2 No.2355 kA
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
connectable conductor cross-section / finely stranded / with core end processing-
AWG number / as coded connectable conductor cross section-
tightening torque [lbf·in] / with screw-type terminals-
tightening torque / with screw-type terminals-
position / of power supply cordAny
installation depth70 mm
number of modular width units1
fastening methodQuick assembly system
mounting positionany
influence of the surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
vibration resistance / acc. to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-306
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Weight0.155 kg
Dimensions21.00 × 93.00 × 83.00 mm
