Siemens 5SY4104-6 Miniature Circuit Breaker 4A, 1-Pole, B Curve, 230/400V, 10kA Original Brand New
$9.59
High-performance single-pole Miniature Circuit Breaker (MCB) with a 4A rated current, Type B characteristic, and a powerful 10kA breaking capacity for reliable short-circuit and overload protection in industrial and commercial electrical installations.
Availability: In stock
Overview
The Siemens 5SY4104-6 is a robust, single-pole (1P) Miniature Circuit Breaker (MCB) designed for the reliable protection of conductors against overload and short-circuit faults in standard electrical systems. Part of the highly successful Siemens Sentron protection devices, this MCB is engineered for maximum safety and operational availability in both industrial and commercial distribution boards. Its high-rated 10kA short-circuit breaking capacity makes it suitable for demanding applications under 230V/400V AC. The generous 70 mm depth (D=70 mm) is compatible with standard distribution panel installations.
Key Benefit
-
Reliable Protection: Prevents electrical overloads and short circuits efficiently.
-
High Breaking Capacity: 10kA rating ensures safety even under high fault currents.
-
Compact Design: Slim 70mm depth for easy integration into electrical panels.
-
Durable Siemens Quality: Long-lasting performance with industry-standard reliability.
-
Versatile Applications: Suitable for residential, commercial, and industrial setups.
Function & Application
The Type B Characteristic (tripping at 3 to 5 times the rated current of 4A) makes the 5SY4104-6 ideal for protecting circuits with minimal or no inrush current surges.
-
Function: Interrupts the flow of electricity when the current exceeds the rated value, either slowly (overload) or instantaneously (short-circuit).
-
Primary Applications
-
Protection of standard lighting circuits.
-
Protection of circuits supplying resistance loads (e.g., standard heating elements).
-
Protection of socket-outlet circuits in residential and light commercial buildings.
-
Technical Specification
-
Brand: Siemens
-
Model: 5SY4104-6
-
Type: Miniature Circuit Breaker (MCB)
-
Poles: 1
-
Current Rating: 4A
-
Trip Curve: B
-
Voltage Rating: 230/400V AC
-
Breaking Capacity: 10kA
-
Width/Depth: 70 mm
-
Mounting: DIN Rail
Visit 5SY4104-6 for more detail info
For more our products visit turll
Download
| Weight | 0.171 kg |
|---|---|

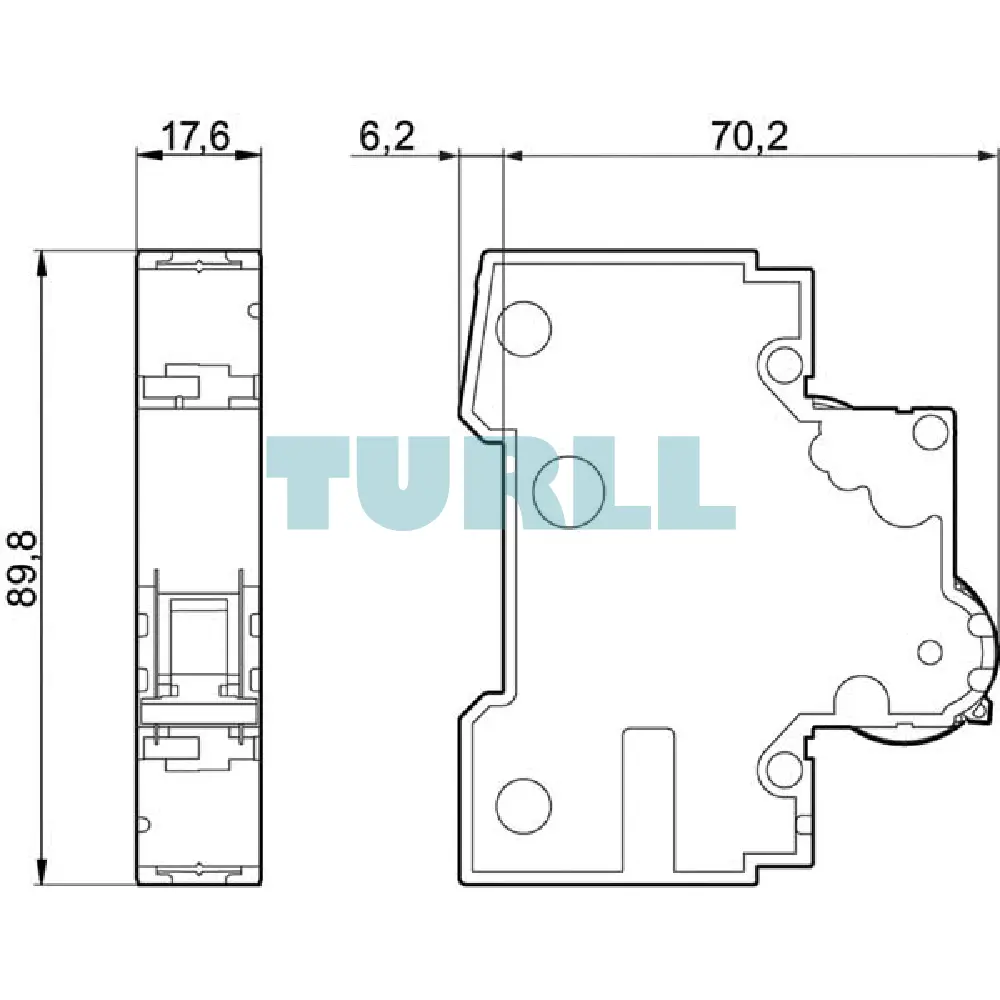

| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | B |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 35 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.5 W |
| operational current | – |
| ● at 35 °C / rated value | 4 A |
| ● at 40 °C / rated value | 3.76 A |
| ● at 45 °C / rated value | 3.63 A |
| ● at 50 °C / rated value | 3.5 A |
| ● at 55 °C / rated value | 3.36 A |
| ● at 60 °C / rated value | 3.22 A |
| ● at AC / rated value | 4 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
