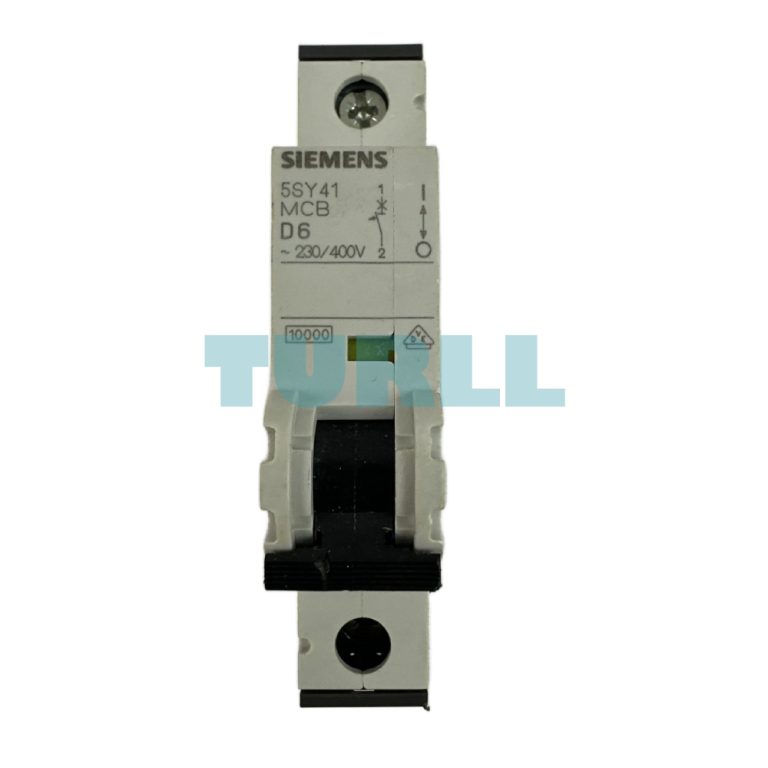

Siemens 5SY4106-8 Miniature Circuit Breaker 1-Pole, 6A, Type D, 10kA Original Brand New
$46.41
High-performance Siemens 5SY4106-8 Miniature Circuit Breaker (MCB). Single-pole, 6 Amp, Type D tripping characteristic, 10kA breaking capacity. Designed for 230/400V industrial applications.
Availability: In stock
Overview
The Siemens 5SY4106-8 is a premium Miniature Circuit Breaker (MCB) designed for superior protection of electrical circuits in industrial and infrastructure environments. Part of the trusted SENTRON family, this 1-pole device features a Type D tripping characteristic, making it ideal for circuits with high inrush currents, such as motors, transformers, and solenoid valves. With a 10kA breaking capacity, it ensures reliable safety against overloads and short circuits.
Key Benefit
-
Enhanced Safety: Provides reliable disconnection in the event of a fault, protecting both personnel and equipment.
-
High Breaking Capacity: Rated at 10kA, suitable for demanding industrial power distribution systems.
-
Space-Saving Design: Standard 70mm mounting depth allows for easy integration into compact distribution boards.
-
Global Compliance: Meets international standards for safety and performance (IEC/EN 60898-1 and 60947-2).
Function & Features
-
Tripping Characteristic D: Delayed thermal trigger and high-current magnetic trigger for inductive loads.
-
Single-Pole Protection: Efficiently manages 230/400V AC circuits.
-
Tool-Free Mounting: Designed for quick installation on standard DIN rails.
-
Durability: Built with high-quality materials for a long electrical and mechanical service life.
Technical Specification
-
Brand: Siemens
-
Product Number: 5SY4106-8
-
Type: Miniature Circuit Breaker (MCB)
-
Poles: 1-Pole
-
Rated Current: 6 A
-
Tripping Curve: D
-
Breaking Capacity: 10 kA
-
Rated Voltage: 230/400 V
-
Depth (D): 70 mm
-
Mounting: DIN Rail
Visit 5SY4106-8 for more detail info
For more our products visit turll
Download
| Weight | 0.164 kg |
|---|---|
| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | D |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 35 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.6 W |
| operational current | – |
| ● at 35 °C / rated value | 6 A |
| ● at 40 °C / rated value | 5.63 A |
| ● at 45 °C / rated value | 5.44 A |
| ● at 50 °C / rated value | 5.24 A |
| ● at 55 °C / rated value | 5.04 A |
| ● at 60 °C / rated value | 4.82 A |
| ● at AC / rated value | 6 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
