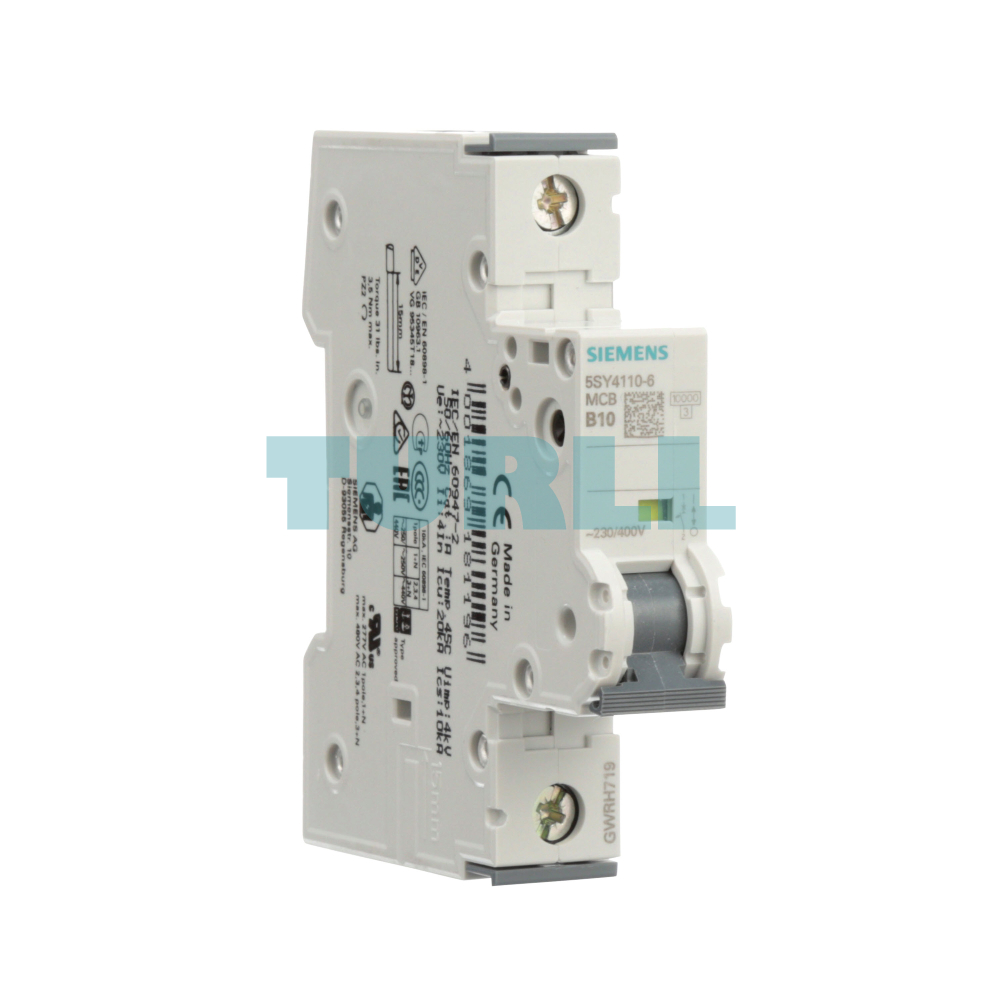

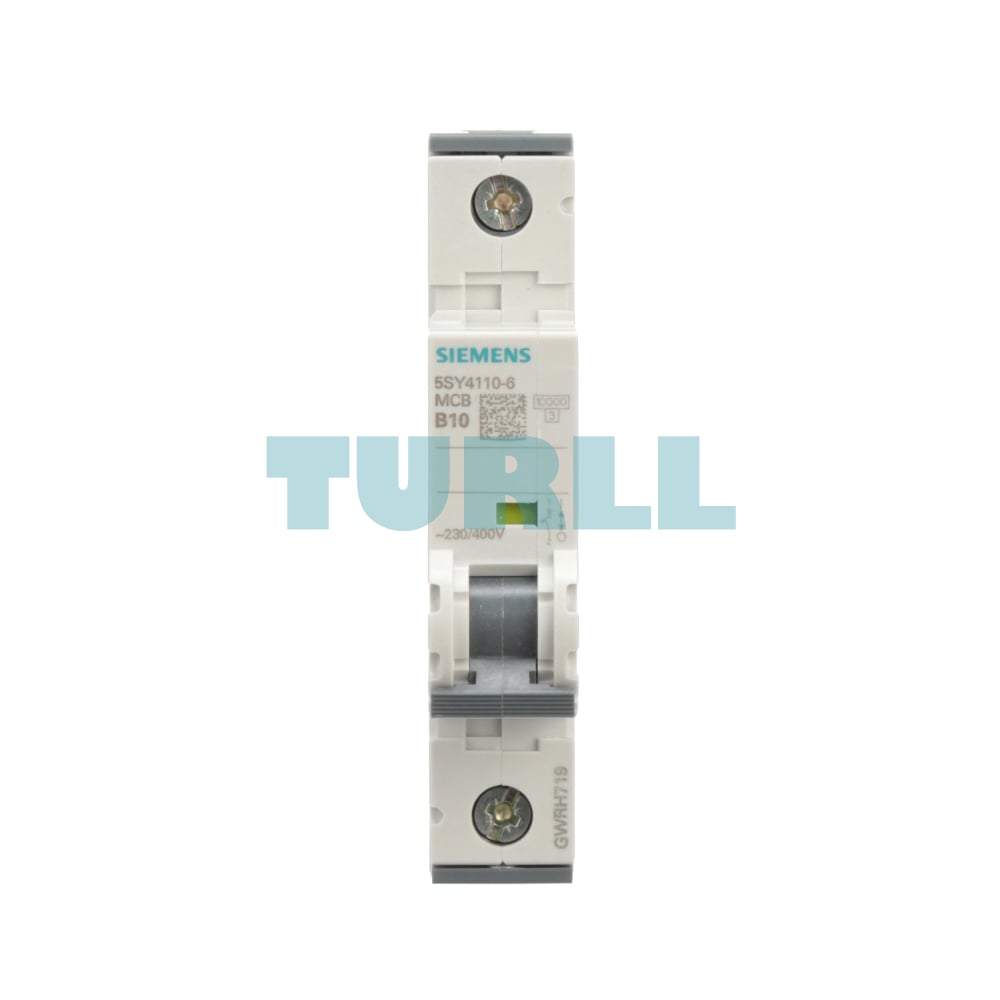

Siemens 5SY4110-6 Miniature Circuit Breaker, 1-Pole, 10A, 230/400V, 10kA, Type B Original Brand New
$5.52
High-performance Siemens Miniature Circuit Breaker (MCB) for reliable short-circuit and overload protection in electrical installations. 1-pole, 10A rated current, B-characteristic tripping curve, and 10kA switching capacity, suitable for 230V/400V systems.
Availability: In stock
Overview
The Siemens 5SY4110-6 Miniature Circuit Breaker is a top-tier protective device designed for modern electrical distribution systems. It ensures fast and efficient disconnection in the event of overloads or short circuits, preventing damage to wiring and connected equipment. With a Type B tripping characteristic, this unit is perfectly suited for circuits with low inrush currents such as lighting, heating, and general-purpose loads.
Engineered with precision, it features a compact 70mm form factor that allows effortless integration into distribution boards and panel systems. Siemens’ robust quality and adherence to global standards make this MCB a dependable choice for electricians, engineers, and contractors looking for high-performance circuit protection.
Benefit
-
Reliable Overload & Short-Circuit Protection – Ensures safe operation of electrical circuits and equipment.
-
High Breaking Capacity (10kA) – Suitable for demanding environments requiring robust fault handling.
-
Efficient Type B Tripping Curve – Ideal for residential and light commercial applications.
-
Compact 70mm Design – Saves space while maintaining high performance.
-
Advanced Siemens Engineering – Guarantees durability, safety, and long-term stability.
Features & Functions
-
Rated Voltage: 230/400 V
-
Rated Current: 10A
-
Breaking Capacity: 10kA
-
Poles: 1-pole
-
Tripping Characteristic: Type B
-
Installation Width: 70 mm
-
Protection: Overload & short-circuit protection
-
Application: Residential, commercial, industrial panelboards and distribution boards
-
Build Quality: High reliability, vibration-resistant, maintenance-free
Visit 5SY4110-6 for more detail info
For more our products visit turll
Download
| Weight | 0.151 kg |
|---|---|

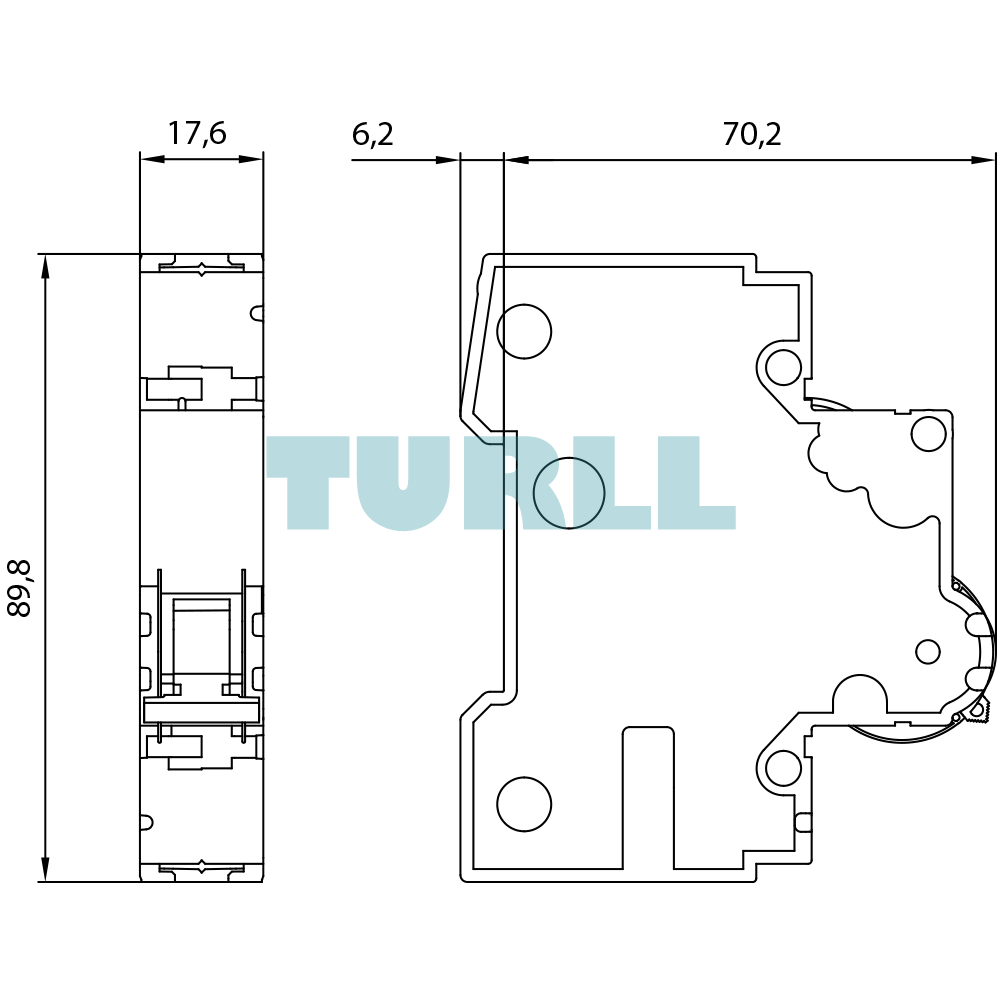

| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | B |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 20 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.3 W |
| operational current | – |
| ● at 35 °C / rated value | 10 A |
| ● at 40 °C / rated value | 9.39 A |
| ● at 45 °C / rated value | 9.07 A |
| ● at 50 °C / rated value | 8.74 A |
| ● at 55 °C / rated value | 8.4 A |
| ● at 60 °C / rated value | 8.04 A |
| ● at AC / rated value | 10 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
