Siemens 5SY4116-8 Miniature Circuit Breaker 1-Pole, 16A, Type D, 10kA Original Brand New

Overview

The Siemens 5SY4116-8 belongs to the premier SENTRON series of miniature circuit breakers. Designed for both residential and industrial applications, this MCB provides robust protection against overloads and short circuits. Its Type D tripping curve makes it specifically suited for inductive loads and equipment that generates significant surges upon startup.

Key Benefit

• Enhanced Safety: Provides reliable disconnection in the event of a fault, protecting downstream equipment and personnel.

• High Breaking Capacity: Rated at 10kA, ensuring performance even in demanding electrical environments.

• Space-Efficient: With a compact 70mm mounting depth, it fits easily into standard distribution boards.

• Durable Design: Siemens engineering ensures a long electrical and mechanical service life.

Function & Application

• Tripping Characteristic D: Specifically designed for circuits with high starting currents (e.g., motors, transformers, and solenoid valves).

• Thermal-Magnetic Release: Utilizes a thermal delay for overload protection and a magnetic release for short-circuit protection.

• Versatile Mounting: Easy installation on standard DIN rails.

Technical Specification

• Brand: Siemens

• Product Number: 5SY4116-8

• Rated Current: 16A

• Number of Poles: 1-Pole

• Tripping Curve: D

• Rated Voltage: 230/400 V

• Breaking Capacity: 10kA

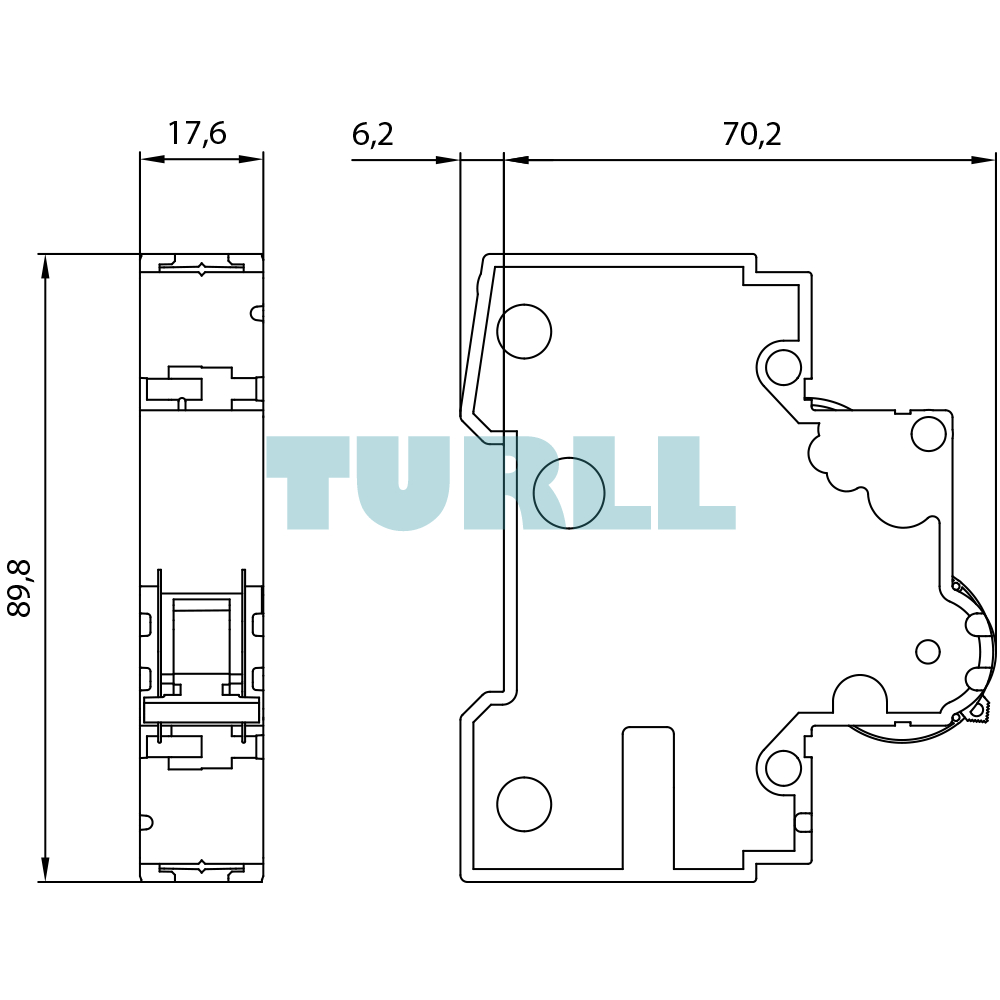

• Depth (D): 70 mm

• Product Type: Miniature Circuit Breaker (MCB)

Visit 5SY4116-8 for more detail info

For more our products visit turll

Download

Datasheet in PDF
