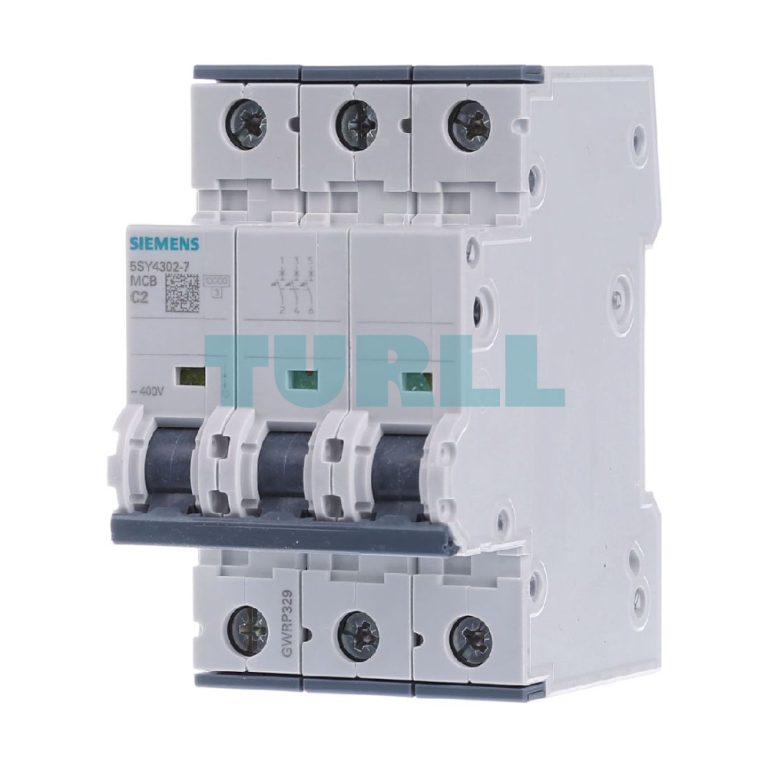

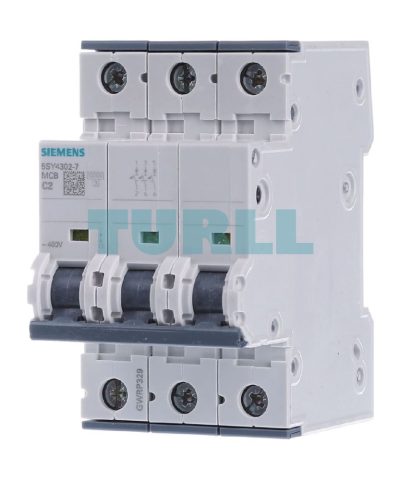

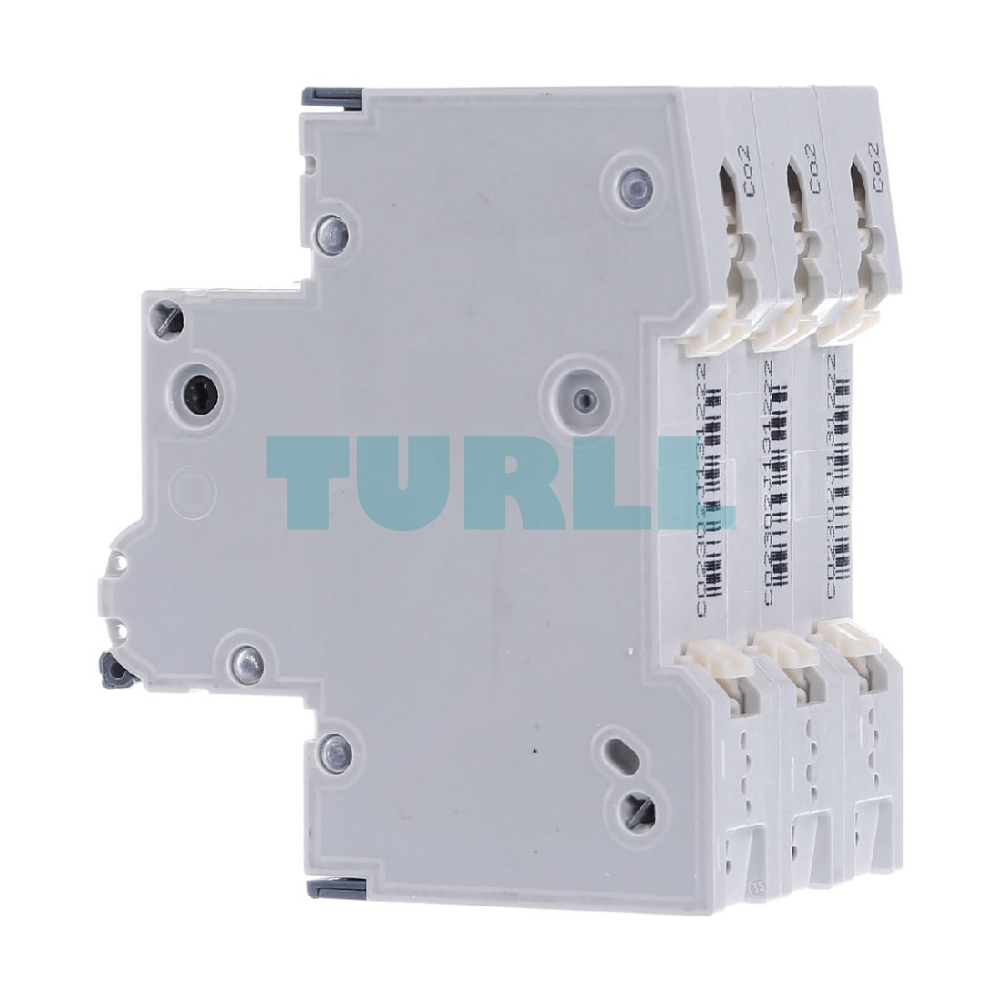

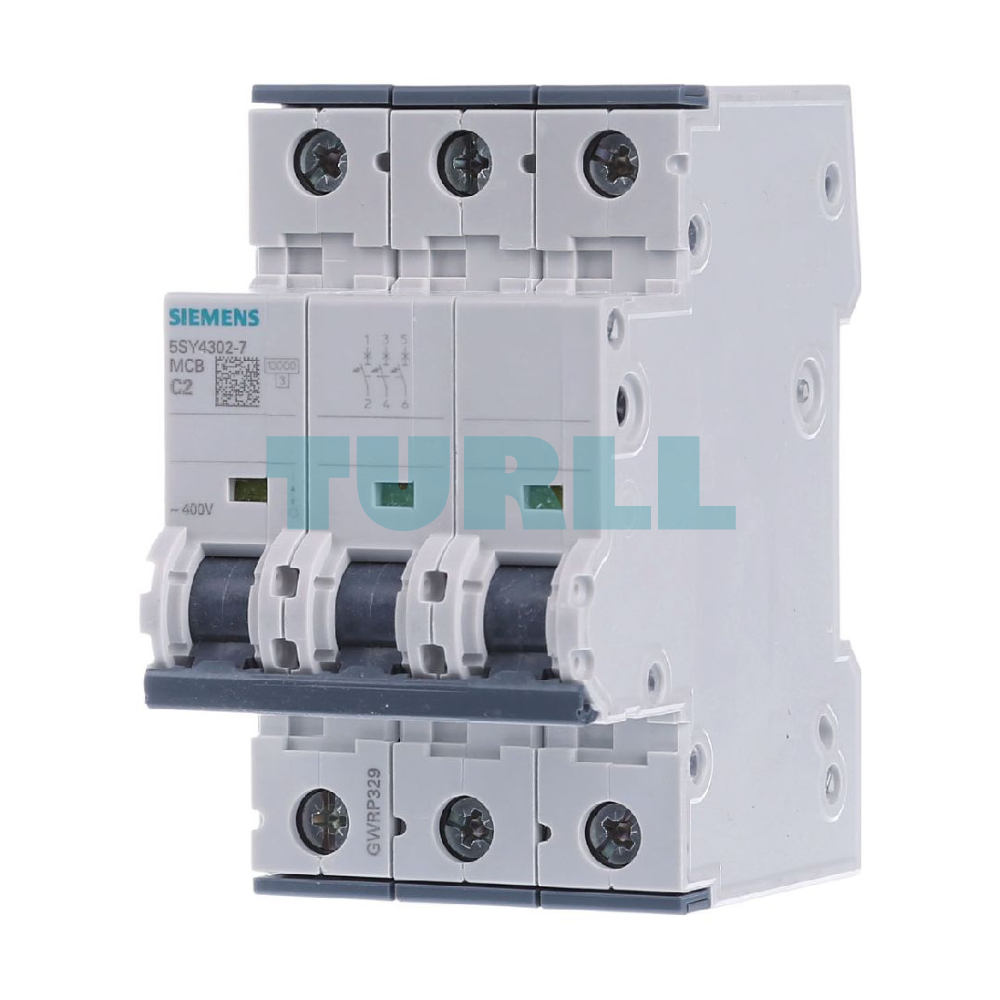

Siemens 5SY4302-7 SENTRON Miniature Circuit Breaker, 3-Pole, 2A, 10kA, Type C, 400V Original Brand New
$119.53
High-performance 3-pole miniature circuit breaker from the SENTRON series. Designed for 400V AC applications, it features a 2A rated current, a 10kA switching capacity, and a Type C tripping characteristic, ensuring reliable protection for inductive loads and industrial circuits.
Availability: In stock
Overview
The Siemens 5SY4302-7 is engineered for demanding electrical environments where precision and safety are paramount. As part of the Siemens Sentron family, this MCB (Miniature Circuit Breaker) provides robust short-circuit and overload protection. With a compact mounting depth of 70mm, it integrates seamlessly into standard distribution boards and industrial control panels.
Key Benefit
-
High Reliability: Exceptional 10kA breaking capacity ensures safety during high-current faults.
-
Versatile Application: The Type C tripping characteristic is ideal for circuits with higher peak starting currents, such as motors and lighting.
-
Space-Saving Design: Standard 70mm depth allows for easy installation in compact electrical enclosures.
-
Global Standards: Fully compliant with international safety standards for industrial and residential applications.
Function & Features
-
Tripping Characteristic: Type C (instantaneous tripping at 5 to 10 times rated current).
-

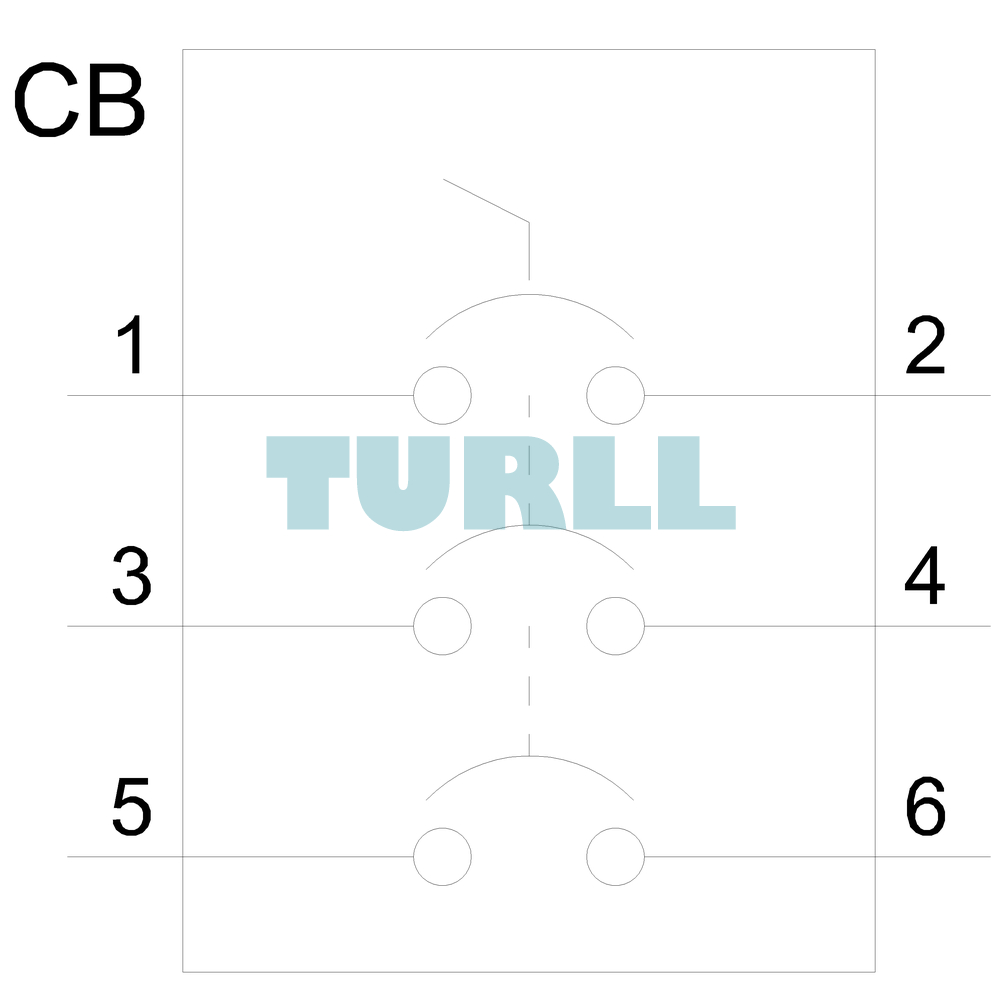

Pole Configuration: 3-pole design for three-phase circuit protection.
-
Mounting: Easy DIN rail mounting for quick installation and maintenance.
-
Durability: Built with high-quality materials to ensure a long mechanical and electrical service life.
Technical Specification
-
Product Number: Siemens 5SY4302-7
-
Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 3
-
Tripping Curve: C
-
Rated Current: 2A
-
Rated Voltage: 400 V
-
Breaking Capacity: 10 kA
-
Depth: 70 mm
Visit 5SY4302-7 for more detail info
For more our products visit turll
Download
| Weight | 0.485 kg |
|---|---|

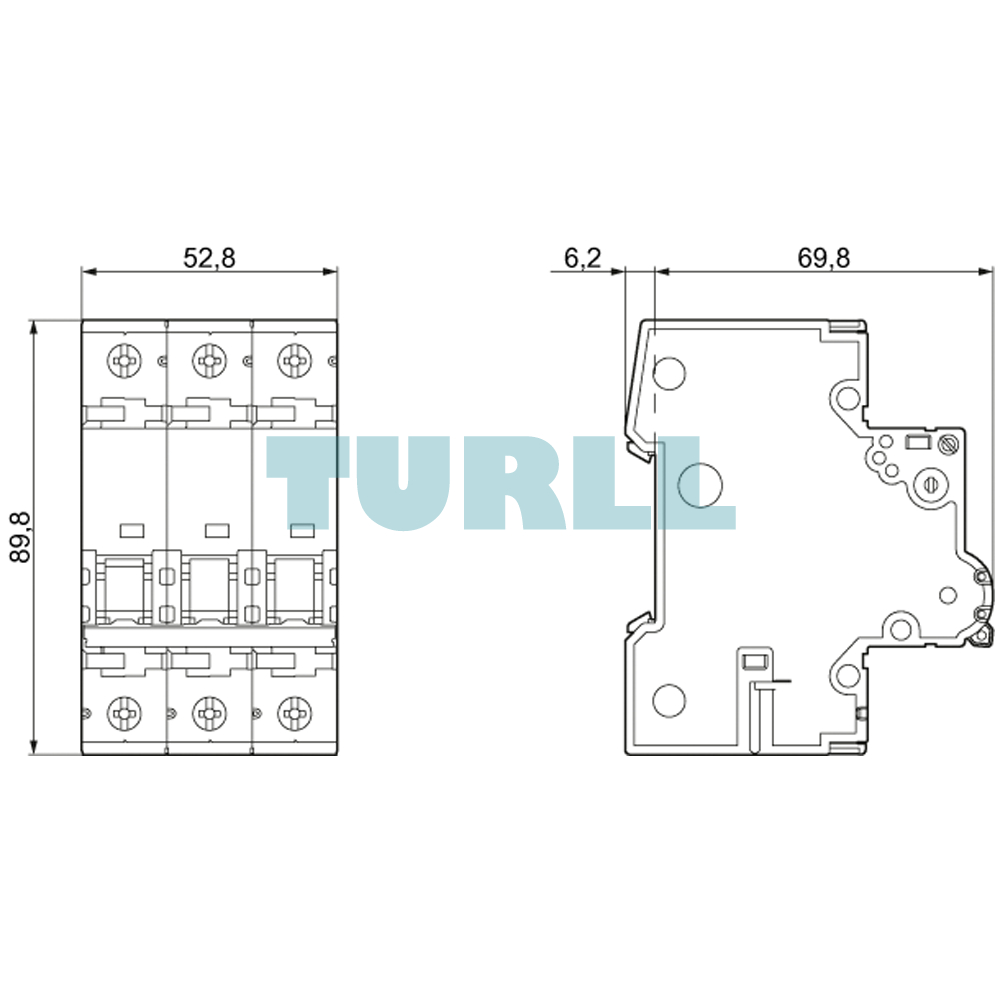

| Dimensions | 58.00 × 94.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 3 |
| design of pole | 3P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 35 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.2 W |
| operational current | – |
| ● at 35 °C / rated value | 2 A |
| ● at 40 °C / rated value | 1.9 A |
| ● at 45 °C / rated value | 1.85 A |
| ● at 50 °C / rated value | 1.8 A |
| ● at 55 °C / rated value | 1.75 A |
| ● at 60 °C / rated value | 1.7 A |
| ● at AC / rated value | 2 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 3 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
