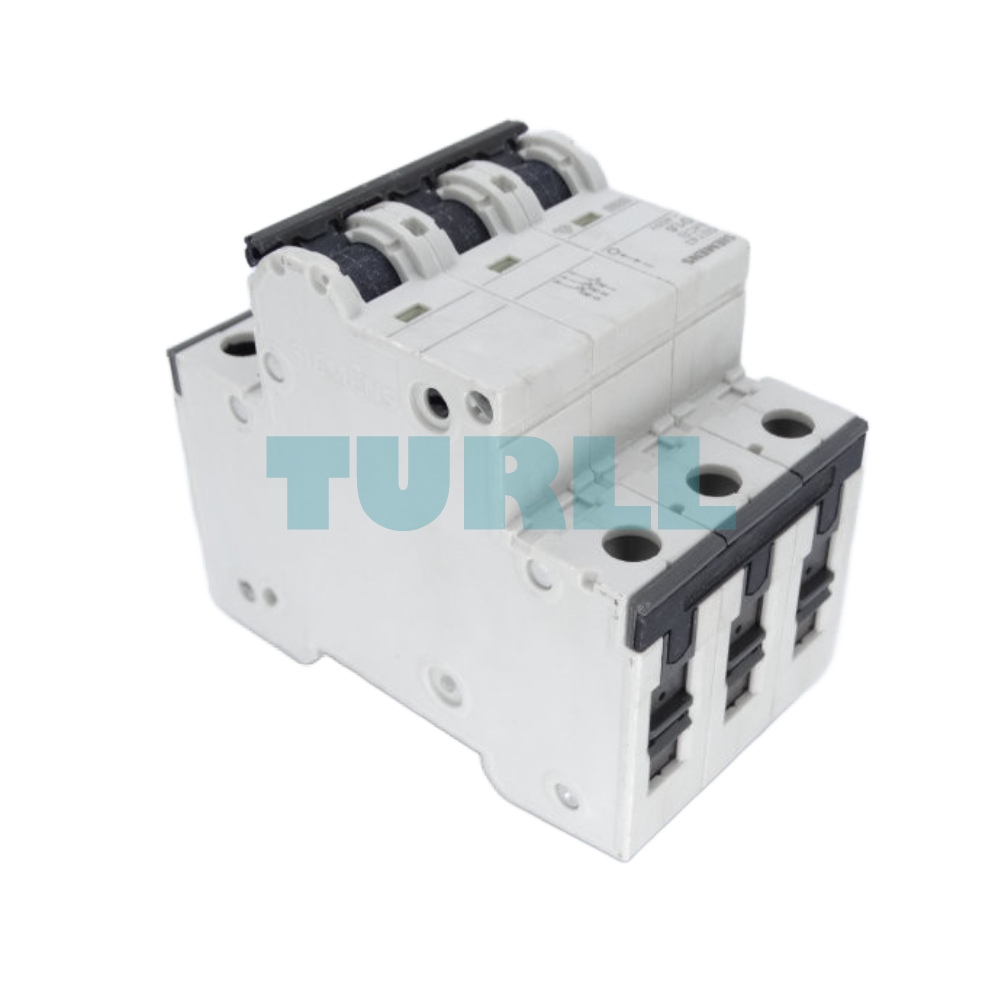

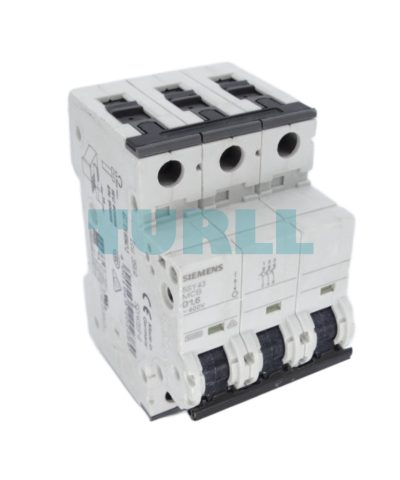

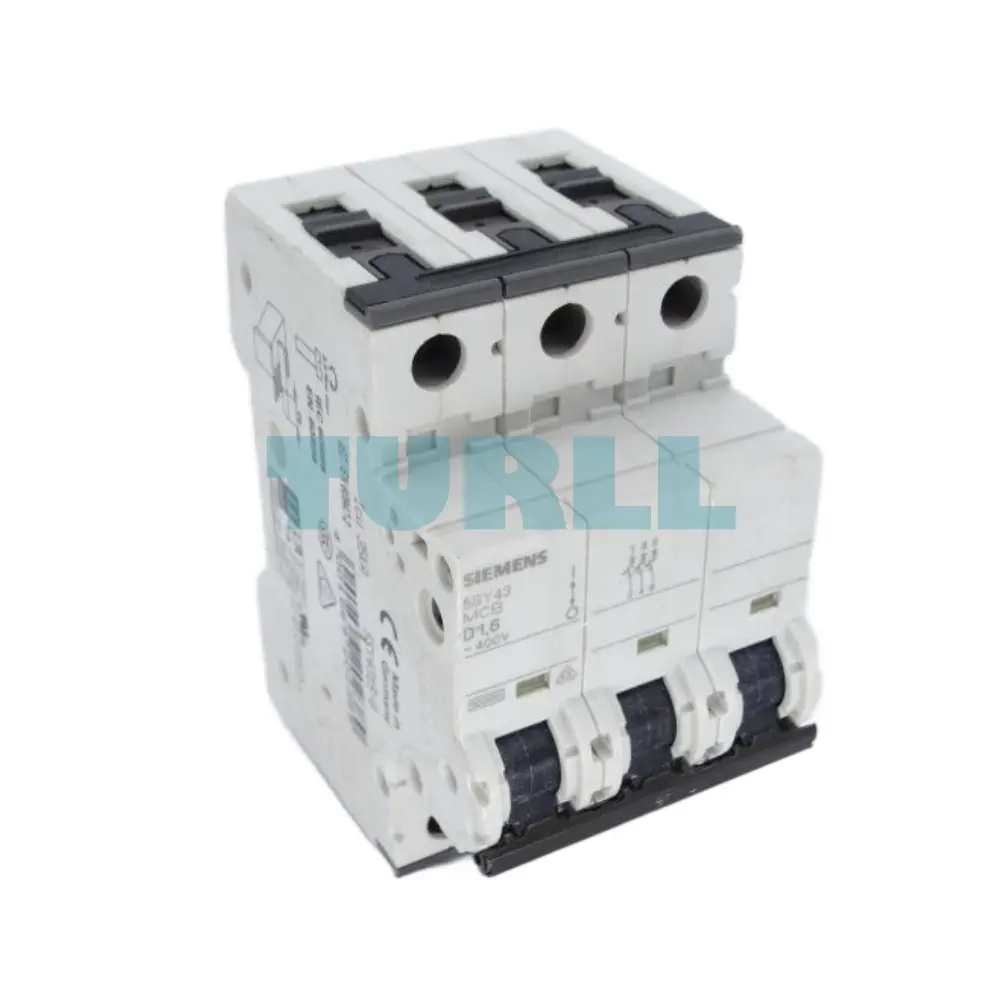

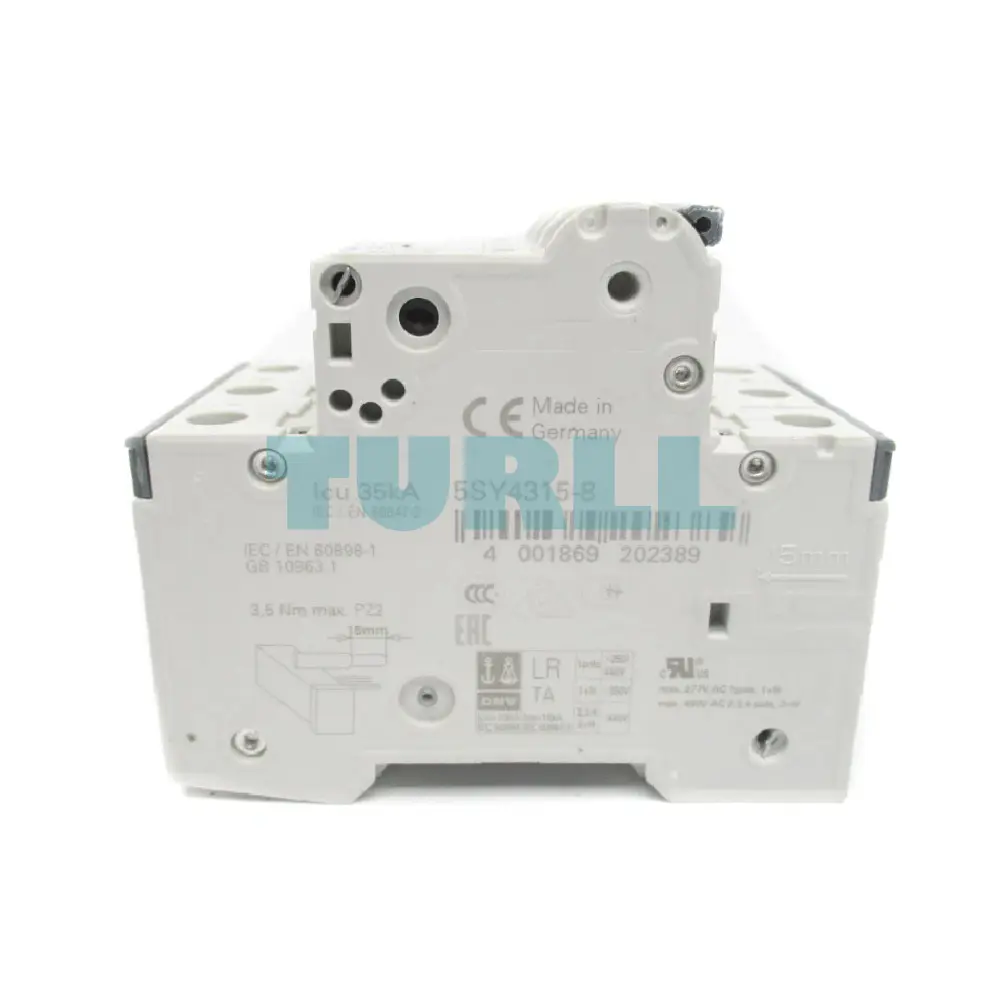

Siemens 5SY4315-8 Miniature Circuit Breaker 3-Pole, 1.6A, 400V, 10kA, Type D Original Brand New
$121.92
High-performance 3-pole miniature circuit breaker designed for superior electrical protection. Featuring a 1.6A current rating and Type D tripping characteristic, this 400V MCB offers a 10kA breaking capacity with a compact 70mm mounting depth.
Availability: In stock
Overview
The Siemens 5SY4315-8 belongs to the world-renowned SENTRON family of circuit protection devices. Engineered for demanding industrial and commercial environments, this miniature circuit breaker (MCB) provides reliable protection against overloads and short circuits. Its Type D tripping characteristic is specifically designed for circuits with high inrush currents, such as motors and transformers.
Key Benefit
-
Enhanced Safety: Provides rapid disconnection in the event of a fault, protecting both personnel and equipment.
-
Durability: Built with high-quality materials to ensure a long operational lifespan even in rigorous industrial settings.
-
Easy Installation: Designed for standard mounting, with a uniform 70mm depth that integrates seamlessly into distribution boards.
-
Global Compliance: Meets international standards for safety and performance (IEC/EN 60898-1 and 60947-2).
Function & Application
The primary function of the 5SY4315-8 is to protect electrical installations from damage caused by excess current.
-
Type D Characteristic: Ideal for inductive loads where high starting currents are present (trips at 10 to 20 times the rated current).
-

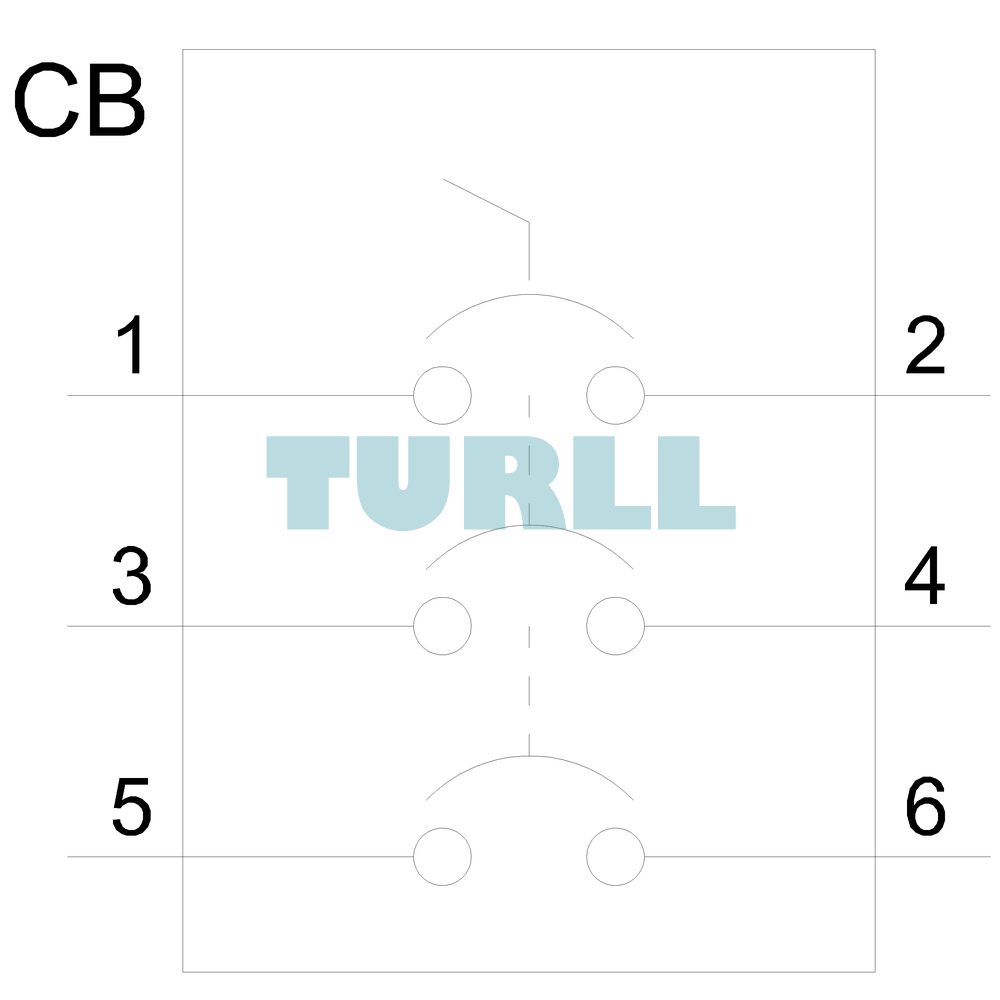

3-Pole Configuration: Ensures simultaneous switching and protection for three-phase AC systems.
-
10kA Interrupting Rating: Capable of safely handling short-circuit currents up to 10,000 Amps.
Visit 5SY4315-8 for more detail info
For more our products visit turll
Download
| Weight | 0.468 kg |
|---|---|
| Dimensions | 58.00 × 94.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 3 |
| design of pole | 3P |
| tripping characteristic class | D |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 35 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1 W |
| operational current | – |
| ● at 35 °C / rated value | 1.6 A |
| ● at 40 °C / rated value | 1.54 A |
| ● at 45 °C / rated value | 1.5 A |
| ● at 50 °C / rated value | 1.47 A |
| ● at 55 °C / rated value | 1.44 A |
| ● at 60 °C / rated value | 1.4 A |
| ● at AC / rated value | 1.6 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 3 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
